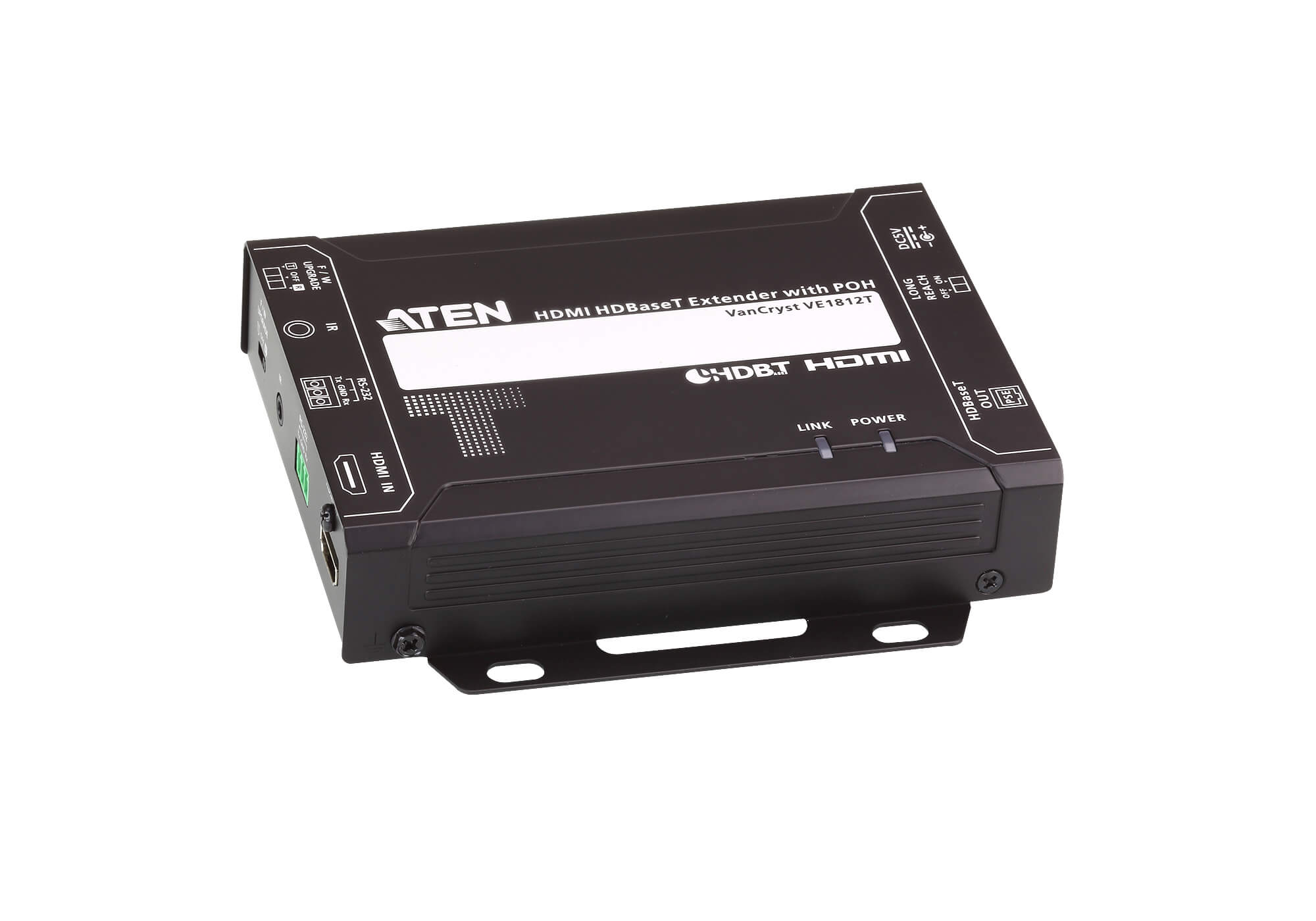

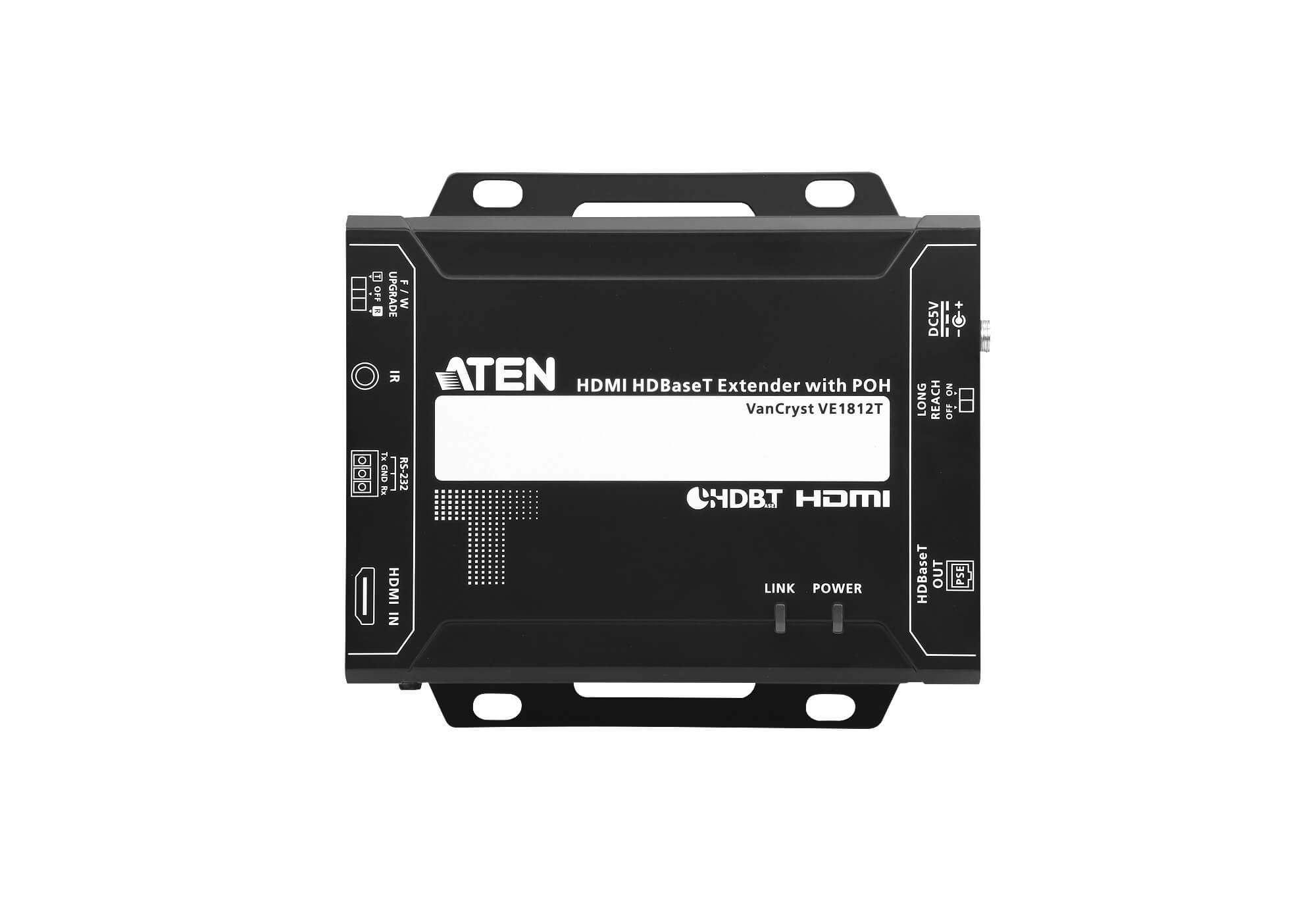

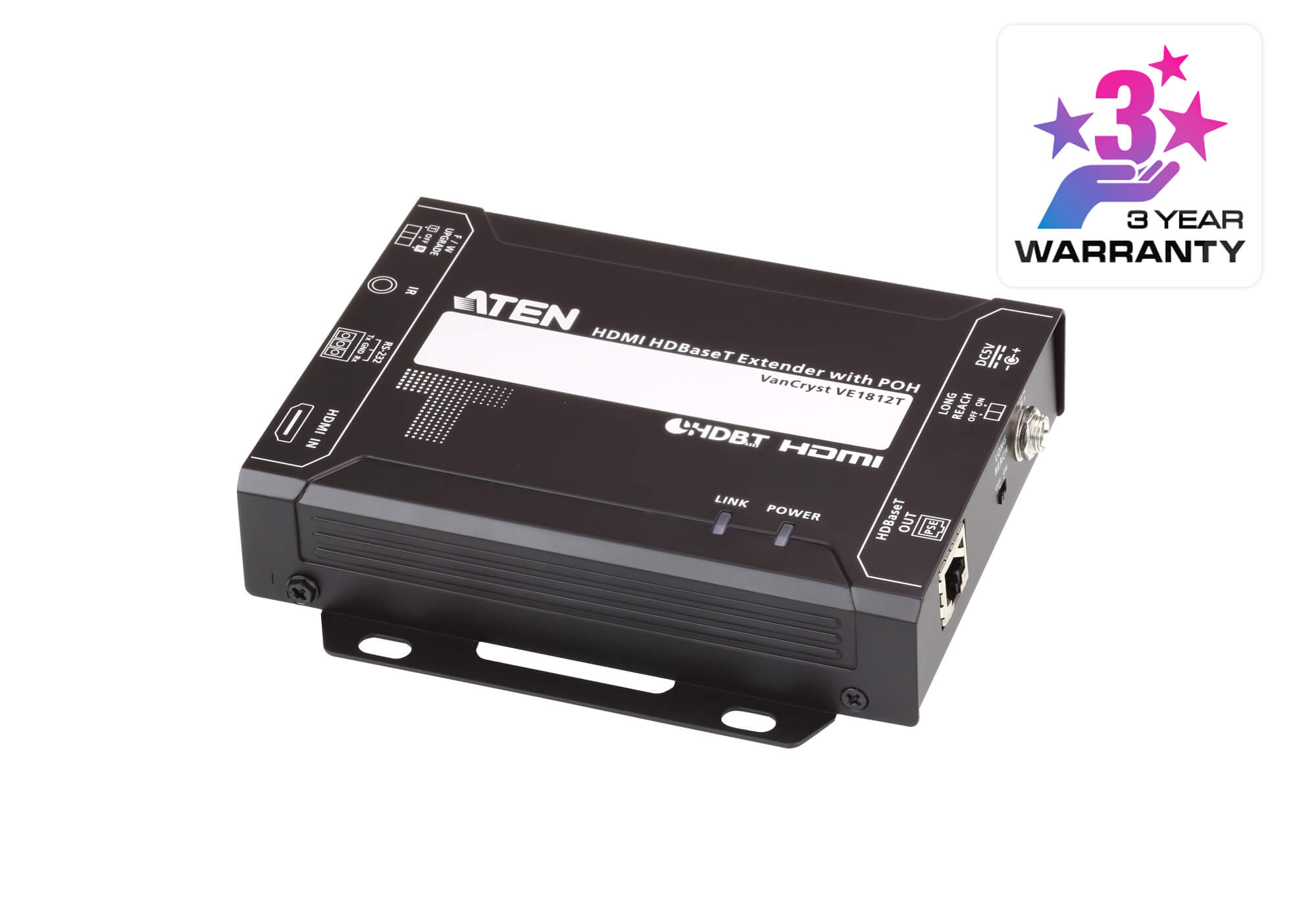

Aten HDMI HDBaseT Transmitter with PoH (4K@100m) (HDBaseT Class A) (PoH PSE) -VE1812T (3 Year Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Aten HDMI HDBaseT Transmitter with PoH (4K@100m) (HDBaseT Class A) (PoH PSE) -VE1812T (3 Year Manufacture Local Warranty In Singapore)

Name: Aten HDMI HDBaseT Transmitter with PoH (4K@100m) (HDBaseT Class A) (PoH PSE) -VE1812T (3 Year Manufacture Local Warranty In Singapore)
Brand: Aten
SKU: VE1812T-AT-E
Price: 428.00 SGD
Availability: InStock

AtenSKU: VE1812T-AT-E

No reviews

Price:

$ 428.00 SGD

Quantity:

Share this product

Aten HDMI HDBaseT Transmitter with PoH (4K@100m) (HDBaseT Class A) (PoH PSE) -VE1812T (3 Year Manufacture Local Warranty In Singapore)

The VE1812T features Power over HDBaseT (PoH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812T supports RS-232 and IR signaling pass-through, allowing users to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812T HDMI HDBaseT Transmitter with PoH is HDMI (3D, Deep Color, 4K) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Package Contents

1x VE1812T HDMI HDBaseT Transmitter with PoH
1x Power Adapter
1x RS-232 Terminal Block
1x User Instructions

Features

HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
Superior video quality:
– 4K up to 100 m over a Cat 6a or ATEN 2L-2910 Cat 6 cable
– 1080p up to 150 m when in HDBaseT Long Reach Mode
HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable

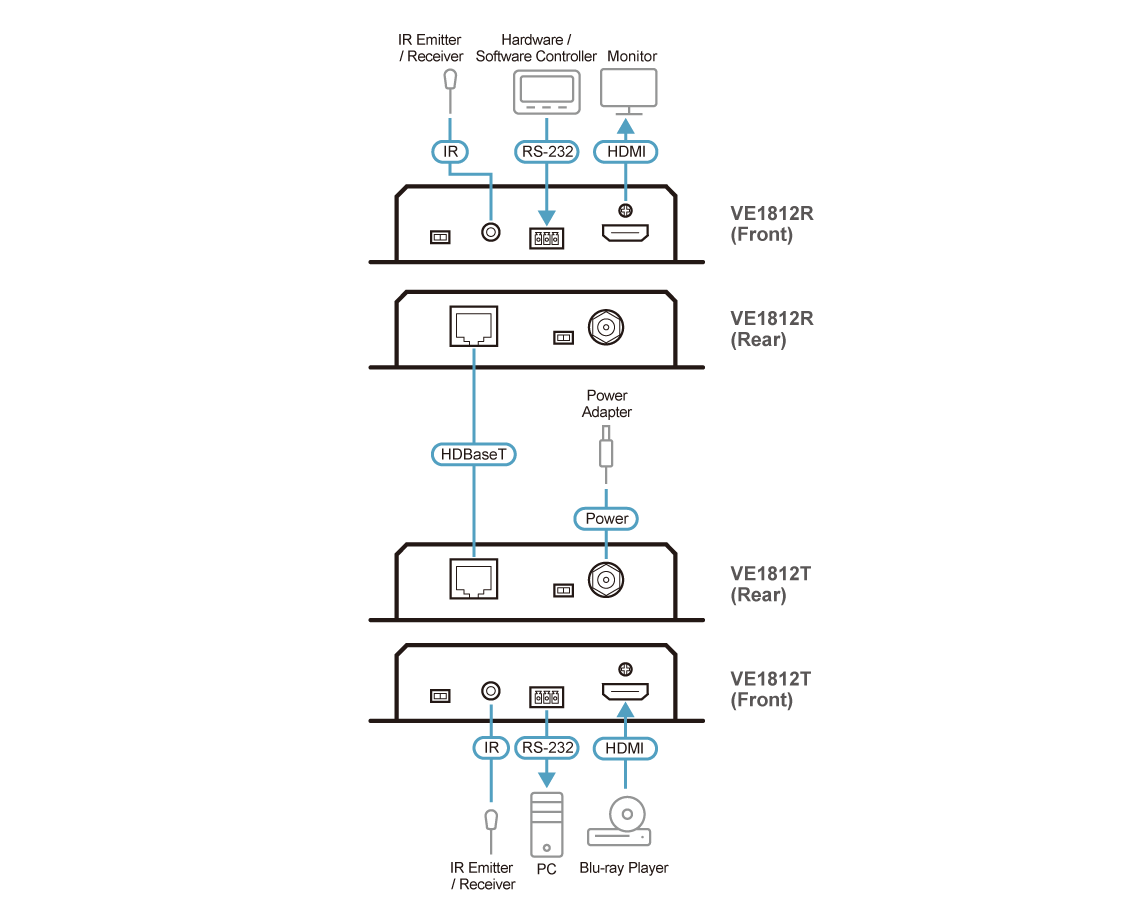

Diagram

Specification

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3 m
Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio

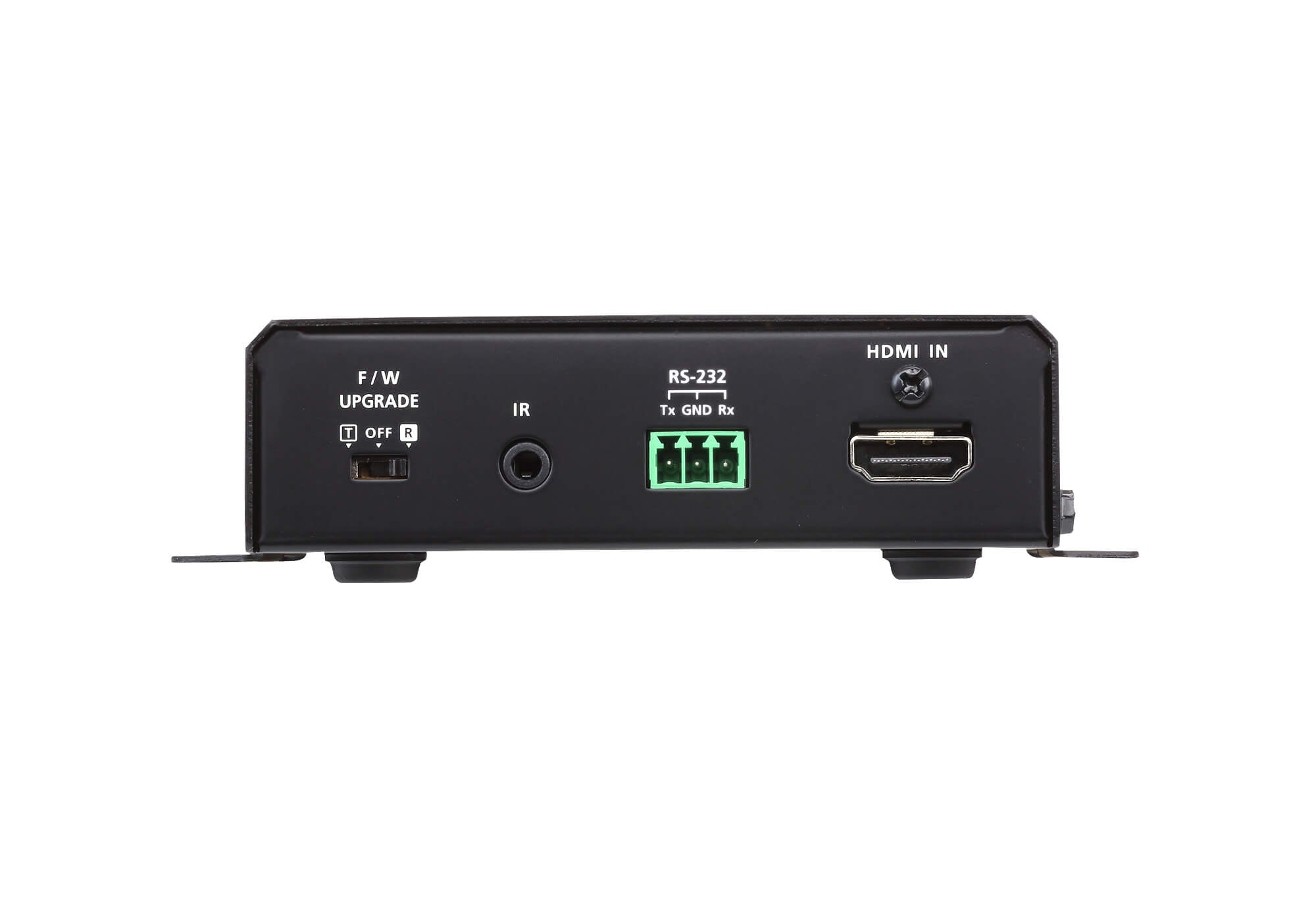

Input	1 x HDMI Type A Female (Black)
Connectors

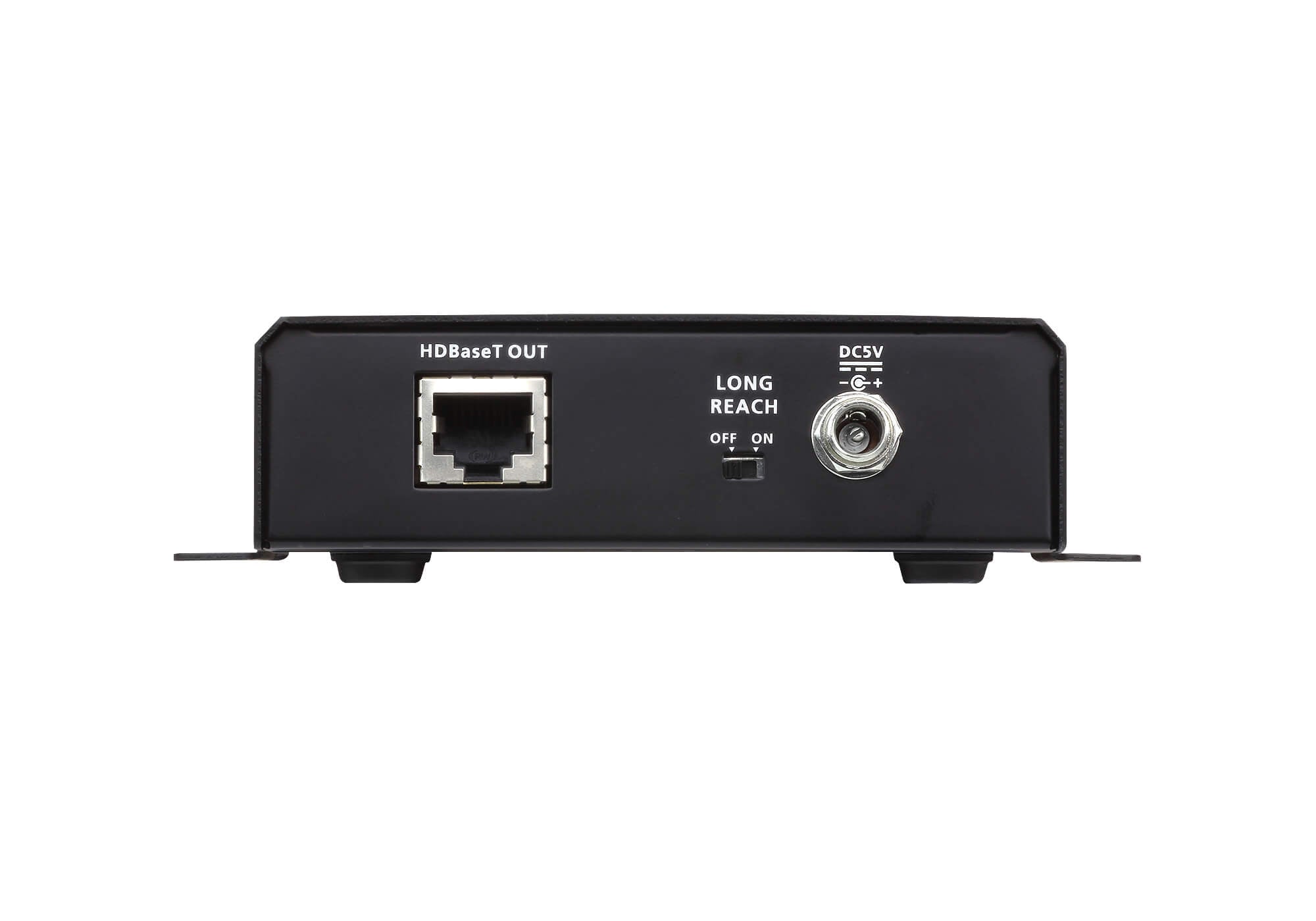

Unit To Unit	1 x RJ-45 Female
Power	1 x DC Jack (Black) with locking
Control
RS-232	Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
IR	1 x Mini Stereo Jack Female (Black)
Switches
Long Reach Mode Switch	1 x Slide Switch - ON/OFF
Firmware Upgrade	1 x Slide Switch - ON/OFF
Power Consumption	DC5V:3.2W:15BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.47 kg ( 1.04 lb )
Dimensions (L x W x H) with bracket	14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket	13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
