Description

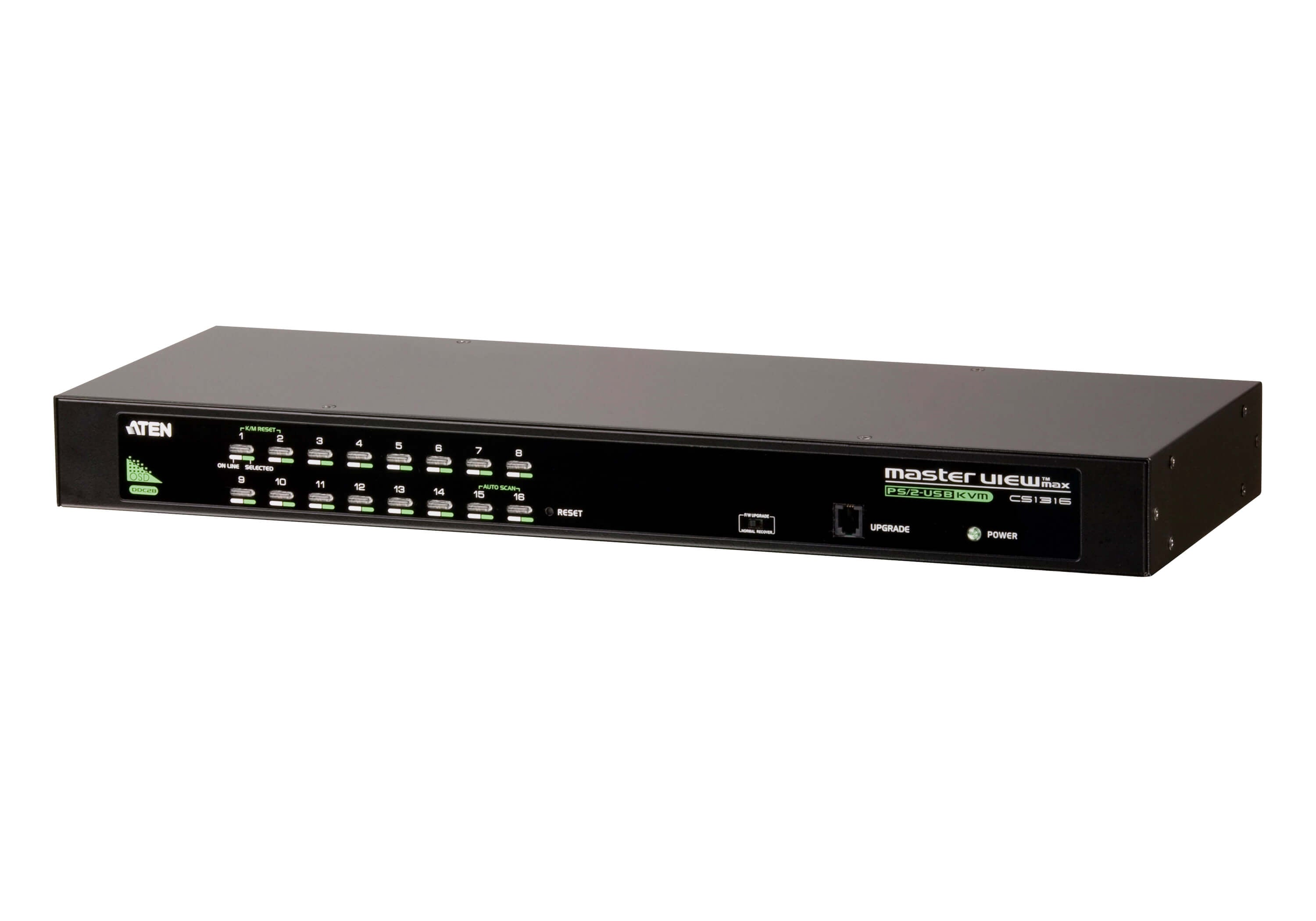

Aten 16-Port PS/2-USB VGA KVM Switch- CS1316 (1 Year Manufacture Local Warranty In Singapore)
The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.
Package Contents
- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x Power Adapter
- 1x User Instructions
Features
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)

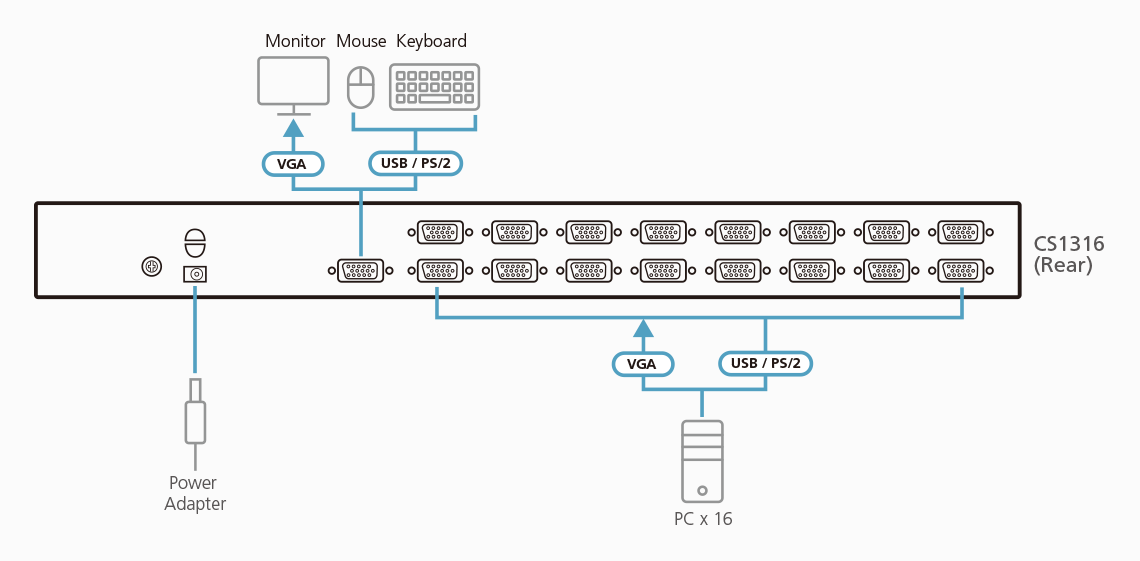

Diagram
Specifications
| Computer Connections | |
| Direct | 16 |
| Maximum | 256 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors | |
| Console Ports | 1 x SPHD-18 Male (Yellow) |
| Firmware Upgrade | 1 x RJ-11 Female (Black) |
| Power | 1 x DC Jack |
| KVM Ports | 16 x SPHD-15 Female (Yellow) |
| Switches | |
| Ports | 16 x Pushbutton |
| Firmware Upgrade | 1 x Slide |
| LEDs | |
| Online | 16 (Orange) |
| Selected | 16 (Green) |
| Power | 1 (Dark Green) |
| Emulation | |
| Keyboard / Mouse | PS/2, USB |
| Video | 2048 x 1536; DDC2B |
| Scan Interval | 1-255 Seconds |
| Power Consumption | DC5.3V:3.83W:26BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0-50˚C |
| Storage Temperature | -20-60˚C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.10 kg ( 4.63 lb ) |
| Dimensions (L x W x H) | 43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.) |
Document
Datasheet
cs1308_16_rack_kvm_switch_ds_en.pdf
User Manual
cs1308-cs1308d-cs1316_um_w_2022-09-01.pdf
Quick Start Guide
