Aten 8-Port USB DVI Single Rail WideScreen LCD KVM Switch- CL6708MW (1 Year Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Aten 8-Port USB DVI Single Rail WideScreen LCD KVM Switch- CL6708MW (1 Year Manufacture Local Warranty In Singapore)

Name: Aten 8-Port USB DVI Single Rail WideScreen LCD KVM Switch- CL6708MW (1 Year Manufacture Local Warranty In Singapore)
Brand: Aten
SKU: CL6708MW-ATA-AE
Price: 2863.00 SGD
Availability: InStock

AtenSKU: CL6708MW-ATA-AE

No reviews

Price:

$ 2,863.00 SGD

Quantity:

Share this product

Aten 8-Port USB DVI Single Rail WideScreen LCD KVM Switch- CL6708MW (1 Year Manufacture Local Warranty In Singapore)

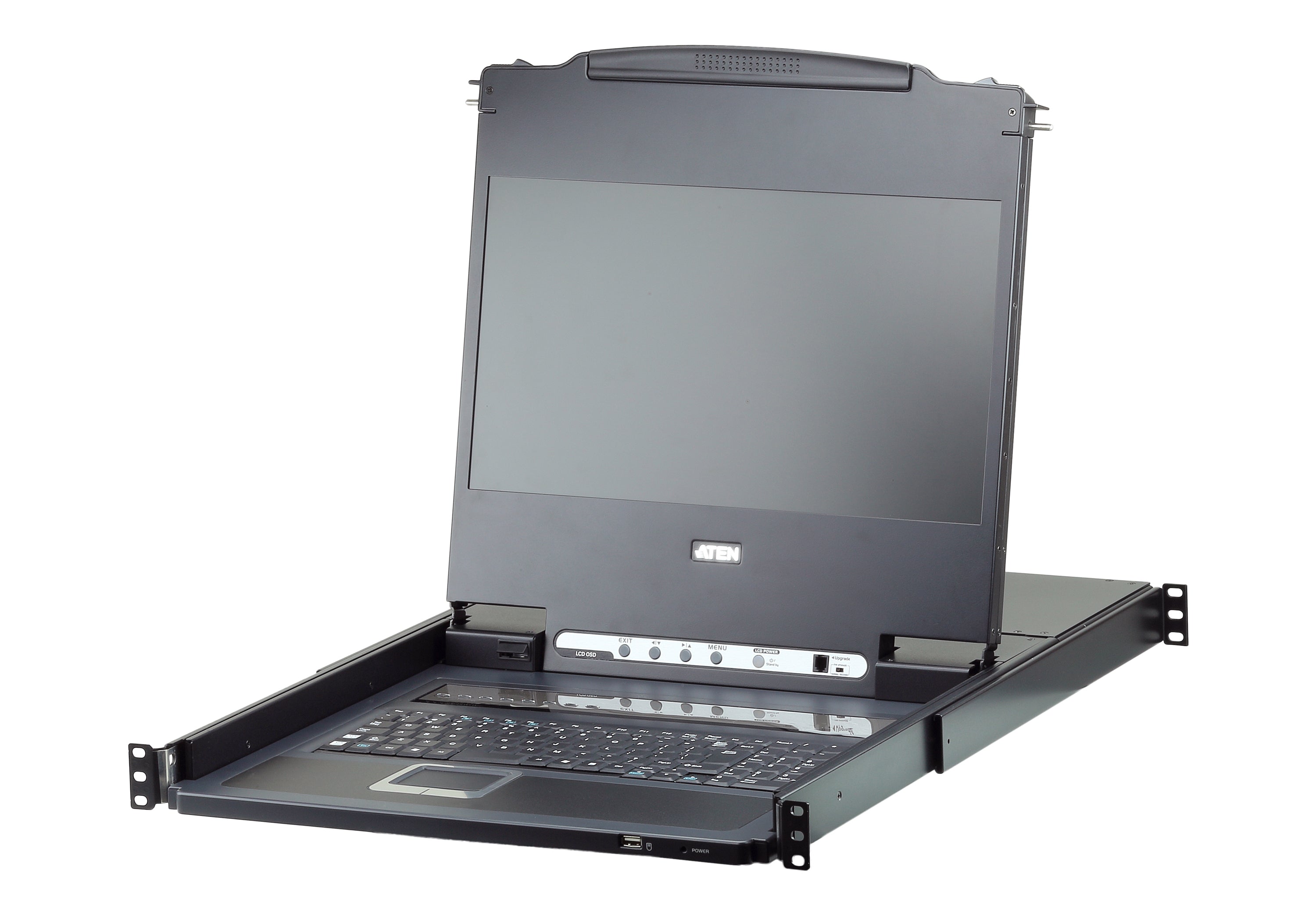

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – integrating an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.

Featuring an integrated 17.3" LED-backlit LCD panel capable of Full HD 1080p video – greater clarity than typical analog interfaces, the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.

To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.

Package Contents

1x CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit
2x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x Power Cord
1x Firmware Upgrade Cable
1x User Instructions

Features

Integrated KVM with a 17.3"widescreen DVI Full HD LCD monitor
Single rail, sliding housing with top and bottom clearance for smooth operation with a 1U rack
Controls 8 Single Link DVI computers
Supports an external console with DVI video port
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches)
Computer selection via the front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
Firmware upgradable
Supports YUV video format for greater compatibility
DVI monitor support – fully compliant with DVI specifi cations
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes responsiveness when switching between ports
Note: Video DynaSync™ only works with digital video sources
HDCP-compatible for hassle-free content-protected media playback
Superior video quality – 1920 x 1080 @ 60 Hz; DDC2B
Audio support for connecting speakers
Auto Scan Mode for monitoring all computers
Multiplatform support – Windows, Linux, Mac, and Sun
Console lock – enables the console drawer to remain securely locked away in position when not in use

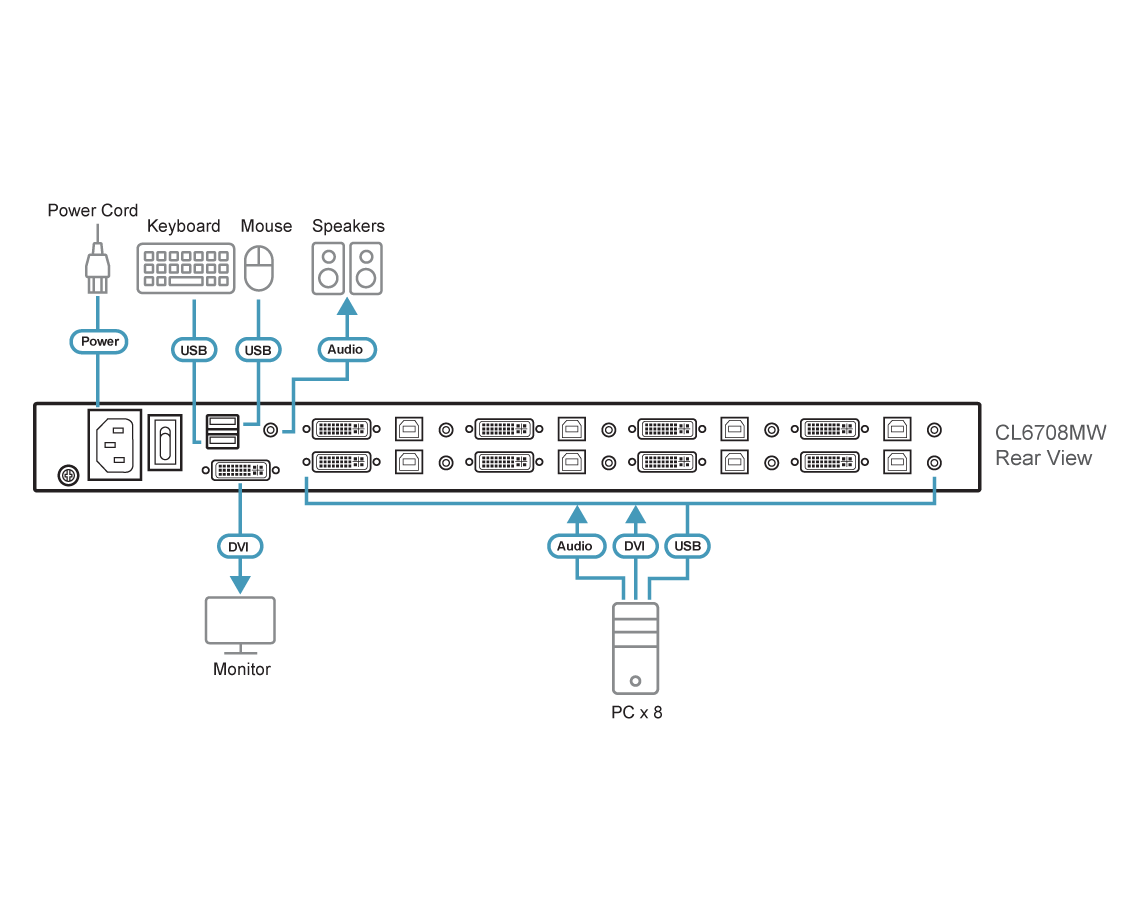

Diagram

Specifications

Function	CL6708MW
Computer Connections
Direct	8
Maximum	64 (via Cascade)
Port Selection	OSD, Hotkey, Pushbutton
Connectors
KVM Ports	8 x DVI-I Female (White) 8 x USB Type B Female 8 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade	1 x RJ-11 Female
Power	1 x IEC 60320/C14
External Console Ports	1 x DVI-I Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral	1 x USB Type A Female (Front)
Switches
Port Selection	8 x Pushbutton
Reset	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch
Power	1 x Rocker Switch
LCD Control	4 x Pushbutton
LCD Power	1 x LED Pushbutton
LEDs
Online	8 (Orange)
Selected	8 (Green)
Power	1 x KVM Power(Dark Green) 1 x LCD Power(Orange)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	17.3" TFT-LCD
Resolution	1920 x 1080 @ 60 Hz
Response time	16 ms
Viewing Angle	170° (H), 170° (V)
Pixel Pitch	0.1989 mm x 0.1989 mm
Support Color	16.77M colors
Contrast Ratio	800:1
Luminance	250 cd/m²
Video
Input Video Resolution	up to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only); 1920 × 1080 @ 60 Hz, DDC2B
Scan Interval	1–255 seconds
Emulation
Keyboard / Mouse	USB
Maximum Input Power Rating	100–240 V AC, 50/60 Hz, 1 A
Power Consumption	AC110V:23.3W:116BTU/h AC220V:23.3W:116BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal + Plastic
Rail Type	Single Rail
Weight	12.70 kg ( 27.97 lb )
Dimensions (L x W x H)	48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
