Aten 4 x 4 HDMI Matrix Switch with Scaler -VM5404H (3 Year Manufacture Local Warranty In Singapore)

AtenSKU: VM5404H-AT-E
No reviews

Price:
Sale price$ 3,023.00 SGD

Description

Aten 4 x 4 HDMI Matrix Switch with Scaler -VM5404H (3 Year Manufacture Local Warranty In Singapore)

The VM5404H 4 x 4 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD.


The VM5404H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.

The VM5404H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.

Package Contents

  • 1x VM5404H 4 x 4 HDMI Matrix Switch with Scaler
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x IR Receiver
  • 1x Mounting Kit
  • 1x User Instructions

Features

  • Connects any of 4 HDMI sources to any of 4 HDMI displays
  • Long Distance Transmission – supports up to 15 m (24 AWG)
  • HDMI (3D, Deep color); HDCP 1.4 compatible
  • Seamless Switch™ – ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching  stable signal transmissions*
  • Video Wall –allows you to create custom video wall layouts via intuitive web GUI *
  • Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
  • EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
  • Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • Features a  high-performance scaler for the best image quality
  • Built-in bi-directional RS-232 serial port for high-end system control
  • Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • ESD protection for HDMI
  • Supports Dolby True HD and DTS HD Master
  • Consumer Electronics Control (CEC) support
  • Supports IR signals for remote control
  • Firmware Upgradeable
  • Rack Mountable (1U design)

    * Note:
    1. If Seamless Switch is enabled, the video output will not display 3D, Deep Color, or interlace (i.e., 1080i) resolution features. To use these features, you must disable Seamless Switch.
    2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

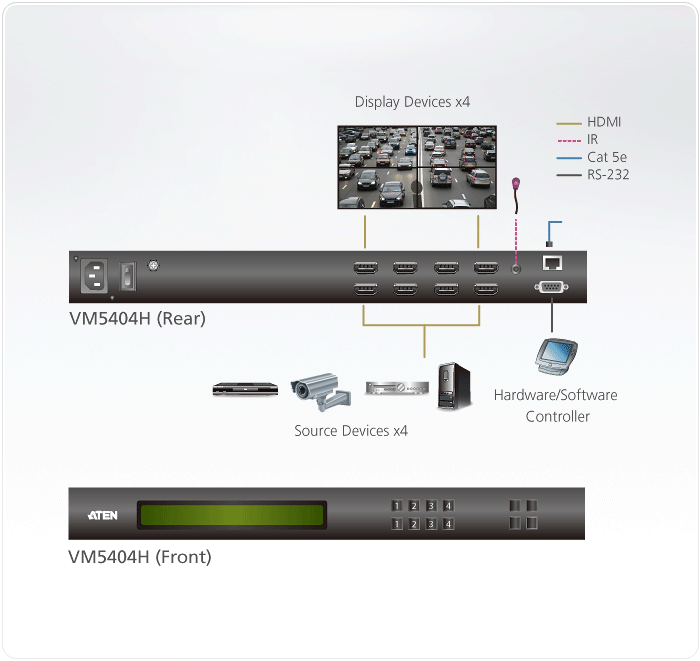

Diagram

Specifications

Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3.0 m
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 15 m
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1080p
Max. Distance Up to 15 m
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power 1 x 3-Prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1.0A
Power Consumption AC110V:34.1W:160BTU/h
AC220V:34.4W:161BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 4.05 kg ( 8.92 lb )
Dimensions (L x W x H) 43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)
Carton Lot 1 pc
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
