Package Contents

• 1x CL5800 Dual Rail LCD PS/2-USB Console with Standard Rack Mount Kit
• 1x Custom KVM Cable (VGA, USB, PS/2; 1.8m/6ft)
• 1x Power Cord
• 1x Firmware Upgrade Cable
• 1x Extension Kit
• 1x User Instructions

Features

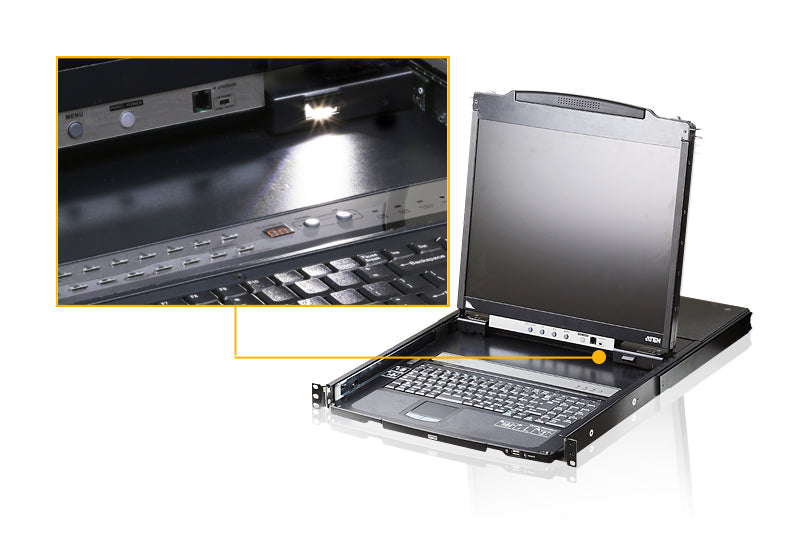

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

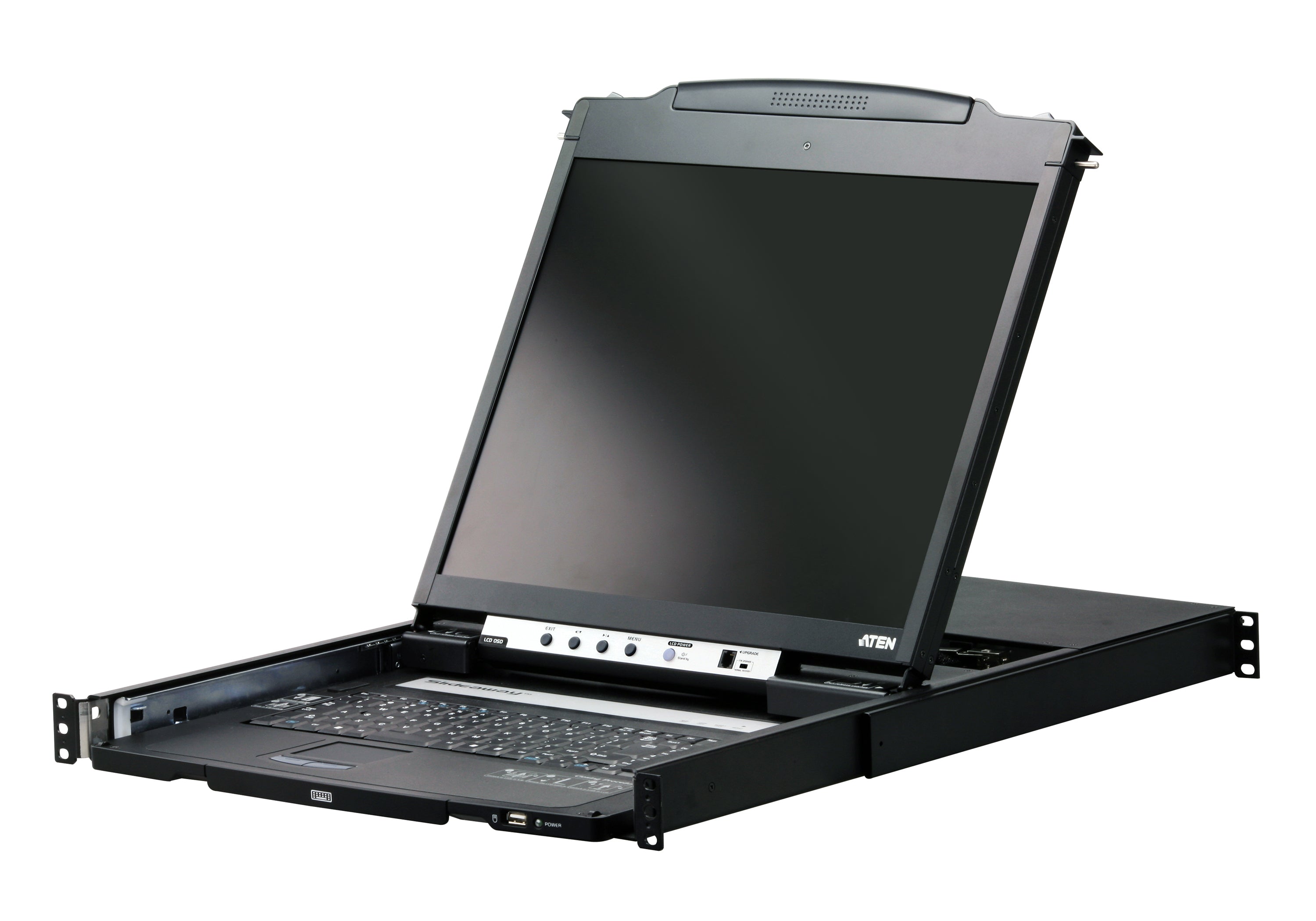

• Integrated KVM console with a 19" LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
\n
• Standard rack mount kit included
\n
• Supports an external console* with either PS/2 or USB connectors
\n
• Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice
\n
• Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
\n
• Embedded power supply
\n
• High video resolution:
  • Up to 1280 x 1024 @75Hz
  • Supports DDC, DDC2, DDC2B
  • DDC emulation of the LCD monitor
  • Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
\n
• Standard 105-key keyboard; Sun keyboard emulation
\n
• Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
\n
• Firmware upgradeable
\n
• Supports Microsoft Intellimouse (5 keys)
\n
• Supports Logitech and Microsoft wireless mice
\n
• Optional rack mount kits available including easy installation options
\n
• Console lock - enables the console drawer to remain securely locked away in position when not in use
  \n
\n

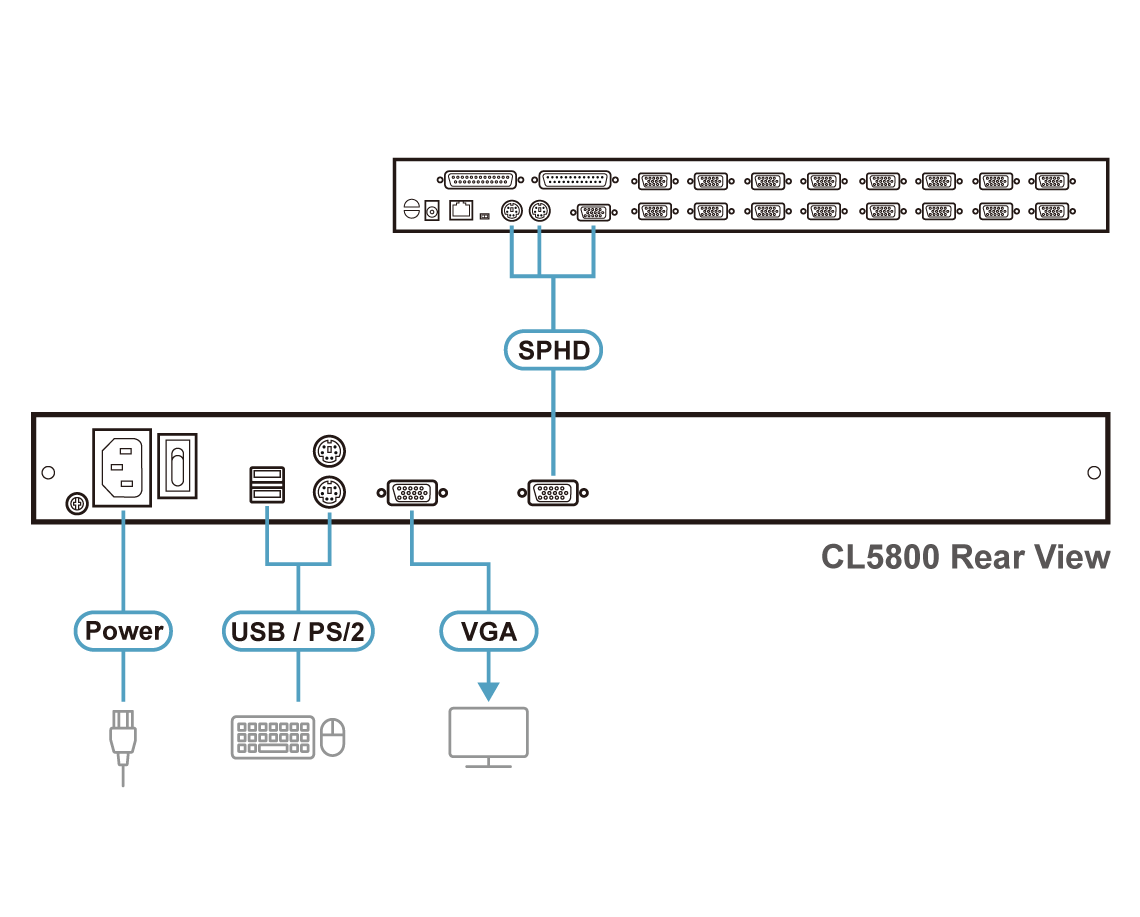

Diagram

Specifications

Document

Datasheet

cl5800_lcd_kvm_switch_ss_en.pdf

User Manual

cl5800_um_w-2021-11-09.pdf

Quick Start Guide

cl5800-LCD-Console-qsg.pdf
