Aten 8-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch- CL3108NX (1 Year Manufacture Local Warranty In Singapore)

AtenSKU: CL3108NX-ATA-AE
No reviews

Price:
Sale price$ 1,774.00 SGD

Description

Aten 8-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch- CL3108NX (1 Year Manufacture Local Warranty In Singapore)

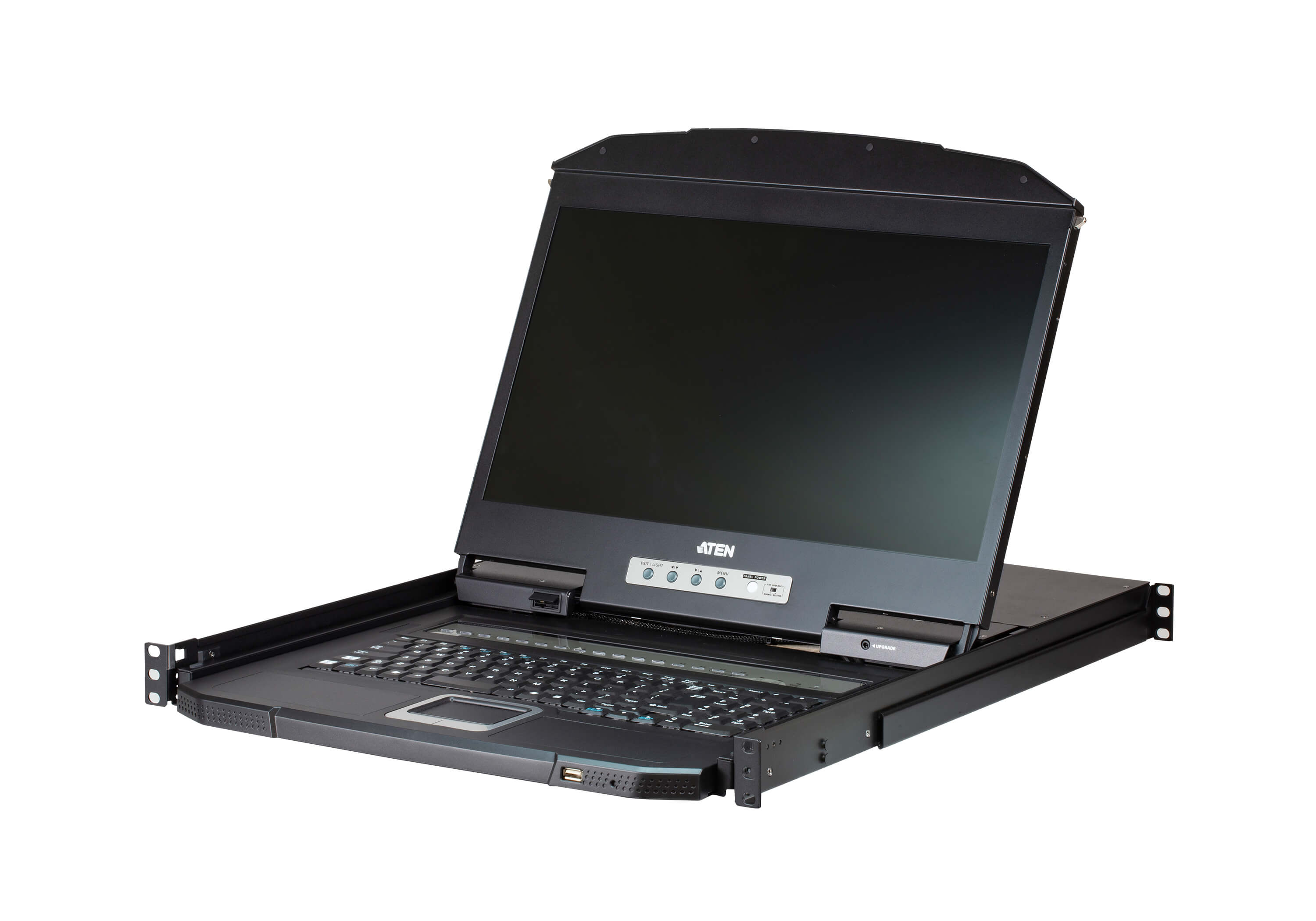

The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3108 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

Package Contents

  • 1x CL3108 LCD KVM Switch with Standard Rack Mounting Kit
  • 2x Custom KVM Cables (VGA, USB; 1.8m/6ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 1x User Instructions

Features

  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Console lock – enables the console drawer to remain securely locked away in position when not in use



  • Reliability and Operational Versatility
    • Superior video quality - up to 1366 x 768 @60Hz; DDC2B
    • Cascade up to 2 levels – CL3108 controls up to 128 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
    • Dual Interface – supports computers with PS/2 or USB keyboards and mice
    • Auto PS/2 and USB interface detection
    • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
    • Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
    • Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
    • Two level password security – only authorized users can view and control computers
    • Auto Scan mode – enables continuous monitoring of user-selected computers
    • Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
    • Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse



  • Installation Flexibility
    • Standard rack mount kit included
    • Optional rack mount kits available including easy installation options*
    • No software required
    • Firmware upgradable
    • Supports hot-plugging

Diagram



Specifications



Function CL3108NX
Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton

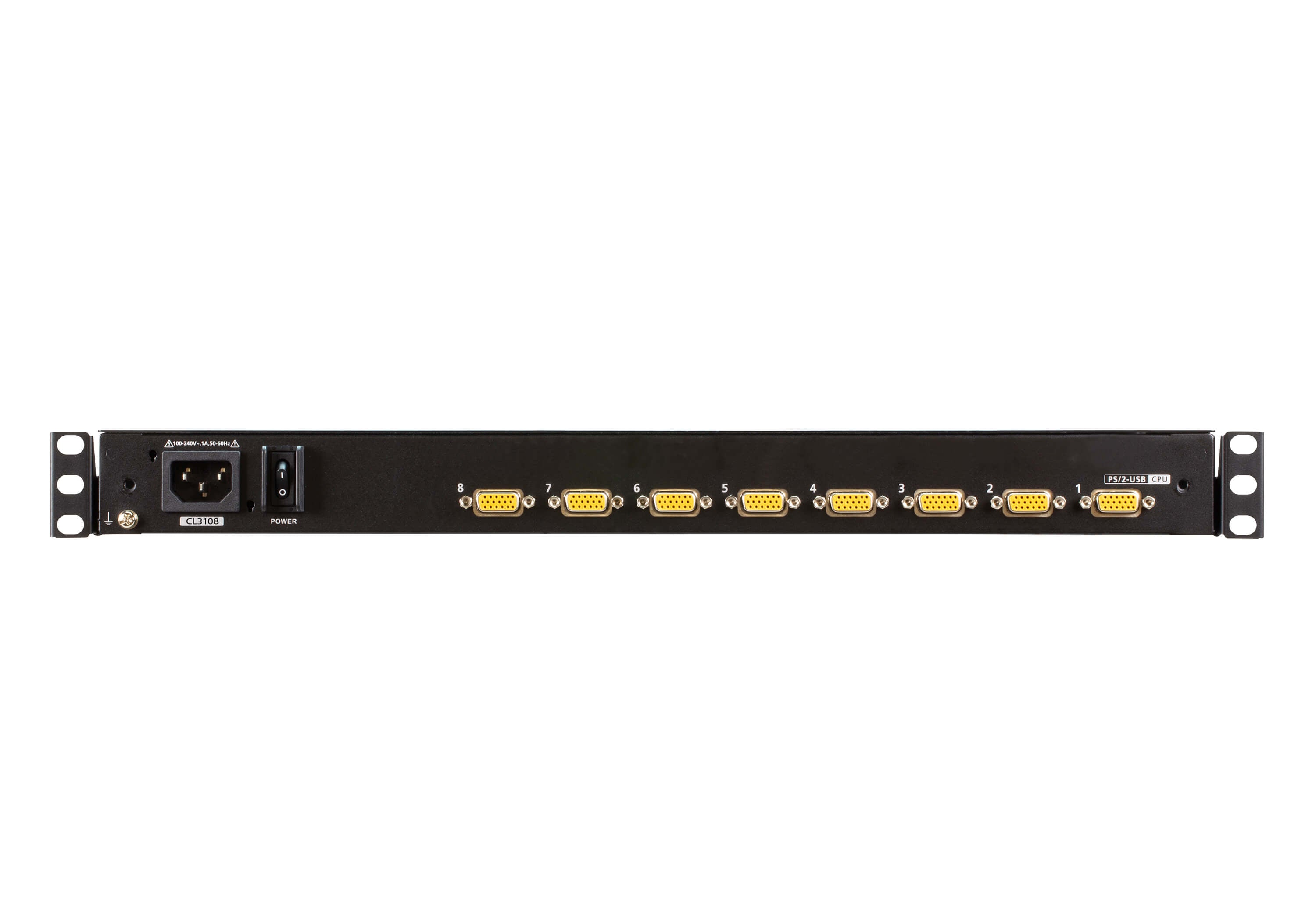

Connectors
KVM Ports 8 x SPHD Female (Yellow)
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black)
Power 1 x IEC 60320/C14
External Mouse Port 1 x USB Type A Female (Front)
Switches
Port Selection 8 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
LEDs
Online 8 (Orange)
Selected 8 (Green)
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 18.5" TFT-LCD
Resolution 1366 x 768 @ 60 Hz
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Pixel Pitch 0.3 mm x 0.3 mm
Support Color 16.7M colors
Contrast Ratio 1000 : 1
Luminance 450 cd/m²
Video
Input Video Resolution up to 1920 × 1200 @ 60 Hz;
1366 × 768 @ 60 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A
Power Consumption AC110V:14.1W:70BTU/h
AC220V:14.9W:74BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.50 kg ( 23.13 lb )
Dimensions (L x W x H) 48.06 x 63.10 x 4.28 cm
(18.92 x 24.84 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
(17.69 x 22.99 x 1.69 in.)


Document

Datasheet

cl3108-3116-8-16-Port-PS-2-USB-VGA-Single-Rail-WideScreen-LCD-KVM-Switch-datasheet-en.pdf

User Manual

cl3108-cl3116-user-manual-w.pdf

Quick Start Guide

cl3108_3116_lcd_kvm_switch_qsg.pdf
