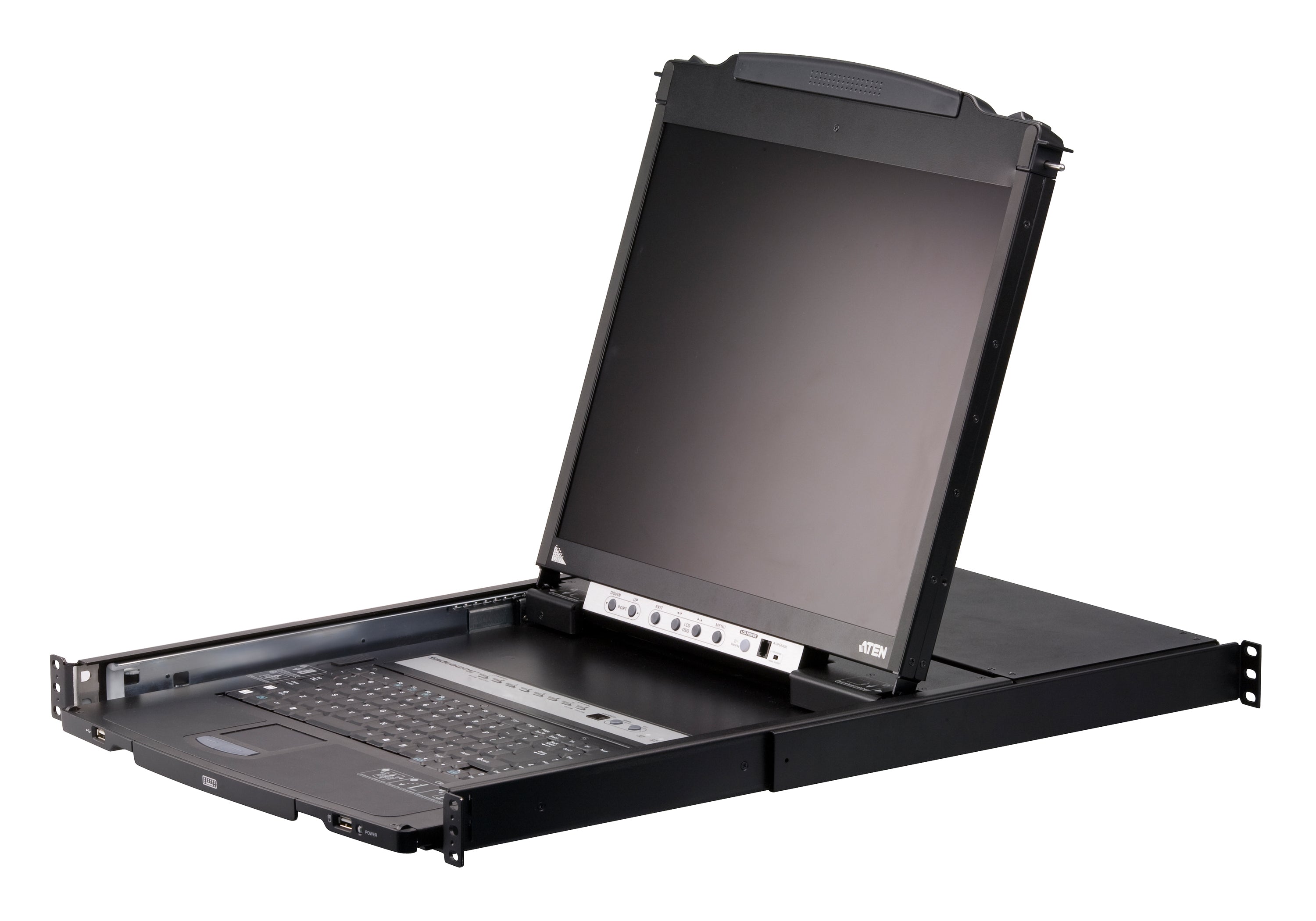

Aten 8-Port PS/2-USB VGA Dual Rail LCD KVM Switch- CL5808N (1 Year Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Aten 8-Port PS/2-USB VGA Dual Rail LCD KVM Switch- CL5808N (1 Year Manufacture Local Warranty In Singapore)

Name: Aten 8-Port PS/2-USB VGA Dual Rail LCD KVM Switch- CL5808N (1 Year Manufacture Local Warranty In Singapore)
Brand: Aten
SKU: CL5808N-ATA-AE
Price: 2030.00 SGD
Availability: InStock

AtenSKU: CL5808N-ATA-AE

No reviews

Price:

$ 2,030.00 SGD

Quantity:

Share this product

Aten 8-Port PS/2-USB VGA Dual Rail LCD KVM Switch- CL5808N (1 Year Manufacture Local Warranty In Singapore)

The CL5808 Slideaway™ Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.

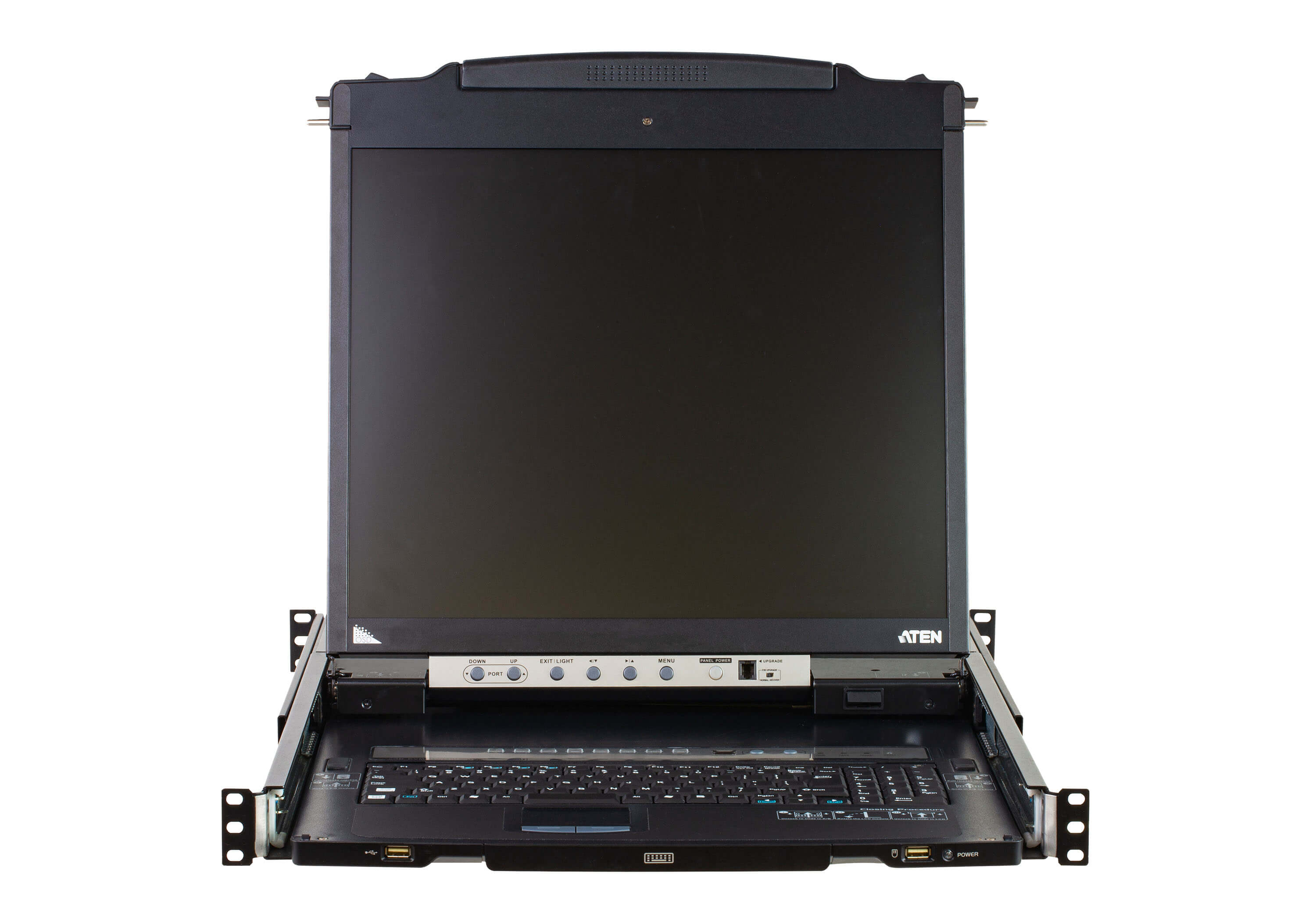

The CL5808 19" LED-backlit LCD monitor and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection pushbutton switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down pushbuttons located on the monitor module.
The CL5808 supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5808 supports USB peripheral devices to be used with the attached computers. A single CL5808 can control up to 8 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 256 computers can all be controlled from a single keyboard, monitor, and mouse console.

CL5808N: 19" LCD

Package Contents

1x CL5808 KVM Switch with Standard Rack Mounting Kit
2x Custom KVM Cable (VGA, USB, PS/2; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Power Cord
1x Extension Kit
1x User Instructions

Features

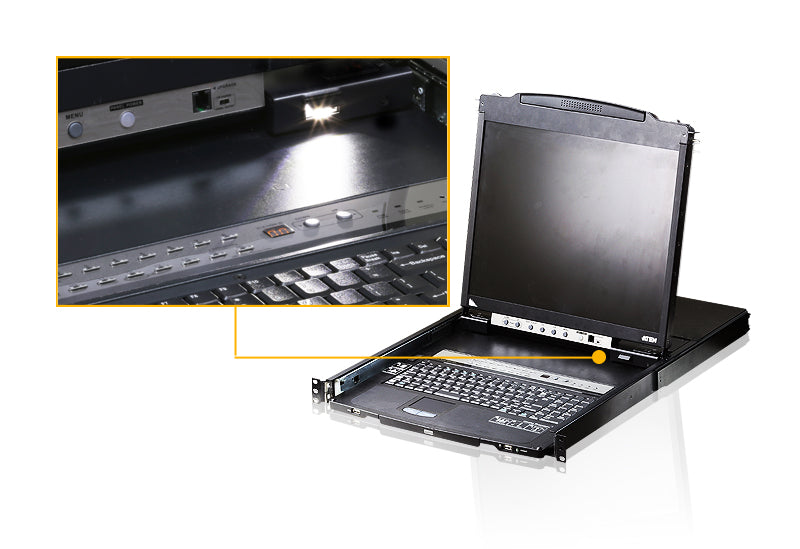

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 19" LED-backlit LCD in a Dual Rail housing
Space saving technology - up to two consoles (one bus) control up to 8 computers
Daisy-chain up to 31 additional units*– control up to 256 computers from two consoles (one bus)
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console Lock - enables the console drawer to remain securely locked away in position when not in use
Multiplatform support - Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for Windows, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
*With compatible KVM Switches:ACS1208A, ACS1216A,CS1708A,CS1716A
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
LCD power button helps save energy and prolong display's life
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Beeper on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
Optional rack mount kits available including easy installation options
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Diagram

Specifications

Function	CL5808N
Computer Connections
Direct	8
Maximum	256 (via Daisy-chain)
Port Selection	OSD, Hotkey, Pushbutton

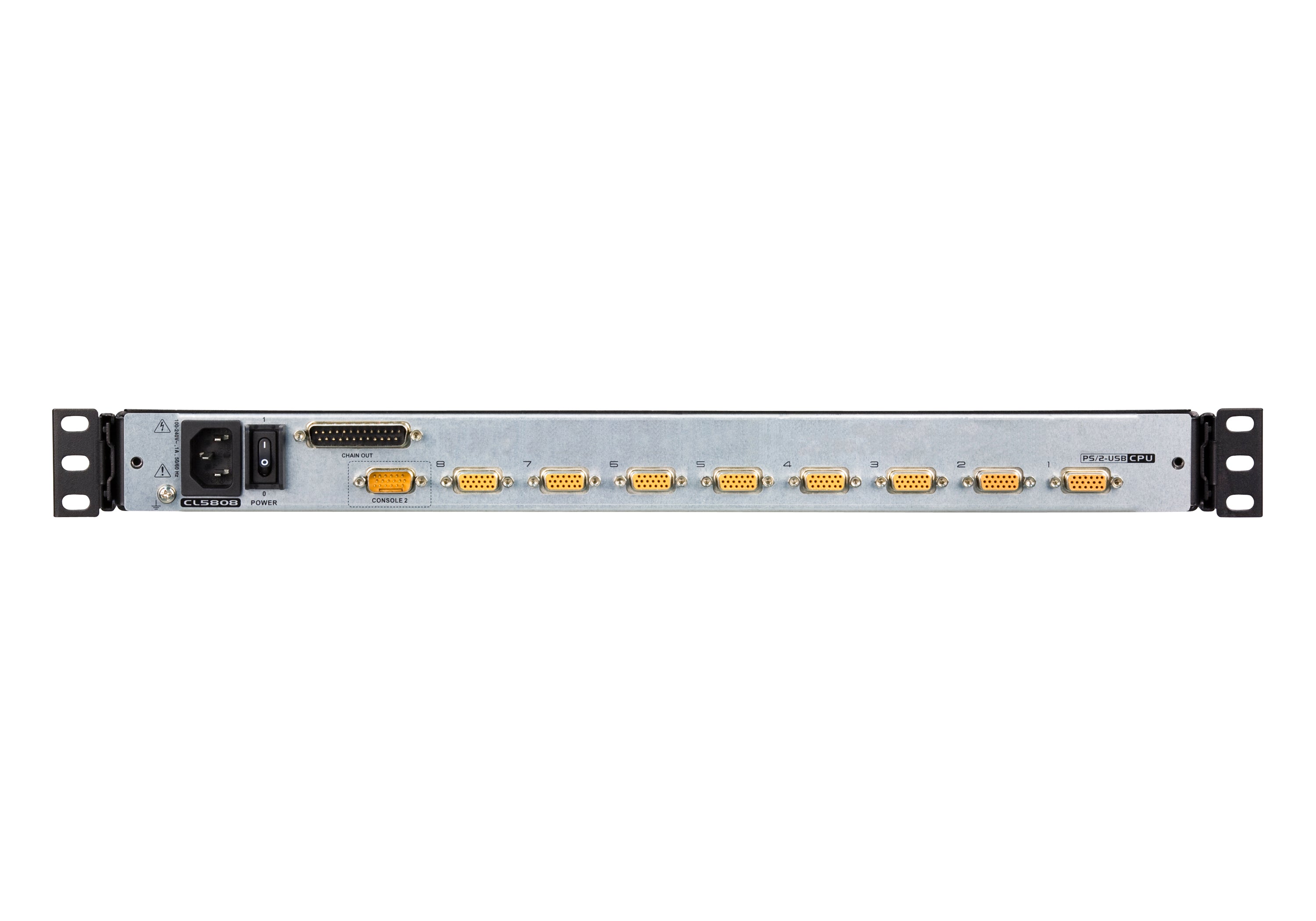

Connectors
KVM Ports	8 x SPHD Female (Yellow)
Daisy Chain Ports	1 x DB-25 Male
Firmware Upgrade	1 x RJ-11 Female
Power	1 x IEC 60320/C14
External Console Ports	1 x SPHD Male (Yellow)
External Mouse Port	1 x USB Type A Female (Front)
USB Port	1 x USB Type A Female (Front)
Switches
Port Selection	2 x Pushbutton (LCD) 8 x Pushbutton (Keyboard)
Station Selection	2 x Pushbutton
Reset	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch
Power	1 x Rocker Switch
LCD Control	4 x Pushbutton
LCD Power	1 x LED Pushbutton
LEDs
Online	8 (Orange)
Selected	8 (Green)
Station ID	2 x 7-segment LED Display (Orange)
Power	1 (Dark Green)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	19" TFT-LCD
Resolution	1280 x 1024 @ 75 Hz
Response time	5 ms
Viewing Angle	170° (H), 160° (V)
Pixel Pitch	0.294 mm x 0.294 mm
Support Color	16.77M colors
Contrast Ratio	1000:1
Luminance	250 cd/m²
Video
Input Video Resolution	up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B
Scan Interval	1–255 seconds
Emulation
Keyboard / Mouse	PS/2, USB
Maximum Input Power Rating	100–240V AC, 50/60Hz, 1A
Power Consumption	AC110V:25.2W:129BTU/h AC220V:27.2W:138BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal + Plastic
Rail Type	Dual Rail
Weight	14.48 kg ( 31.89 lb )
Dimensions (L x W x H)	48.00 x 68.04 x 4.40 cm (18.9 x 26.79 x 1.73 in.)
