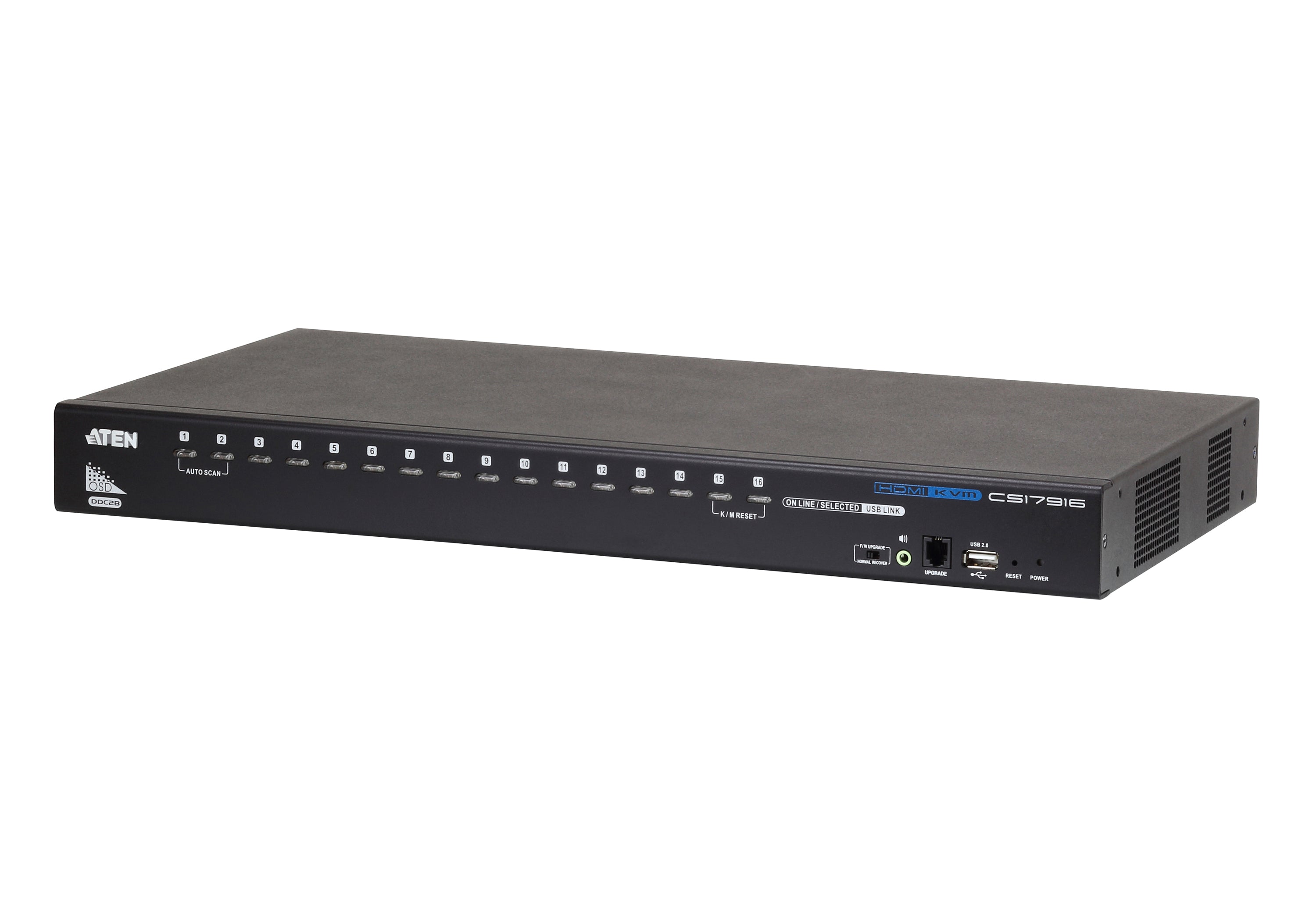

Aten 16-Port USB HDMI/Audio KVM Switch- CS17916 (1 Year Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Aten 16-Port USB HDMI/Audio KVM Switch- CS17916 (1 Year Manufacture Local Warranty In Singapore)

Name: Aten 16-Port USB HDMI/Audio KVM Switch- CS17916 (1 Year Manufacture Local Warranty In Singapore)
Brand: Aten
SKU: CS17916-AT-E
Price: 1926.00 SGD
Availability: InStock

AtenSKU: CS17916-AT-E

No reviews

Price:

$ 1,926.00 SGD

Quantity:

Share this product

Aten 16-Port USB HDMI/Audio KVM Switch- CS17916 (1 Year Manufacture Local Warranty In Singapore)

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console.

In addition, the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.

The CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

Package Contents

1x 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions

Features

One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
HDMI compatible
Cascadable to two levels–control up to 256 computers¹
Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
2-port USB 2.0 hub built in²

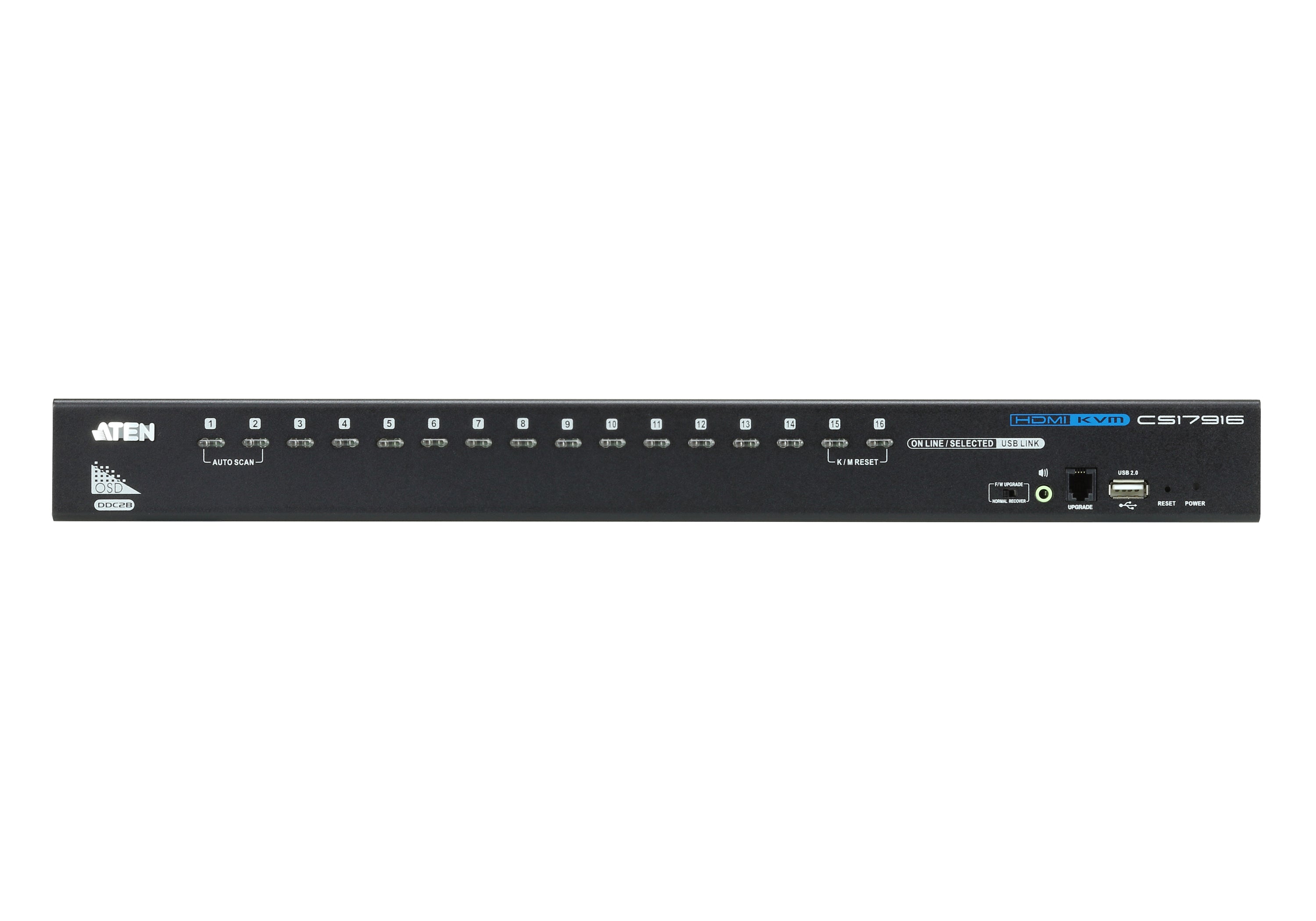

Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
Independent switching of KVM and USB focus
OSD Backup/Restore feature–enables the administrator to back up the switch’s configuration and user profile information
Firmware upgradable
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Superior video quality–supports up to 1080p / 1920 x 1200@60Hz³
Supports widescreen resolutions
Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems
Console audio ports on front panel for easy access
Auto Scan Mode for monitoring all computers
HDCP compatible
Multiplatform support–Windows, Linux, Mac, Sun⁴
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation⁵
Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
Supports hot-plugging

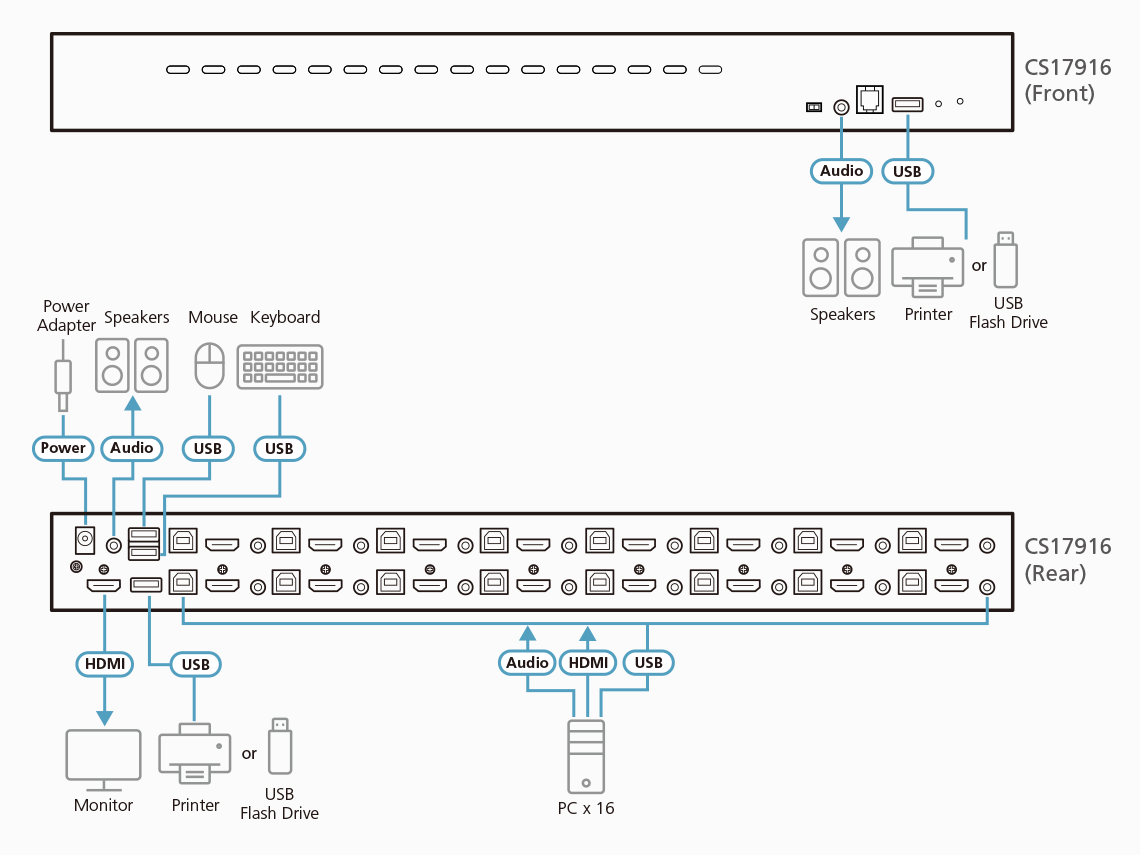

Diagram

Specifications

Computer Connections
Direct	16
Maximum	256 (via Cascade)
Port Selection	OSD, Hotkey, Pushbutton
Connectors
Console Ports	1 x HDMI Female 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)

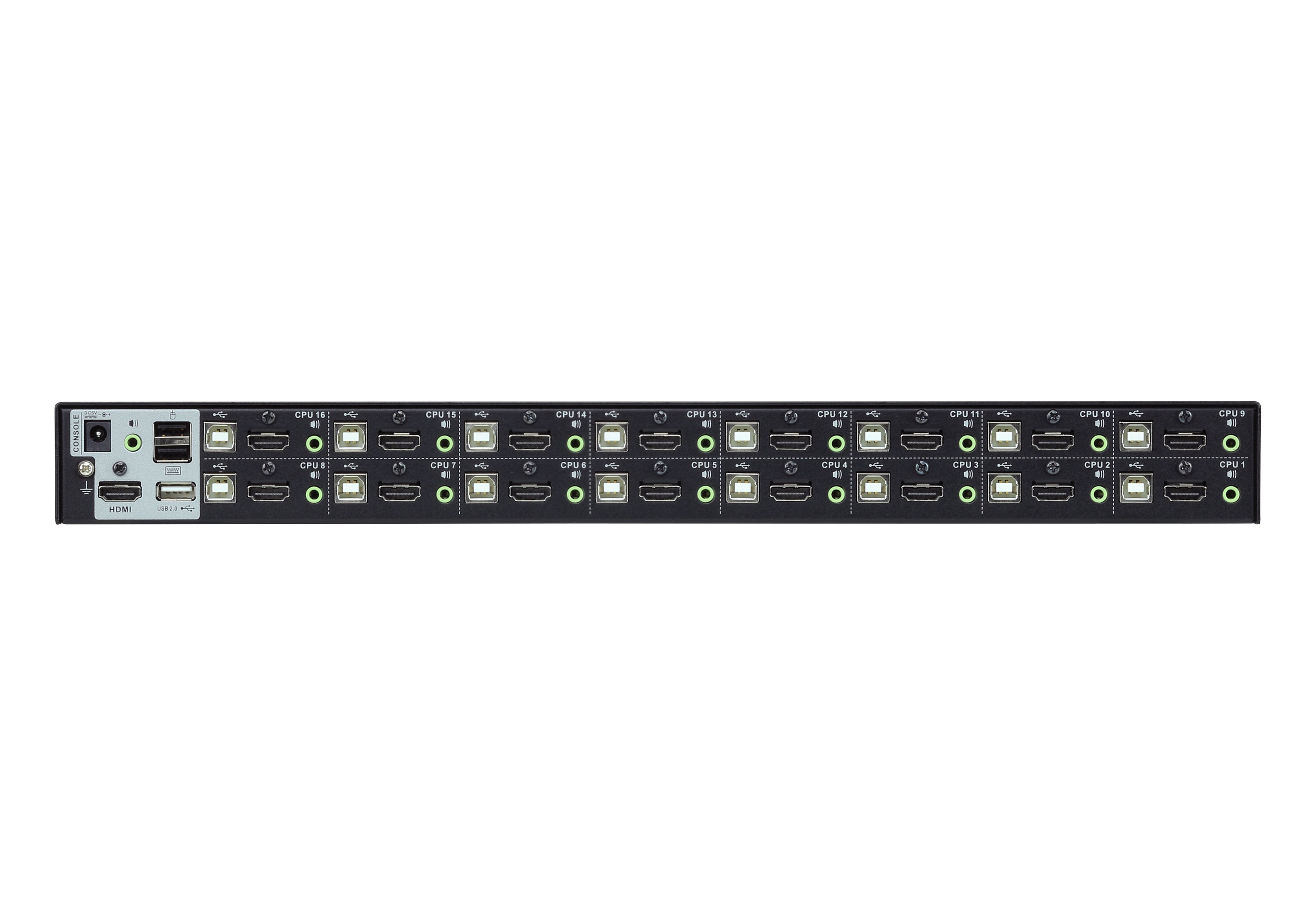

KVM Ports	16 x HDMI Female 16 x USB Type B Female 16 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade	1 x RJ11 Female
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (1 x front panel, 1 x rear panel)
Switches
Port Selection	16 x Pushbutton
Reset	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch
LEDs
USB Link	16 (Green)
Power	1 (Dark Green)
On Line /Selected	16 (Orange)
Emulation
Keyboard / Mouse	USB
Video	1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz
Scan Interval	1 – 255 seconds (default: 5 sec.)
Power Consumption	DC5V:9.18W:69BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 – 50°C
Storage Temperature	-20 – 60°C
Humidity	0 – 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	3.86 kg ( 8.5 lb )
Dimensions (L x W x H)	43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.)
