Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH (PoH PD) -VE1801AEUT (3 Year Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH (PoH PD) -VE1801AEUT (3 Year Manufacture Local Warranty In Singapore)

Name: Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH (PoH PD) -VE1801AEUT (3 Year Manufacture Local Warranty In Singapore)
Brand: Aten
SKU: VE1801AEUT-AT-E
Price: 298.00 SGD
Availability: InStock

AtenSKU: VE1801AEUT-AT-E

No reviews

Price:

$ 298.00 SGD

Quantity:

Share this product

Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH (PoH PD) -VE1801AEUT (3 Year Manufacture Local Warranty In Singapore)

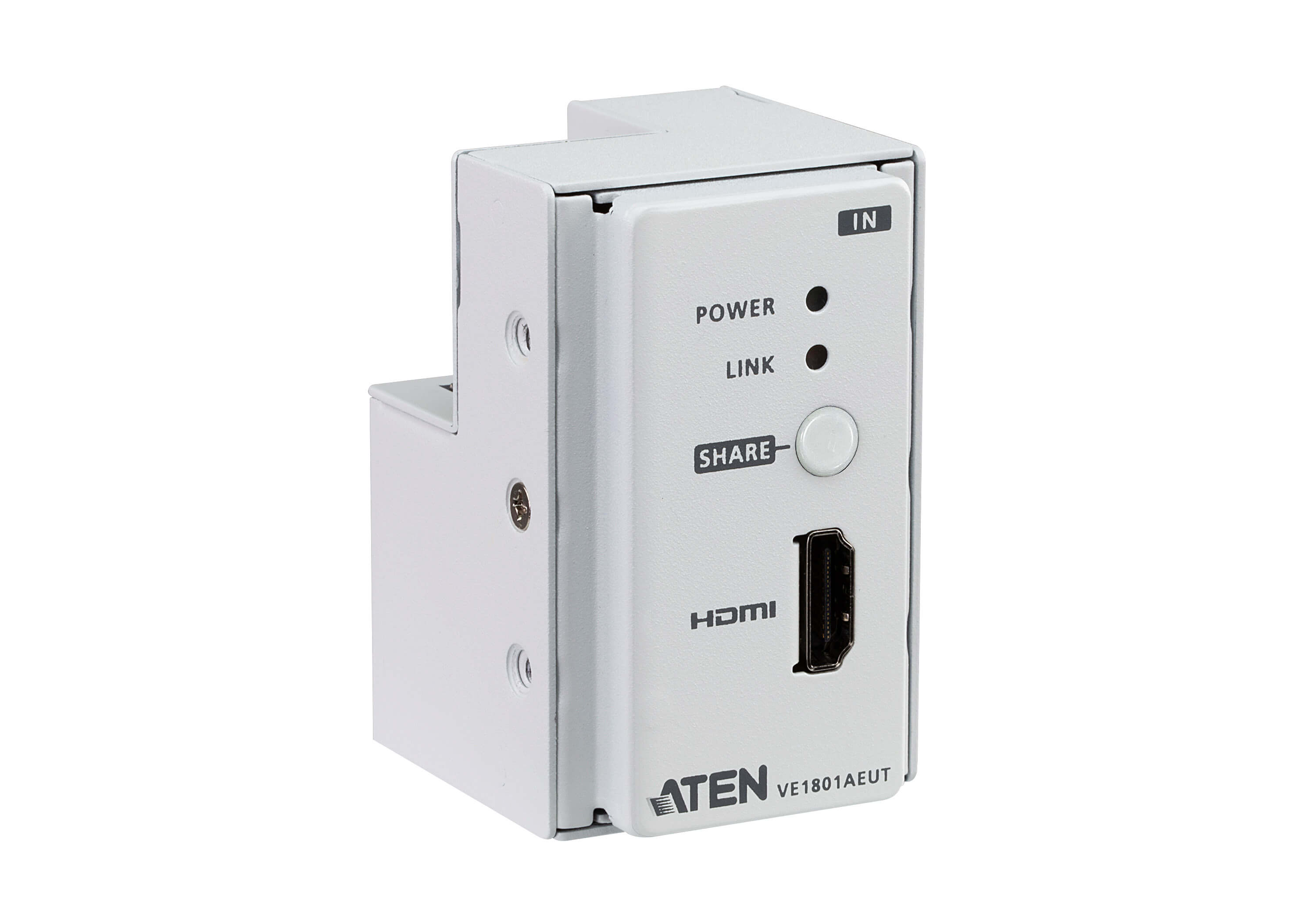

The ATEN VE1801AEUT HDMI HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize HDMI signal transmission with support of 3D, Deep color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.

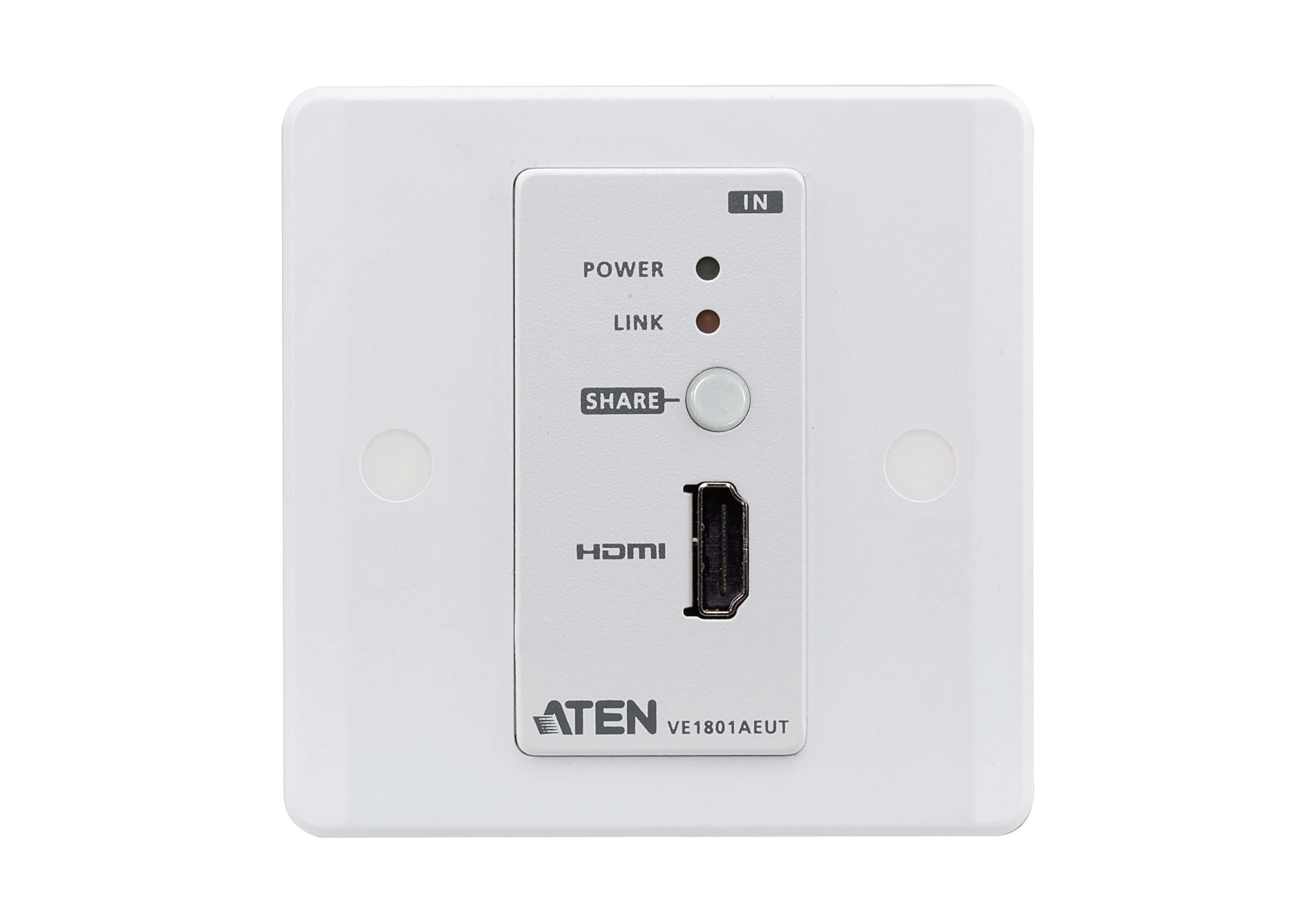

The VE1801AEUT can be easily mounted in a 1-gang junction box with EU wall plate, concealing bulky cable setups and presenting needed information in sight. In addition, with built-in PoH (Power over HDBaseT) function, the VE1801AEUT receives power supply from a connected PoH PSE supported receiver and streamlines complex power line deployment.

Expanding on previous models by the share function, the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1801AEUT is ideal for use in meeting rooms, digital educational environments or any application requiring stable high-quality transmission and effortless installation.

Package Contents

1x VE1801AEUT HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH
1x 5-pin terminal block
1x rubber pad set (4 pcs)
1x faceplate
2x pan head screws
4x PF screws
1x power adapter
1x user instructions

Features

Extends HDMI signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
• 4K up to 40 m
• 1080p up to 70 m
Built-in PoH (Power over HDBaseT) function – the VE1801AEUT receives power supply from the HDBaseT output port
HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
Designed to mount in a 1-gang junction box with EU wall plate
Supports RS-232 channel transmission
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Share function – the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421
LED indication of device status
Supports wide screen format
Built-in 8KV / 15KV ESD protection
Plug-and-play

Diagram

Specification

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100Ω
Max. Distance	3 m
Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	1 x HDMI Type A Female (Black)
Control

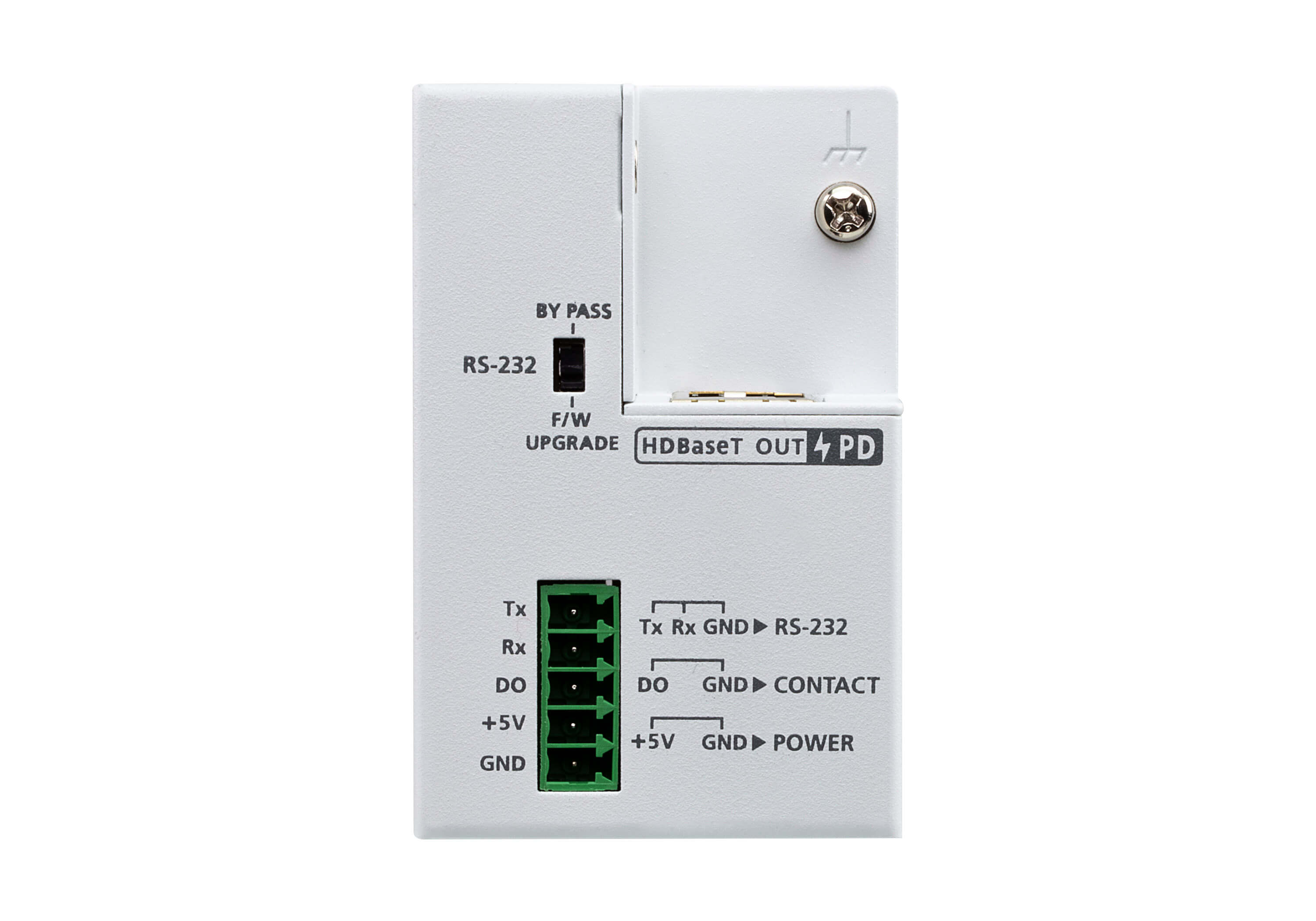

RS-232 Channel	1 x Terminal Block (3 pole, TX/RX/GND, Green)
Contact Out	1 x Terminal Block (2 pole, DO/GND, Green)
Connectors

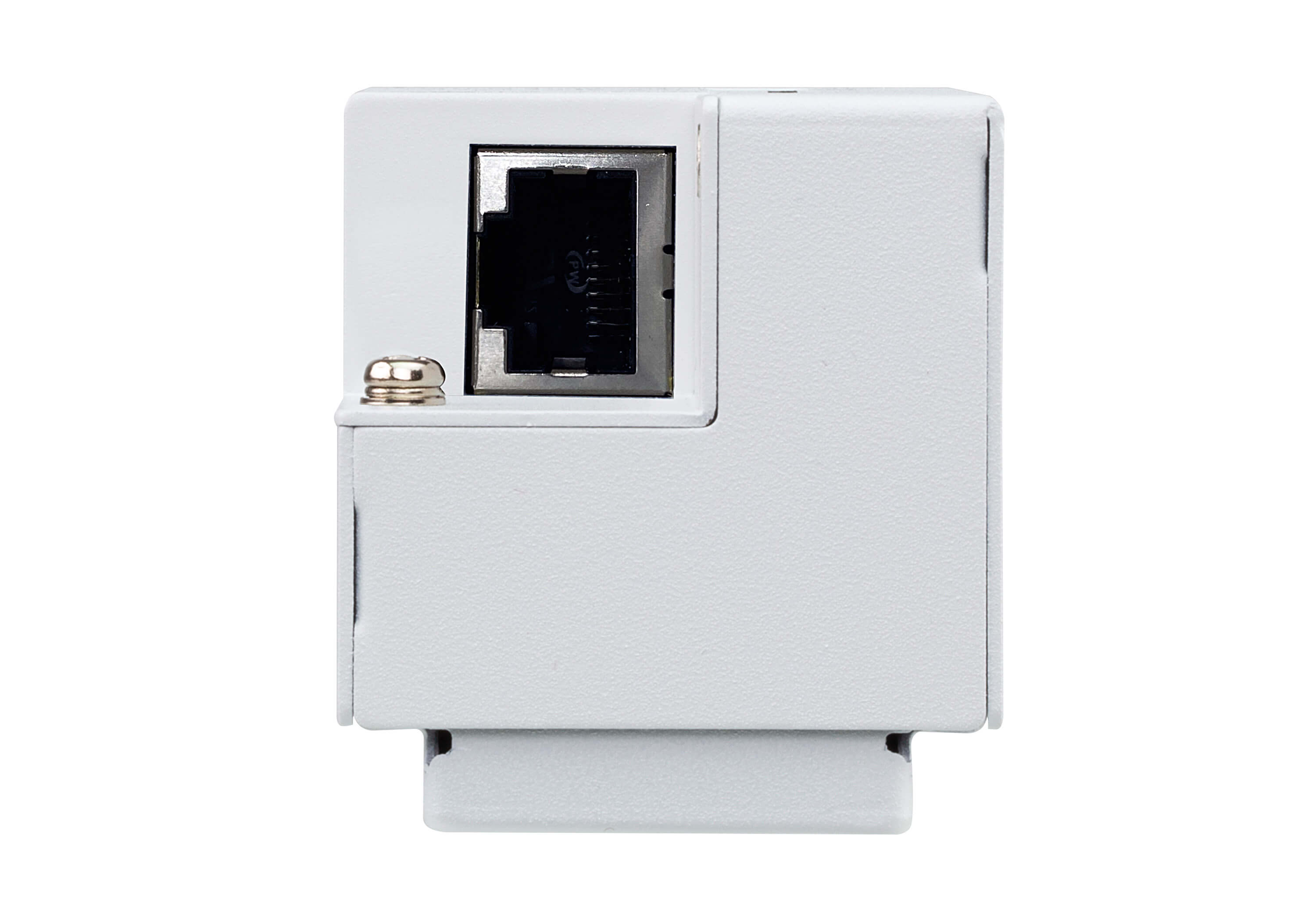

Unit To Unit	1 x RJ-45 Female
Power	1 x Terminal Block (2 pole, +5V/GND, Green) or 1 x RJ-45 Female (POH)
Power Consumption	DC5V:3.26W:15BTU/h POH:4W:19BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0% - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.20 kg ( 0.44 lb )
Dimensions (L x W x H)	6.86 x 4.44 x 5.00 cm (2.7 x 1.75 x 1.97 in.)
Faceplate Dimensions (L x W x H)	8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
