Aten 16-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch- CL3116NX (1 Year Manufacture Local Warranty In Singapore)

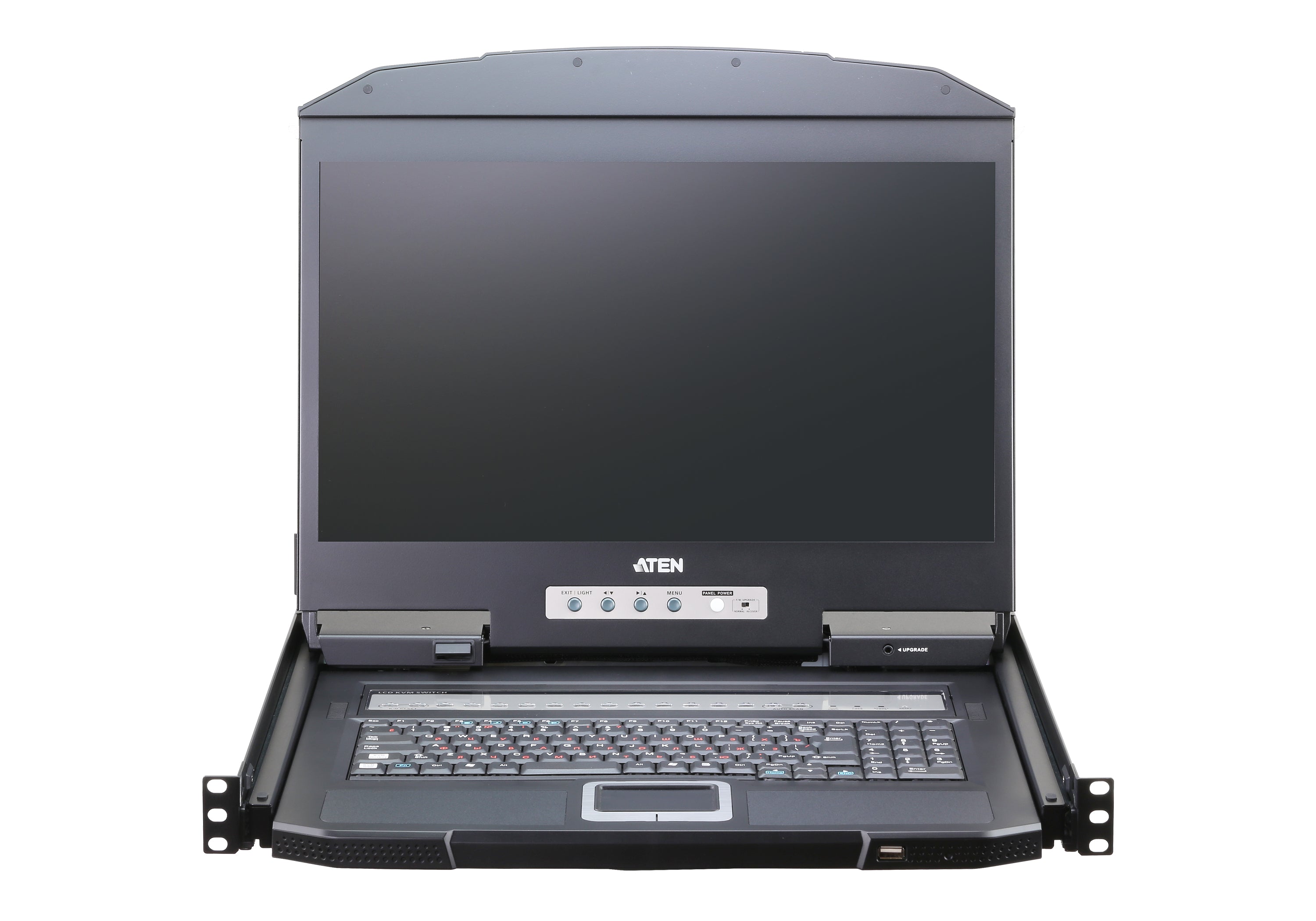

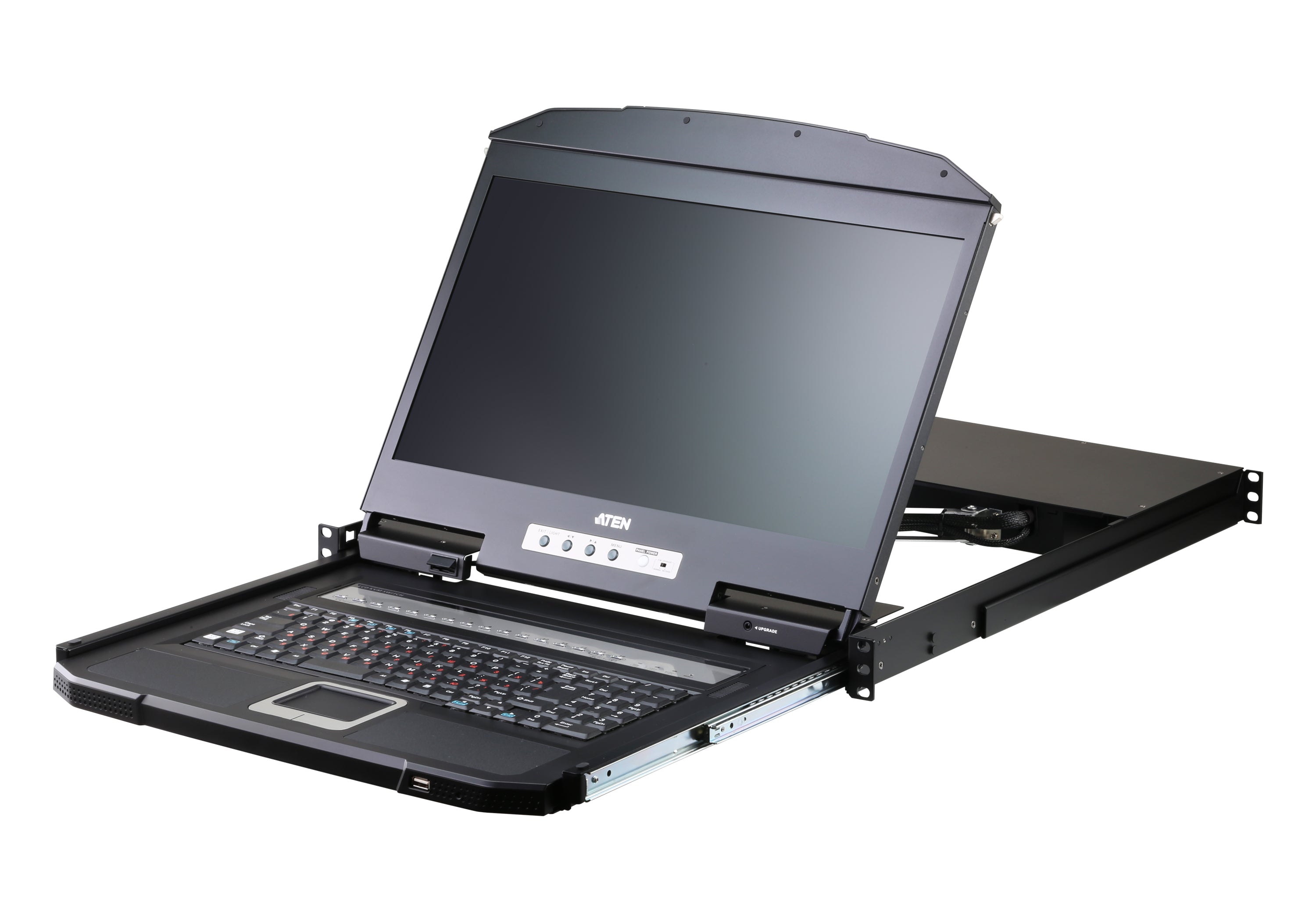

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

Package Contents

• 1x CL3116 LCD KVM Switch with Standard Rack Mounting Kit
• 2x Custom KVM Cables (VGA, USB; 1.8m/6ft)
• 1x Firmware Upgrade Cable
• 1x Power Cord
• 1x User Instructions

Features

• Space Utility Optimization
  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
  • Console lock – enables the console drawer to remain securely locked away in position when not in use

• Reliability and Operational Versatility
  • Superior video quality - up to 1366 x 768 @60Hz; DDC2B
  • Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
  • Dual Interface – supports computers with PS/2 or USB keyboards and mice
  • Auto PS/2 and USB interface detection
  • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
  • Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
  • Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
  • Two level password security – only authorized users can view and control computers
  • Auto Scan mode – enables continuous monitoring of user-selected computers
  • Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
  • Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse

• Installation Flexibility
  • Standard rack mount kit included
  • Optional rack mount kits available including easy installation options*
  • No software required
  • Firmware upgradable
  • Supports hot-plugging


Diagram

Specifications

Document

Datasheet

cl3108-3116-8-16-Port-PS-2-USB-VGA-Single-Rail-WideScreen-LCD-KVM-Switch-datasheet-en.pdf

User Manual

cl3108-cl3116-user-manual-w.pdf

Quick Start Guide

cl3108_3116_lcd_kvm_switch_qsg.pdf
