Over 20 million units sold - the UPS you can trust
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
APC Line Interactive UPS
Line Interactive UPS typically incorporate an Automatic Voltage Regulator. The AVR allows the UPS to effectively step up or step down the incoming line voltage without switching to battery power. Advantage of Line-interactive UPS is it reduces the number of transfers to the battery. So the lifetime of the batteries is extended. Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage by using APC line-interactive UPS.
APC Online or Double Conversion UPS
An online UPS uses a “double conversion” method of accepting AC input, rectifying to DC for passing through the rechargeable battery (or battery strings), then inverting back to 120 V/230 V AC for powering the protected equipment.
In an online (aka double-conversion) UPS, the input AC is charging the backup battery source which provides power to the output inverter, so the failure of the input AC won’t cause activation of the transfer switch. That is to say, if a power loss occurs, the rectifier will simply drop out of the circuit and the batteries will keep the power steady and unchanged. No transfer time during the failure. When power is restored, the rectifier will resume carrying most of the load and begin charging the batteries, though the charging current may be limited to prevent the high-power rectifier from overheating the batteries and boiling off the electrolyte.
While an online APC UPS is the top of the line protection available, it can be costly. These units are best suited for sensitive mission-critical equipment that handles very sizable amounts of power. Many people are looking for great protection that won’t hurt the budget too much, which is where the line interactive units come into play. Line interactive UPSs are a great balance between protection and quality.
In short, APC offline UPS or APC interactive UPS may be cheaper, but they won’t provide you the same level of protection as APC double conversion online UPS system. If you want your mission-critical equipment to survive any of the nine power anomalies we discussed, an online double conversion system is the best option for your facility.
APC Model Naming Convention
| Prefix Code Model | Characteristics |
|---|---|
| SMT |
The standard model, with true sine-wave inverter output |
| SC | A simplified version of the Smart-UPS, based on Back-UPS architecture with no SmartSlot expansion and with modified sine wave output. It is incompatible with many active PFC PC power supplies |
| SMC |
An economy version of the Smart-UPS SMT, with no SmartSlot expansion and with a simplified LCD display. It outputs a pure sinewave. Does not support 3rd party monitoring like apcupsd using Modbus protocol. |
| SMX | |
| SRT | An online/double-conversion variant providing no switchover delay during a power loss. |
| Smart-UPS VT | Uses three-phase power, for larger installations. |
|
Infix Code Model |
Characteristics |
|---|---|
| I | Interactive |
| C | SmartConnect cloud service provides remote power monitoring, customizable email notifications, remote diagnostics, and UPS firmware updates as part of a Standard Plan for Smart-UPS under product warranty. https://smartconnect.apc.com/ |
| XL | An "extended run" series, with an Anderson Powerpole DC connector allowing up to 10 external battery packs to be daisy-chained to the main unit. |
| RM | Rack Mount |
| H | Hybrid - Interchangeable between Tower and Rack Mount |
| 1U / 2U / 3U / 4U / 5U | U Height |
| BP | Battery Pack |
| LI | Lithium Ion Battery |
| G |
Green Mode - devices that may be sensitive to power fluctuations. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications |
APC Smart-UPS SMC
"SMC" (IE: SMC1000)
- Next generation Entry-Level Line Interactive Smart-UPS products
- 1kVA - 1.5kVA
- Pure Sinewave
- Line Interactive topology
- Simplified LCD display
- Both rackmount and tower versions available
- Standard Run battery only
- High efficiency “green” mode
- Flash upgrade able firmware
- USB Communications (Serial Cable available as an option) (RJ-45 Serial Port on UPS)
- No Smart-Slot
- Microlink Protocol
- Designed for entry level server and Small Office / Home Office applications

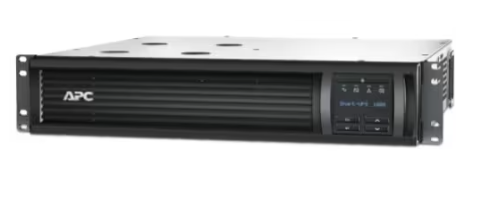

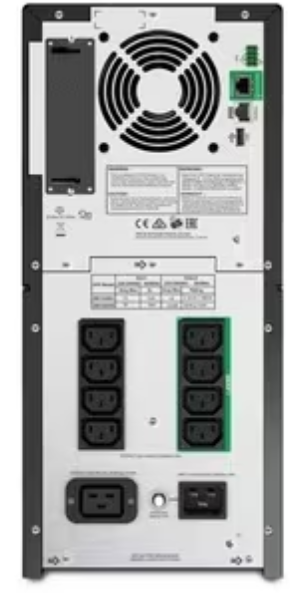

APC Smart-UPS SMT
"SMT" (IE: SMT1000)
- High efficiency “green” mode
- Next generation Line Interactive Smart-UPS products
- 750VA - 3kVA
- Pure Sinewave
- Line Interactive topology
- Fully interactive LCD display
- Both rackmount and tower versions available
- Standard Run battery only
- Switched receptacle group
- Enhanced battery management
- Flash upgrade able firmware
- Serial or USB Communications (RJ-45 Serial Port on UPS)
- Microlink Protocol
- Smart-Slot for installation of APC Accessory Cards

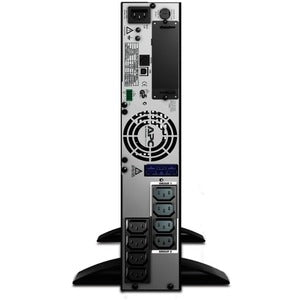

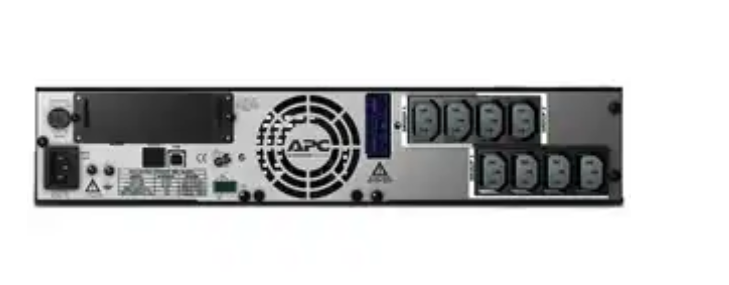

APC Smart-UPS SMX
"SMX" (IE: SMX1000)
- Next generation Line Interactive Smart-UPS products
- 750VA - 3kVA
- Pure Sinewave
- Line Interactive topology
- Fully interactive LCD display
- All units Rack / Tower convertible
- All units have the option of intelligent extended run battery packs
- High efficiency “green” mode
- Switched receptacle groups
- Enhanced battery management
- Voltage adaptability ( 2kVA & up only )
- Higher power factor than comparable "SMT" units
- Flash upgrade able firmware
- Serial or USB Communications (RJ-45 Serial Port on UPS)
- Microlink Protocol
- Smart-Slot for installation of APC Accessory Cards
APC Smart-UPS SRT
"SRT" (IE: SRT10KXLT) 2nd generation of Smart-UPS Online products
- 3kVA - 10kVA
- Double Conversion Online Topology with zero transfer time
- Bypass capability
- LCD Display
- Rack / Tower or Rack / Stack convertible
- All units have Extended Run (XL) battery options
- Intelligent Battery Management
- Serial and USB communications
- Microlink Communication Protocol
- Smart-Slot for installation of APC Accessory Cards
- 5Kva and larger include embedded Network Management Cards
APC Smart-UPS SMC
Efficient, true sine-wave power protection for entry-level servers and network equipment. The most affordable true sine-wave UPS’s in the Smart-UPS family. Designed for entry level servers, it is compatible with today’s active power factor corrected (PFC) power supplies. Included PowerChute Business Edition software is compatible with all major server operating systems and provides UPS management and safe system shutdown.
Models
Schneider Electric APC Smart-UPS 1000VA SMC1000I
Schneider Electric APC Smart-UPS 1000VA SMC1500I
Schneider Electric APC Smart-UPS 1000VA SMC2000I
Schneider Electric APC Smart-UPS 1000VA SMC3000I
Schneider Electric APC Smart-UPS 1000VA SMC1000I-2U
Schneider Electric APC Smart-UPS 1000VA SMC1500I-2U
Schneider Electric APC Smart-UPS 1000VA SMC2000I-2U
Schneider Electric APC Smart-UPS 1000VA SMC3000I-2U

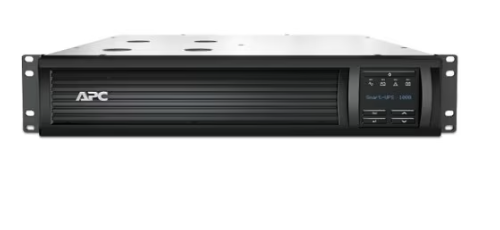

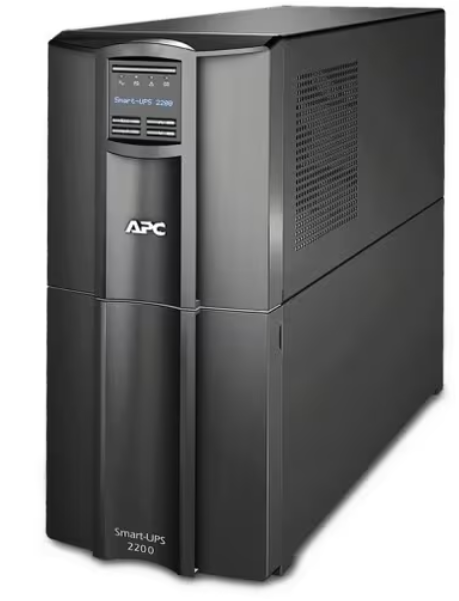

APC Smart-UPS SMT
Advanced line interactive power protection for servers and network equipment. Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Models
Schneider Electric APC Smart-UPS 750VA LCD SMT750VA SMT750IC
Schneider Electric APC Smart-UPS 1000VA LCD SMT1000VA SMT1000IC
Schneider Electric APC Smart-UPS 1500VA LCD SMT1500VA SMT1000IC
Schneider Electric APC Smart-UPS 2200VA LCD SMT2200VA SMT2200IC
Schneider Electric APC Smart-UPS 3000VA LCD SMT3000VA SMT3000IC

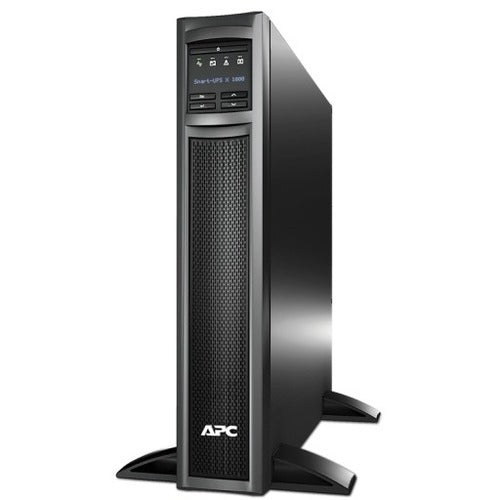

APC Smart-UPS SMX
Convertible extended run models ideal for critical servers and voice/data switches.
The extended run Smart-UPS model has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection.
Models
Schneider Electric APC Smart-UPS X 750VA Rack/Tower LCD SMX750I
Schneider Electric APC Smart-UPS X 1000VA Rack/Tower LCD SMX1000I
Schneider Electric APC Smart-UPS X 1500VA Rack/Tower LCD SMX1500RMI2U
Schneider Electric APC Smart-UPS X 1500VA Rack/Tower LCD with Network Card SMX1500RMI2UNC
Smart-UPS’ patented green mode provides extremely high efficiency at low, medium and high load levels, making them ideal for multi-core or virtualized servers that have varying load consumption all while saving utility costs. Managed outlet groups allow segmented load control to power on or off your equipment in series as well as load shedding to preserve battery power for critical connected equipment or reboot a hung device without impacting other equipment. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget.
Models
Schneider Electric APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V SMX2200RMHV2U
Schneider Electric APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V SMX3000RMHV2U
Schneider Electric APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card SMX3000RMHV2UNC

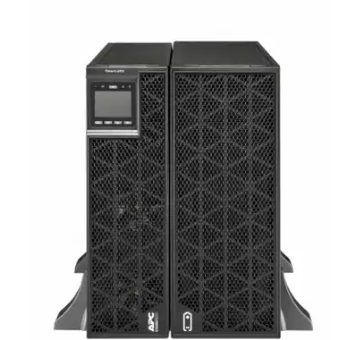

APC Smart-UPS On-Line SRT
blade servers or heavily loaded equipment racks.
Models
Schneider Electric APC UPS RT 2200VA SRT2200RMXLI-NC (2U Rack Mount)
Schneider Electric APC UPS RT 3000VA SRT3000XLI (Tower)
Schneider Electric APC UPS RT 3000VA SRT2200RMXLI (2U Rack Mount)
Schneider Electric APC UPS RT 3000VA SRT3000RMXLI-NC (2U Rack Mount)
Schneider Electric APC UPS RT 3000VA SRT3000RMXLW-IEC (2U Rack Mount)
Schneider Electric APC UPS RT 5000VA SRT5XLI (Tower)
Schneider Electric APC UPS RT 5000VA SRT5KRMXLI (3U Rack Mount)
Schneider Electric APC UPS RT 5000VA HW SRT5KRMXLW-HW (3U Rack Mount)
Schneider Electric APC UPS RT 6000VA SRT6KXLI (Tower)
Schneider Electric APC UPS RT 6000VA SRT6KRMXLI (4U Rack Mount)
Schneider Electric APC UPS RT 8000VA SRT8KXLI (Tower)
Schneider Electric APC UPS RT 8000VA SRT8KRMXLI (6U Rack Mount
Schneider Electric APC UPS RT 10000VA SRT10KXLI (Tower)
Schneider Electric APC UPS RT 10000VA SRT10KRMXLI (6U Rack Mount)
Battery Packs
SRT72RMBP: APC Smart-UPS SRT 72 V, 2.2 kVA RM Battery Pack
SRT96BP: APC Smart-UPS SRT 96 V, 3 kVA Battery Pack
SRT96RMBP: APC Smart-UPS SRT 96 V, 3 kVA RM Battery Pack
SRT192BP: APC Smart-UPS SRT 192 V, 5 kVA and 6 kVA Battery Pack
SRT192RMBP: APC Smart-UPS SRT 192 V, 5 kVA and 6 kVA RM Battery Pack
SRT192BP2: APC Smart-UPS SRT 192 V, 8 kVA and 10 kVA Battery Pack
SRT192RMBP2: APC Smart-UPS SRT 192 V 8kVA and 10 kVA RM Battery Pack
Battery Extension Cables
SRT003: APC Smart-UPS SRT 15ft. Extension Cable for 192 VDC External Battery Packs 8/10 kVA UPS
SRT009: APC Smart-UPS SRT 15ft. Extension Cable for 72 VDC External Battery Packs 2.2 kVA UPS
SRT010: APC Smart-UPS SRT 15ft. Extension Cable for 96 VDC External Battery Packs 3 kVA UPS
Rail Kits
SRTRK3: APC 2 post Mounting Rail Kit for Smart-UPS SRT 2.2/3/5/6/8/10 kVA UPS
SRTRK4: APC Smart-UPS SRT 19” Rail Kit for Smart-UPS SRT 2.2/3 kVA UPS
Replacement Battery Cartridge
APCRBC142: RBC for SRT 2.2 kVA UPS
APCRBC152: RBC for SRT 3 kVA UPS
Recommended Replacement Model for Older APC SmartUPS Models
UPS Models |
Recommended/Replacement Models |
| SUA750I | SMT750IC |
| SUA750RMI2U | SMT750RMI2UC |
| SUA1000RMI2U | SMT1000RMI2UC |
| SUA2200RMI2U | SMT2200RMI2UC |
| SUA3000RMI2U | SMT3000RMI2UC |
| SU3000RMXLI3U | SMT3000RMI2UC |
| SUA1000 | SMT1000IC |
| SUA1500I | SMT1500IC |
| SUA2200I | SMT2200IC |
| SUA3000I | SMT3000IC |
| SUA750XLI | SMX750I |
| SUA1000XLI | SMX1000I |
| SUA2200XLI | SMX2200RMHV2U |
| SUA3000XLI | SMX3000RMHV2U |
| SUA3000RMXLI3U | SMX3000RMHV2U |
| SUA5000RMI5U | SRT5KXLI/SRT5KRMXLI |
| SUM1500RMXLI2U | SMX1500RMI2U |
| SUM3000RMXLI2U | SMX3000RMHV2U |
| SURTD3000XLI | SRT3000XLI |
| SURTD3000RMXLI | SRT3000RMXLI |
| SURTD5000XLI | SRT5KXLI |
| SURTD5000RMXLI | SRT5KRMXLI |
| SURTD6000XLI | SRT6KXLI |
| SURTD6000RMXLI | SRT6KRMXLI |
| SURT8000XLI | SRT8KXLI |
| SURT8000RMXLI | SRT8KRMXLI |
