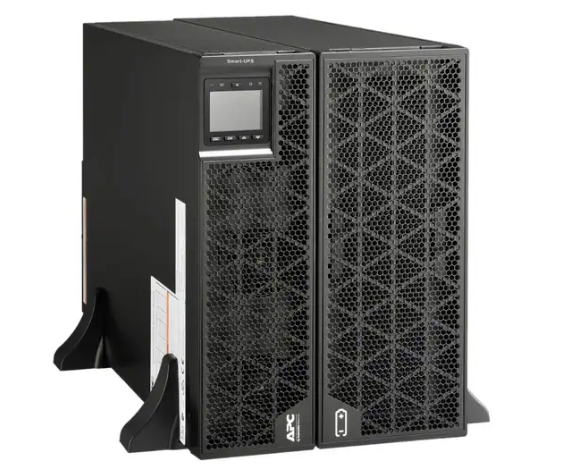

APC UPS Smart-UPS 15kVA Rack/Tower SRTG15KXLI (3 Years Manufacture Local Warranty In Singapore) -Promo Price While Stock Last
High density, double-conversion on-line power protection with scalable runtime
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Specification
Run time for load
WMin-max: 1500-15000 W
|
5min 34s |
---|---|
Main Input Voltage | 400 V 3 phases 230 V 1 phase |
Product or component type | Uninterruptible power supply (UPS) |
Other Input Voltage | 380...415 V 220...240 V |
Main Output Voltage | 400 V 3 phases 230 V 1 phase |
Other Output Voltage | 230 V |
Rated power in W | 15000 W |
Rated power in VA | 15000 VA |
output connection type | 1 IEC 60320 C19 |
Output connector type | Hard wire 5-wire (3P + N + E) 1 Hard wire 3-wire (1P + N + E) 1 |
Number of rack unit | 7U |
Provided equipment | 1 x USB cable 1 x RJ45 cable 2 x rack mounting brackets 2 x stabilization/wall mounting feet 2 x installation manual 1 x C13-C14 power cord 1 x external battery pack 1 x battery cable |
Range of product | Smart-UPS On-Line |
Battery type | Lead-acid battery |
---|---|
Battery voltage | +/- 192 V |
Extended runtime | 1 |
Number of battery filled slots | 0 |
Number of battery free slots | 0 |
Battery recharge time | 4 h |
Number of battery replacement quantity | 2 |
Battery life | 3…5 year(s) |
Battery charger power | 2160 W rated |
Number of power module filled slots | 0 |
---|---|
Number of power module free slots | 0 |
Redundant | No |
UPS type | Double conversion online |
Colour | Black (RAL 9005) |
---|---|
Height | 30.6 cm |
Width | 44.0 cm |
Depth | 83.5 cm |
Net weight | 142.5 kg |
Mounting location | Front |
Mounting preference | Lower |
Mounting mode | Rack-mounted |
Two post mountable | 0 |
USB compatible | Yes |
Mounting position | Horizontal |
Maximum input current | 66 A |
---|---|
Input harmonic distortion | Less than 5 % for full load |
Load power factor | From 0.9 leading to 1 lagging |
Switching current capacity | 100 A |
Input voltage limits | 160...285 V full load 100...285 V half load |
Number of input connectors | 1 hard wire 5 wire (3P + N + E) 1 hard wire 3-wire (1P + N + E) |
Network frequency | 40...70 Hz auto-sensing |
Bypass type | Internal bypass (automatic and manual) |
---|---|
Crest factor | 3 : 1 |
Harmonic distortion | Less than 2 % |
Maximum configurable power in VA | 15000 VA |
Maximum configurable power in W | 15000 W |
Output overload operation | 60 seconds at 125% and 30 seconds at 150% |
Wave type | Sine wave |
Efficiency | 94.5 % |
Output frequency | 50/60 Hz +/- 4 Hz sync to mains |
Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage Configurable for 220 : 230 or 240 nominal output voltage |
Product certifications | CE UKCA TISI |
---|---|
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Acoustic level | 58 dBA |
---|---|
Heat dissipation | 2866 Btu/h |
Operating altitude | 0...3000 m |
Ambient air temperature for operation | 0…40 °C |
Ambient air temperature for storage | -15…45 °C |
Storage altitude | 0…15000 m |
IP degree of protection | IP20 |
Relative humidity | 0…95 % non-condensing |
Storage Relative Humidity | 0…95 % non-condensing |
Emergency power off | Yes |
---|---|
Free slots | 0 |
Preinstalled device | Network management card 3 with environmental monitoring |
Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rate | 600 J |
---|---|
Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 53.5 cm |
Package 1 Width | 79.0 cm |
Package 1 Length | 59.0 cm |
Package 1 Weight | 157.2 kg |
Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
---|
