Description

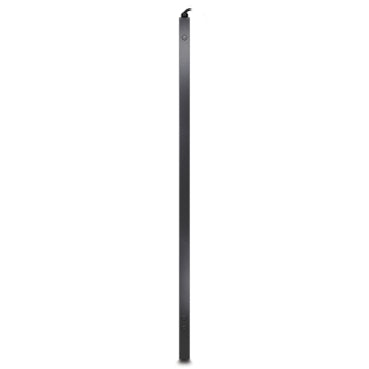

APC Rack PDU 2G Metered ZeroU 32A 230V (36) C13 (6) C19 (AP8853) (2 Years Manufacture Local Warranty In Singapore)
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specifications
| Main Input Voltage | 200 V 208 V 230 V |
|---|---|
| Main Output Voltage | 230 V |

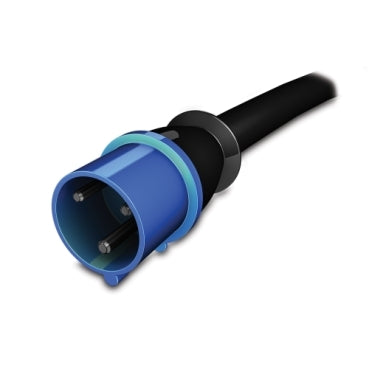

| Input Connection Type | IEC 60309 32 A 2P + E |
| Number of rack unit | 0U |
| Cable length | 3.00 m |
| number of cables | 1 |
| provided equipment | Installation guide Rack mounting brackets Serial configuration cable Safety guide |
| Colour | Black |
|---|---|
| Height | 179.1 cm |
| width | 5.6 cm |
| Depth | 4.4 cm |
| Net weight | 6.93 kg |
| mounting location | Side |
| mounting preference | No preference |
| mounting mode | Rack-mounted |
| USB compatible | No |
| permissible voltage | 220…240 V |
|---|---|
| Max line current | 32 A |
| input current limits | 32 A |
| Load capacity | 7400 VA |
| network frequency | 50/60 Hz |
| number of power socket outlets | 36 IEC 60320 C13 6 IEC 60320 C19 |
|---|
| product certifications | VDE |
|---|---|
| Standards | IEC 60950 |
| Ambient air temperature for operation | -5…60 °C |
|---|---|
| relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| storage Relative Humidity | 5…95 % |
| Storage altitude | 0.00…15240.00 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 200 cm |
| Package 1 Width | 10.7 cm |
| Package 1 Length | 16.2 cm |
| Package 1 Weight | 8.56 kg |
| Number of Units in Package 3 | 48 |
