Description
APC Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord (APDU9959EU3) (2 Years Manufacture Local Warranty In Singapore)
With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.

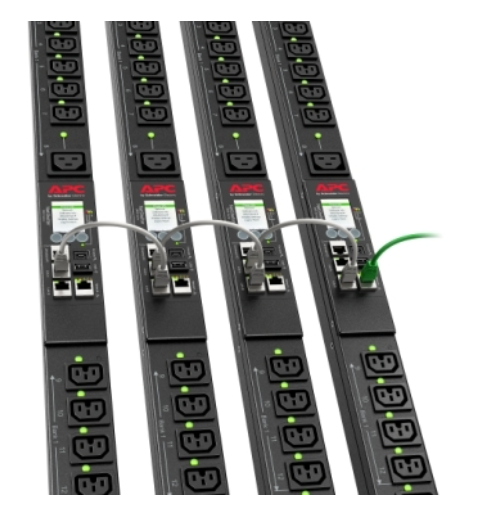

Switched Rack PDUs enable advanced, customizable power control and active monitoring for datacenter and edge environments. Remote outlet level control allows on/off power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets to reduce downtime. Outlet power sequencing and grouping allow users to specify the order of device power up or down to avoid circuit overload due to inrush current and/or load shed to conserve energy. Power metering provides real-time remote monitoring of connected loads with alarms to warn of potential overloads. Users can access, configure, and control Switched Rack PDUs through secure Web or SNMP and are fully compatible with EcoStruxure IT. New 9000 series Switched Rack PDUs include Gigabit ethernet, 1% Metering accuracy, 60C Operating temperature (select models) with new C13/C15 and C19/C21 hybrid outlets, ability to share 1 network port across 32 PDUs, and enhanced cybersecurity.
Specification
Main Input Voltage | 230 V |
---|---|
PDU type | Switched |
Main Output Voltage | 230 V |
Input Connection Type | IEC 60309 16 A 2P + E IEC 60320 C20 |
Number of rack unit | 0U |
Cable length | 3.00 m |
Number of cables | 1 |
communication port protocol | SNMP Redfish |
provided equipment | Installation guide Locking input power cord Rack mounting brackets Safety guide |
Communication network type | 10/100/1000BASE-T |
---|
Colour | Black |
---|---|
height | 179.4 cm |
Width | 5.5 cm |
Depth | 4.6 cm |
Net weight | 5.61 kg |
Mounting location | Side |
Mounting preference | No preference |
Mounting mode | Not rack-mountable |
USB compatible | No |
Mounting position | Vertical |
Permissible voltage | 220…240 V |
---|---|
Max line current | 16 A |
Input current limits | 16 A |
Load capacity | 3700 VA |
Network frequency | 50/60 Hz |
Number of power socket outlets | 21 IEC 60320 C13 3 IEC 60320 C19 |
---|
product certifications | FCC part 15 class A VDE RCM EAC |
---|---|
Standards | EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 ICES-003 |
ambient air temperature for operation | -5…60 °C |
---|---|
Relative humidity | 5…95 % |
Operating altitude | 0...10000 ft |
Ambient air temperature for storage | -25…65 °C |
Storage Relative Humidity | 5…95 % |
Storage altitude | 0.00…15240.00 m |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 200.2 cm |
Package 1 Width | 11.4 cm |
Package 1 Length | 16.5 cm |
Package 1 Weight | 8.59 kg |
