Description

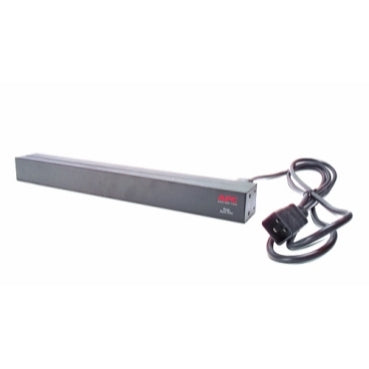

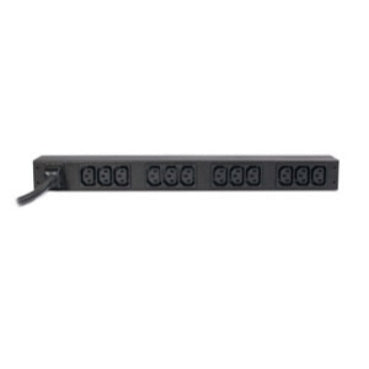

APC Rack PDU Basic 1U 16A 208-230V (12) C13 (AP9565) (2 Years Manufacture Local Warranty In Singapore)
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
| Main Input Voltage | 200 V 208 V 230 V |
|---|---|
| Main Output Voltage | 208 V 230 V |
| Input Connection Type | IEC 60320 C20 |
| Number of rack unit | 1U |
| Cable length | 2.50 m |
| number of cables | 1 |
| provided equipment | Installation guide Rack mounting brackets |
| Colour | Black |
|---|---|
| Height | 4.4 cm |
| width | 44.7 cm |
| Depth | 5.7 cm |
| Net weight | 2.05 kg |
| mounting location | Front Rear |
| mounting preference | No preference |
| mounting mode | Rack-mounted |
| input current limits | 16 A |
|---|---|
| Load capacity | 3680 VA |
| network frequency | 50/60 Hz |
| number of power socket outlets | 12 IEC 60320 C13 |
|---|
| product certifications | CUL listed CE Queensland Australia UL listed VDE |
|---|---|
| Standards | UL 60950 |
| Ambient air temperature for operation | 0…45 °C |
|---|---|
| relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 46.4 cm |
| Package 1 Length | 22.9 cm |
| Package 1 Weight | 3.632 kg |
