Description

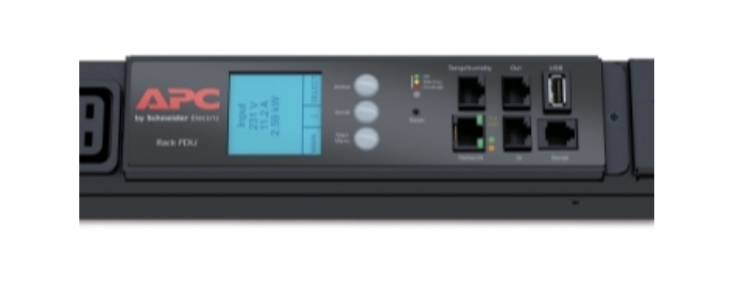

APC Rack PDU 2G Metered ZeroU 32A 22.0kW 230V (30) C13 (12) C19 (AP8886) (2 Years Manufacture Local Warranty In Singapore) -Promo Price While Stock Last
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specification
| Presentation | APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower the total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. |
|---|
| Colour | Black |
|---|---|
| Product or component type | PDU |
| PDU type | Metered |
| Cord length | 1.8 m |
| Provided equipment | Installation guide Rack mounting brackets Serial configuration cable Safety guide |
| Input Voltage | 400 V 3 phases |
|---|---|
| Height | 182.9 cm |
| Width | 5.6 cm |
| Output Voltage | 230 V |
| Depth | 5.1 cm |
| Net weight | 8.72 kg |
| Mounting location | Side |
| Mounting preference | No preference |

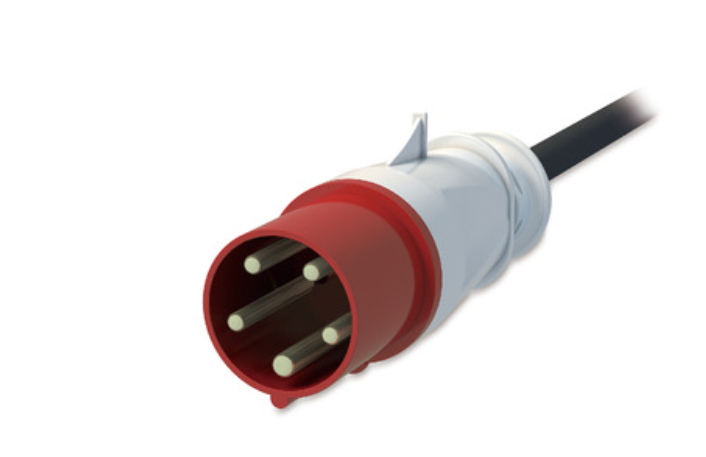

| Input Plug Type | IEC 60309 32 A 3P + N + E |
| Mounting mode | Rack-mounted |
| Rack units | 0U |
| Mounting position | Vertical |
| Max line current | 32 A |
| Input current limits | 32 A |
| Load capacity | 22000 VA |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 30 IEC 60320 C13 12 IEC 60320 C19 |
| Product certifications | VCCI class A VDE |
|---|---|
| Standards | EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 FCC part 15 class A ICES-003 |
| ambient air temperature for operation | -5…60 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 16.400 cm |
| Package 1 Length | 206.000 cm |
| Package 1 Weight | 9.500 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 23.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 202.000 cm |
| Package 2 Weight | 66.000 kg |
| Warranty | 2 years repair or replace |
|---|
