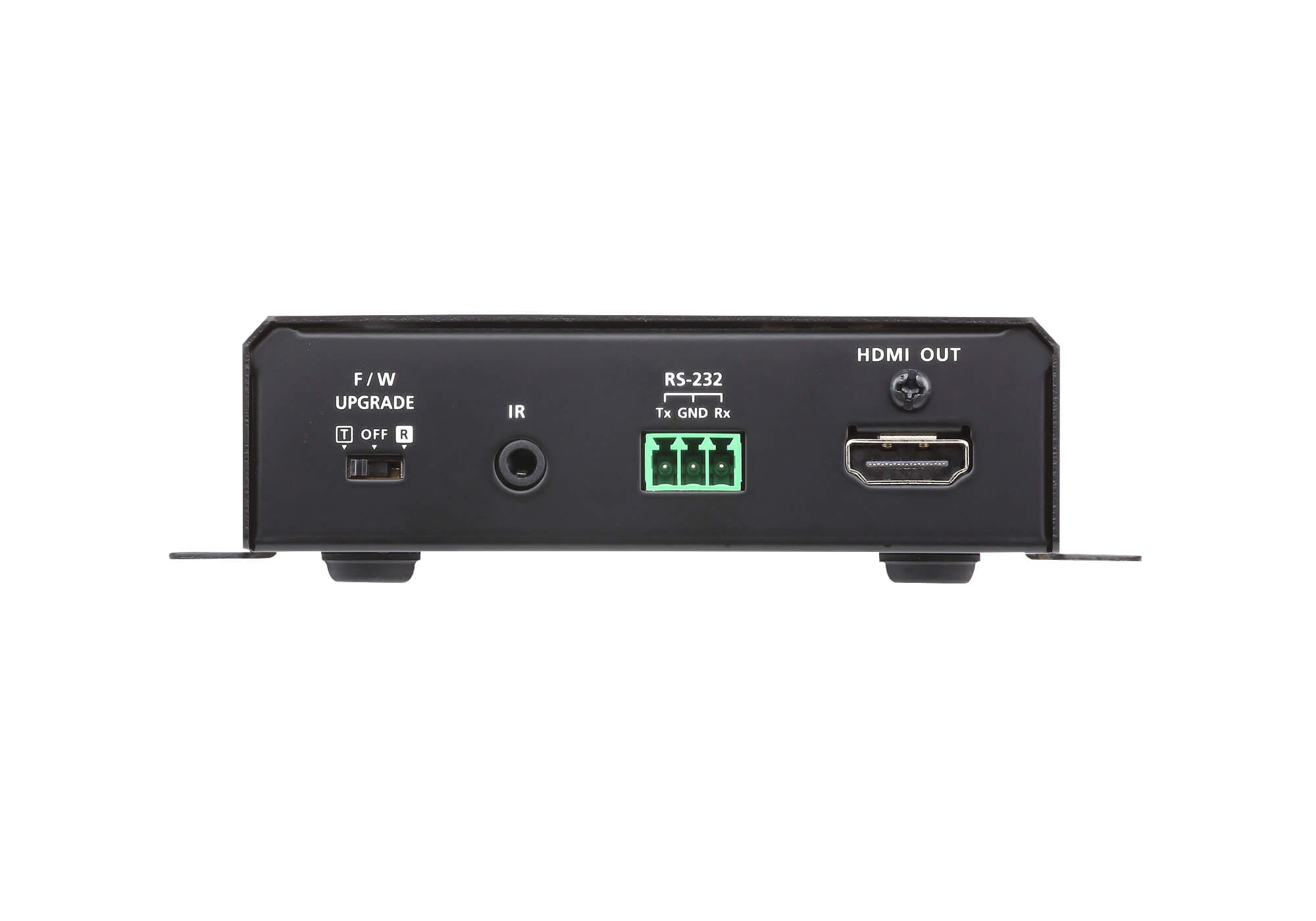

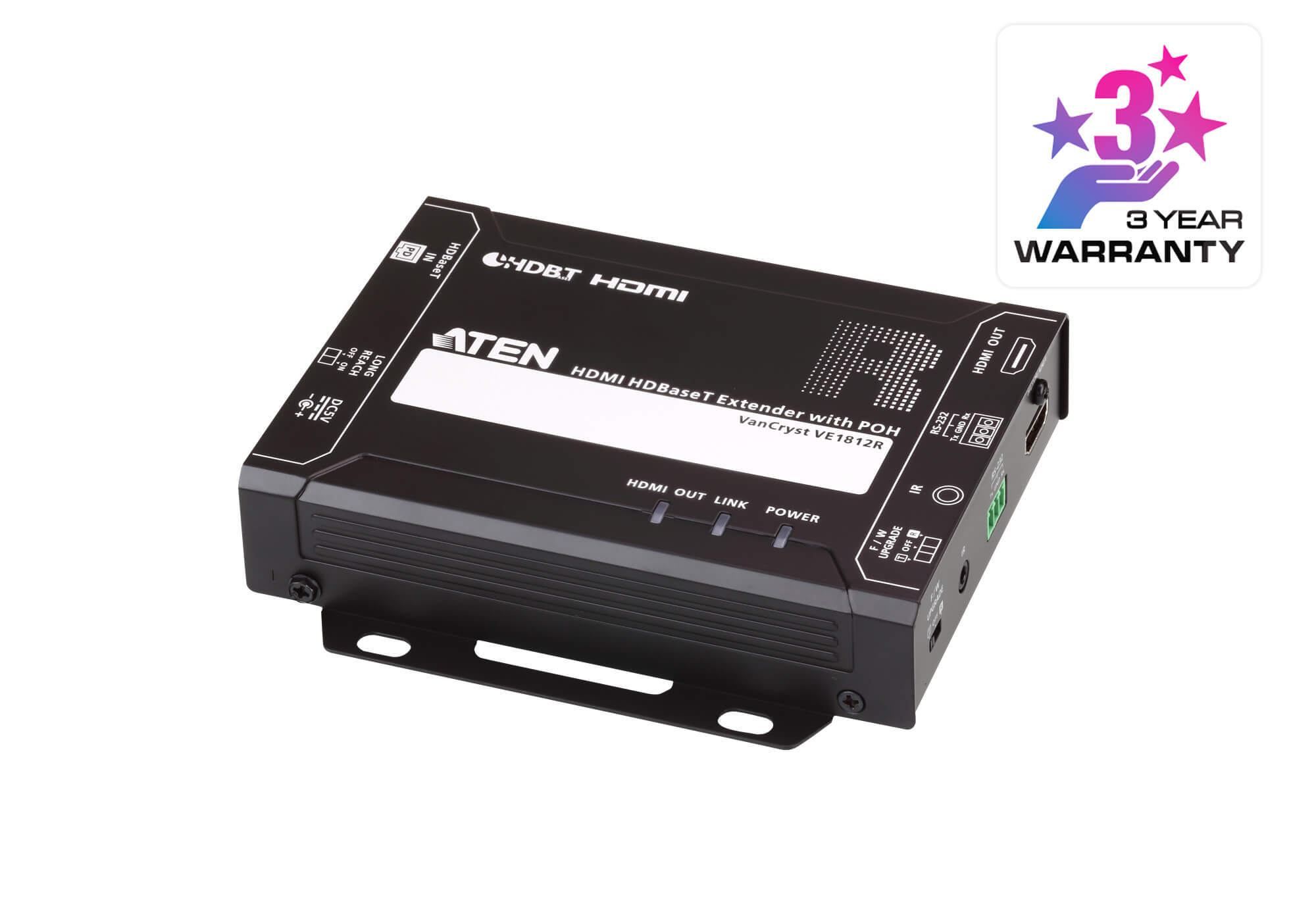

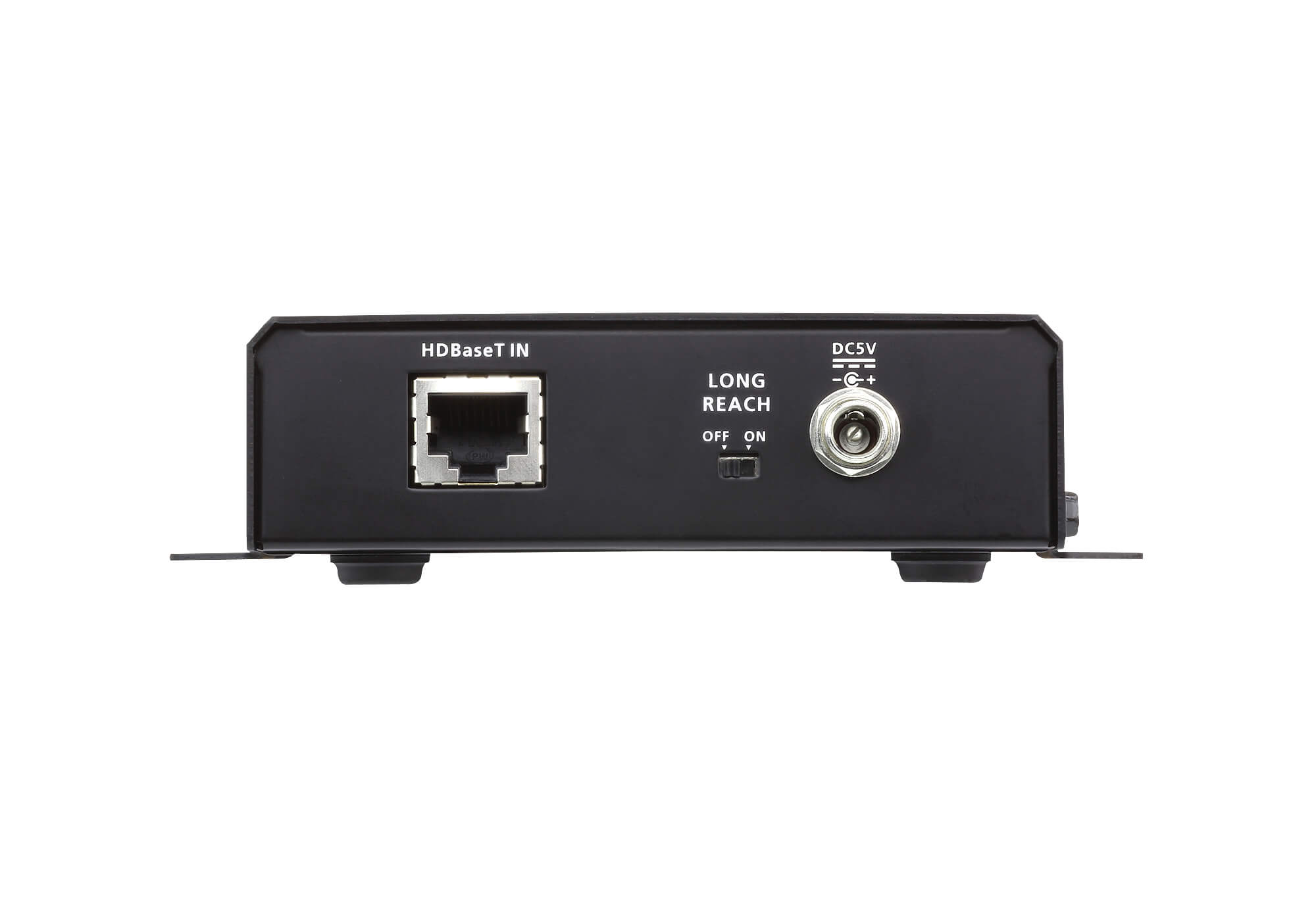

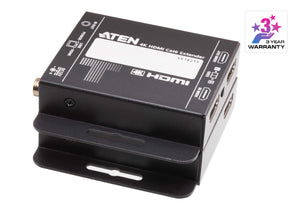

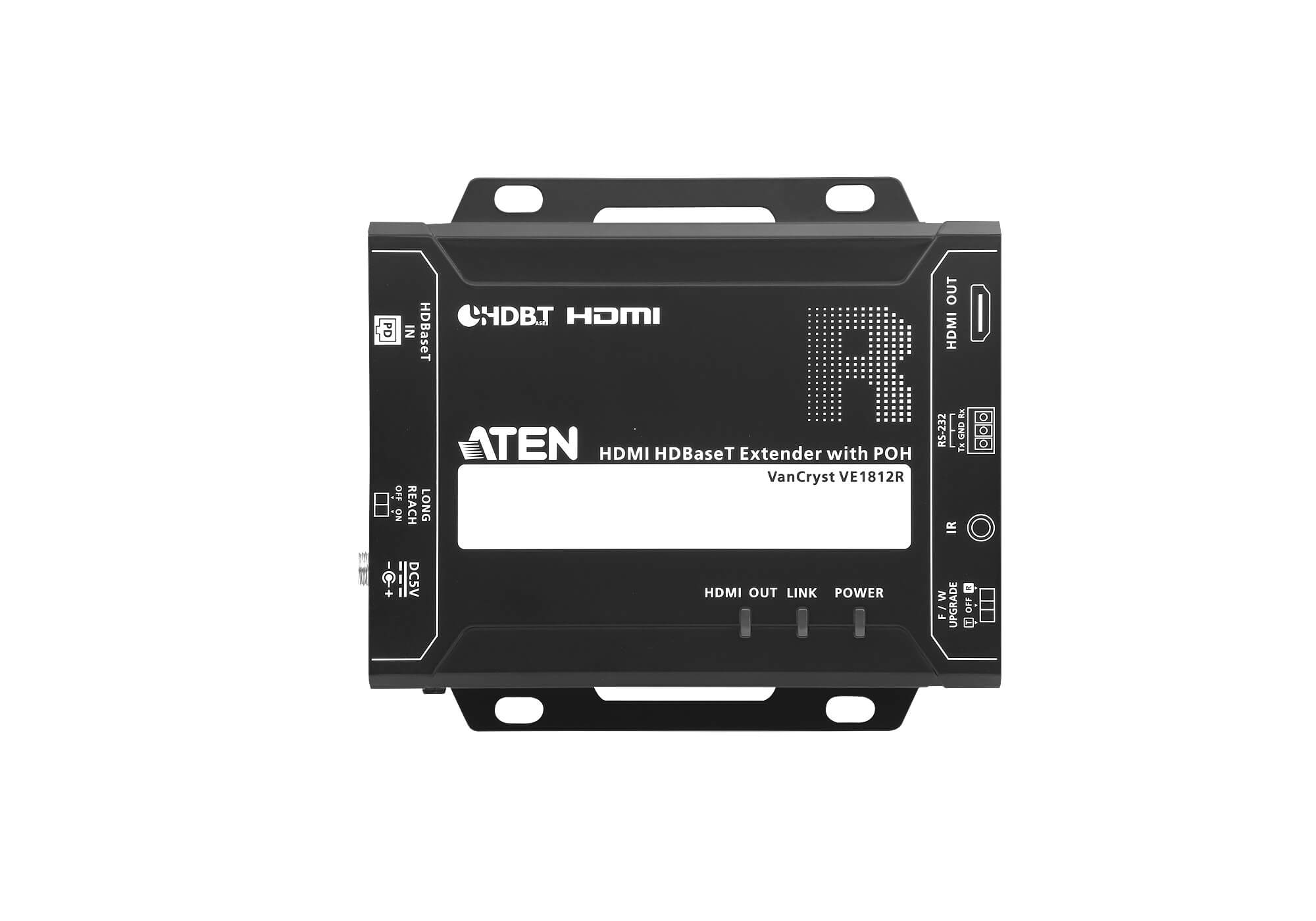

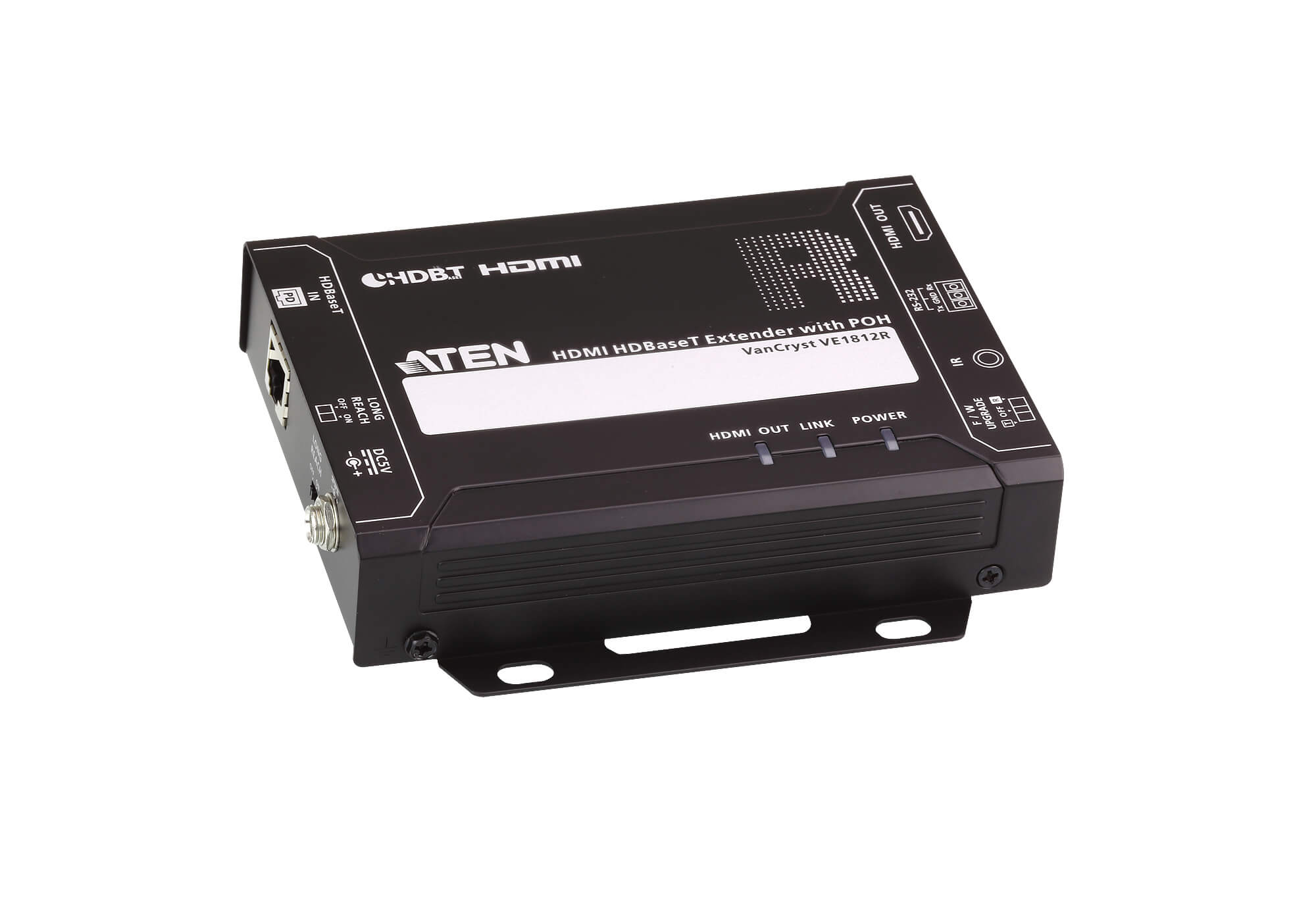

Aten HDMI HDBaseT Receiver with PoH (4K@100m) (HDBaseT Class A) (PoH PD) -VE1812R (3 Year Manufacture Local Warranty In Singapore)

AtenSKU: VE1812R-AT-E
No reviews

Price:
Sale price$ 428.00 SGD

Description

Aten HDMI HDBaseT Receiver with PoH (4K@100m) (HDBaseT Class A) (PoH PD) -VE1812R (3 Year Manufacture Local Warranty In Singapore)

The VE1812R features Power over HDBaseT (PoH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing users to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.



The VE1812R HDMI HDBaseT Receiver with PoH is HDMI (3D, Deep Color, 4K) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Package Contents

  • 1x VE1812R HDMI HDBaseT Receiver with PoH
  • 1x Power Adapter
  • 1x RS-232 Terminal Block
  • 1x User Instructions

Features

  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
  • Superior video quality:
    – 4K up to 100 m over a Cat 6a or ATEN 2L-2910 Cat 6 cable
    – 1080p up to 150 m when in HDBaseT Long Reach Mode
  • HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
  • PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
  • Rack- Mountable

Diagram

Specification

Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3 m
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output 1 x HDMI Type A Female (Black)
Connectors
Unit To Unit 1 x RJ-45 Female
Power 1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over HDBaseT, POH)
Control
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 1 x Mini Stereo Jack Female (Black)
Switches
Long Reach Mode Switch 1 x Slide Switch - ON/OFF
Firmware Upgrade 1 x Slide Switch - ON/OFF
Power Consumption DC5V:4.26W:20BTU/h
POH:5.33W:25BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.45 kg ( 0.99 lb )
Dimensions (L x W x H) with bracket 14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)


Quick Start Guide

ve1812_extender_qsg.pdf
