Description
Startech Universal Swivel VESA LCD Mounting Bracket for 19in Rack or Cabinet RKLCDBKT -EOL

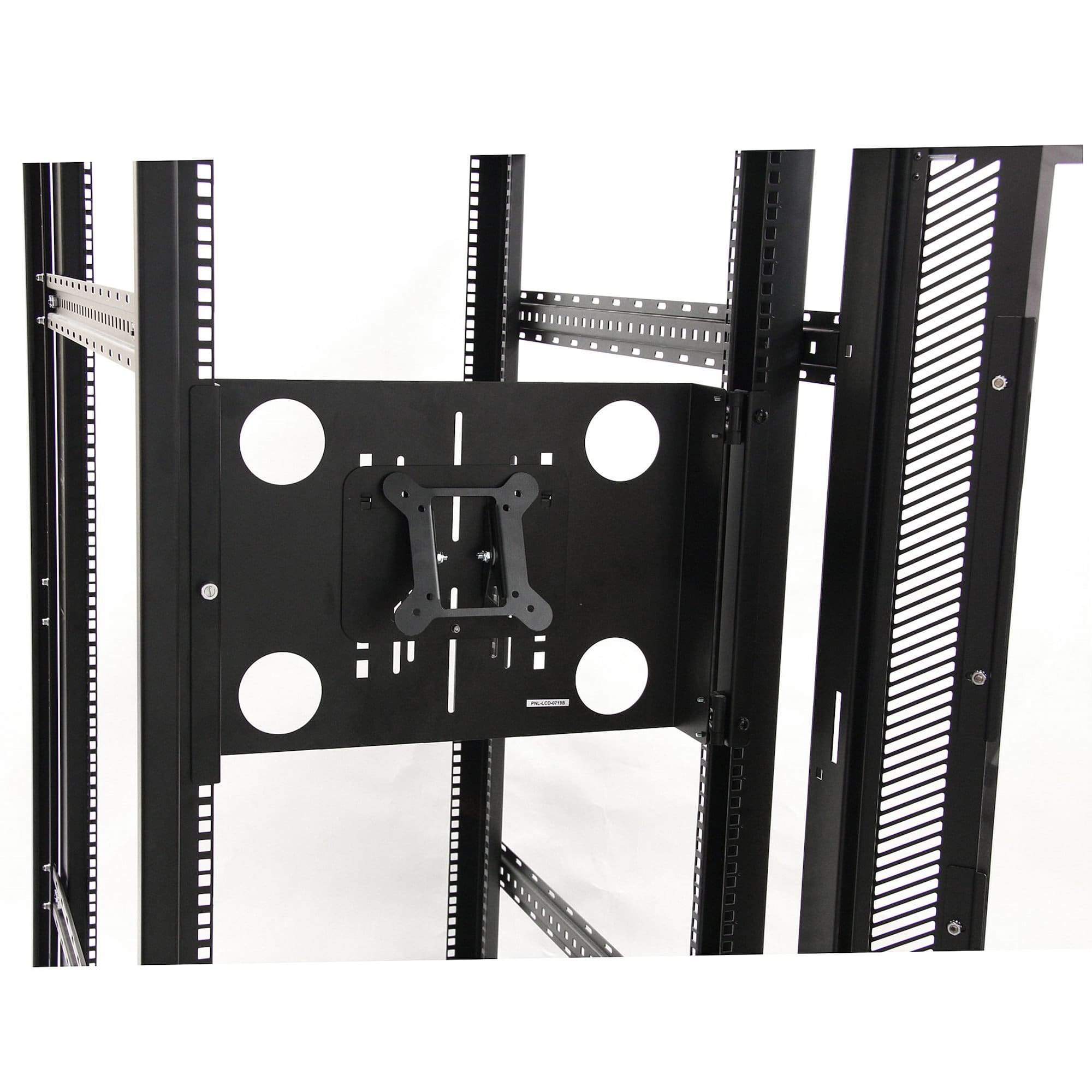

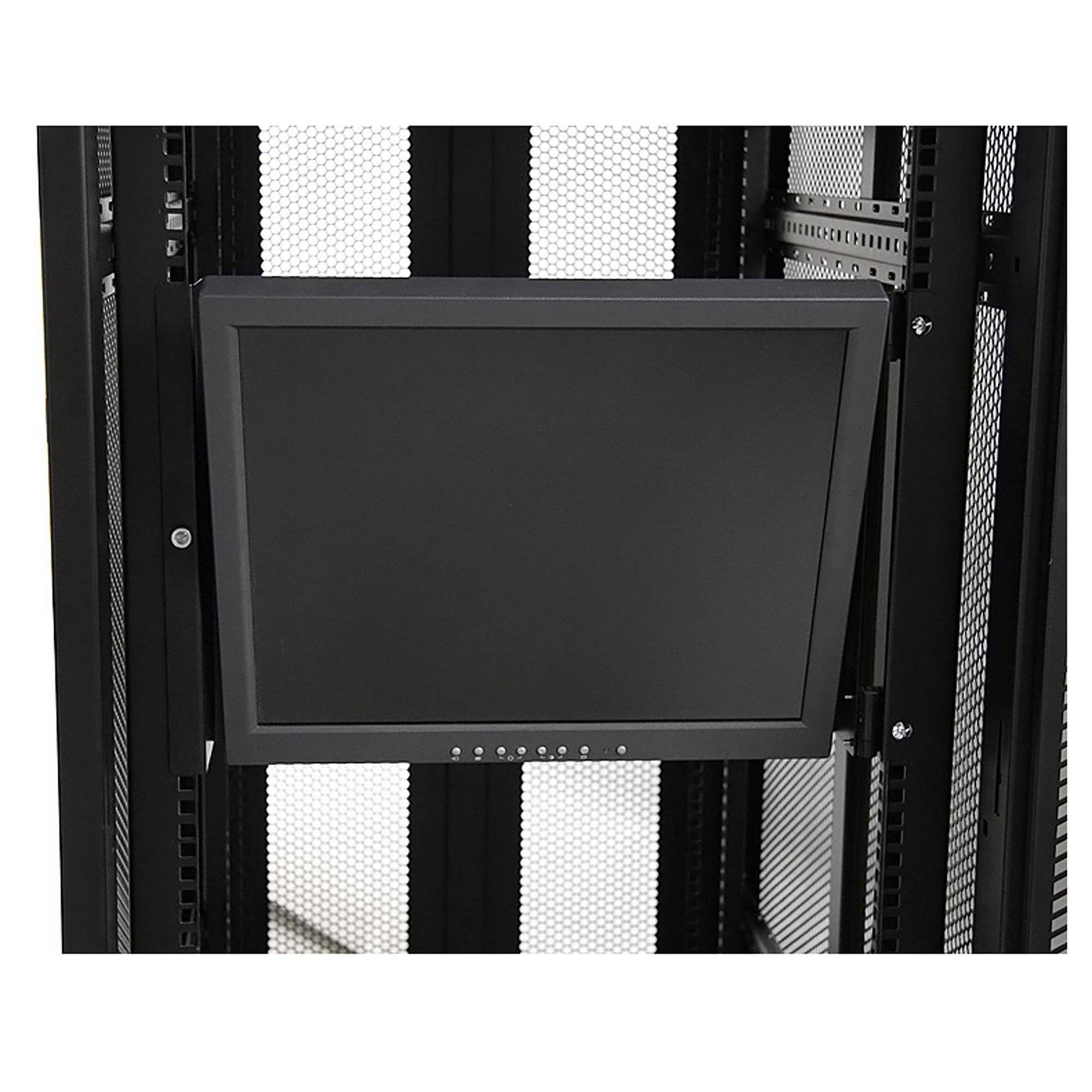

Mount a 17-19 inch LCD panel with tilt and swivel action in a standard 19 inch rack/cabinet
- 100mm and 75mm VESA mounting hole pattern
- Meets ANSI/EIA RS-310-D standards
- TAA compliant for GSA Schedule purchases
- Constructed from solid steel at 2.0mm thick, this bracket is designed for durability
The RKLCDBKT Universal Swivel VESA LCD Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or touch screen into a server rack/cabinet, with tilt and swivel motion for maximum visible range. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

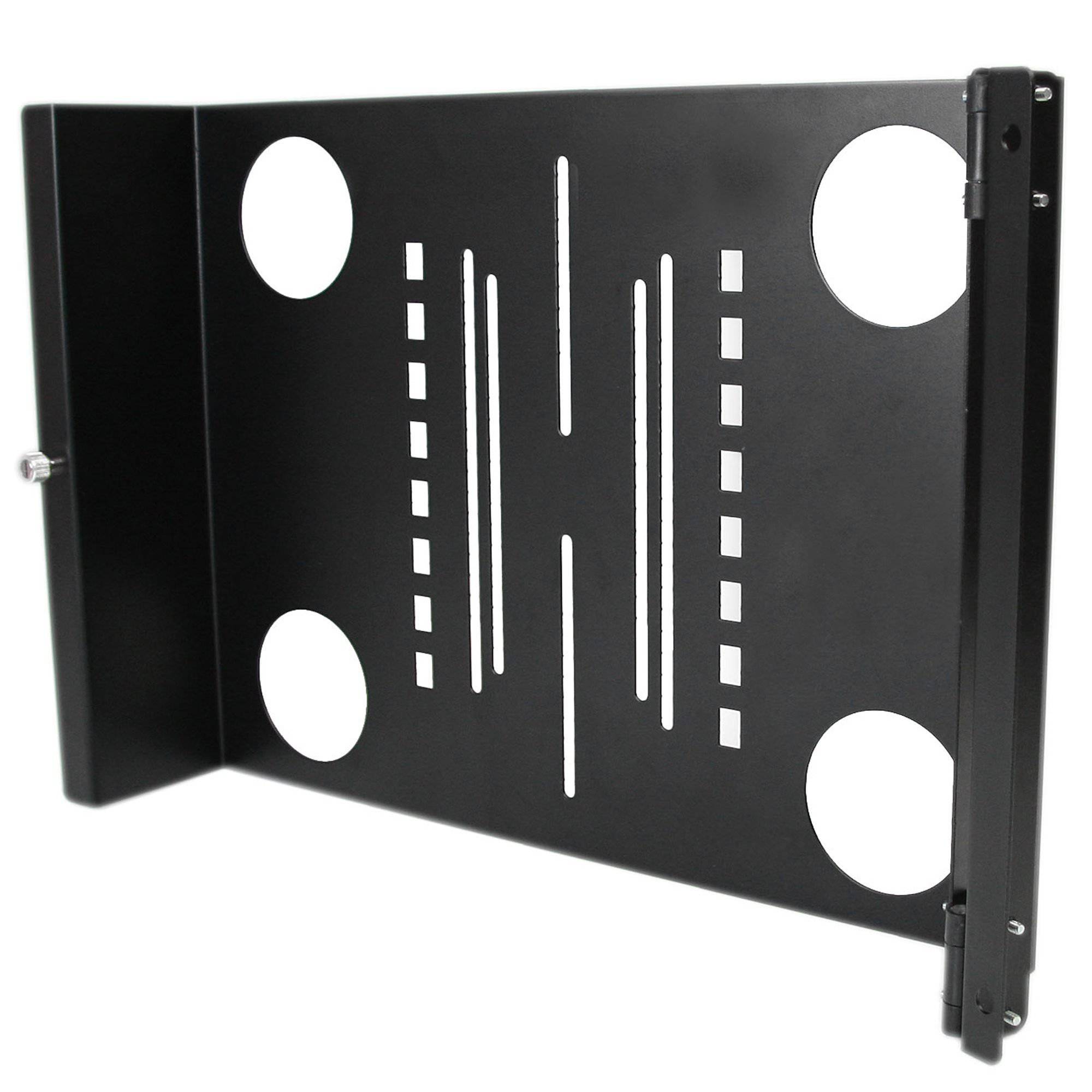

Hinged on one of the rail mounts, the LCD bracket can be released to swing out from the rack, as well as offering vertical tilt allowing for perfect placement of your LCD panel with minimal adjustment.
Constructed from solid cold pressed steel (SPCC), the LCD mounting bracket is designed to support 75mm and 100mm VESA mounted panels, and meets ANSI/EIA RS-310-D rack mounting standards.
Backed by a StarTech.com Lifetime warranty.
Applications
- Installing a touch screen display into a rack or cabinet while retaining access behind it with the swing it out arm
- Can be mounted at any height in the rack; with swivel bracket the screen is always visible
The StarTech.com Advantage
- Swing arm makes it simple to access equipment mounted behind the LCD and avoid wasting rack space
- Constructed from solid cold pressed steel (SPCC) for durability
Specifications
| Warranty Information | Warranty | Lifetime |
|---|---|---|
| Hardware | Cable Management | No |
| U Height | 7U | |
| Frame Type | Steel | |
| Industry Standards | EIA RS310-D | |
| Packaging Information | Package Height | 4.2 in [106 mm] |
| Package Length | 19.3 in [48.9 cm] | |
| Shipping (Package) Weight | 7.0 lb [3.2 kg] | |
| Package Width | 12.7 in [32.3 cm] | |
| Performance | Weight Capacity (Stationary) | 16000 |
| General Specifications | VESA Compliance: 100x100mm 75x75mm |
|
| Physical Characteristics | Weight of Product | 101.0 oz [2862.165 g] |
| Color | Black | |
| Internal Width | 425.25 | |

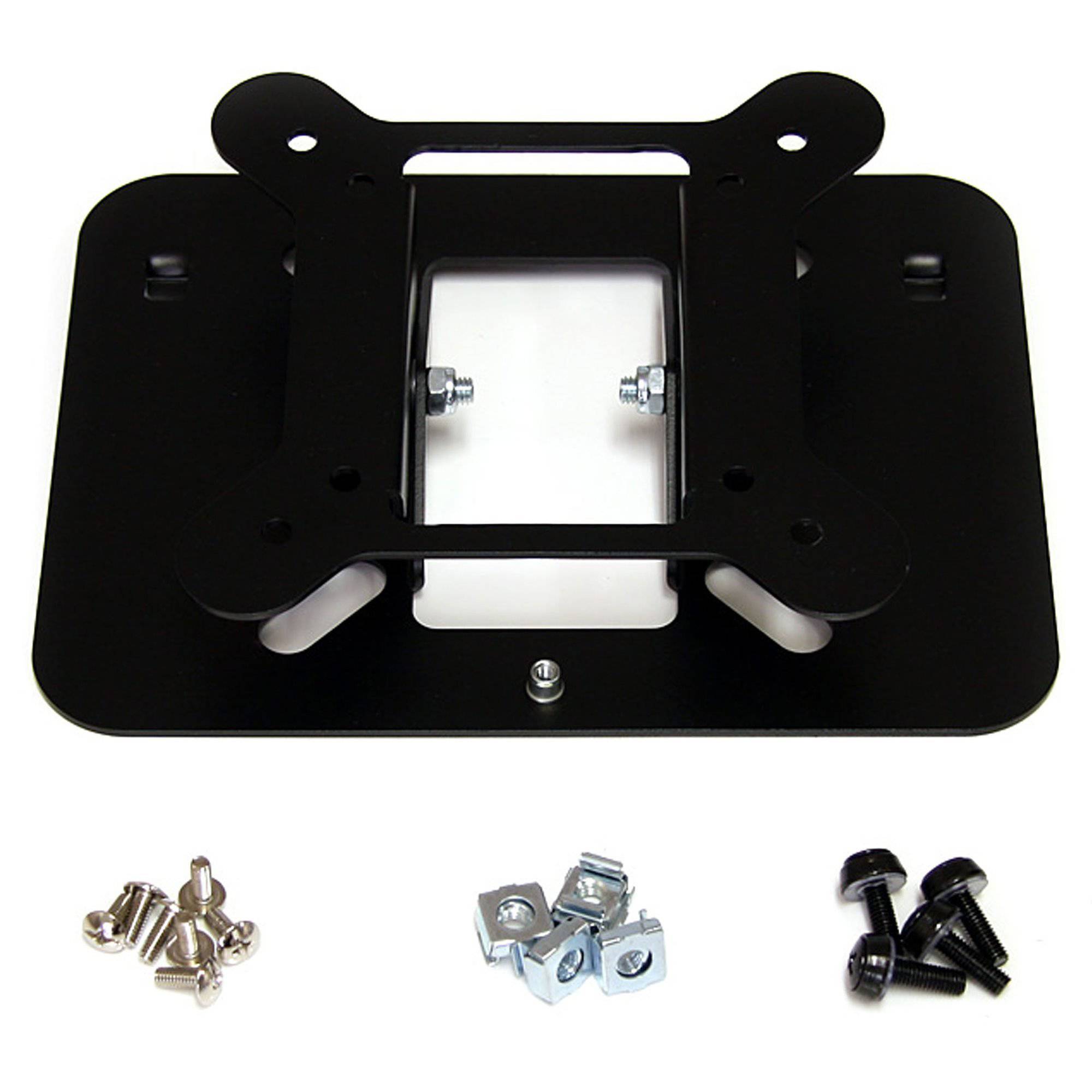

| What's in the Box | Included in Package | 1 - Mounting back plate |
| 1 - LCD Swivel Mounting Bracket | ||
| 1 - Package of assembly screws (4 x M5*16 Panel screws, 4 x M5 Cage nuts, 2 x M4*8 screws) | ||
| 1 - Package of 4 LCD mounting Screws |
