StarTech 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power PEXUSB3S4V - Buy Singapore

Roll over image to zoom in Click on image to zoom

StarTech 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power PEXUSB3S4V (2 Years Manufacture Local Warranty In Singapore)

Name: StarTech 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power PEXUSB3S4V (2 Years Manufacture Local Warranty In Singapore)
Brand: StarTech
SKU: PEXUSB3S4V
Price: 95.00 SGD
Availability: InStock

Save 3%

StarTechSKU: PEXUSB3S4V

No reviews

Price:

$ 95.00 SGD $ 97.99 SGD

Quantity:

Share this product

StarTech 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power PEXUSB3S4V (2 Years Manufacture Local Warranty In Singapore)

Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express

4 external USB 3.0 ports in a stacked layout
UASP support for more efficient data transfer
Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
4 external USB 3.0 ports in a stacked layout
UASP support for more efficient data transfer
Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications

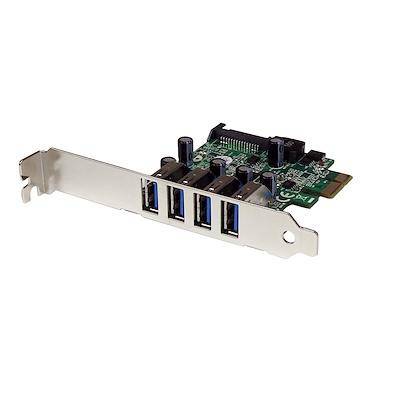

The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.

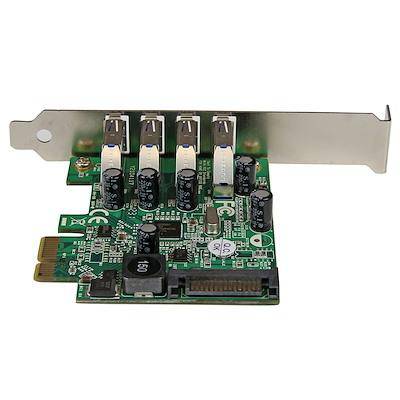

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

UASP Speed Diagram

Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Applications

Upgrade an older PCIe-based system with USB 3.0 connectivity, to fully utilize USB 3.0 devices
Expand a system's USB capabilities with four additional external USB ports, for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc.

The StarTech.com Advantage

USB 3.0 PCI-E card has 4 external USB 3.0 ports using a space-saving stacked layout
Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
Power high-powered USB devices as necessary, with the optional SATA power connector

Specifications

Warranty Information	Warranty	2 Years
Connector(s)	Connector Type(s)	1 - PCI Express x1
	Internal Ports	1 - SATA Power (15 pin)
	External Ports	4 - USB Type-A (9 pin) USB 3.0 (5 Gbps)
Environmental	Operating Temperature	5°C to 50°C (41°F to 122°F)
	Storage Temperature	-25°C to 70°C (-13°F to 158°F)
	Humidity	20% ~ 80% RH
Hardware	Ports	4
	Interface	USB 3.0
	Bus Type	PCI Express
	Card Type	Standard Profile (LP bracket incl.)
	Port Style	Integrated on Card
	Chipset ID	Renesas/NEC - µPD720201
Packaging Information	Package Height	1.3 in [33 mm]
	Package Length	5.2 in [13.2 cm]
	Shipping (Package) Weight	0.3 lb [0.1 kg]
	Package Width	6.4 in [16.2 cm]
	Package Quantity	1
Performance	Type and Rate	USB 3.0 - 5 Gbit/s
	UASP Support	Yes
Physical Characteristics	Weight of Product	2.4 oz [68 g]
	Product Length	3.0 in [7.5 cm]
	Product Width	0.7 in [19 mm]
	Product Height	2.7 in [6.8 cm]
Software	OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Special Notes / Requirements	System and Cable Requirements	Available PCI Express expansion slot
	Note	The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
What's in the Box	Included in Package	1 - PCI Express USB 3.0 Card
		1 - Low Profile Bracket
		1 - Driver CD
		1 - Instruction Manual
