StarTech KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter NOTECONS01 (2 years Local Warranty in Singapore) - Buy Singapore

Roll over image to zoom in Click on image to zoom

StarTech KVM Console to USB 2.0 Portable Crash Cart Adapter NOTECONS01 (2 Years Manufacture Local Warranty In Singapore)

Name: StarTech KVM Console to USB 2.0 Portable Crash Cart Adapter NOTECONS01 (2 Years Manufacture Local Warranty In Singapore)
Brand: StarTech
SKU: NOTECONS01
Price: 768.00 SGD
Availability: InStock

Save 22%

StarTechSKU: NOTECONS01

No reviews

Price:

$ 768.00 SGD $ 987.00 SGD

Quantity:

Share this product

StarTech KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter NOTECONS01 (2 Years Manufacture Local Warranty In Singapore)

Turn any laptop into a console for headless servers, PCs, ATMs, kiosks and more

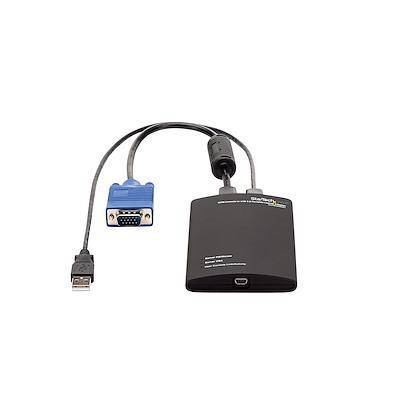

Very small footprint with integrated KVM cables
Self-powered – draws its power from the server USB connections
Multi-platform support USB and PS/2 to the server or KVM (PS/2 for Keyboard Only)
LED indicators for USB link, Host Video link, and Host Keyboard/Mouse Link
Manual video adjustments to control the picture position, sharpness and image noise for optimal performance settings
Snapshot feature allows you to capture screen shots of your server, error messages, and activity
Pre-loaded special key commands
Keyboard emulation support for USB, PS/2 and SUN systems
Auto image centering adjustment for 4x3 images on a wide screen display
Automatic video scaling when resizing the viewing pane from the console PC (laptop) for immediate, automatic compatibility
Manual video override adjustments allows it to work with legacy and industrial devices where other portable consoles do not
True USB mouse synchronization ensures accurate navigation of the connected server

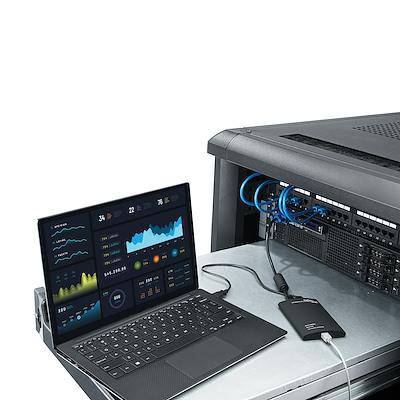

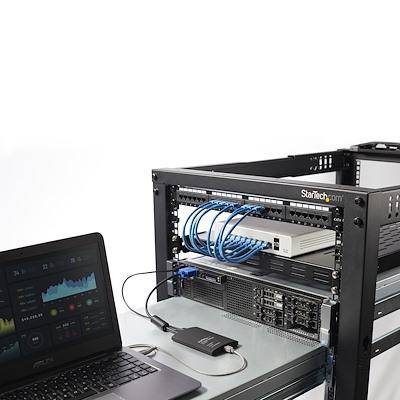

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.

"StarTech.com's USB KVM may be your new best friend for trips to the datacenter... you can use this from the back of the rack. So if you are handling issues that require moving cables or network connections... this can be a major timesaver."
— everythingUSB.com

"The CRN Test Center recommends StarTech's Crash Cart Adapter for any company with a data center or with technicians servicing computers in the field"
— CRN

CRN TechInnovator 2010 Runner-up Award

With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.

Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

How it works:
Laptop KVM - how it works

Applications

Eliminates the need for huge, bulky crash carts in the server room or distributed networks
Cost effective solution for areas where dedicated rack mounted LCD Consoles are too pricey or cumbersome to install
Headless Server maintenance
Mobile server repair
ATM and VLT maintenance and repair

Specifications

Warranty Information	Warranty	2 Years

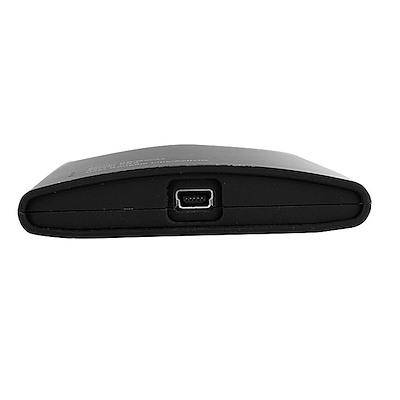

Connector(s)	Console Interface(s)	1 - USB Mini-B (5 pin)
	Host Connectors	1 - PS/2 (6 pin, Mini-DIN)
		1 - USB Type-A (4 pin) USB 2.0
		1 - VGA (15 pin, High Density D-Sub)
Environmental	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-40°C to 70°C (-40°F to 158°F)
	Humidity	80% RH
Hardware	Audio	No
	KVM Ports	1
	PC Interface	USB and PS/2
	PC Video Type	VGA
	Number of Monitors Supported	1
	Rack-Mountable	No
	Cables Included	Yes
	Daisy-Chain	No
Indicators	LED Indicators	1 - Host/Server Keyboard/Mouse (USB,PS/2) Link
		1 - Host/Server Video (VGA) Link
		1 - User Console/USB Link
Packaging Information	Package Length	1.8 in [4.5 cm]
	Package Width	11.8 in [30 cm]
	Package Height	6.3 in [160 mm]
	Shipping (Package) Weight	0.9 lb [0.4 kg]
Performance	On-Screen Display	No
	IP Control	No
	Hot-Key Selection	No
	Maximum Analog Resolutions	1920x1200 @ 60Hz
	Maximum Number of Users	1
	MTBF	284000 Hrs
Physical Characteristics	Color	Black
	Material	Plastic
	Cable Length	1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
	Product Width	2.9 in [74 mm]
	Product Height	0.6 in [1.5 cm]
	Product Depth	115
	Weight of Product	6.0 oz [170 g]
Power	Power Source	USB-Powered
Software	OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2016, 2019 macOS 10.6 to 10.15 Linux 2.6.x to 4.11.x (LTS Versions Only)
Special Notes / Requirements	Note	If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration

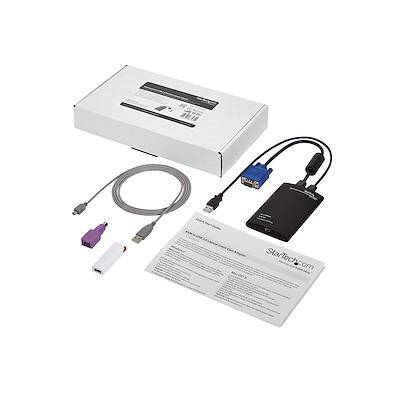

What's in the Box	Included in Package	1 - USB PS/2 KVM Console Adapter
		1 - USB Cable
		1 - USB to PS/2 Adapter
		1 - USB Software Key
