Startech 12U Adjustable Depth Open Frame 4 Post Server Rack w/ Casters / Levelers and Cable Management Hooks 4POSTRACK12U

Store your servers, network and telecommunications equipment in an adjustable 12U open-frame rack

  • 12U Open frame design
  • Adjustable mounting depth from 22 - 40in
  • Supports a static loading capacity of 1200lbs (544kg)
  • 12U Open frame design
  • Adjustable mounting depth from 22 - 40in
  • Supports a static loading capacity of 1200lbs (544kg)

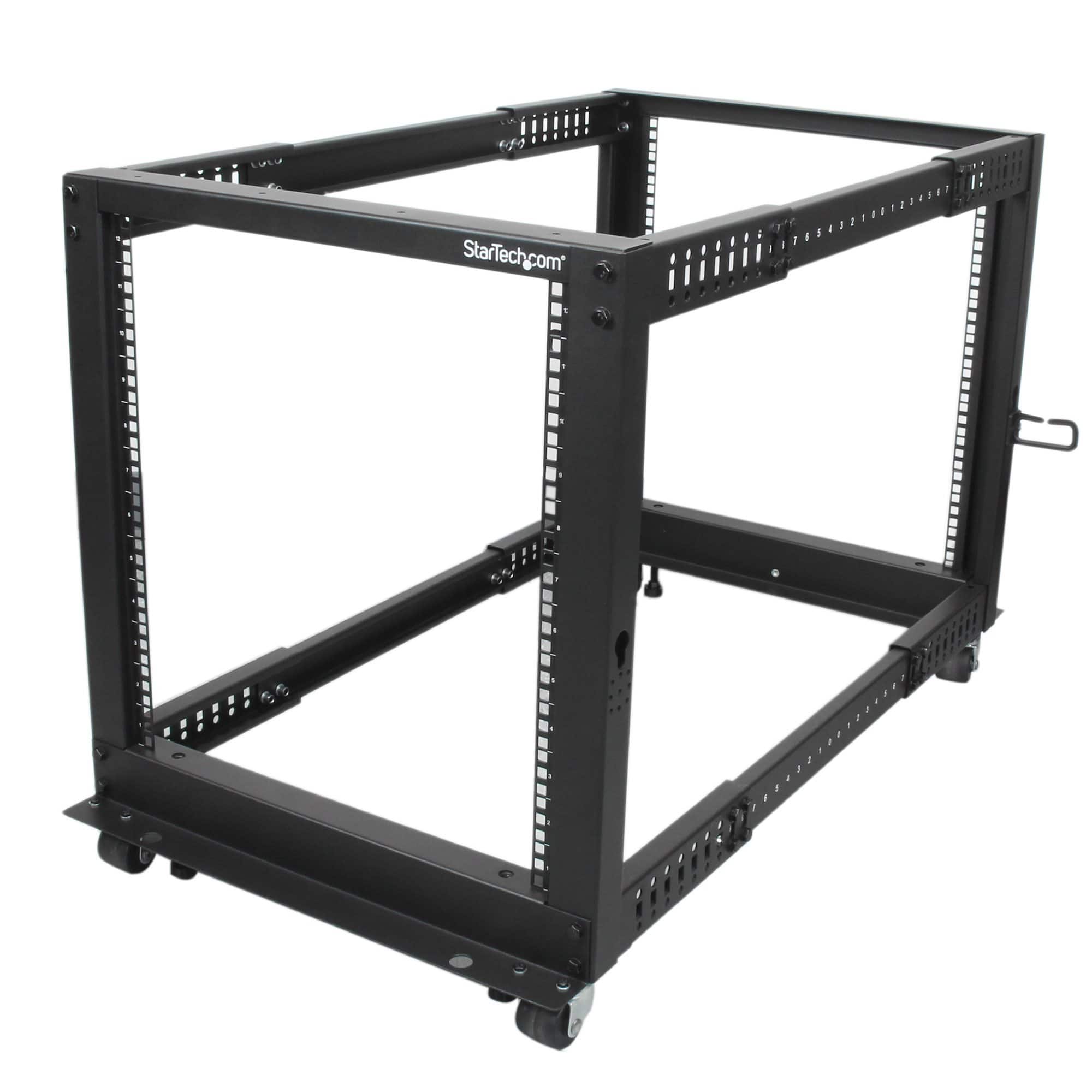

The 4POSTRACK12U 12U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.

Designed with ease of use in mind, this 12U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.

This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.

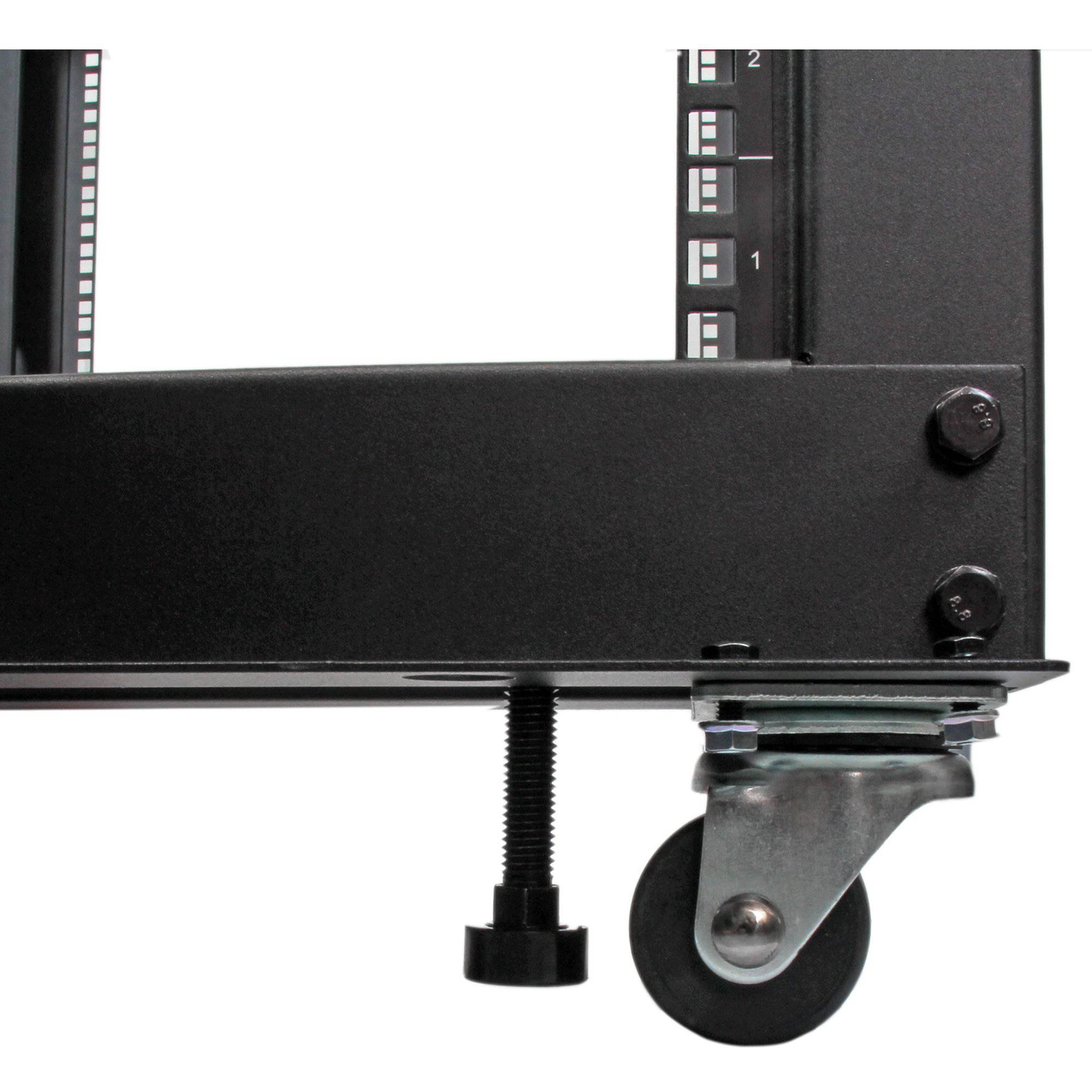

For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Durable storage for rackmount servers, KVM switches, and networking equipment
  • Suitable for rackmount equipment where security at the rack level is not required
  • Rack-mounting A/V equipment in a radio or television studio

The StarTech.com Advantage

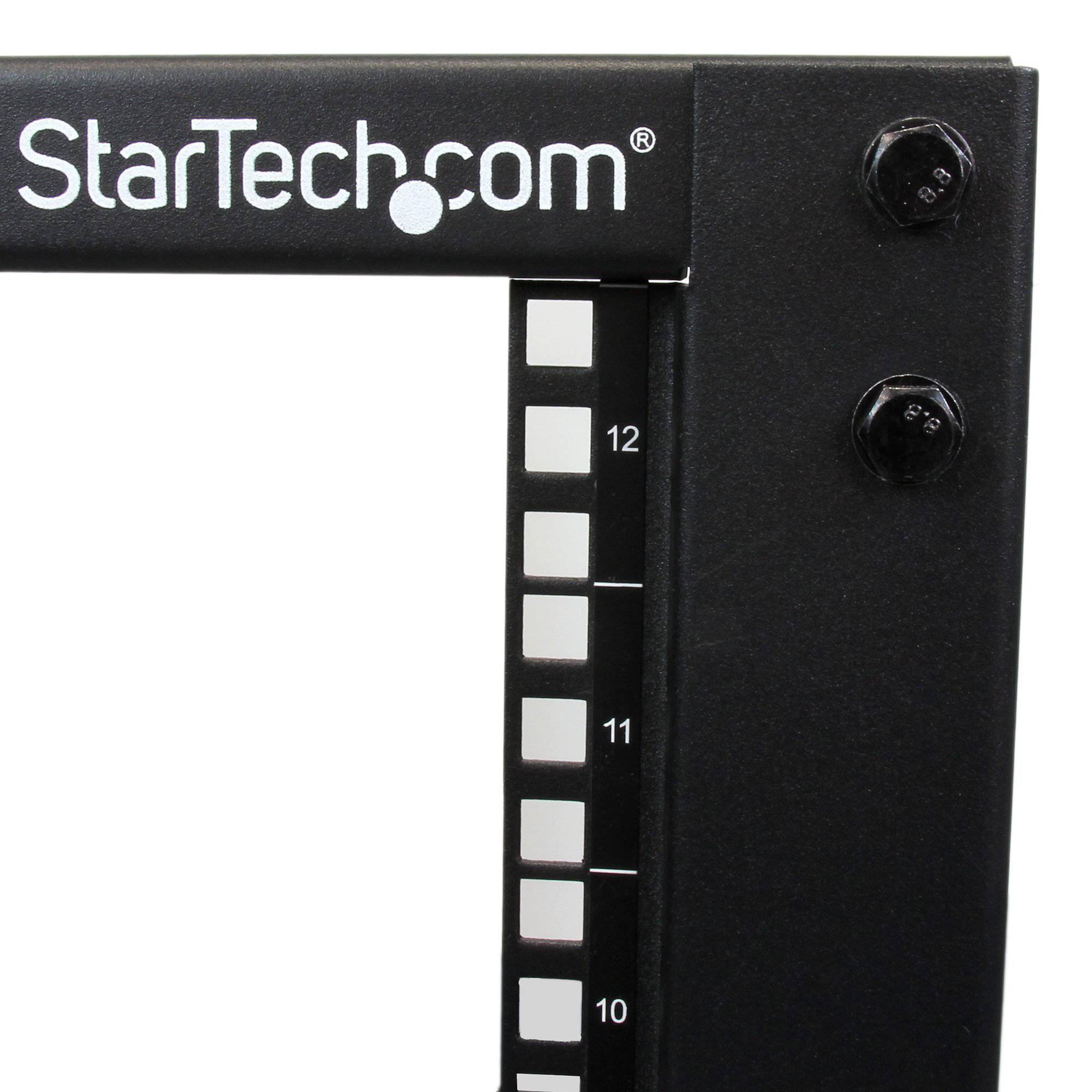

  • Mount your equipment easily, with clearly marked rack units (U) and depth

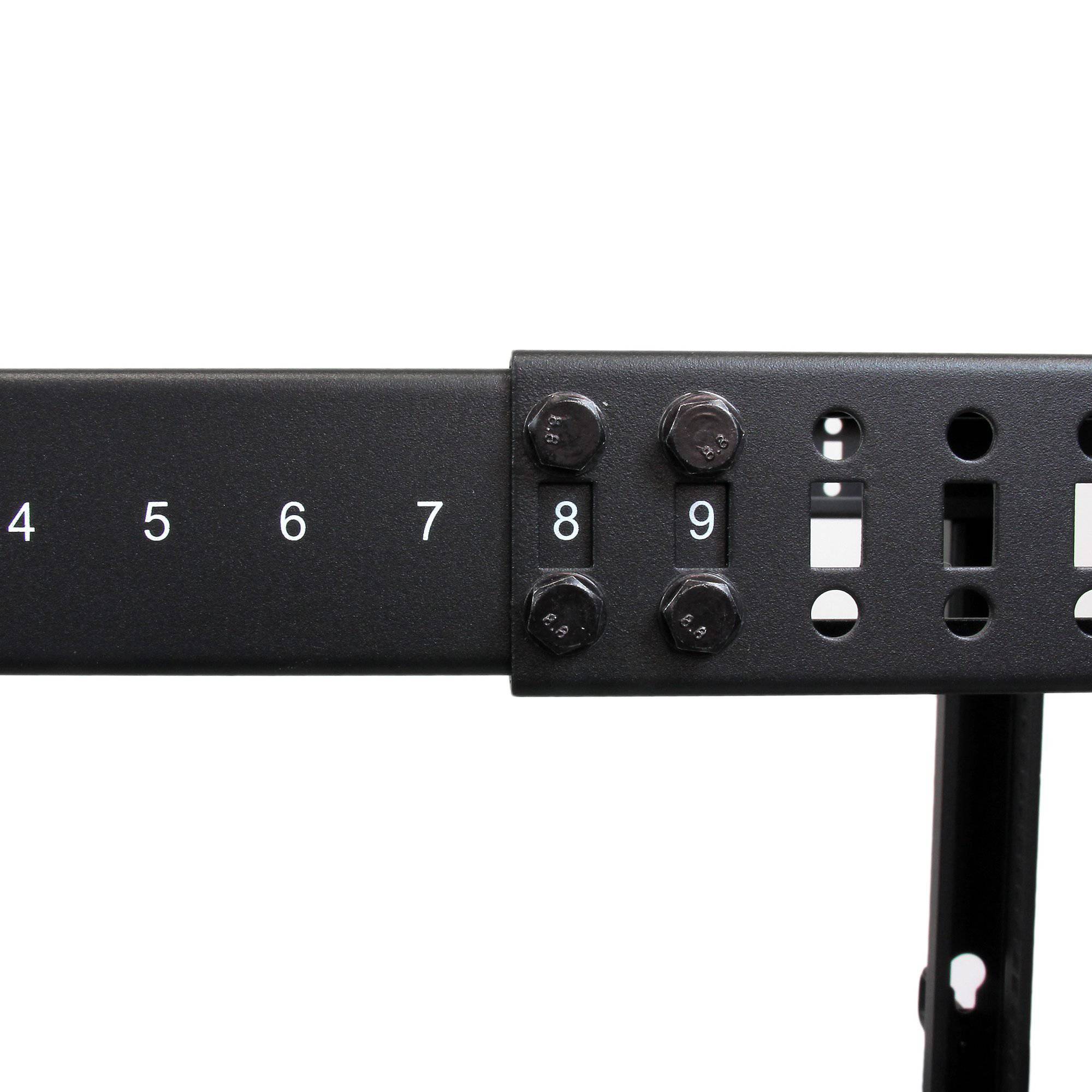

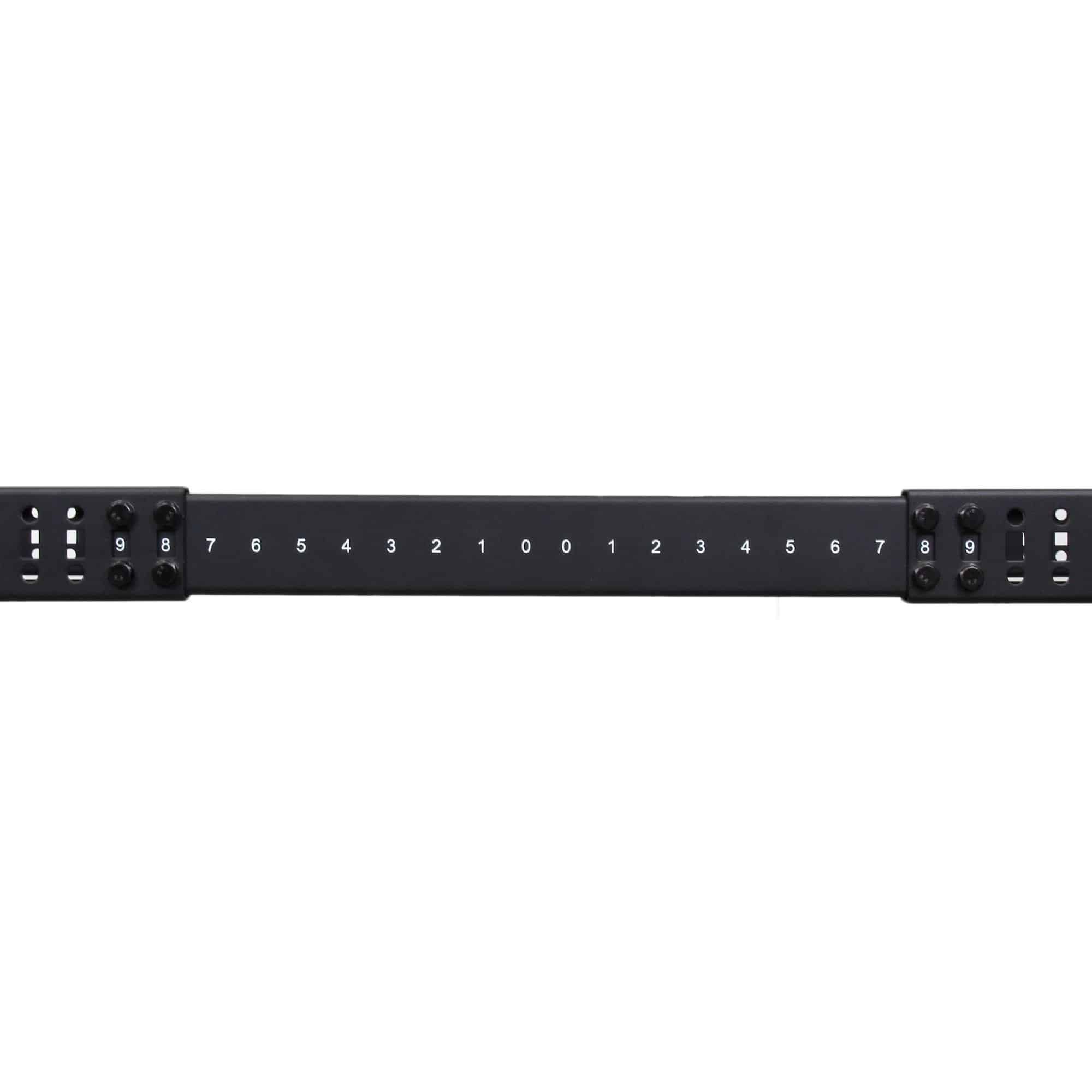

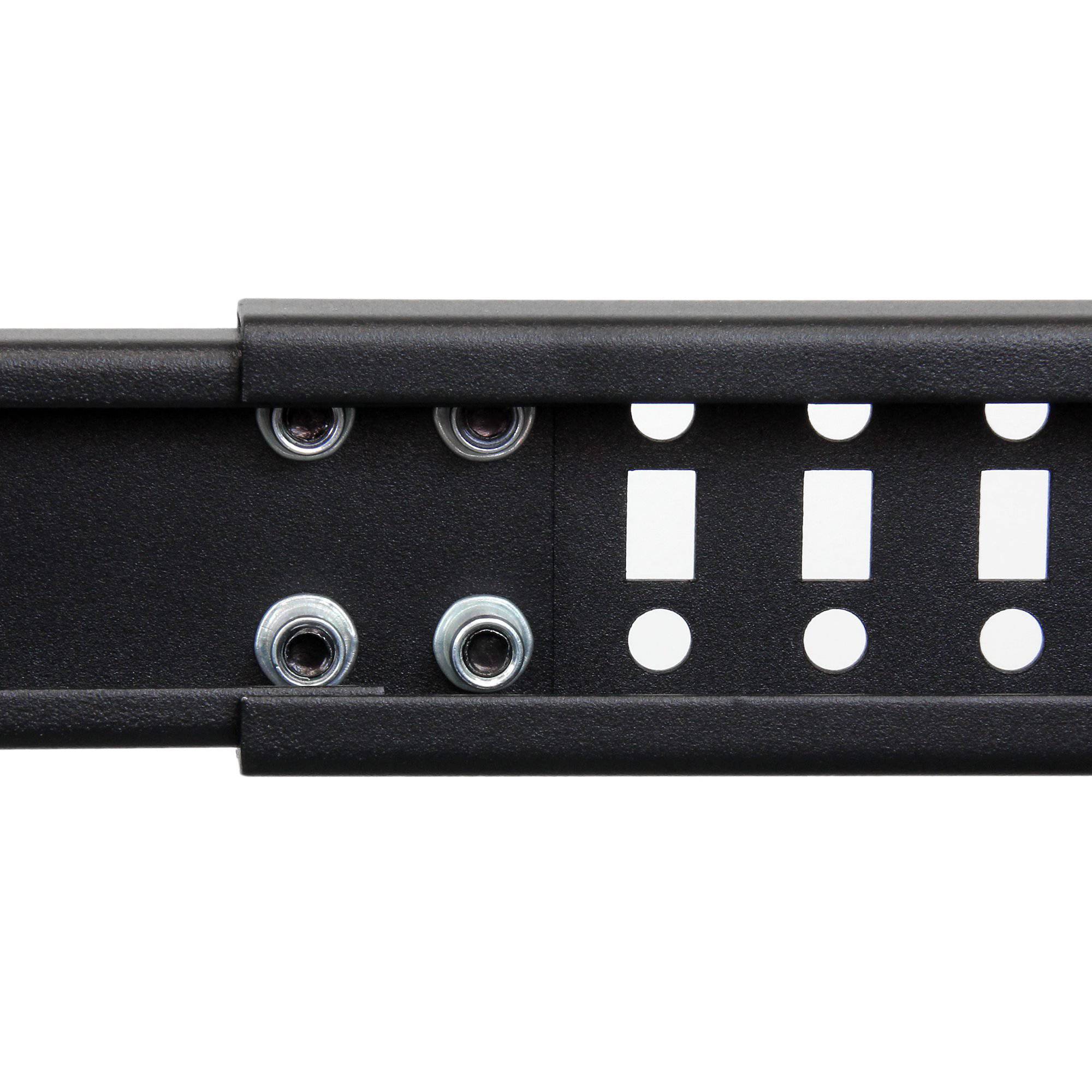

  • Adapt the rack to your equipment easily, with an adjustable depth design
  • Customize the rack to fit your environment using the included optional accessories



Specifications

Warranty Information Warranty 2 Years
Hardware Wallmountable No
Special Features Adjustable Mounting Rails
Mounting Rail Profile L-Shape
Special Features Base Plate with Floor-Anchoring Holes
Mounting Hole Types Square (For Cage Nut)
Special Features Built-in Cable Management
Casters (Included)
Easy Assembly
Grounding Lug(s)
Leveling Feet
U-Markings
Rack Type 4-Post
U Height 12U
Frame Type Open Frame
Industry Standards EIA/ECA-310-E
Packaging Information Package Height 6.3 in [160 mm]
Package Length 25.6 in [65 cm]
Shipping (Package) Weight 58.0 lb [26.3 kg]
Package Width 14.2 in [36.1 cm]
Flat Pack (Assembly Required) Yes
Performance Weight Capacity (Stationary) 544
Physical Characteristics Construction Material Steel
Color Black
Product Measurements Weight of Product 802.1 oz [22740 g]
Product Length 41.3 in [104.8 cm]
Product Width 23.8 in [604 mm]
Product Height 25.1 in [63.8 cm]
Maximum Mounting Depth 1017
Minimum Mounting Depth 560
Product Height with Casters 710
What's in the Box Included in Package 2 - Left Vertical Rail
2 - Right Vertical Rail
2 - Base Bracket
8 - Corner Section
4 - Center Section
2 - Top Bracket
48 - M8 Bolt
48 - M8 Washer
1 - M8 (13mm) Wrench
1 - M6 (10mm) Wrench
1 - Phillips Screwdriver
24 - M6 Cage Nut
24 - PVC Cup Washer
24 - M6 Phillips Head Screw

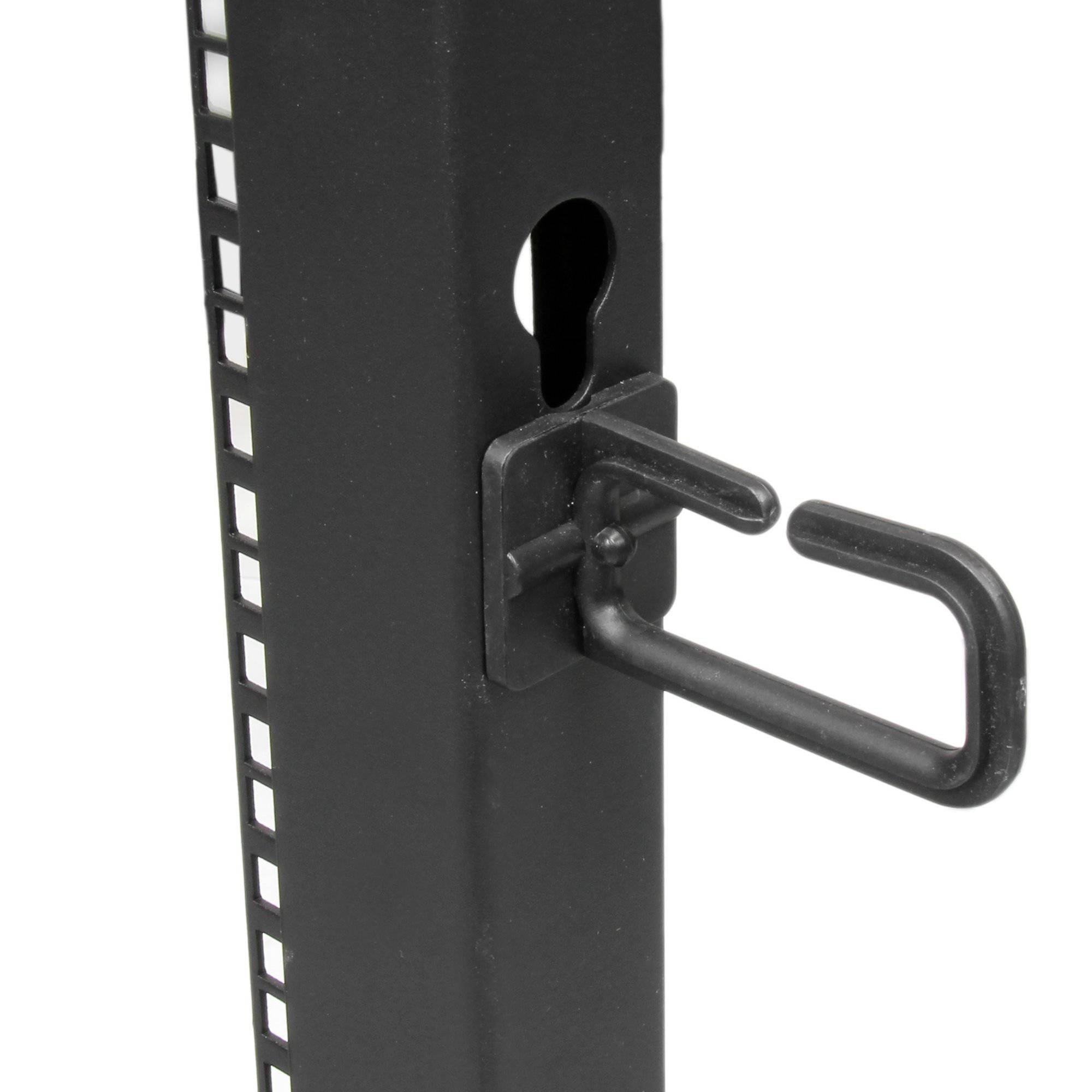

4 - Cable Management Hook
4 - Hook Mounting Screw
4 - Casters
4 - Leveling Feet
16 - M6 Screw
16 - M6 Flat Washer
16 - M6 Flange Nut
4 - Grounding Wires
