StarTech USB-C VGA Multiport Adapter - USB 3.0 Port - 60W PD CDP2VGAUACP (3 Years Manufacture Local Warranty In Singapore)

StarTechSKU: CDP2VGAUACP
No reviews

Price:
Sale price$ 94.00 SGD

Description

StarTech USB-C VGA Multiport Adapter - USB 3.0 Port - 60W PD CDP2VGAUACP (3 Years Manufacture Local Warranty In Singapore)

Portable Docking Station | For Windows® & Mac | Thunderbolt™ 3 Compatible

  • Add a VGA port (2048 x 1280p 60Hz) and a USB-A port to your USB-C equipped laptop, MacBook or Chromebook
  • Power your laptop with 60W Power Delivery using this multiport adapter and a USB Type-C power adapter
  • Connect a USB 3.0 Type-A device, like a flash drive or a mouse, to your Windows or MacBook Pro laptop
  • Rugged design for durability, lightweight and compact for portability and convenience
  • Supports USB-C DP Alt Mode and is Thunderbolt 3 compatible



This USB-C VGA multiport adapter combines the capability of two single-function adapters, a USB-C video adapter and USB-C to USB adapter, into a portable docking station for your laptop. You can instantly connect to a VGA display and a USB 3.0 (Type-A) device, while also powering and charging your laptop using the same adapter.

Mobile Multitasking

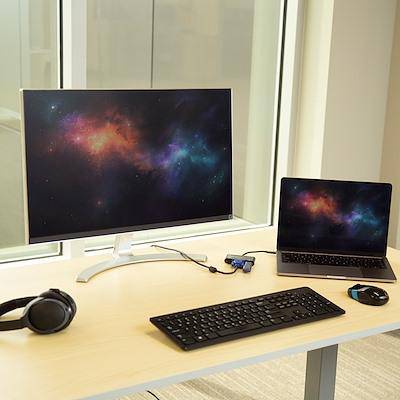

With a secondary display connected to your laptop, you can multitask faster and easier. The USB-C adapter’s VGA video output lets you create a dual-screen workstation comprised of your laptop’s display and an additional VGA monitor or projector, in a boardroom or other professional environment.

Powers and Charges Your Laptop

With USB Power Delivery, you can power and charge your laptop by simply connecting the multiport adapter to your laptop’s USB Type-C port, then connecting a USB Type-C power adapter.

Universal Compatibility

The USB-C multiport adapter features a built-in USB-C cable and works with USB-C equipped MacBook, Chromebook™ and Windows laptops that support DisplayPort (DP) Alt Mode and USB Power Delivery.

Rugged and Portable

Compact, lightweight design and rugged construction lets you take this USB-C video adapter anywhere you take your laptop.

The StarTech.com Advantage for Docking Stations

  • Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
  • Get more done faster - More ports and more displays maximize end user connectivity and productivity

  • Quick installation - eliminate deployment headaches that waste time and frustrate end users

  • IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support

The CDP2VGAUACP is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Applications

  • Connect to almost any VGA monitor, TV, or projector while travelling
  • Ideal for Bring Your Own Device (BYOD) and Choose Your Own Device (CYOD) office applications
  • Use with the latest USB-C equipped laptops and Windows® based tablets, as well as the Apple MacBook, and Google Chromebook™



Specifications

Warranty Information Warranty 3 Years
Connector(s) Connector Type(s) 1 - USB Type-C (24 pin) USB 3.0 (5Gbps)
1 - VGA (15 pin, High Density D-Sub)
1 - USB Type-A (9 pin) USB 3.0 (5 Gbps)
1 - USB Type-C (24 pin) USB 3.0 (5Gbps)
Environmental Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 5~90% RH (Non-condensing)
Hardware 4K Support No
Fast-Charge Port(s) No
Displays Supported 1
Bus Type USB-C
Industry Standards USB 3.0 - Backward compatible with USB 2.0 and 1.1
Chipset ID VIA/VLI - VL100
VIA/VLI - VL210
NXP - PTN3355
Packaging Information Package Height 1.3 in [34 mm]
Package Length 6.7 in [17.1 cm]
Shipping (Package) Weight 0.2 lb [0.1 kg]
Package Width 5.7 in [14.5 cm]
Performance Maximum Data Transfer Rate 5 Gbps (USB 3.0)
Maximum Analog Resolutions 2048 x 1280p @ 60Hz
Lower resolutions are also supported.
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Physical Characteristics Weight of Product 1.4 oz [39 g]
Color Black
Material Plastic

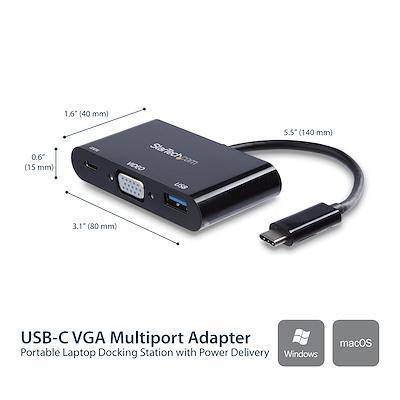

Cable Length 5.5 in [140 mm]
Product Length 3.1 in [8 cm]
Product Width 1.6 in [40 mm]
Product Height 0.6 in [1.5 cm]
Power Power Source USB-Powered
Power Delivery 60W
Special Notes / Requirements System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode).
Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
System and Cable Requirements The multifunction adapter does not include a USB-C power adapter.
Optional: the multifunction adapter can be used with a separate USB-C power adapter (for example, your laptop’s USB-C based power adapter).
Note The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
What's in the Box Included in Package 1 - USB-C to VGA multifunction adapter
