Description

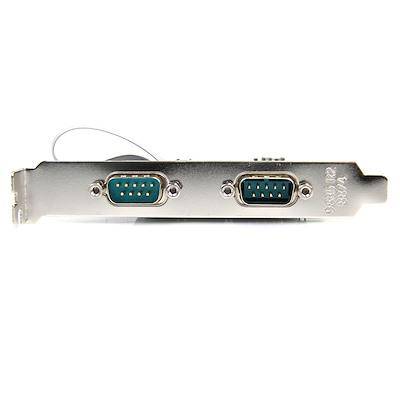

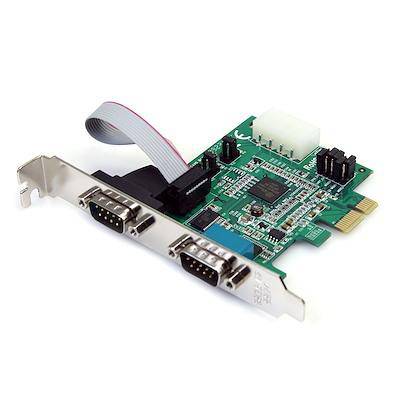

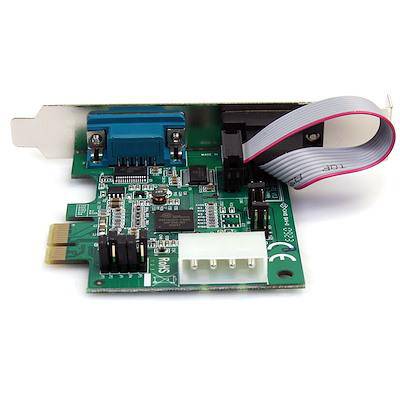

StarTech 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART PEX2S952
Add 2 RS-232 serial ports to your full height or low profile computer through a PCI Express slot
- Two high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps
- Compliant with PCI Express base specifications revision 1.0a
- Includes half-height/low profile mounting bracket
- Two high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps
- Compliant with PCI Express base specifications revision 1.0a
- Includes half-height/low profile mounting bracket
Specifications
| Warranty Information | Warranty | Lifetime |
|---|---|---|
| Connector(s) | Connector Type(s) | 1 - PCI Express x1 |
| Internal Ports | 1 - LP4 (4 pin; Large Drive Power) | |
| External Ports | 2 - DB-9 (9 pin, D-Sub) | |
| Environmental | Operating Temperature | -10°C to 80°C (14°F to 176°F) |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Humidity | 5~85% RH | |
| Hardware | Ports | 2 |
| Interface | Serial | |
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Port Style | Integrated on Card | |
| Chipset ID | PLX/Oxford - OXPCIe952 | |
| Packaging Information | Package Height | 1.3 in [33 mm] |
| Package Length | 5.7 in [14.5 cm] | |
| Shipping (Package) Weight | 0.3 lb [0.2 kg] | |
| Package Width | 6.9 in [17.5 cm] | |
| Performance | Serial Protocol | RS-232 |
| Max Baud Rate | 460.8 Kbps | |
| Data Bits | 4, 5, 6, 7, 8 | |
| FIFO | 128 Bytes | |
| Stop Bits | 1, 1.5, 2 | |
| MTBF | 87,600 Hours | |
| Physical Characteristics | Weight of Product | 2.1 oz [60 g] |
| Color | Green | |
| Product Length | 3.5 in [9 cm] | |
| Product Width | 2.6 in [65 mm] | |
| Product Height | 0.8 in [2 cm] | |
| Software | OS Compatibility | Windows® CE 6.0 / 5.0, 95, 98SE, 2000, XP, XP Embedded, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.4.x to 4.11.x LTS Versions only |
| Special Notes / Requirements | Note | Selectable power output on pin 9 of the serial port |
| What's in the Box | Included in Package | 1 - 2 Port Serial Card |
| 2 - Low Profile Bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual |
