Startech 3 Port USB-C to DisplayPort Splitter MST Hub MSTCDP123DP Dual 4K 30Hz or Triple 1080p - Thunderbolt 3 Compatible - Windows Only -EOL
Multi-Monitor Video Splitter | Windows® | Thunderbolt™ 3 Compatible
- MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 3x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible

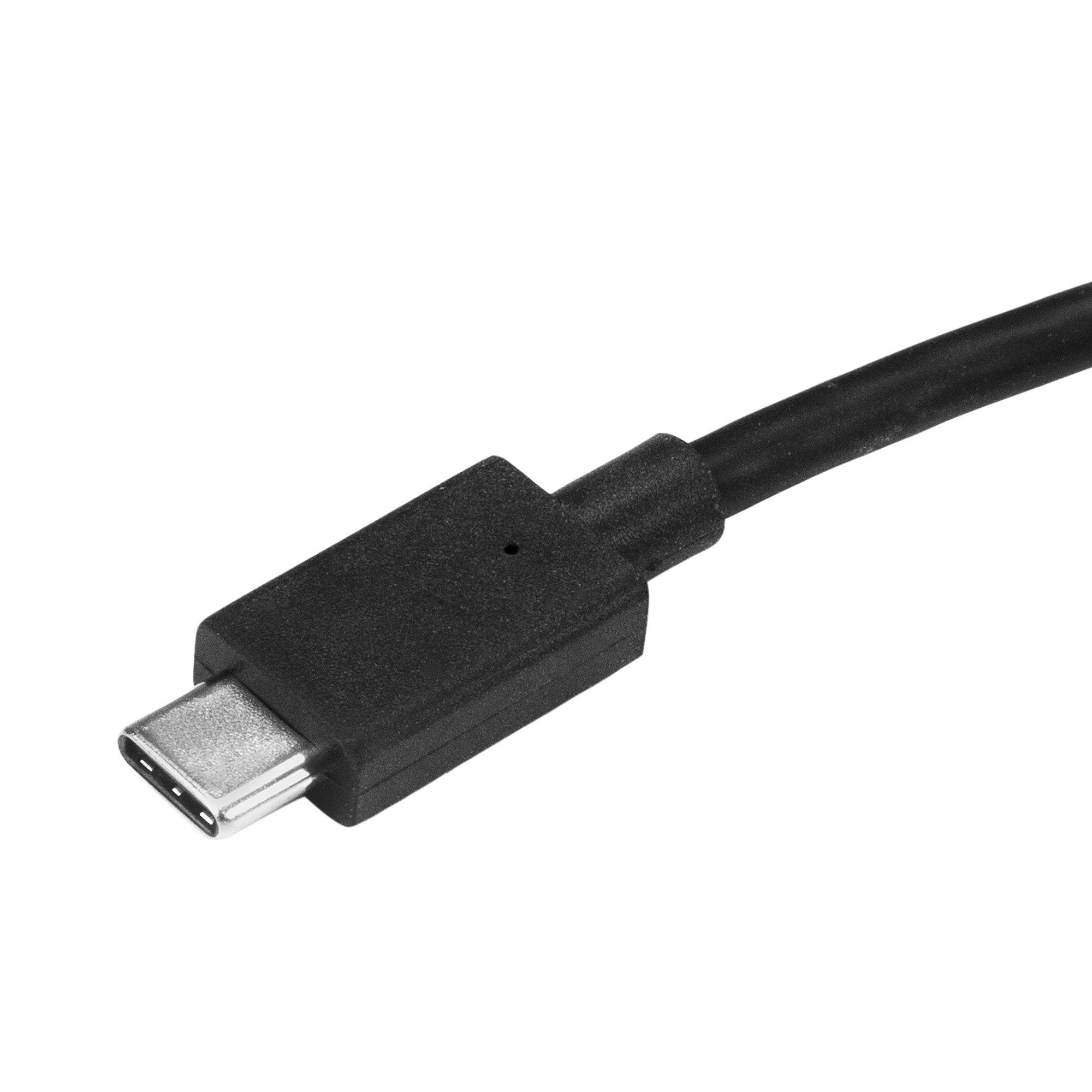

- CONVENIENCE: With a built-in 1ft cable, this bus-powered 3-port MST hub provides an easy method to connect up to three independent screens with any DisplayPort over USB Type-C Windows host device
- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers
- MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 3x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible
- CONVENIENCE: With a built-in 1ft cable, this bus-powered 3-port MST hub provides an easy method to connect up to three independent screens with any DisplayPort over USB Type-C Windows host device
- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers

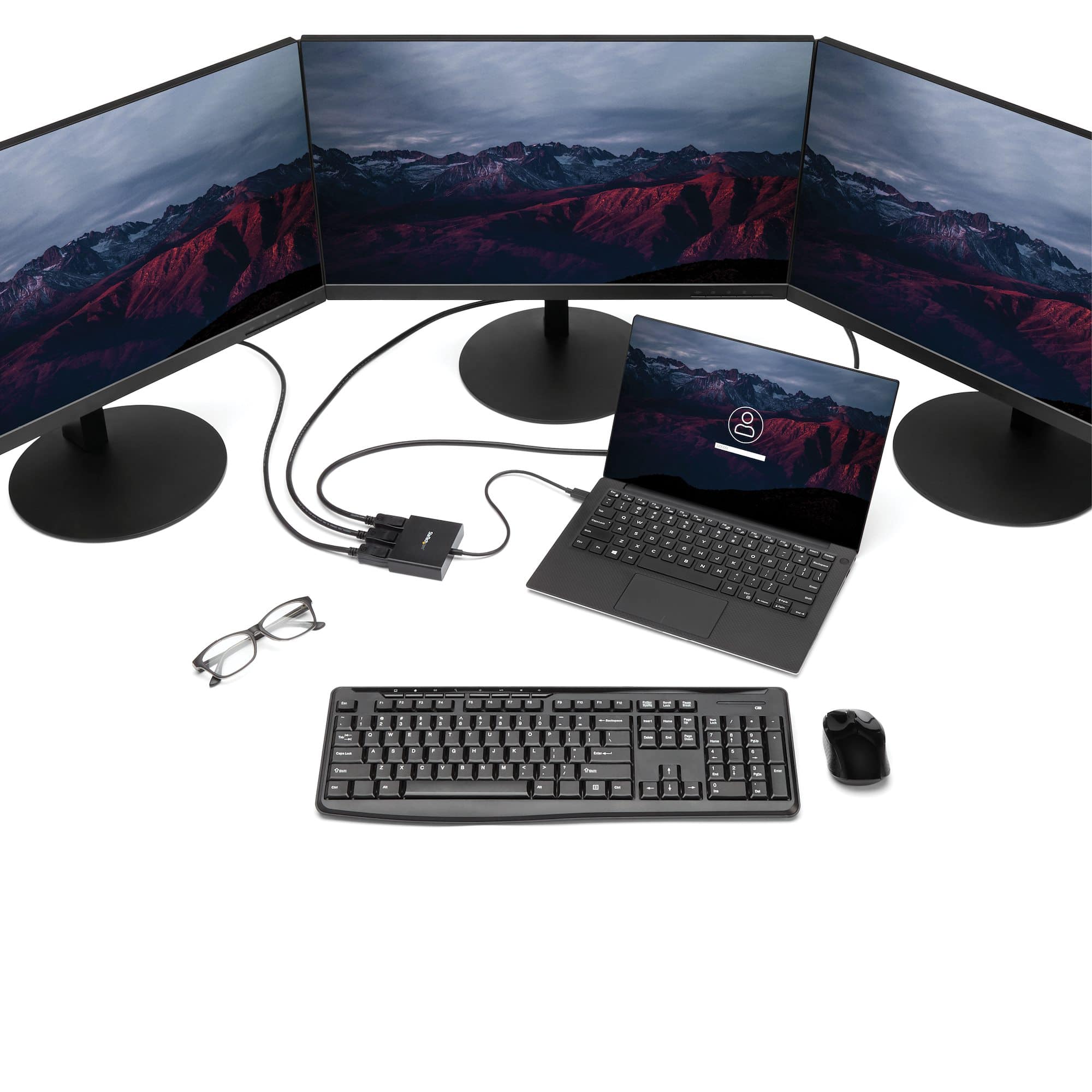

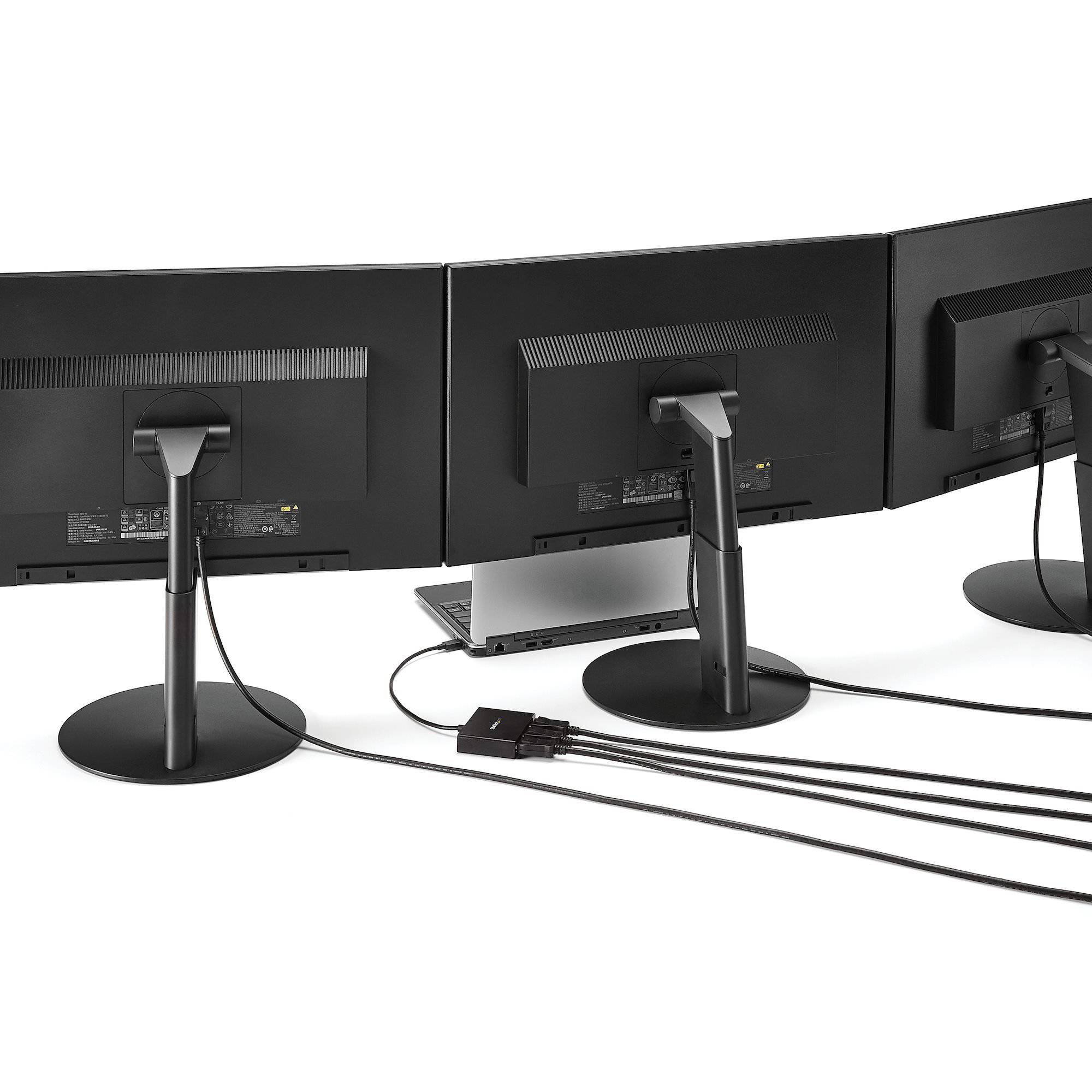

This 3-port USB-C to DisplayPort MST hub lets you connect three DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.
Multitasking Made Easy
With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This MST hub solves that problem by enabling you to connect three displays to your USB-C computer, making multi-tasking much easier.
Using this USB-C to DisplayPort splitter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.
Astonishing Picture Quality
Multi-Stream Transport (MST) technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously. Plus, because the multi-monitor splitter can output HD 1080p on three independent displays, it’s perfect for all high-resolution applications such as graphic design and medical imaging.
Hassle-Free Setup
MST offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C multi-monitor adapter is Thunderbolt 3 compatible and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.
MSTCDP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
Applications
- Create dynamic digital signage with a panoramic video wall
- Span across multiple monitors to avoid side-scrolling
Tech Specs
Specifications are provided by the manufacturer. Refer to the manufacturer for additional explanations.
| Basic | |
|---|---|
| Product Type: | Signal Splitter |
| Brand Name: | StarTech.com |
| Number of DisplayPort Outputs: | 3 |
| General Information | |
|---|---|
| Product Type: | Signal Splitter |
| Manufacturer Part Number: | MSTCDP123DP |
| Manufacturer Website Address: | http://www.startech.com |
| Packaged Quantity: | 1 |
| Manufacturer: | StarTech.com |

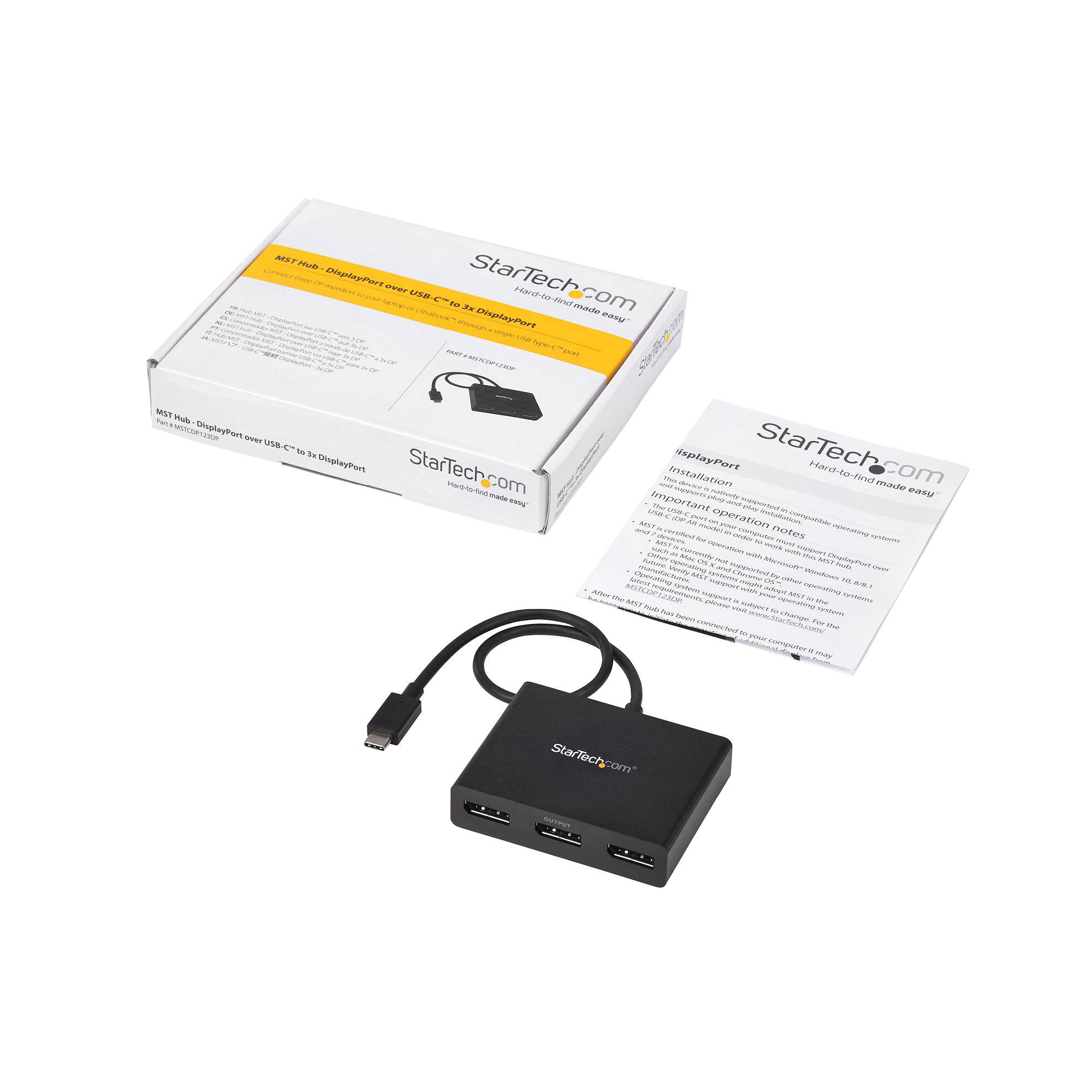

| Product Name: | MST Hub - DisplayPort over USB-C to 3x DisplayPort |
| Brand Name: | StarTech.com |
| Interfaces/Ports | |
|---|---|
| USB: | Yes |
| DisplayPort: | Yes |
| Number of DisplayPort Outputs: | 3 |
| Media & Performance | |
|---|---|
| Maximum Operating Distance: | 4.57 m |
| Physical Characteristics | |
|---|---|
| Material: | Plastic |
| Weight (Approximate): | 85 g |
| Length: | 78.7 mm |
| Height: | 17.8 mm |
| Width: | 61 mm |
| Video | |
|---|---|
| Maximum Video Resolution: | 3840 × 2160 |
