Description
StarTech 4 Port Professional VGA USB KVM Switch with Hub SV431USB -EOL
Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers
- Supports hot-plug and disconnect – computers can be added or removed without the need to reboot other connected systems

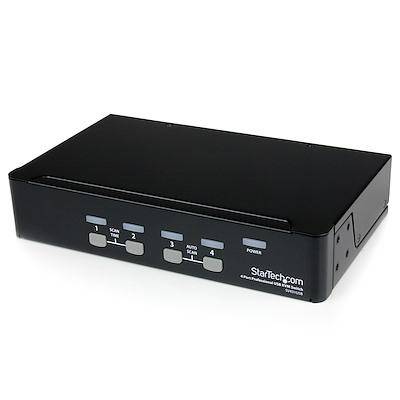

- Front panel push-buttons for quick and easy switching
- High 1920x1440 resolution capability
- Supports hot-plug and disconnect – computers can be added or removed without the need to reboot other connected systems
- Front panel push-buttons for quick and easy switching
- High 1920x1440 resolution capability
Specifications
| Warranty Information | Warranty | 3 Years |
|---|---|---|

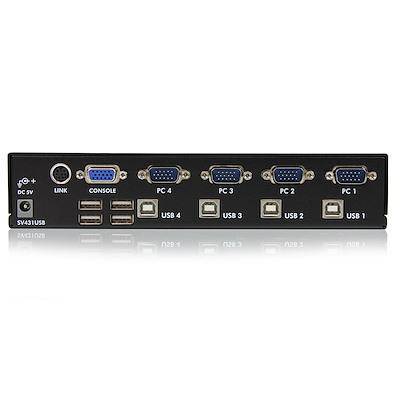

| Connector(s) | Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) |
| 4 - USB Type-A (4 pin) USB 2.0 | ||
| Host Connectors | 4 - USB B (4 pin) | |
| 4 - VGA (15 pin, High Density D-Sub) | ||
| Hardware | Audio | No |
| KVM Ports | 4 | |
| PC Interface | USB | |
| PC Video Type | VGA | |
| Number of Monitors Supported | 1 | |
| Rack-Mountable | Optional | |
| Cables Included | No | |
| U Height | 1U | |
| Daisy-Chain | No | |
| Packaging Information | Package Height | 2.8 in [72 mm] |
| Package Length | 11.6 in [29.5 cm] | |
| Shipping (Package) Weight | 2.8 lb [1.3 kg] | |
| Package Width | 7.7 in [19.6 cm] | |
| Performance | On-Screen Display | No |
| DVI Support | No | |
| IP Control | No | |
| Hot-Key Selection | No | |
| Maximum Cable Length | 5000 | |
| Maximum Analog Resolutions | 1920 x 1440 | |
| Auto Scan | 3, 8, 15 & 30 seconds | |
| Maximum Number of Users | 1 | |
| Port Selection Support | Push Button | |
| MTBF | 82506 hours | |
| Physical Characteristics | Weight of Product | 34.9 oz [988 g] |
| Color | Black | |
| Material | Steel | |
| Product Length | 8.7 in [22 cm] | |
| Product Width | 5.1 in [130 mm] | |
| Product Height | 1.7 in [4.4 cm] | |
| Power | Power Source | Not Included (not required for standard applications) |
| Input Voltage | 110V-240V AC | |
| Input Current | 0.4A | |
| Output Voltage | 5 DC | |
| Output Current | 2A | |
| Center Tip Polarity | Positive | |
| Plug Type | N | |
| N | ||
| Software | OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | Note | In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, an additional power supply may be required |
| What's in the Box | Included in Package | 1 - 4 Port VGA USB KVM Switch |
| 4 - Rubber Feet | ||
| 1 - Instruction Manual |
