Startech DisplayPort to HDMI Multi-Monitor Splitter 3-Port MST Hub MSTDP123HD (3 years Local Warranty in Singapore)

  • $ 219.00 SGD
  • Save $ 34.99 SGD

Share on Whatsapp

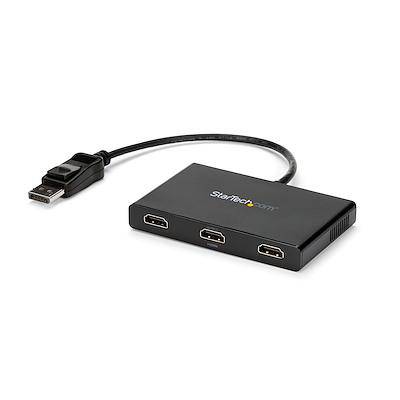

Startech DisplayPort to HDMI Multi-Monitor Splitter 3-Port MST Hub MSTDP123HD

Use this adapter to connect three independent displays to a single DP 1.2 port

  • Maximize your productivity by connecting up to three independent displays to your computer using the MST Hub
  • Connect your DisplayPort computer to HDMI televisions, monitors or projectors, avoiding the hassle of additional HDMI adapters
  • Increase external video performance with support for resolutions up to 4K
  • Maximize your productivity by connecting up to three independent displays to your computer using the MST Hub
  • Connect your DisplayPort computer to HDMI televisions, monitors or projectors, avoiding the hassle of additional HDMI adapters
  • Increase external video performance with support for resolutions up to 4K



This MST hub lets you connect three HDMI® monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.

Increase productivity with multiple screens

The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.

Increase Productivity with multiple screens

Configure your displays for any environment

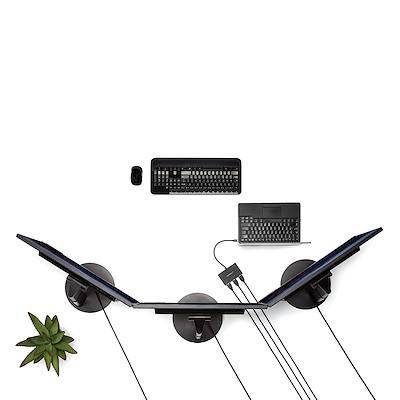

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.

productivity software displayed on three monitors



Enjoy amazing video quality without draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MSTDP123HD will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTDP123HD supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolution

Average Resolution Bandwidth Allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 43%

Note: Exceeding 100% will reduce functionality.

Examples of Supported Resolution Configurations

Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 90%
2560x1440 @60hz (35%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 92%
2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1080 @60hz (22%) 98%
3840x2160 @30hz (43%) 1920x1200 @60hz (30%) 1920x1080 @60hz (22%) 95%
3840x2160 @30hz (43%) 3840x2160 @30hz (43%) None 86%

Examples of Unsupported Resolution Configurations

Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 106%
3840x2160 @30hz (43%) 2560x1600 @60hz (43%) 1920x1200 @60hz (30%) 116%
3840x2160 @30hz (43%) 2560x1600 @60hz (43%) 2560x1440 @60hz (35%) 121%
3840x2160 @30hz (43%) 3840x2160 @30hz (43%) 3840x2160 @30hz (38%) 124%


Applications

  • Use one screen for reference data such as websites, while composing in another screen
  • Dock your DP 1.2 device and add three high-resolution displays at your workstation
  • Create a panoramic video wall for HDMI digital signage applications using your DisplayPort computer

Tech Specs

Basic
Product Type: Signal Splitter
Brand Name: StarTech.com
Number of HDMI Outputs: 3
Number of DisplayPort Inputs: 1
General Information
Product Type: Signal Splitter
Manufacturer Part Number: MSTDP123HD
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Manufacturer: StarTech.com
Product Name: DisplayPort to HDMI Multi-Monitor Splitter - 3-Port MST Hub
Brand Name: StarTech.com
Interfaces/Ports
DisplayPort: Yes
Number of HDMI Outputs: 3
HDMI Out: Yes
Number of DisplayPort Inputs: 1
Miscellaneous
Certifications & Standards:
  • CE
  • FCC
Environmentally Friendly: Yes
Physical Characteristics
Material: Plastic
Weight (Approximate): 131 g
Colour: Black
Length: 386.1 mm
Height: 15.2 mm
Width: 66 mm
Power Description
Input Voltage: 5 V DC
Video
Maximum Video Resolution: 3840 × 2160
-->
