Description
StarTech Thunderbolt 3 to Dual DisplayPort Adapter - 4K 60Hz - Windows Only Compatible - Monitor Adapter - DP Adapter (TB32DP2) -EOL
Use a Thunderbolt 3 port on your Windows system to run resource demanding applications on two UHD 4K displays, or run a 5K monitor
- Connect two UHD 4K 60 Hz displays to your computer through a single Thunderbolt 3 port
- Add a 5K 60 Hz display to your computer by connecting two DP cables to a single Thunderbolt 3 port
- Thunderbolt Certified
- Connect two UHD 4K 60 Hz displays to your computer through a single Thunderbolt 3 port
- Add a 5K 60 Hz display to your computer by connecting two DP cables to a single Thunderbolt 3 port
- Thunderbolt Certified
This high-performance Thunderbolt™ 3 adapter lets you add two 4K 60Hz DisplayPort monitors to a computer through a single Thunderbolt 3 port, or it can be used to connect your Thunderbolt 3 port to a 5K 60Hz display using two DP cables.
The Thunderbolt video adapter is compatible with computer systems that support Thunderbolt 3, such as models of Dell™ Precision and Dell XPS. Thunderbolt 3 is a protocol that uses the USB-C™ connector, but your computer system must support Thunderbolt 3 in order for the adapter to function as expected. If you connect the adapter to a USB-C port that does not support Thunderbolt 3, the adapter will not function.

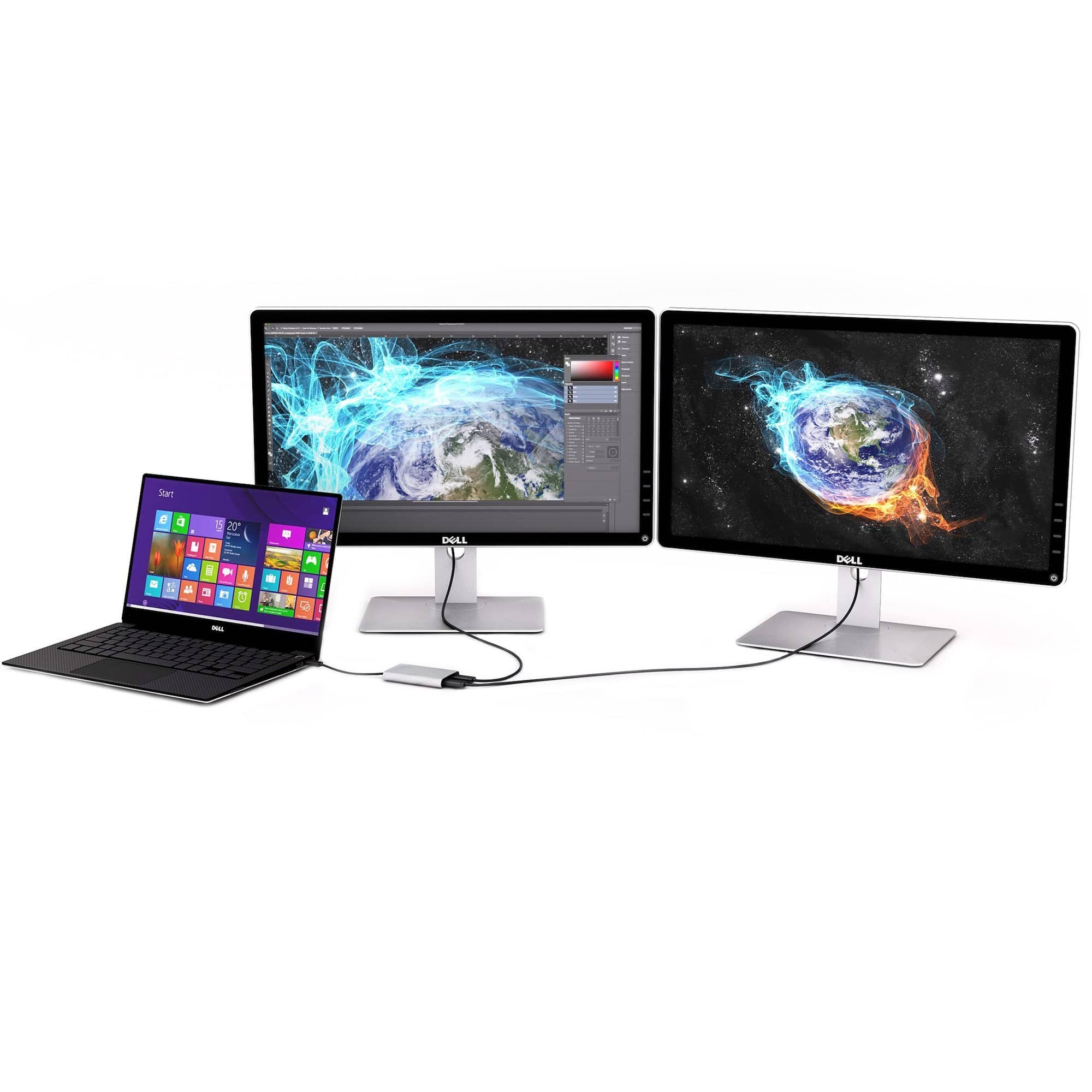

Connect two UHD 4K displays to your computer at 60Hz resolution
With an unprecedented 40Gbps of throughput, Thunderbolt 3 enables you to achieve the previously impossible feat of using a single port on your laptop to output dual 4K resolution at 60Hz to two independent displays. This performance enables you to run the most resource-demanding applications imaginable on two independent displays. You can output independent content to each display at resolutions of up to 4096 x 2160p @ 60Hz, which is perfect for editing 4K video or performing other Ultra HD tasks such as creating CAD drawings or reviewing medical imagery.
Connect a 5K display to your computer at 60 Hz resolution
For added versatility, the Thunderbolt 3 adapter can be used to connect two DisplayPort channels to a single 5K display. Using a Thunderbolt 3 adapter is the only way to connect a 5K display to computers that don’t have multiple DP or Thunderbolt 3 ports, such as your Dell Precision 15 3000 Series workstation.
Supports dual 4K displays to work more efficiently
Functioning as an external 2-port graphics adapter with audio support, this is a compact and convenient alternative to a laptop dock, when you don’t need full docking capability.
With two UHD 4K displays, you can work more efficiently from your laptop, so you can accomplish more in the same amount of time. Plus, with each display delivering 4K performance, you can have four times the screen space compared to 1080p. Creative professionals can be more productive with the freedom to edit 4K video on one display, while previewing raw video playback on the second 4K display.
Won't drain system resources
This adapter helps to keep your system running at peak performance. Unlike USB external video solutions, Thunderbolt 3 lets you run Ultra HD 4K resolution at 60Hz on both displays without draining system resources.
Because it’s backward compatible with your high-definition 1080p displays, this is a great accessory for home, office or other desktop workspace applications.
The TB32DP2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Your computer’s Thunderbolt 3 ports might not function properly until you update one or more of the following on your computer:
- BIOS
- Thunderbolt firmware
- Thunderbolt 3 controller drivers
- Thunderbolt 3 software
The required updates will vary depending on your computer.
For an up-to-date list of affected computers and instructions, visit http://thunderbolttechnology.net/updates. If your manufacturer isn’t listed on the Thunderbolt website, contact your manufacturer.
Note:
- If you're using a video adapter to connect this device to a monitor other than DisplayPort, such as HDMI or VGA, an active video adapter is required.
- In order to connect to two displays at 4K 60Hz, your computer system must have a fully enabled Thunderbolt 3 port that supports up to 40Gbps or the host must support dual displays over Thunderbolt 3.
Applications
- Use your Thunderbolt 3 computer to connect to a 5K display
- Design high-resolution, graphic-intensive content, such as CAD drawings and Photoshop graphic images
- Multitask by previewing your raw output content on a second 4K display
- Connect to different systems with 4K or 1080p displays for hot desking in BYOD office applications
- Span a spreadsheet or worksheet across multiple displays to avoid side-scrolling
- Use your Thunderbolt 3 computer to connect to a 5K display
- Connect your Dell XPS or Dell Precision to two external DP monitors
Specifications
Warranty Information | Warranty | 2 Years |
---|---|---|
Connector(s) | 1 - Connector A | Thunderbolt™ 3 USB-C (24-pin) (40Gbps) |
2 - Connector B | DisplayPort (20 pin) | |
Hardware | Active or Passive Adapter | Active |
AV Input | Thunderbolt™ 3 USB-C (24-pin) (40Gbps) | |
AV Output | DisplayPort | |
Audio | Yes | |
Packaging Information | Package Height | 1.6 in [40.0 mm] |
Package Length | 8.3 in [21.2 cm] | |
Shipping (Package) Weight | 7.2 oz [203.0 g] | |
Package Width | 5.7 in [14.5 cm] | |
Performance | Maximum Data Transfer Rate | 40 Gbps |
Maximum Digital Resolutions | Dual monitor: 4K @ 60 Hz | |
Supported Resolutions | 4096x2160 3840x2160 2560x1600 1920x1200 1920x1080 1280x720 Note: The adapter can support 5120×2880 (5K) when both DP outputs are connected to a single monitor that supports 5K. |
|
Type and Rate | Thunderbolt 3 - 40 Gbit/s | |
Physical Characteristics | Color | Silver |
Material | Aluminum | |
Cable Length | 10.0 in [25.4 cm] | |
Product Length | 13.9 in [35.3 cm] | |
Product Width | 3.1 in [80.0 mm] | |
Product Height | 1.0 in [26.0 mm] | |
Weight of Product | 17.6 oz [500.0 g] | |
Software | OS Compatibility | Microsoft Windows® 10, 8/8.1 |
What's in the Box | 1 - Included in Package | Thunderbolt 3 to dual DP adapter |
Resources
Manual(s):
-
tb32dp2.pdf
- Language: EN
Support Material(s):
-
thunderbolt 3_insert_rev2.pdf
-
IMPORTANT
Your computer’s Thunderbolt 3 ports might not function properly until you update one or more of the following on your computer:
- - BIOS
- - Thunderbolt firmware
- - Thunderbolt 3 controller drivers
- - Thunderbolt 3 software
The required updates will vary depending on your computer.
For an up-to-date-list of affected computers and instructions, visit https://thunderbolttechnology.net/updates. If your manufacturer isn’t listed on the Thunderbolt website, contact your manufacturer. - Language: EN
-
Datasheet
-
tb32dp2_Datasheet.pdf
- Datasheet
- Language: EN
