StarTech 4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable ICUSB2324I (2 Years Manufacture Local Warranty In Singapore)-EOL

Save 5%
StarTechSKU: ICUSB2324I
No reviews

Price:
Sale price$ 165.00 SGD Regular price$ 172.99 SGD

Description

StarTech 4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable ICUSB2324I (2 Years Manufacture Local Warranty In Singapore) -EOL

Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB

  • 4-port USB to RS232 serial adapter
  • Wall-mountable, with included DIN Rail clips
  • Rugged metal construction
  • 4-port USB to RS232 serial adapter
  • Wall-mountable, with included DIN Rail clips
  • Rugged metal construction



The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and equipment
  • Connect bar code scanners, receipt printers and other point of sale devices
  • Connect a satellite receiver, serial modem, or PDA with serial sync
  • Connect and program LED and Digital signage boards with serial communication ports



Specifications

Warranty Information Warranty 2 Years
Connector(s) Connector Type(s) 4 - DB-9 (9 pin, D-Sub)
1 - USB B (4 pin)
Environmental Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity 5~95% RH
Hardware Ports 4
Interface Serial
Bus Type USB 2.0
Port Style External Hub
Chipset ID FTDI - FT4232HL
Indicators LED Indicators 4 - Each, Tx/Rx Activity indicators
Packaging Information Package Height 2.0 in [50 mm]
Package Length 6.0 in [15.2 cm]
Shipping (Package) Weight 1.1 lb [0.5 kg]
Package Width 8.5 in [21.6 cm]
Performance Maximum Data Transfer Rate 921.6Kbps
Serial Protocol RS-232
Max Baud Rate 921.6 Kbps
Data Bits 7, 8
FIFO 256 Bytes
Parity Odd, Even, Mark, Space, None
Stop Bits 1, 2
MTBF 282713.5 hours
Physical Characteristics Weight of Product 10.6 oz [300 g]
Color Black
Material Steel
Product Length 7.0 in [17.8 cm]
Product Width 2.3 in [59 mm]
Product Height 0.9 in [2.3 cm]
Power Power Source USB-Powered
Plug Type M
Software OS Compatibility Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS® 10.6 to 10.15
Linux 2.4.x to 4.11.x LTS Versions only

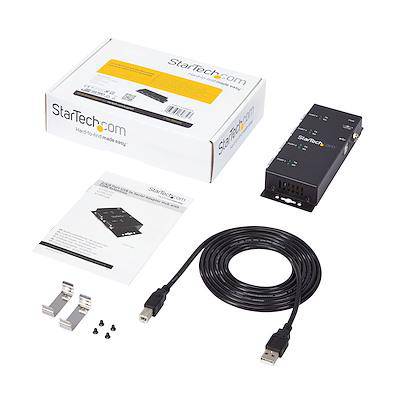

What's in the Box Included in Package 1 - USB to RS-232 Serial Adapter
1 - DIN rail kit
1 - 6 ft USB A to B cable
1 - Driver CD
1 - Instruction Manual
