Description
StarTech M.2 TO U.2 ADAPTER - M.2 DRIVE TO U.2 (U2M2E125) (2 Years Manufacture Local Warranty In Singapore)

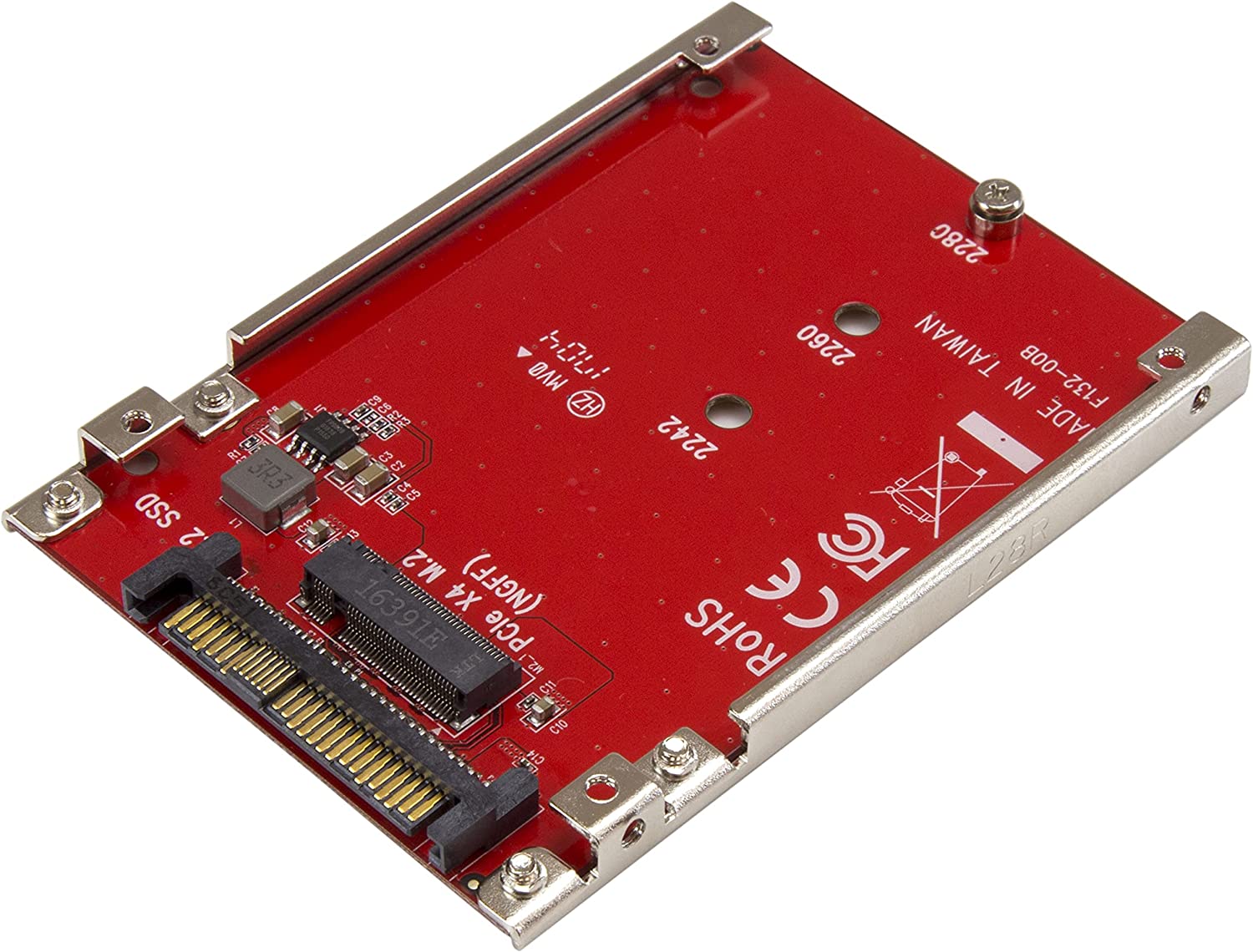

This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your motherboard.
Upgrade your system cost-effectively
The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-Key),providinga cost-effective way to add M.2 NVMe performance to your computer or server through an available U.2 (SFF-8639) compatible interface on your motherboard.
Easy installation
The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2 (SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or software required for installation.
Add the fast performance of an M.2 NVMe SSD to your desktop computer or server by converting the drive through a U.2 (SFF-8639) compatible interface on your motherboard
- BOOST SYSTEM PERFORMANCE: Add the fast performance of a PCIe M.2 NVMe or AHCI SSD to your desktop computer or server, this adapter converts the drive to fit into a 2.5" drive bay and connect to a U.2 (SFF-8639) compatible host interface
- PCIe M.2 SSD TO 2.5" U.2 ADAPTER: Increase your system speed and performance cost-effectively, by adding an M.2 PCIe NVMe/AHCI SSD to your PC or server with data transfer speeds up to 7.8GBps when used with a PCIe Gen 4 slot/system
- HASSLE-FREE SETUP: This M2 to U.2 adapter offers a fast and easy setup with native OS support

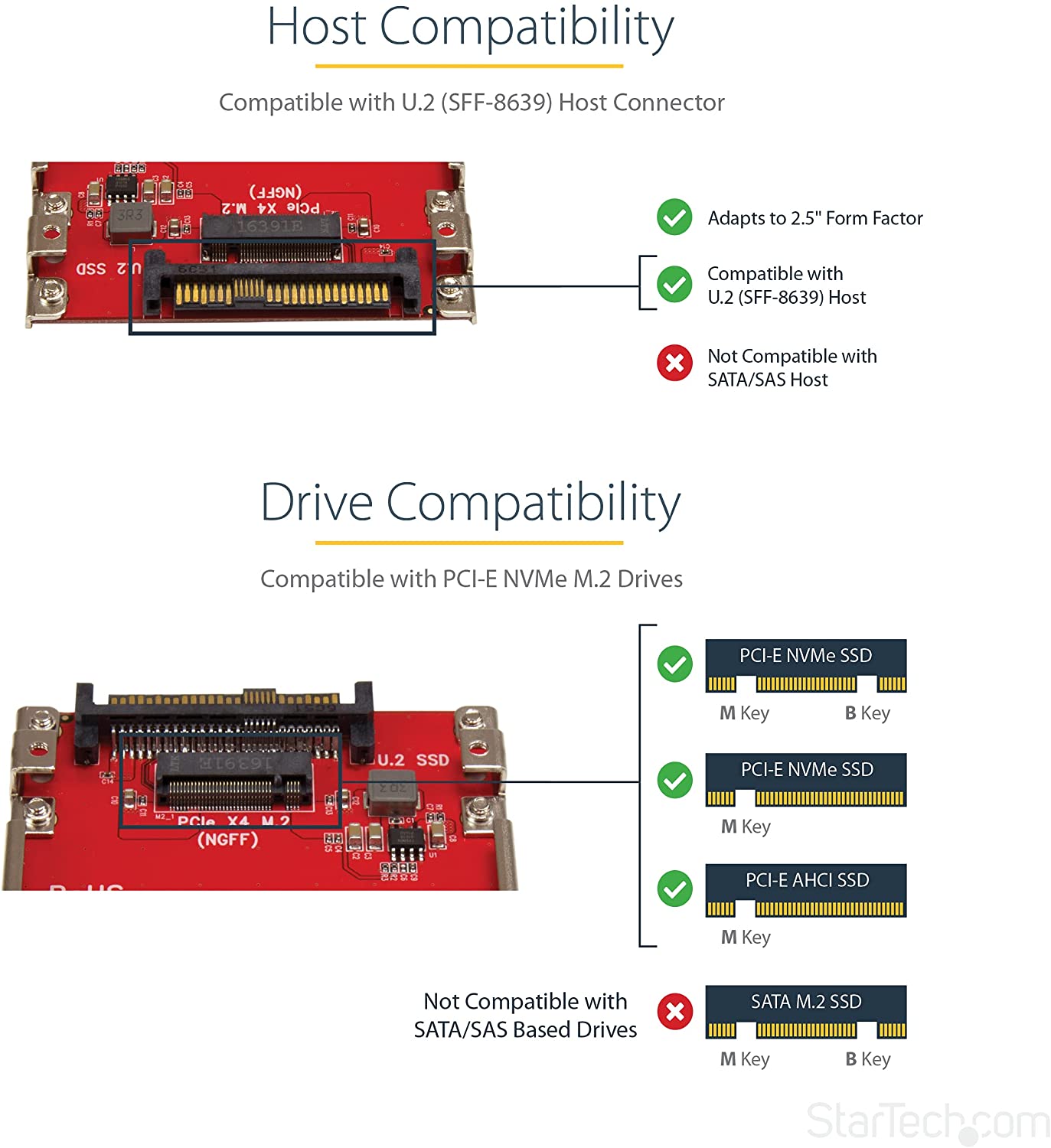

- COMPATIBILITY: M.2 NVMe SSD converter adapter is backward compatible with earlier versions of PCIe NVMe drives and fits in standard 2.5" drive bays; Not compatible with SATA or SAS host controllers / Not compatible with M.2 SATA based SSD
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This M.2 to U.2 adapter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Technical Specifications
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |

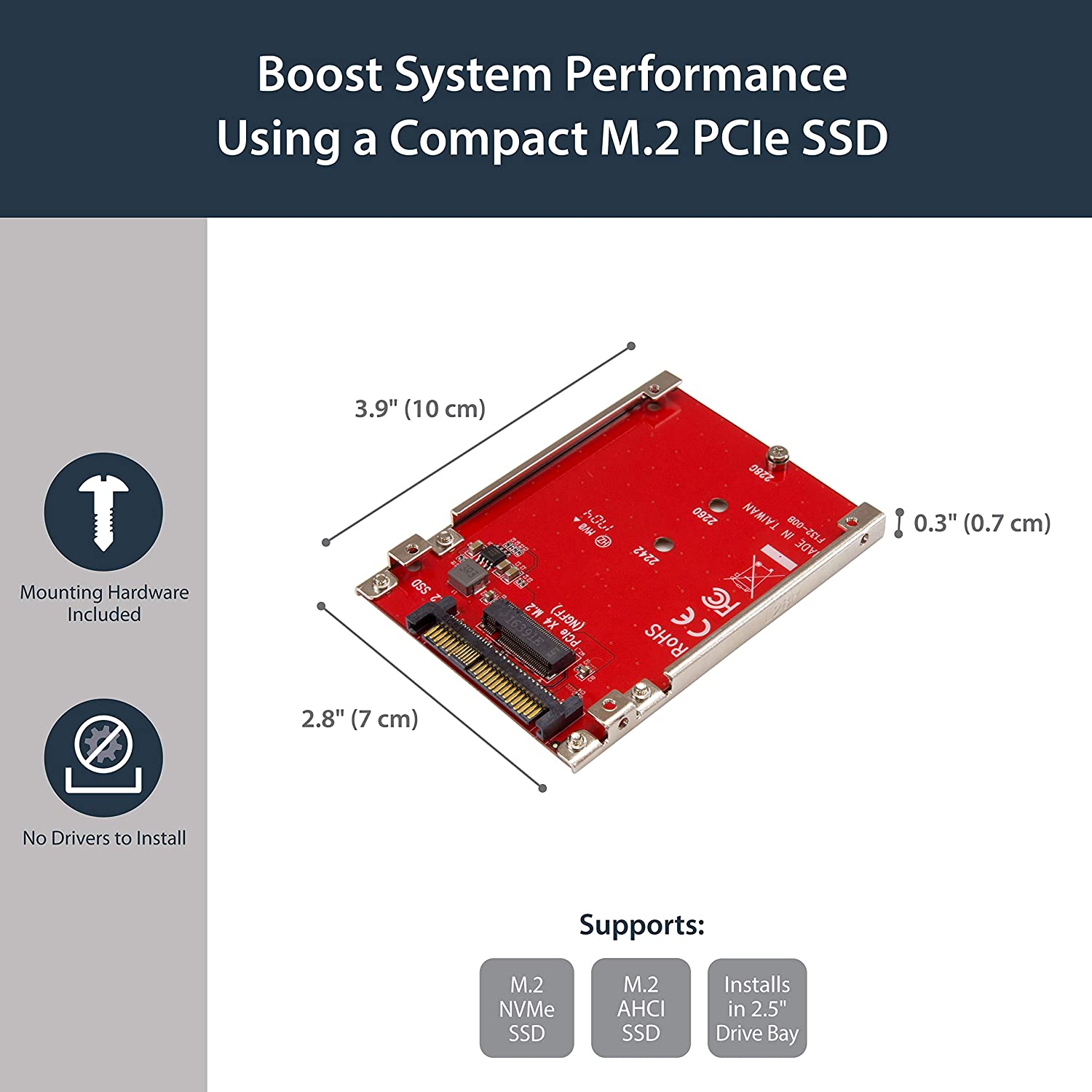

| Weight (Approximate) | 36.9 g |
| Length | 99.1 mm |
| Height | 7.6 mm |
| Width | 71.1 mm |
| Product Color | Red |
| Product Material | Steel |
| Product Type | M.2 to U.2 Adapter |
| Manufacturer Part Number | U2M2E125 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | M.2 Drive to U.2 (SFF-8639) Host Adapter for M.2 PCIe NVMe SSDs |
| Brand Name | StarTech.com |
Resources
Quick Start Guide - u2m2e125_m.2_drive_to_u.2_host_adapter_manual.pdf
