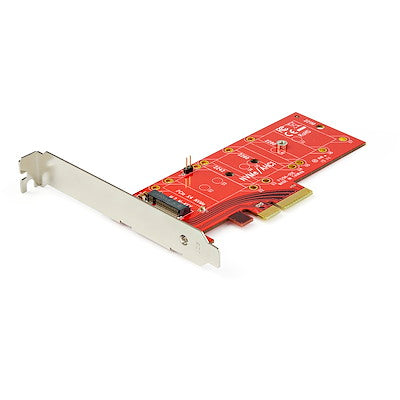

Startech.Com X4 PCI EXPRESS TO M.2 PCIE SSD ADAPTER PEX4M2E1 (2 Years Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Startech.Com X4 PCI EXPRESS TO M.2 PCIE SSD ADAPTER PEX4M2E1 (2 Years Manufacture Local Warranty In Singapore)

ENHANCE YOUR PERFORMANCE: Connect a PCIe M.2 SSD (M-Key / NGFF / NVMe or AHCI) to your computer through PCI Express for ultra-fast data access and to boost your system’s performance
BROAD COMPATIBILITY: This M2 PCIe SSD adapter is compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0. It also supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives for ultimate compatibility
HASSLE-FREE SETUP: With native OS support, this M 2 PCIe 3.0 x4 adapter is fast to install, ensuring an easy setup - Also compatible with PCIe x8 and x16 slots
FULL AND LOW PROFILE: This SSD PCIe M.2 adapter is equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form-factor computers
THE IT PRO'S CHOICE: IT professionals choice for over 30 years - This NVMe PCIe adapter card is backed for 2 years, including free 24/5 North America based multi-lingual assistance

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

Supports PCIe M.2 SSDs

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

Easy to install

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.

The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Connect a PCIe M.2 SSD to your computer through an available x4 PCI Express expansion slot to boost system speed and increase internal data storage
Get ultra-fast data access, ideal for gaming or high-performance workstations
Install your operating system on an M.2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage

Specification

Compatibility

OS independent; No software or drivers required

Specifications

Warranty Information

Warranty

2 Years

Connector(s)

Drive Connectors

1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)

Host Connectors

1 - PCI Express x4

Environmental

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

Humidity

15% ~ 90% RH

Hardware

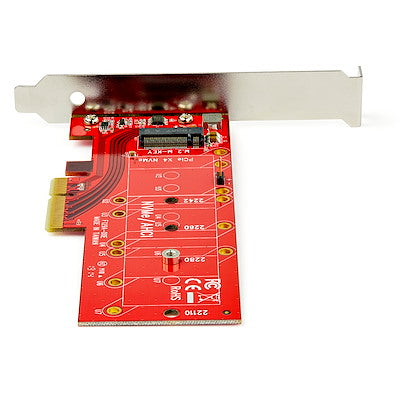

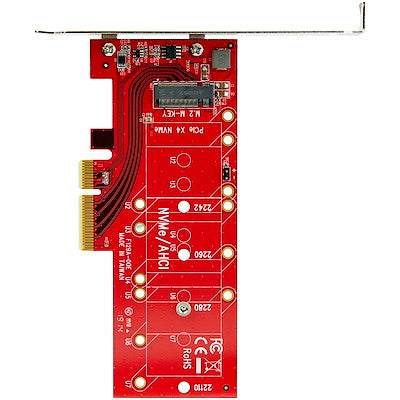

Supported Drive Height(s)

2242

2260

2280

22110

Interface

PCI Express x4

Bus Type

PCI Express

Number of Drives

Drive Size

22m - M.2 NGFF

Compatible Drive Types

M.2 (PCIe, AHCI, M-Key, NGFF)

Drive Installation

Fixed

Indicators

LED Indicators

1 - Pin header on board for drive LED connection

Packaging Information

Package Height

1.8 in [46.0 mm]

Package Length

6.3 in [15.9 cm]

Shipping (Package) Weight

5.3 oz [151.0 g]

Package Width

8.6 in [21.9 cm]

Package Quantity

Performance

Type and Rate

PCI Express 3.0 (8 Gbps)

Hardware Raid Supported

Hot Swap Capability

Physical Characteristics

Weight of Product

1.7 oz [47.0 g]

Color

Red

Material

Steel

Max Drive Height

4.3 in [110 mm]

Product Length

5.3 in [13.5 cm]

Product Width

3.1 in [8.0 cm]

Product Height

0.2 in [0.4 cm]

Power

Input Voltage

12V DC

Software

OS Compatibility

OS independent; No software or drivers required

Special Notes / Requirements

Note

NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows®️ 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.

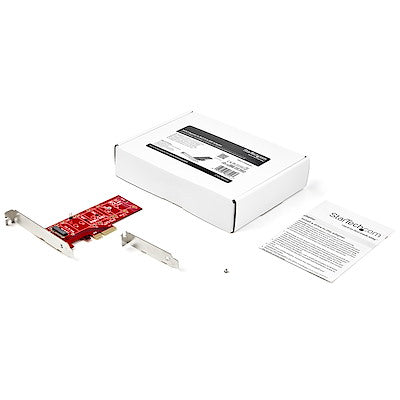

What's in the Box

Included in Package

1 - x4 PCI Express® to M.2 PCIe SSD Adapter

1 - low-profile bracket

1 - full-profile bracket (pre-installed)

1 - SSD standoff and installation screw

1 - quick start guide
