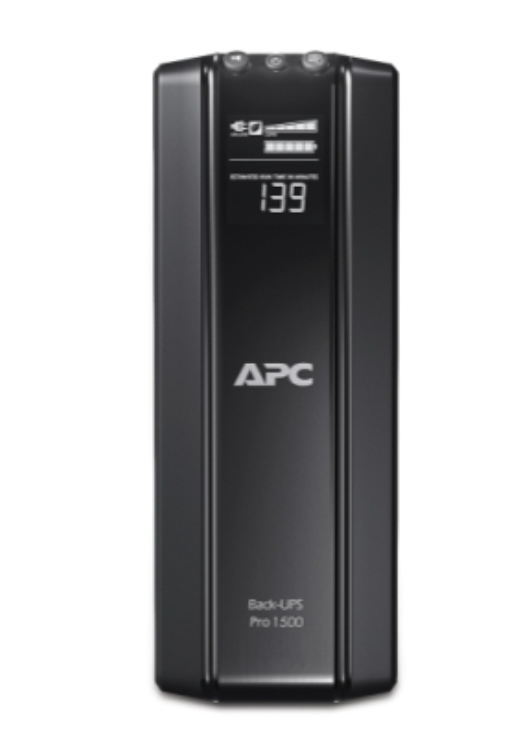

The Power-Saving Back-UPS Pro 1500 International Version (230V) from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery.
Specification
| Main Input Voltage | 230 V |
|---|---|
| Rated power in W | 865 W |
| Rated power in VA | 1500 VA |
| output connection type | 5 IEC 60320 C13 5 IEC 60320 C13 surge 2 IEC Jumpers |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | 1, detachable IEC power cord telephone cable user manual USB cable |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 30.1 cm |
| Width | 11.2 cm |
| Depth | 38 cm |
| Net weight | 12.7 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
|---|---|
| Input voltage limits | 156...300 V adjustable 176...294 V |
| Switching current capacity | 10 A |
| Maximum configurable power in W | 865 W |
|---|---|
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Maximum configurable power in VA | 1500 VA |
| Transfer time | 10 ms typical : 12 ms maximum |
| Product certifications | A-Tick C-Tick CE GOST Telepermit TÜV |
|---|---|
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Equipment protection policy | Lifetime : 200000 AUD Lifetime : 150000 euros Lifetime : 75000 GBP |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...30000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 45 dBA |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 24 V |
| Battery capacity | 9.0 Ah |
| Battery charger power | 23 W rated |
| Battery power in VAH | 216 VAh capacity 187 VAh runtime |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC124 |
| Battery option | BR24BP 1 518 VAh BR24BPG 1 518 VAh |
| Battery graph comments | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| Extended runtime | 0 |
| Control panel | Multifunction LCD status and control console |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 441 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 38.7 cm |
| Package 1 Width | 23.8 cm |
| Package 1 Length | 48.8 cm |
| Package 1 Weight | 14.3 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 132 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 342.48 kg |
| SCC14 | 10731304268748 |
| Warranty | 2 years repair or replace |
|---|
