Description
APC Rack PDU 2G Switched ZeroU 32A 230V (21) C13 (3) C19 (AP8953) (2 Years Manufacture Local Warranty In Singapore)
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. The output and input connections are (21) C13 & (3) C19, and the cable length is 3m. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Specifications
| Main Input Voltage | 200 V 208 V 230 V |
|---|---|

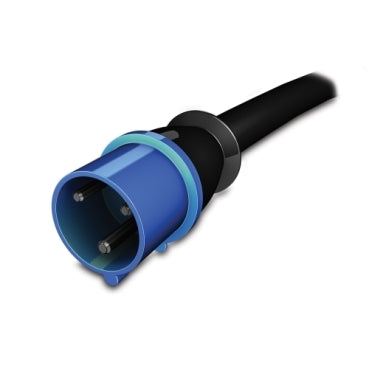

| Input Connection Type | IEC 60309 32 A 2P + E |
| Number of rack unit | 0U |
| Cable length | 3.05 m |
| number of cables | 1 |
| provided equipment | Installation guide Rack mounting brackets Serial configuration cable Safety guide |
| Colour | Black |
|---|---|
| Height | 182.9 cm |
| width | 5.6 cm |
| Depth | 4.6 cm |
| Net weight | 7.59 kg |
| mounting location | Side |
| mounting preference | No preference |
| mounting mode | Not rack-mountable |
| USB compatible | No |
| permissible voltage | 220…240 V |
|---|---|
| Max line current | 32 A |
| input current limits | 32 A |
| Load capacity | 7400 VA |
| network frequency | 50/60 Hz |
| number of power socket outlets | 21 IEC 60320 C13 3 IEC 60320 C19 |
|---|
| product certifications | VDE |
|---|---|
| Standards | EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 |
| Ambient air temperature for operation | -5…60 °C |
|---|---|
| relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| storage Relative Humidity | 5…95 % |
| Storage altitude | 0.00…15240.00 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 204 cm |
| Package 1 Width | 12.4 cm |
| Package 1 Length | 16.5 cm |
| Package 1 Weight | 9.95 kg |
