Description

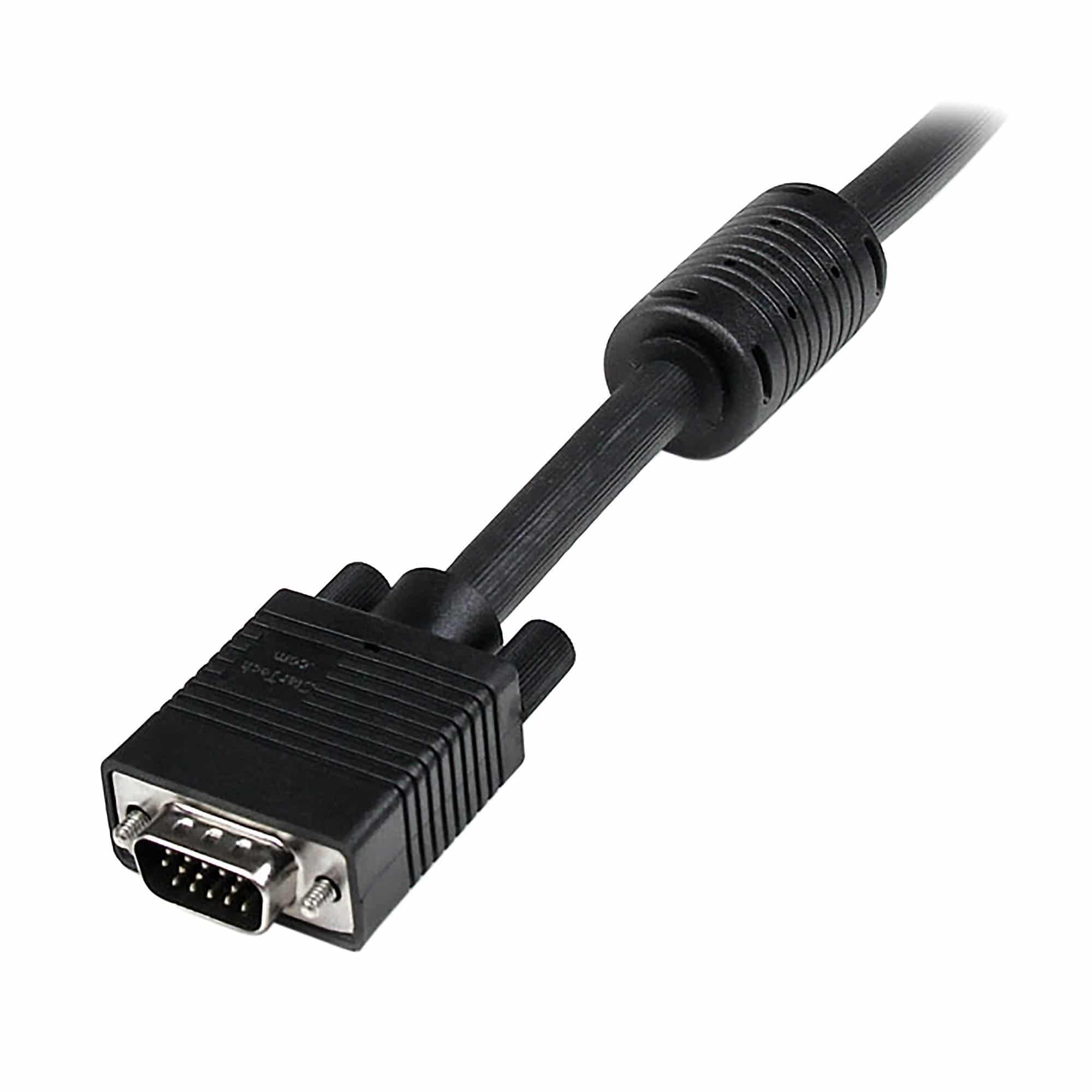

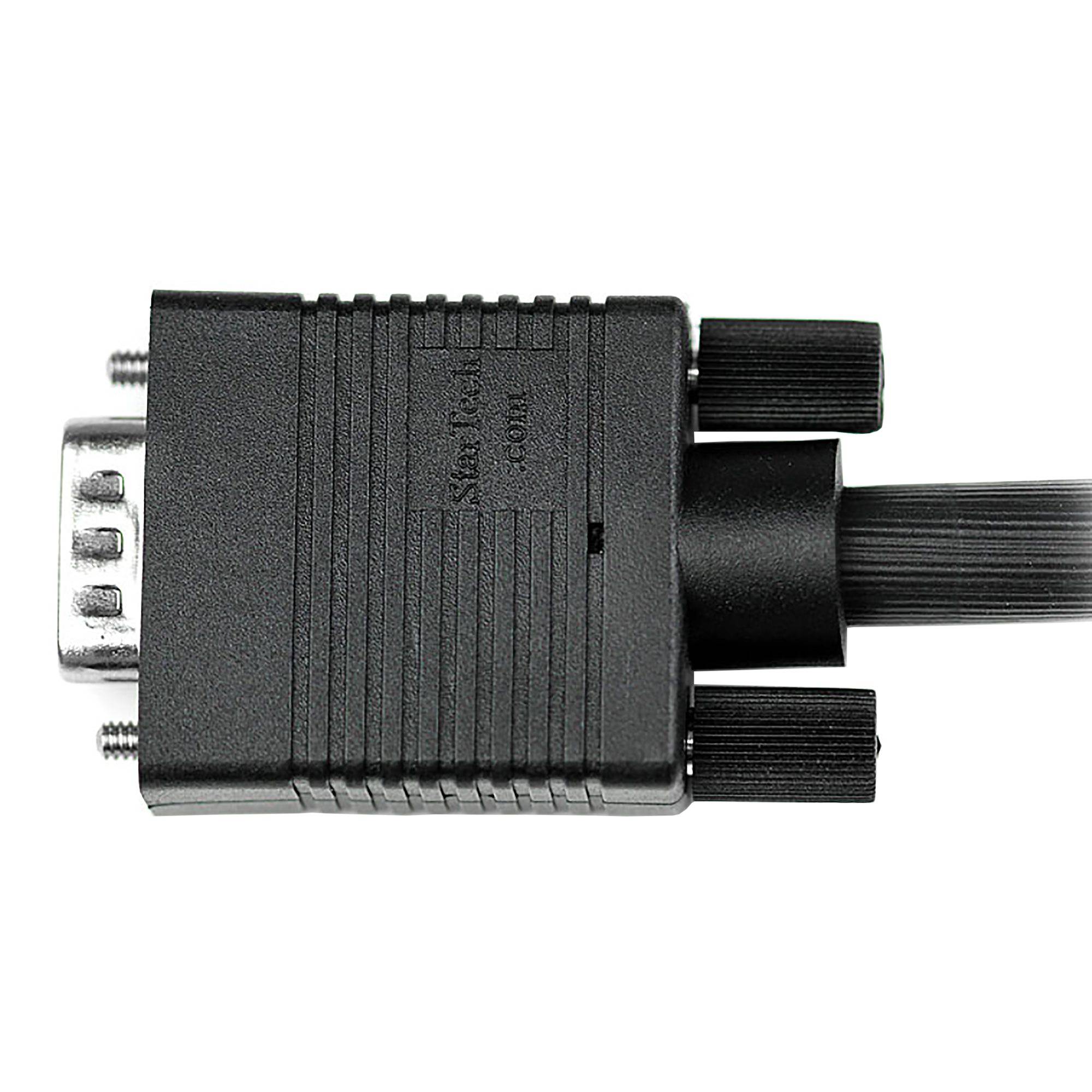

StarTech Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M - VGA Cable - HD15 to HD15 Cable (Lifetime Warranty)
- Triple coaxial + twisted-pair wire for crystal clear display
- Durably constructed cable, with high quality HD15 connectors
- Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
- High quality VGA connectors with molded PVC strain relief
The High Resolution VGA Cable (2-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Applications
- Supports high resolution VGA monitors (1920x1200)
The StarTech.com Advantage
- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty
Specifications
Warranty Information | Warranty | Lifetime |
---|---|---|
Connector(s) | 1 - Connector A | VGA (15 pin, High Density D-Sub) |
1 - Connector B | VGA (15 pin, High Density D-Sub) | |
Environmental | Operating Temperature | 0 to 60 °C |
Storage Temperature | -20 to 80 °C | |
Humidity | 0 - 80 %RH | |
Hardware | Number of Conductors | 14 |
Connector Plating | Nickel | |
Cable Jacket Material | PVC - Polyvinyl Chloride | |
Cable Shield Material | Aluminum-Mylar Foil with Braid | |
Fire Rating | CMG Rated (General Purpose) | |
Number of Ferrites | 1 | |
Packaging Information | Package Height | 2.0 in [52 mm] |
Package Length | 8.7 in [22 cm] | |
Package Width | 7.9 in [20 cm] | |
Package Quantity | 1 | |
Shipping (Package) Weight | 10.1 oz [285 g] | |
Physical Characteristics | Color | Black |
Wire Gauge | 28 AWG | |
Cable Length | 6.6 ft [2 m] | |
Product Length | 6.6 ft [2 m] | |
Product Width | 1.2 in [30 mm] | |
Product Height | 0.6 in [14 mm] | |
Weight of Product | 9.7 oz [275 g] | |
What's in the Box | 1 - Included in Package | Coax High Resolution Monitor VGA Cable - HD15 M/M |
