Description
StarTech Dual Port Gigabit PCI Express (PCIE X4) Server Adapter (ST2000SPEXI) (2 Years Manufacture Local Warranty In Singapore)

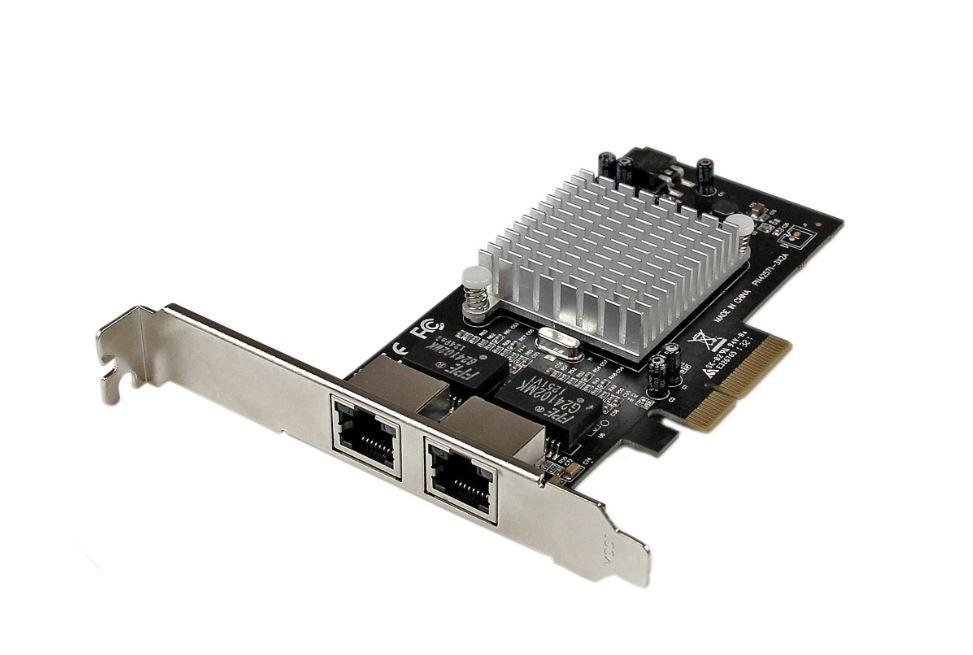

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot. Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

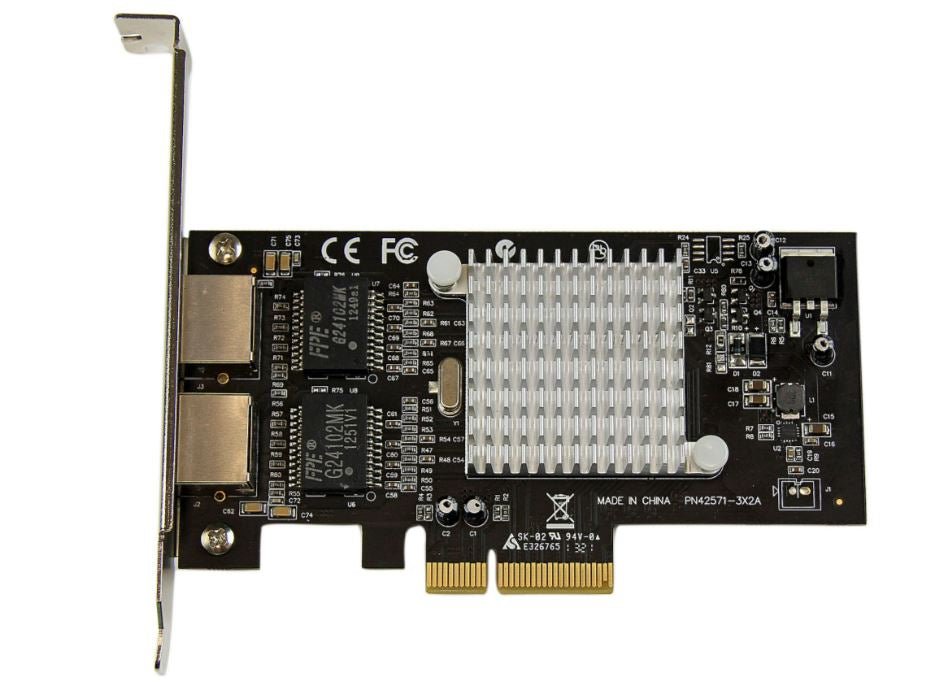

This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot

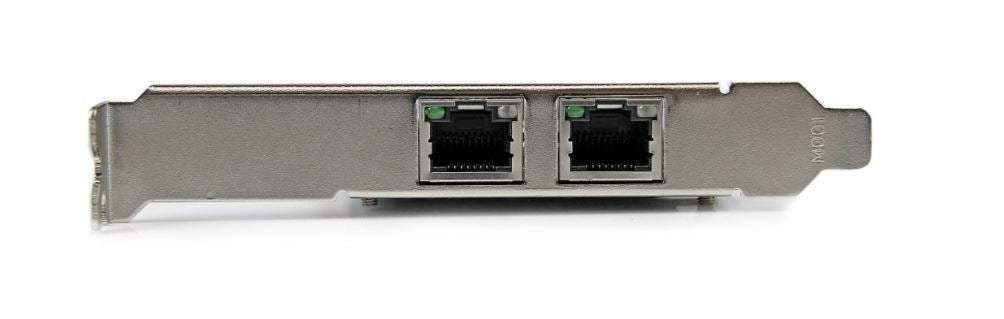

- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
- Jumbo Frame support up to 9k bytes
- Teaming Support
- Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
- Wake-on-LAN / Remote Wake-up support
- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Intel® Virtualization Technology (VT-c, VMDq, SR-IOV)
- Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
- Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)
Technical Specifications
| Data Transfer Rate | 1024 MB/s |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| InfiniBand | No |
| Device Supported | Computer |
| Platform Supported | PC |
| System Requirements |
OS Compatibility:
|
| Product Type | Gigabit Ethernet Card |
| Manufacturer Part Number | ST2000SPEXI |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 2 Port Network Card |
| Brand Name | StarTech.com |
| Weight (Approximate) | 79.4 g |
| Form Factor | Plug-in Card |
| Length | 66 mm |
| Height | 121.9 mm |
| Width | 17.8 mm |
| Host Interface | PCI Express x4 |
| USB | No |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Serial Port | No |
| Total Number of Ports | 2 |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
Resources
Quick Start Guide - st2000spexi_manual.pdf
