Description
StarTech 4 PORT GIGABIT POWER OVER ETHERNET PCIE NETWORK CARD(ST4000PEXPSE) (2 Years Manufacture Local Warranty In Singapore)

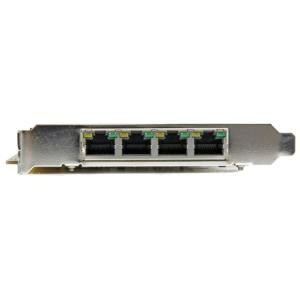

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer
- Four 10/100/1000 Mbps compatible PoE RJ45 ports
- Fully compliant with IEEE 802.3at (Type 1 & 2) Power over Ethernet standards
- Power Sourcing Equipment (PSE) supports up to 48V, 25.5 Watts max. output per port
- Built-in SATA and LP4 Molex power connector
- Up to 9K Jumbo Frame support
- Wake-on-LAN (Remote Wake-up) support
- Supports Pair Swap, Polarity and Skew Correction
Technical Specifications
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Product Type | Gigabit Ethernet Card |
| Manufacturer Part Number | ST4000PEXPSE |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC |
| Brand Name | StarTech.com |
| Device Supported | Computer |
| Environmentally Friendly | Yes |
| Host Interface | PCI Express x4 |
| Number of Network (RJ-45) Ports | 4 |
| Total Number of Ports | 4 |
| Thickness | 17.8 mm |
| Form Factor | Plug-in Card |
| Height | 119.4 mm |
| Width | 238.8 mm |
