Description
StarTech 3 PORT 2B 1A LOW PROFILE 1394(PEX1394B3LP) (Lifetime Warranty)

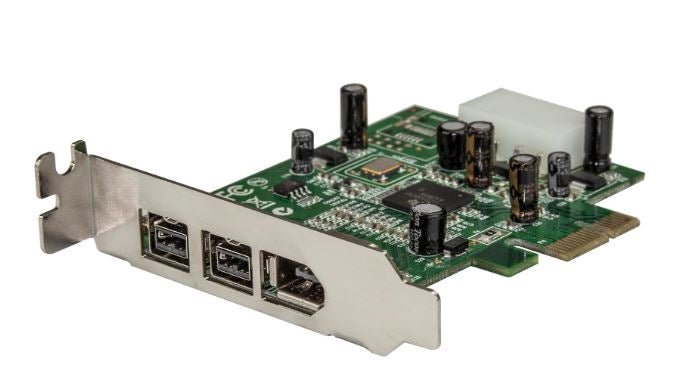

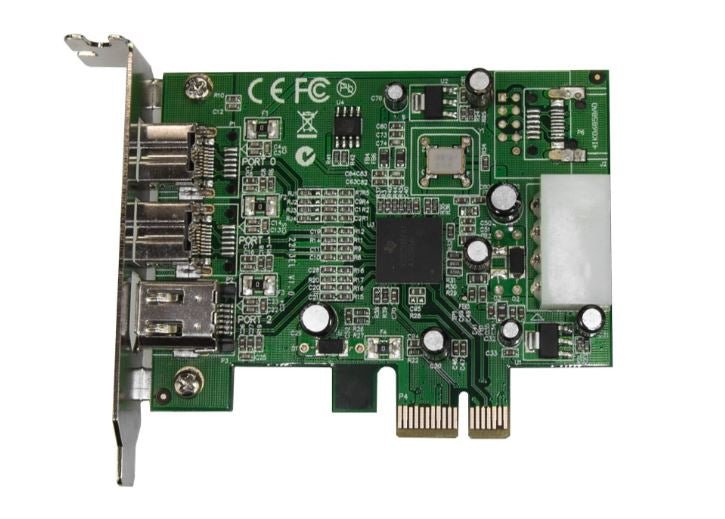

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot
- Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
- One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
- Includes full/standard profile installation bracket
- Built with a native PCI Express chipset, no bridge chip
- Internal power connector for high-powered FireWire devices
- Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
- Plug-and-Play and hot-swap compatible
Technical Specifications
| Host Interface | PCI |
| Total Number of FireWire/i.LINK Ports | 3 |
| Number of FireWire/i.LINK 400 Ports | 1 |
| Number of FireWire/i.LINK 800 Ports | 2 |
| Product Type | FireWire Adapter |
| Manufacturer Part Number | PEX1394B3LP |
| Manufacturer Website Address | http://www.startech.com |
| Manufacturer | StarTech.com |
| Product Name | 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter |
| Brand Name | StarTech.com |
| Platform Supported | Mac |
| Linux | |
| PC | |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Weight (Approximate) | 42.5 g |
| Form Factor | Plug-in Card |
| Length | 83.8 mm |
| Height | 20.3 mm |
| Width | 58.4 mm |
Resources
Quick Start Guide - pex1394b3lp_manual.pdf
