Description

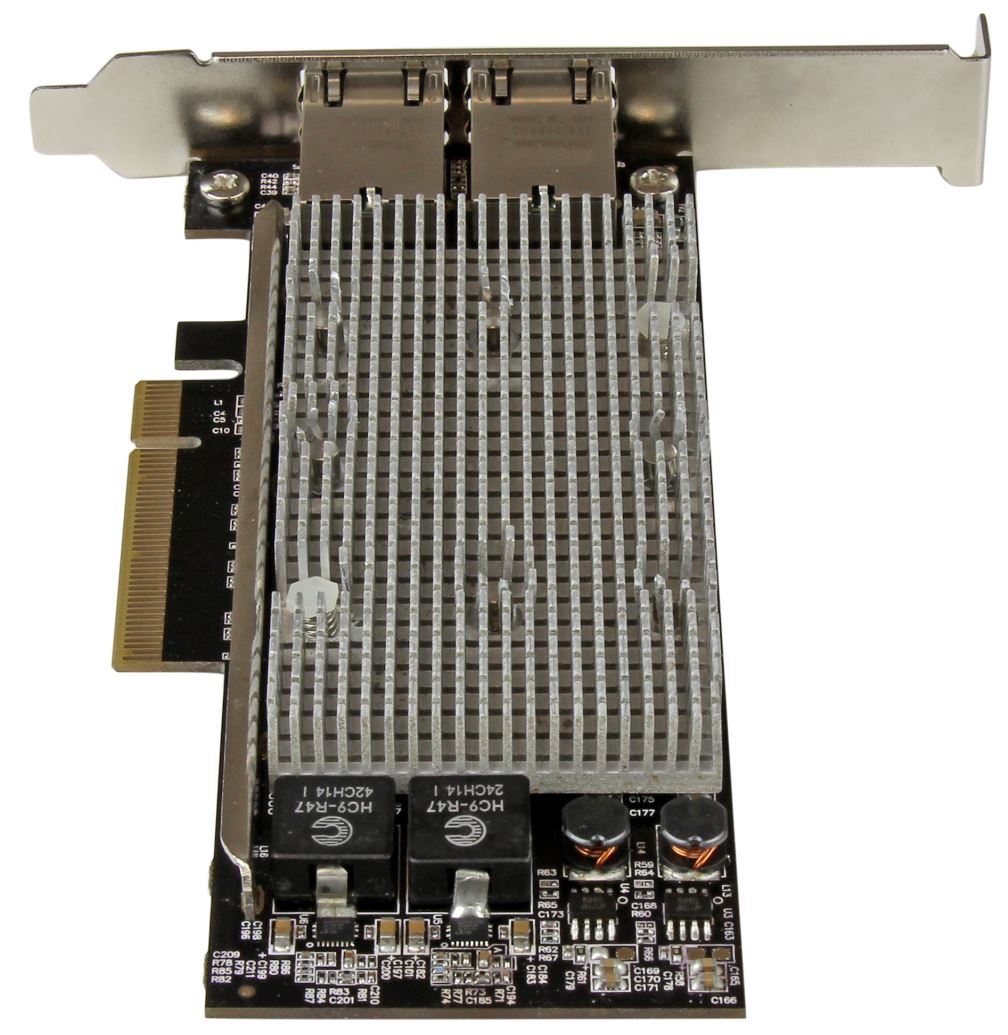

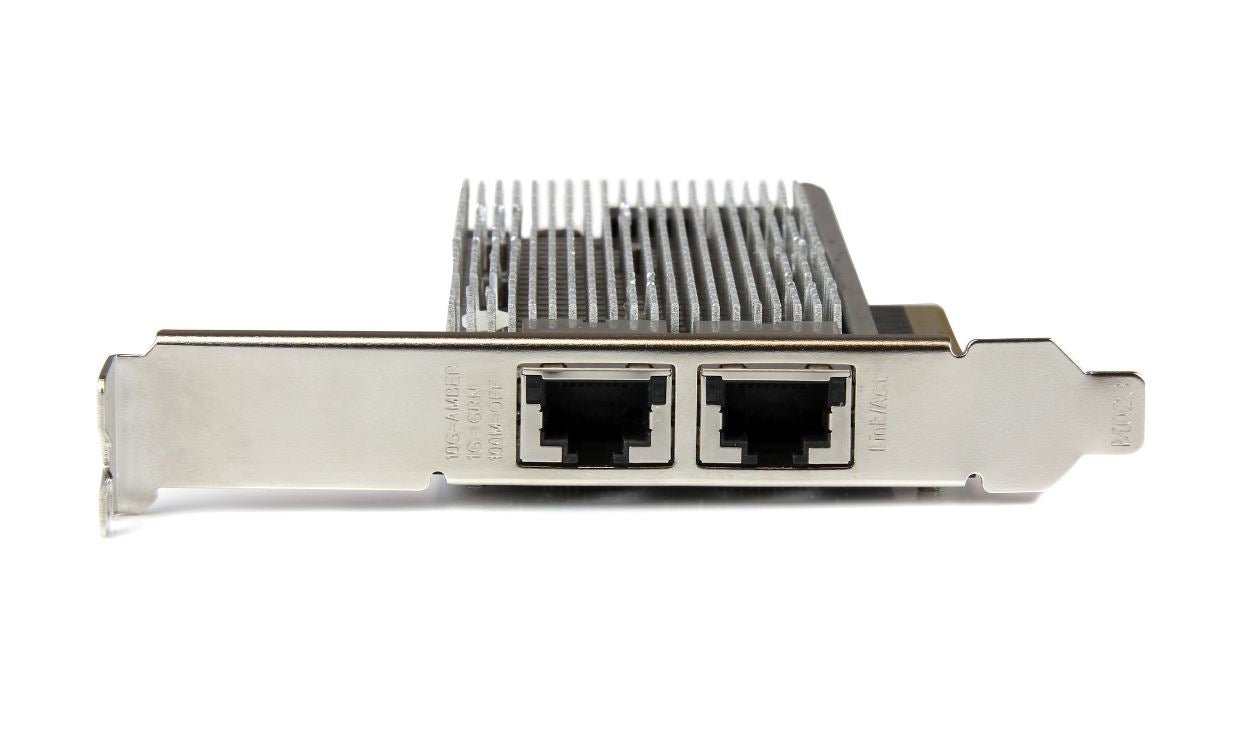

StarTech 2-Port PCI Express 10GBase-Network Card(ST20000SPEXI)(2 Years Manufacture Local Warranty In Singapore)
Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.
Versatile and cost effective
Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It’s a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
Reliable, high-performance connectivity
This 2-port PCI Express 10GBase-T network card features the Intel® X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support.
Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
-
Mac Address Pass-Through Utility: To improve network security.
-
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Add two 10 Gigabit Ethernet ports (10Gbps) to a client, server or workstation through one PCI Express slot
- Add two 100/1000/10Gbase-T RJ45 ports, providing cost-effective network connectivity for high bandwidth workstations and servers
- Intel X540 chipset with Intel® Virtualization Technology for Connectivity
- Up to 20Gbps (full duplex) bandwidth per port
- Compliant with PCI Express Rev2.0 specification, using PCIe x8 (or higher) slot
- PXE network boot support
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Support for 802.3ad Link Aggregation
- Auto-MDIX support
- Auto negotiation support
- Up to 15K jumbo frame support
- IEEE802.3az Energy Efficient Ethernet (EEE)
- Supports IEEE 802.1Q VLAN tagging
- Full or low-profile (LP bracket included) installation
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer & Wi-Fi Auto Switch utilities
Technical Specifications
| Network Technology | 10GBase-T |
| Data Transfer Rate | 2.50 GB/s |
| Media Type Supported | Twisted Pair |
| Device Supported | Server |
| System Requirements |
|
| Product Type | 10Gigabit Ethernet Card |
| Manufacturer Part Number | ST20000SPEXI |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip |
| Brand Name | StarTech.com |
| Chipset Manufacturer | Intel |
| Chipset Model | X540 |
| Host Interface | PCI Express x4 |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of Ports | 2 |
| Weight (Approximate) | 155.9 g |
| Form Factor | Plug-in Card |
| Height | 119.4 mm |
| Width | 20.3 mm |
| Depth | 162.6 mm |
| Product Color | Black |
Resources
Quick Start Guide - st20000spexi_pcie_ethernet_quick_start_guide.pdf
