Description
Startech 1U Adjustable Mounting Depth Vented Rack Mount Shelf - Heavy Duty Fixed Rack Shelf 113kg ADJSHELFHDV (Lifetime Local Warranty in Singapore)
Add a high capacity, adjustable depth vented shelf into almost any server rack or cabinet
- 1U Heavy Duty Adjustable Vented Rackmount Shelf
- Fits all standard 19" server racks
- TAA compliant for GSA Schedule purchases
- 1U Heavy Duty Adjustable Vented Rackmount Shelf
- Fits all standard 19" server racks
- TAA compliant for GSA Schedule purchases
The ADJSHELFHDV 1U Adjustable Heavy Duty Vented Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 19-inch server rack or cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack, while the vented design improves air flow and help to lower temperatures in the rack. Constructed using 1.2mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 113kg (250lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
Backed by a StarTech.com Lifetime warranty.
Applications
- Supply additional storage space for heavy, mission critical hardware and non-rack mount equipment
- For use with all 19" wide Server Racks and Cabinets
The StarTech.com Advantage

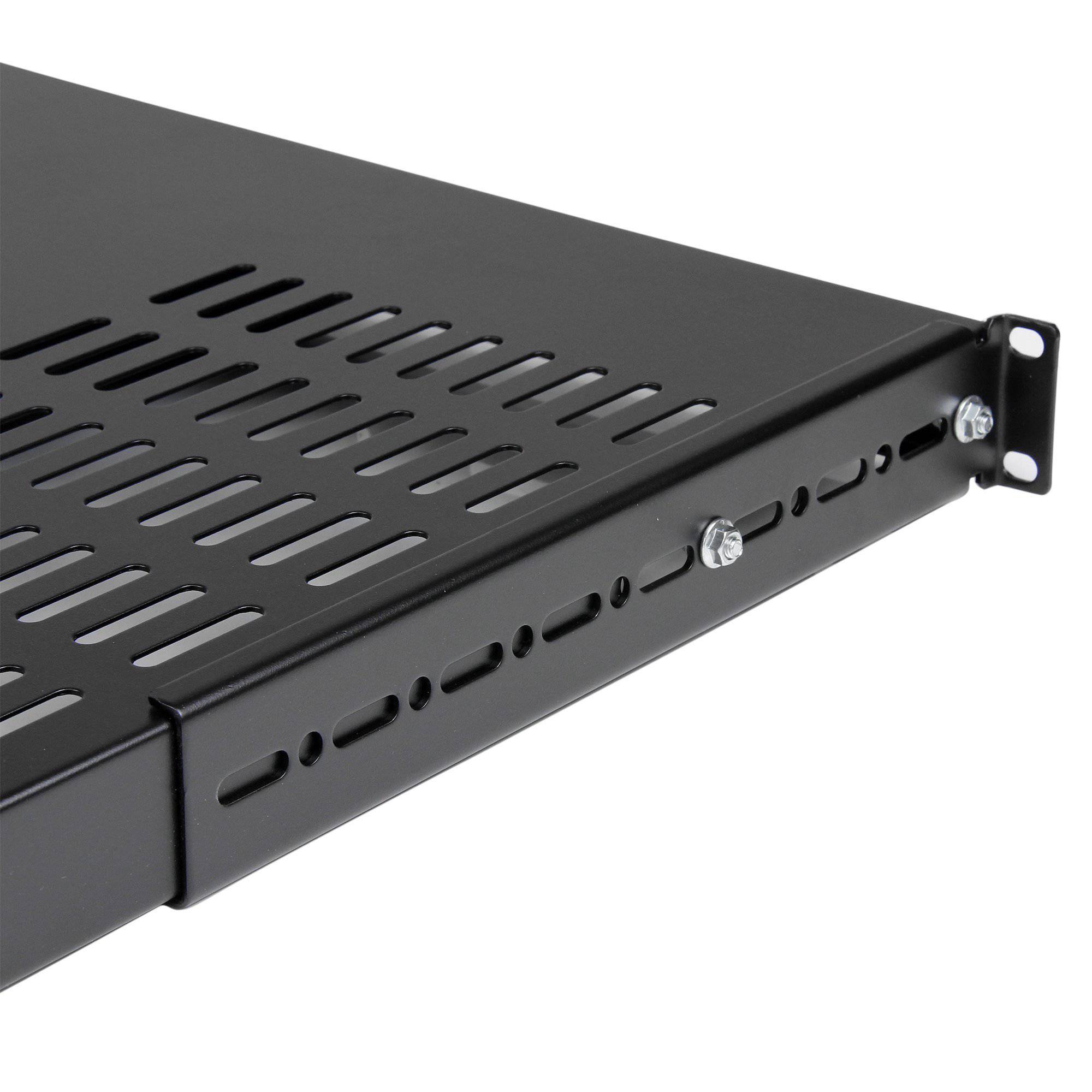

- Adjustable mounting depth brackets make it simple to add a storage shelf to a wide variety of racks or cabinets

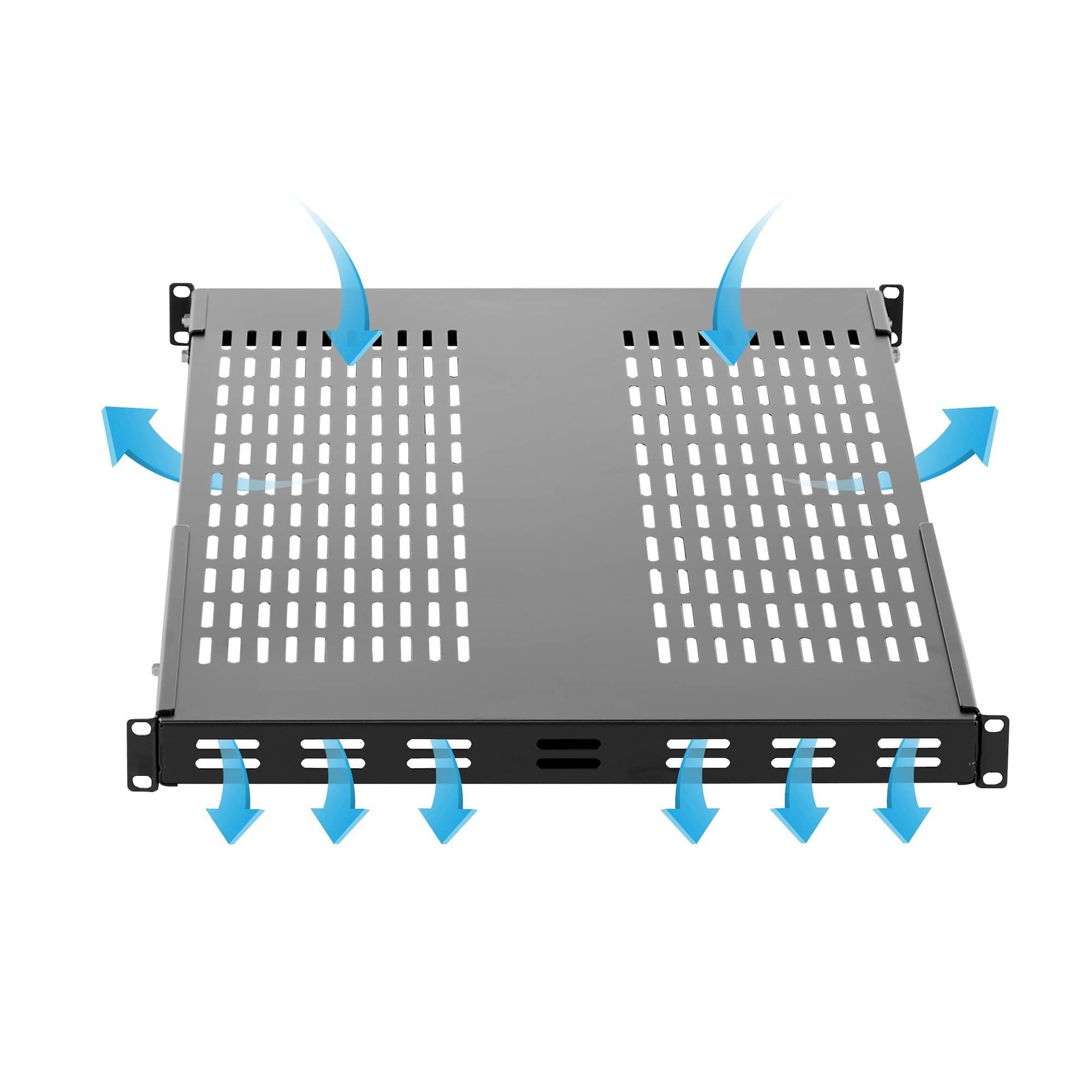

- Vented server rack shelf improves air flow and helps lower temperatures in the cabinet
Tech Specs
| Warranty Information | Warranty | Lifetime |
|---|---|---|
| Hardware | Cable Management | No |
| U Height | 1U | |
| Frame Type | Steel | |
| Mounting Options | Front Mount (Front and Rear) | |
| Industry Standards | EIA RS310-D | |
| Packaging Information | Package Height | 3.3 in [84.0 mm] |
| Package Length | 30.3 in [77.0 cm] | |
| Shipping (Package) Weight | 15.5 lb [7.0 kg] | |
| Package Width | 20.8 in [52.8 cm] | |
| Performance | Weight Capacity (Stationary) | 250.0 lb [113.1 kg] |
| Physical Characteristics | Product Height | 1.7 in [44.0 mm] |
| Product Length | 27.6 in [70.0 cm] | |
| Weight of Product | 11.6 lb [5.2 kg] | |
| Product Width | 17.7 in [45.0 cm] | |
| Color | Black | |
| Material | Steel | |
| Rail Thickness | 0.0 in [1.2 mm] | |
| Maximum Mounting Depth | 38.3 in [97.4 cm] | |
| Minimum Mounting Depth | 19.5 in [49.5 cm] | |

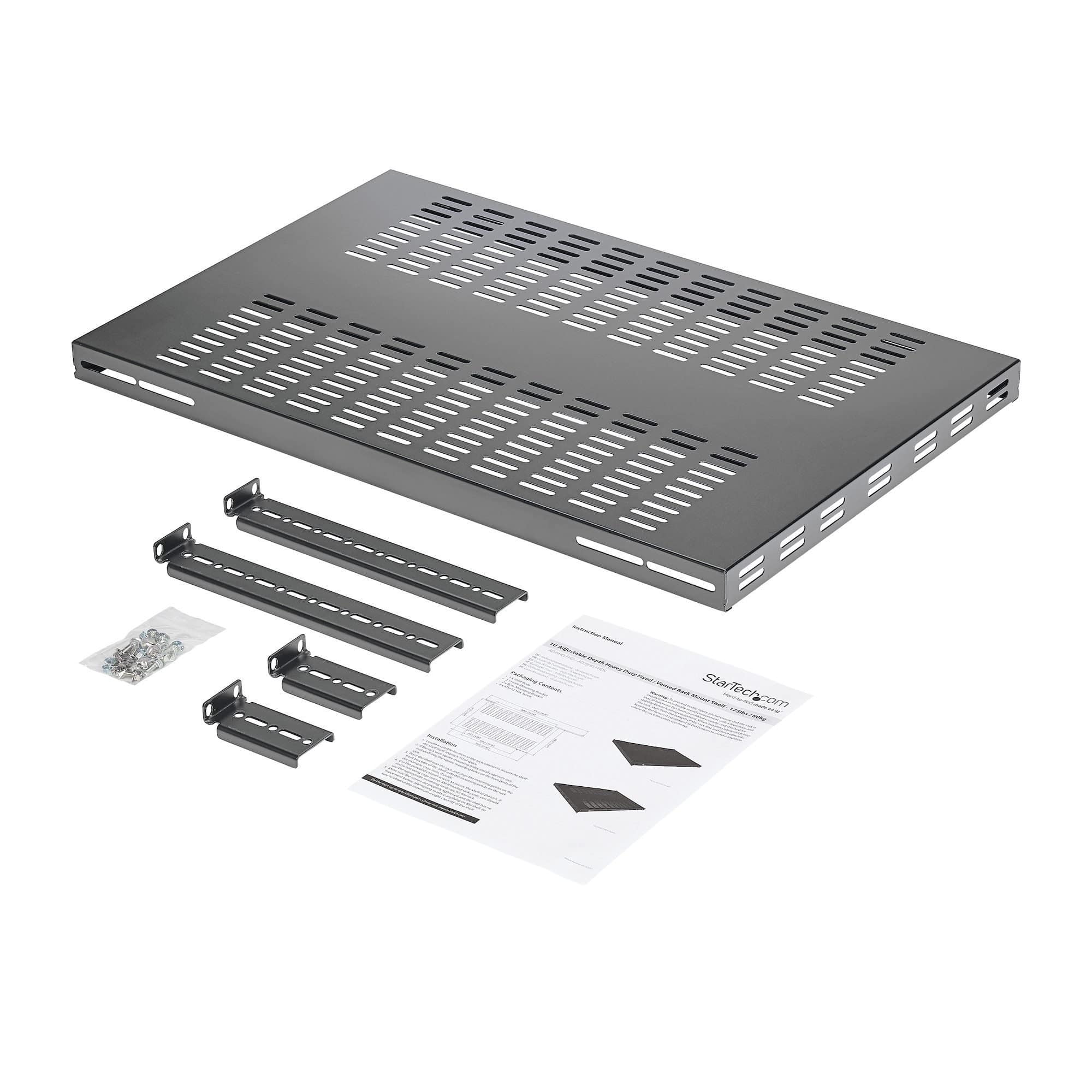

| What's in the Box | 1 - Included in Package | 1U High Cap Adjustable Rack Shelf |
| 2 - Included in Package | Front Mounting Brackets | |
| Rear Mounting Brackets | ||

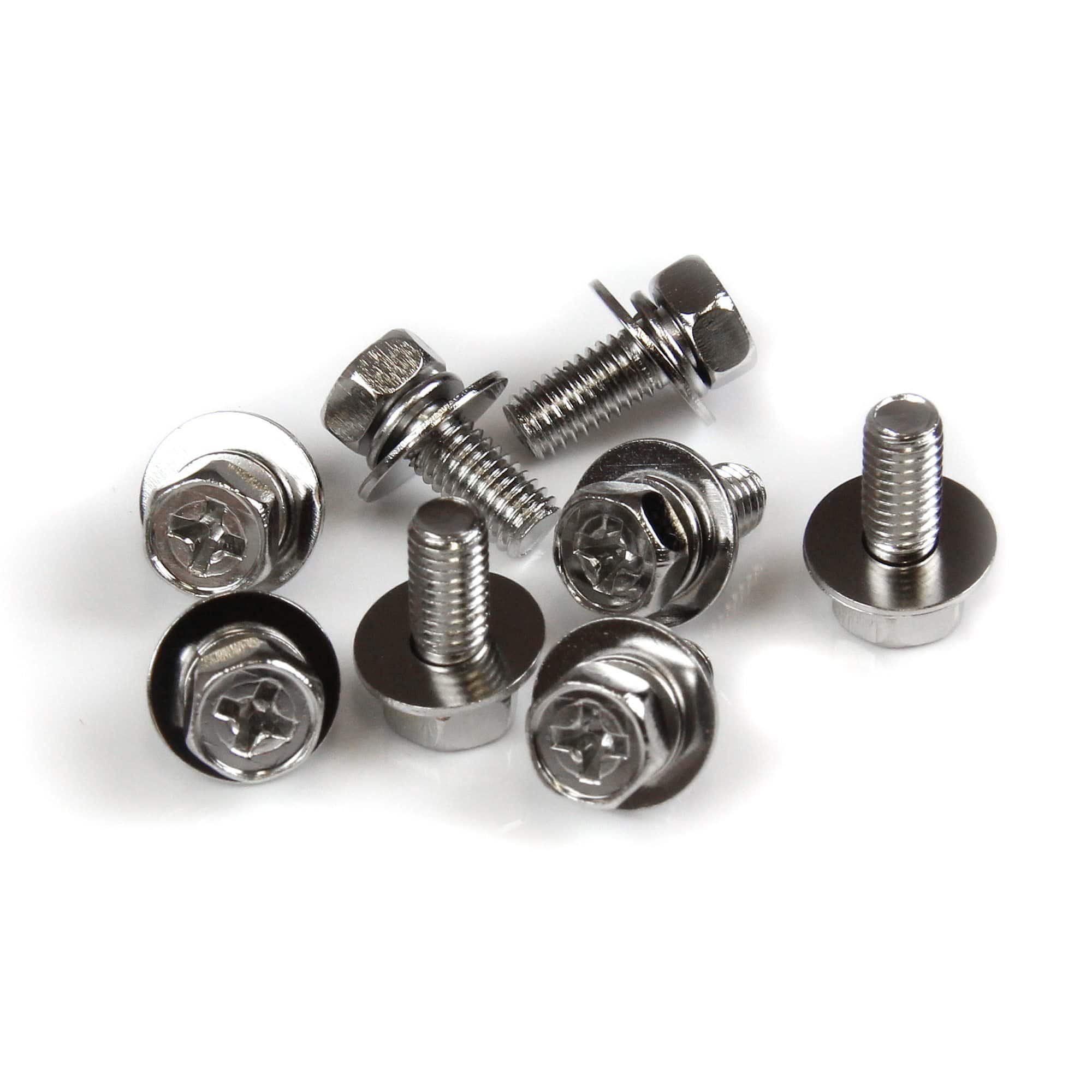

| 8 - Included in Package | M5 Panel Screws | |
| 1 - Included in Package | Instruction Manual |
