Description

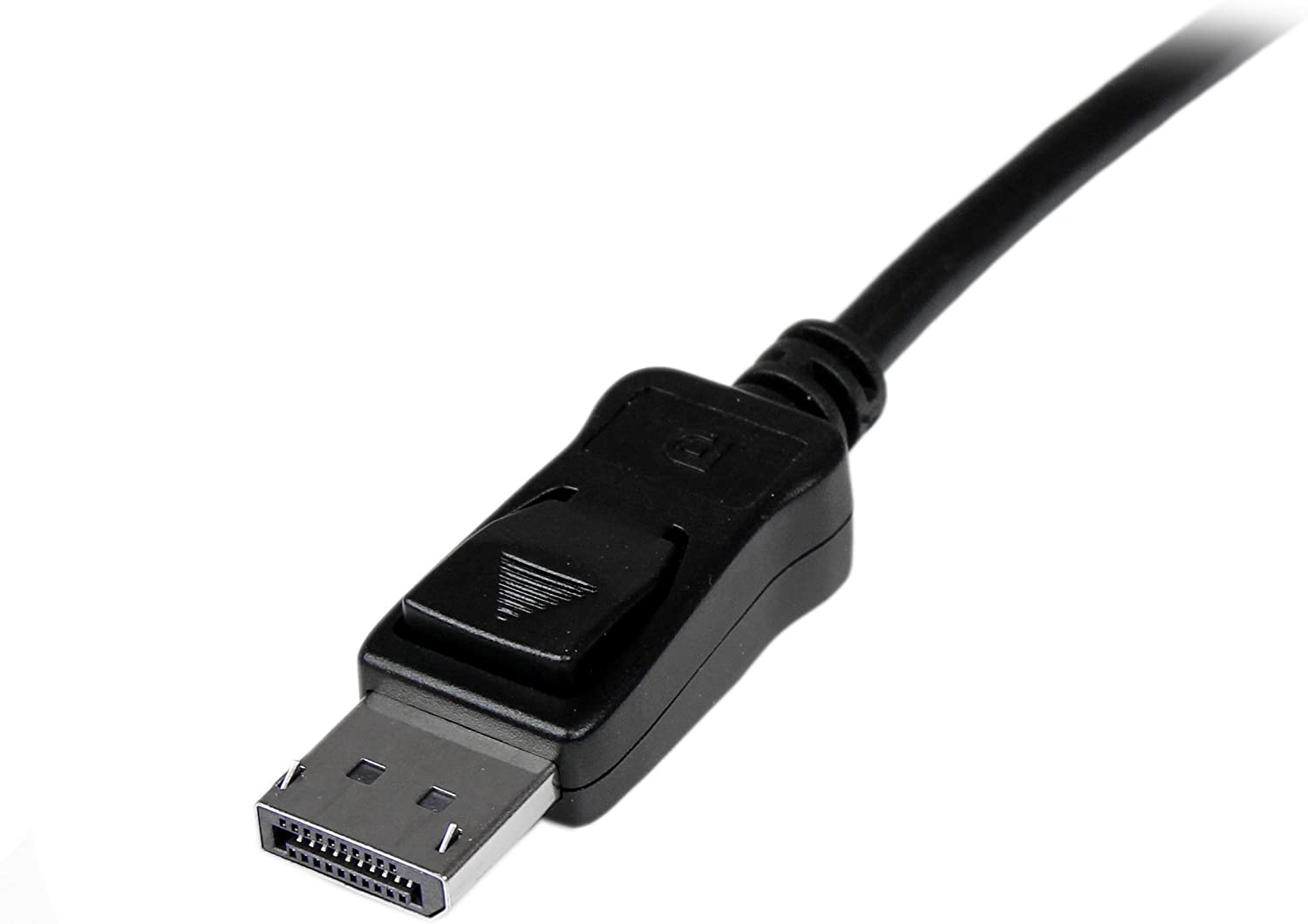

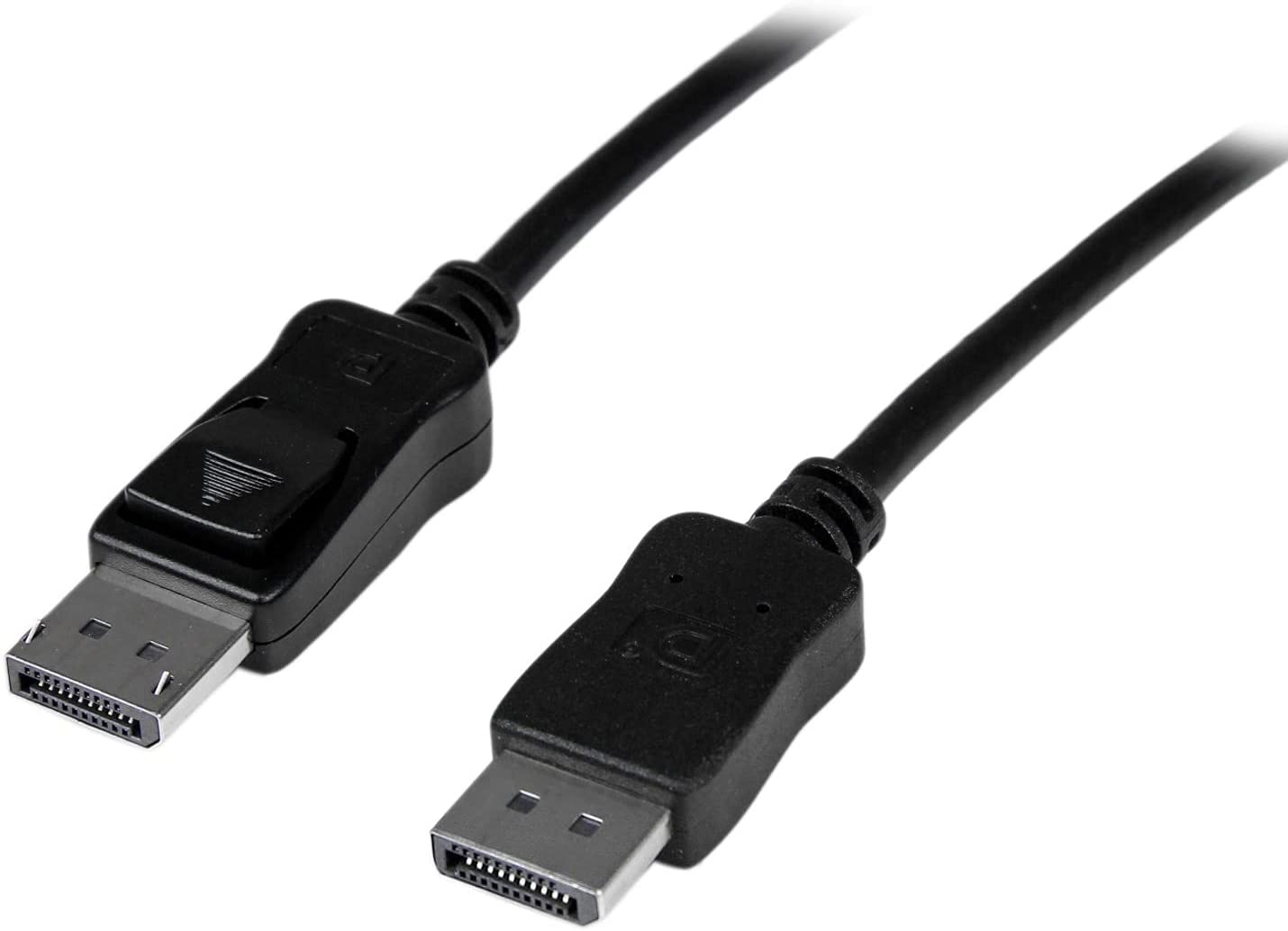

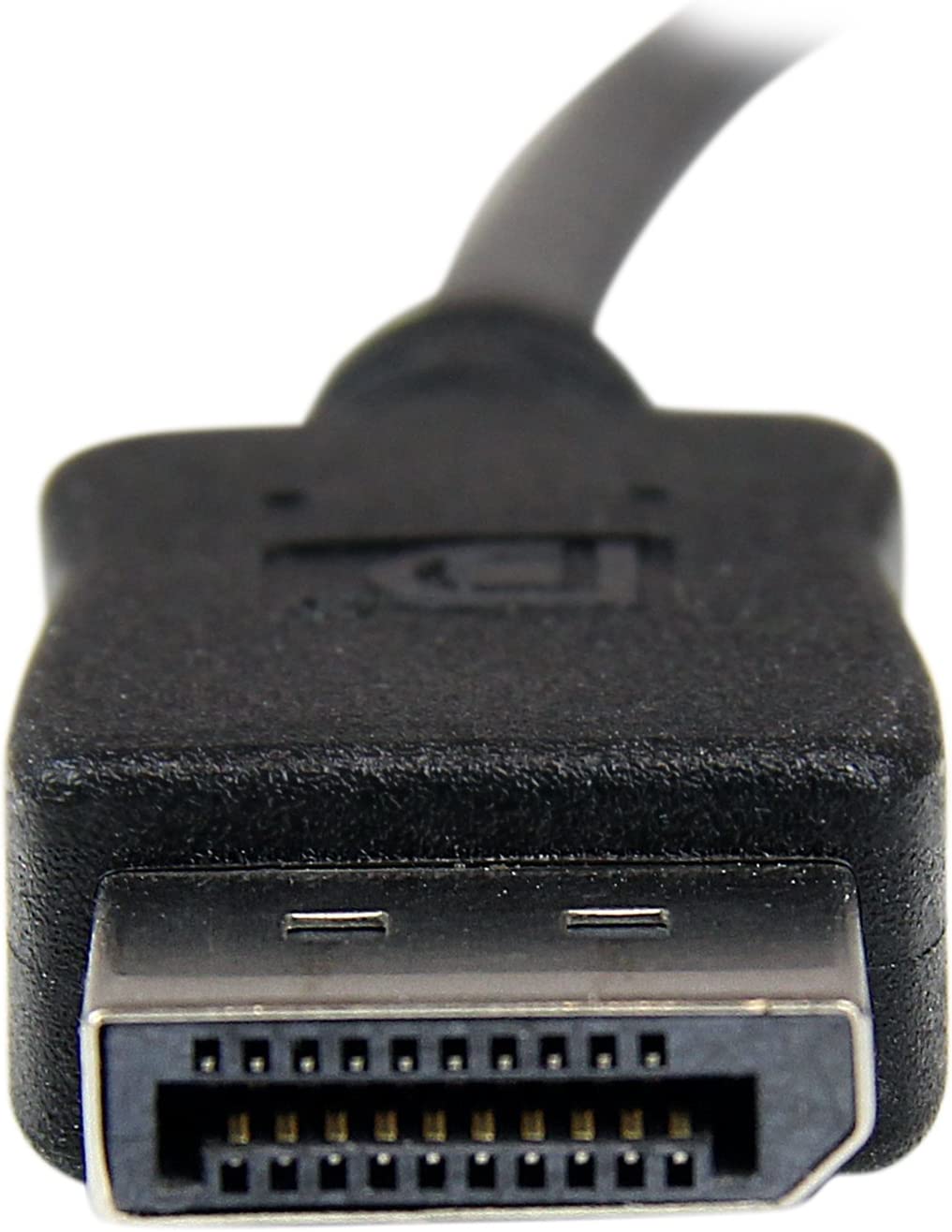

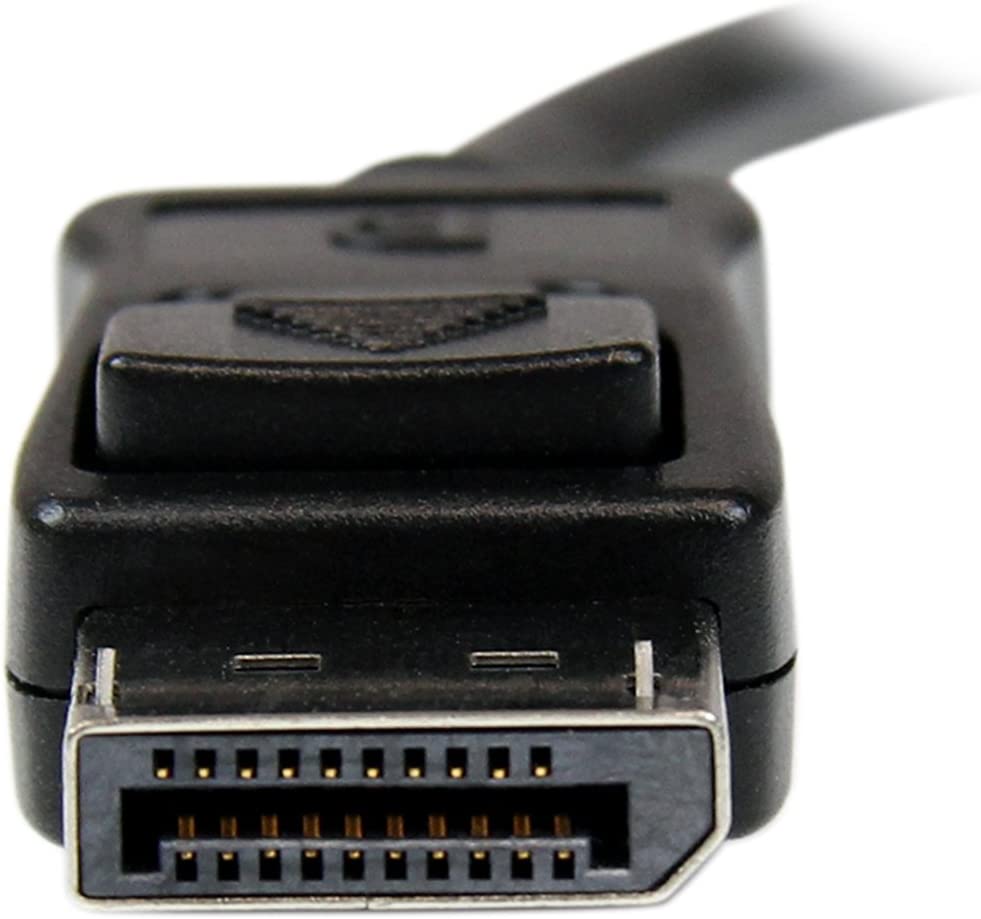

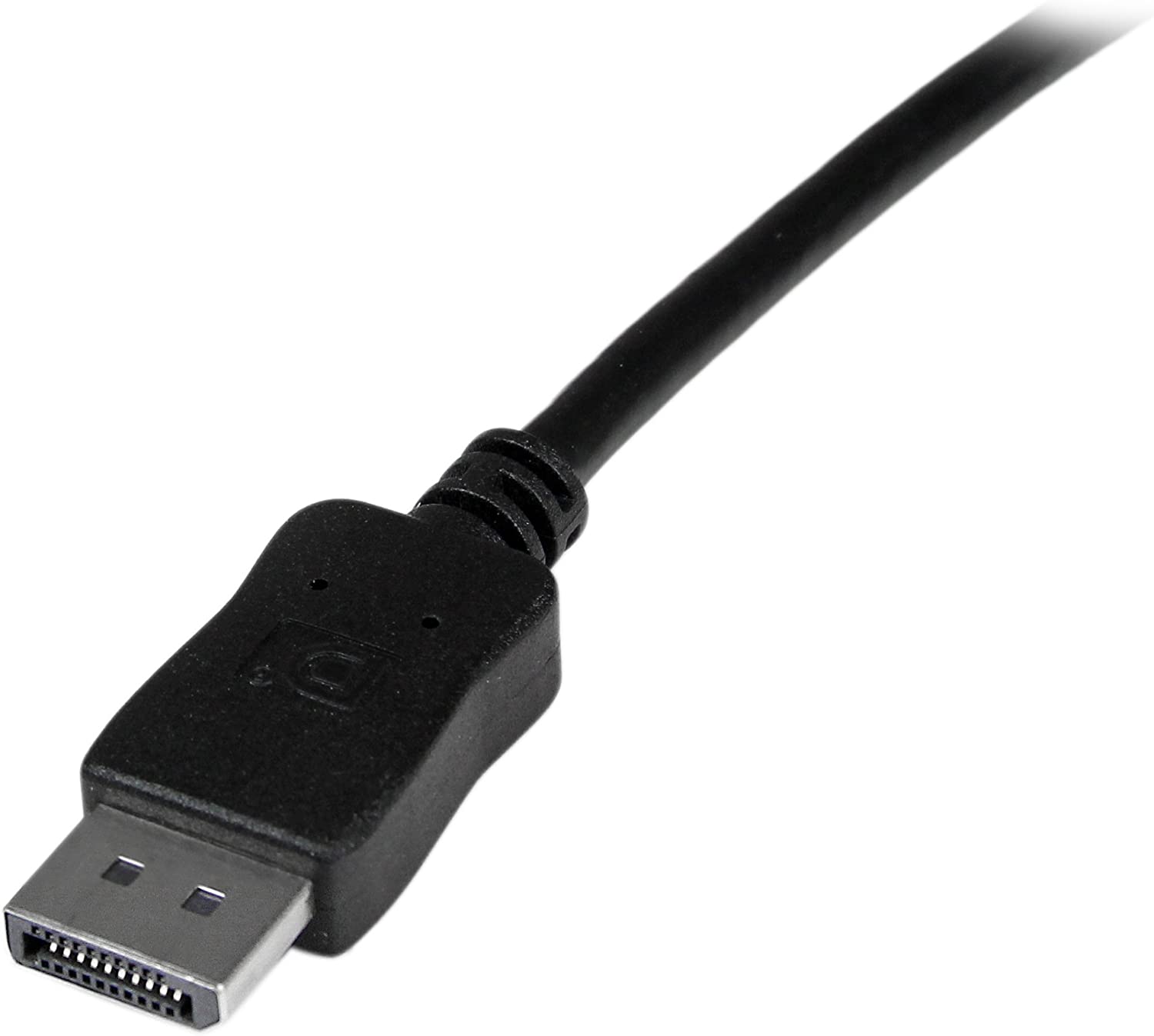

StarTech 10M ACTIVE DISPLAYPORT CABLE (DISPL10MA)(2 Years Manufacture Local Warranty In Singapore)
Connect DisplayPort-equipped devices up to 10m away with no signal loss. The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
Connect DisplayPort®-equipped devices up to 10m away with no signal loss
- LIGHT AND DURABLE CABLE: Long-lasting light-weight cable; 32AWG wire; Flexible PVC jacket; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms, works with your laptop/professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with UHD/4K monitors, projector or large display
- SPECS: 10 m (32.8 ft) | Black | DisplayPort v1.2 Latching Male to Male | 32 AWG | PVC cable jacket | Shield: Al-Mylar foil with Braid | Protocols: HBR, MST, GTC | 2-Year Warranty | Note: DP connector labelled "Display" connects to the display side
- ACTIVE CIRCUITRY: Active bus powered amplifier boosts video signals over longer distances up to 10 m (32.8 ft) (no external power supply needed), supports additional color spaces
- ACTIVE DISPLAYPORT CABLE: Active 10m (32.8ft) DisplayPort cable supports 4K (3840x2160p at 30Hz), 10.8 Gbps bandwidth, HBR, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (1080p at 60Hz)
Technical Specifications
| Weight (Approximate) | 565 g |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Cable Length | 10 m |
| Conductor | Copper |
| Device Supported | Audio/Video Device |
| Monitor | |
| Projector | |
| Jacket Type | CMG |
| Shielding | Yes |
| Features | Active |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Connector on First End Details | 1 x 20-pin DisplayPort Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort Digital Audio/Video - Male |
| Product Type | A/V Cable |
| Manufacturer Part Number | DISPL10MA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 10m Active DisplayPort Cable - DP to DP M/M |
| Brand Name | StarTech.com |
