Description

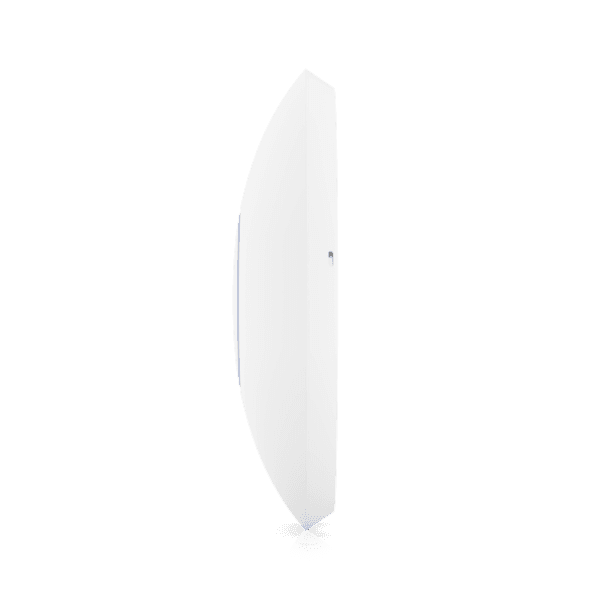

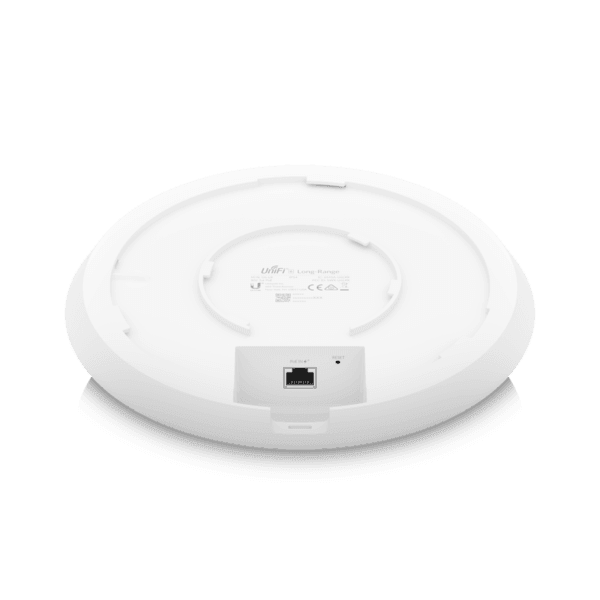

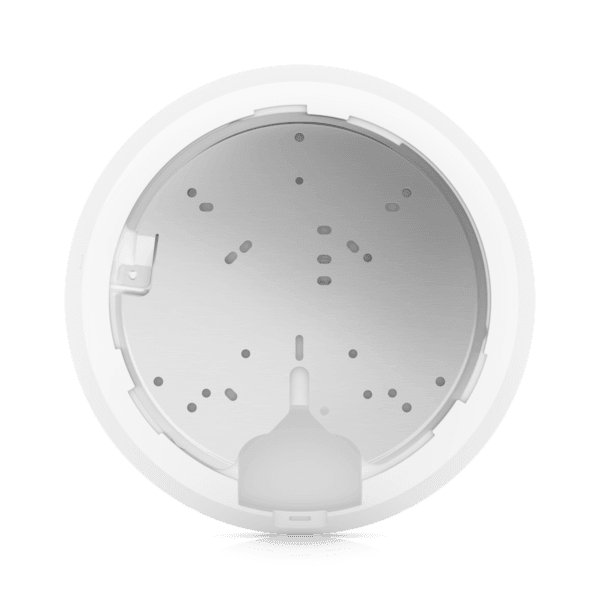

Ubiquiti Wireless Access Point WiFi 6 Long-Range Unifi U6-LR (1 Year Manufacture Local Warranty In Singapore)
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- Four-stream high-efficiency Wi-Fi 6 technology
-
5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
-
2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE (PoE injector not included)
Video Review
Features
Best-in-class Wi-Fi coverage and performance
With its Wi-Fi 6 capability, the U6-LR will strengthen your enterprise environment with the widest, most reliable coverage yet.
Four-stream high-efficiency Wi-Fi 6 technology
Wi-Fi 6 APs deliver an aggregate radio rate of up to 3 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios
Powerful, wider wireless coverage
The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
Simultaneously connect to more devices
Create and support over 300 distinct client connections.
Easily set up and grow your network
The U6-Lite access point seamlessly integrates with the UniFi Network Controller and simplifies network bridging.
UniFi Network
Controller
Host, configure, and monitor all of your network devices from a central mobile interface.
Download Mobile App
Specifications:
Mechanical | |||||
---|---|---|---|---|---|
Dimensions |
Ø220 x 48 mm (Ø8.66 x 1.89") |
||||
Weight |
Without Mount: 800 g (1.76 lb) |
||||
Enclosure Material |
Plastic |
||||
Mount Material |
SGCC Steel |
||||
Weatherproofing |
IP54 |
||||
Hardware | |||||
Processor Specs |
Dual-Core® Cortex® A53 at 1.35 GHz |
||||
Memory Information |
512 MB |
||||
Management Interface |
Ethernet Bluetooth Low Energy 5.0 |
||||
Networking Interface |
(1) 1 Gbps Ethernet RJ45 |
||||
Button |
Factory Reset |
||||
LED |
RGB |
||||
Power Method |
PoE+, Passive PoE (48V) |
||||
Power Supply |
UniFi PoE Switch |
||||
Supported Voltage Range |
44 to 57VDC |
||||
Max. Power Consumption |
16.5W |
||||
Max. TX Power |
|
||||
MIMO |
|
||||
Throughput Speeds |
|
||||
Antenna Gain |
|
||||
Mounting |
Wall/Ceiling (Kits Included) |
||||
Operating Temperature |
-30 to 60° C (-22 to 140° F) |
||||
Operating Humidity |
5 - 95% Noncondensing |
||||
Certifications |
CE, FCC, IC |
||||
Software | |||||
Wi-Fi Standards |
802.11a/b/g |
||||
Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions |
||||
BSSID |
8 per Radio |
||||
VLAN |
802.1Q |
||||
Advanced QoS |
Per-User Rate Limiting |
||||
Guest Traffic Isolation |
Supported |
||||
Concurrent Clients |
300+ |
||||
Supported Data Rates (Mbps) | |||||
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
||||
802.11b |
1, 2, 5.5, 11 Mbps |
||||
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
||||
802.11n (Wi-Fi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
||||
802.11ac (Wi-Fi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
||||
802.11ax (Wi-Fi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
