Ubiquiti Wireless Access Point WiFi 7 Unifi U7-Pro Max (2 Years Hardware Warranty)-Promo Price While Stock Last

UbiquitiSKU: U7-Pro Max
No reviews

Price:
Sale price$ 440.00 SGD

Description

Ubiquiti Wireless Access Point WiFi 7 Unifi U7-Pro Max (2 Years Hardware Warranty)-Promo Price While Stock Last

Overview

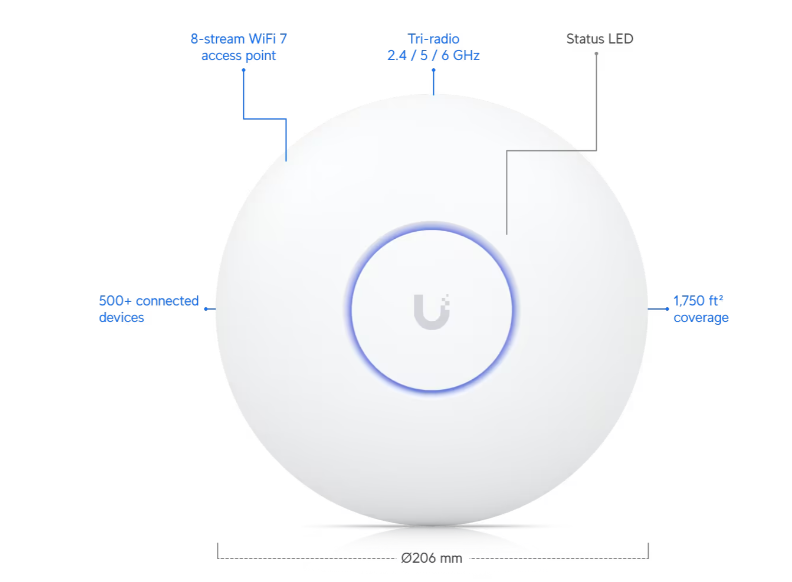

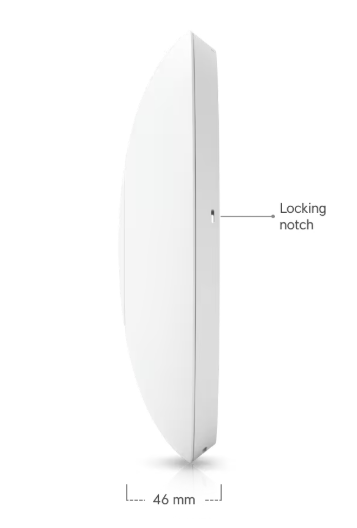

Dimensions
Ø206 x 46 mm (Ø8.1 x 1.8")

WiFi Standard
WiFi 7

Spatial Streams
8

Coverage Area
160 m² (1,750 ft²)

Max. Client Count
500+

Uplink
2.5 GbE

Mounting
Ceiling, Wall (Pro Mount Included)

Power Method
PoE+

Performance

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
5.9 dBi
5 GHz
6 dBi
2.4 GHz
4 dBi

Max. TX Power
6 GHz
23 dBm
5 GHz
29 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio

Supported Data Rates

802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management

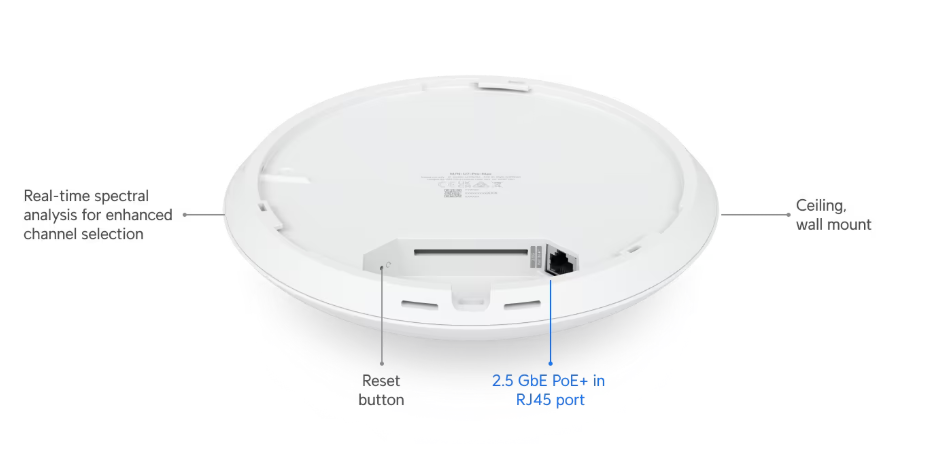

Real-Time Spectral Analysis
Passpoint (Hotspot 2.0)

Captive Hotspot Portal

Custom Branding Landing Page

Voucher Authentication

Payment-Based Authentication

External Portal Server Support

Password Authentication

Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN

Hardware

Max. Power Consumption
25W

Supported Voltage Range
44—57V DC

Networking Interface
(1) 1/2.5 GbE RJ45 port

Weight
680 g (1.5 lb)

Management
Ethernet

Enclosure Material
Polycarbonate, aluminum

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)


LEDs
System
White/Blue

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant

Certifications
CE, FCC, IC, Anatel

Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz

Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity
5 to 95% noncondensing

Software

Application Requirements
UniFi Network
Version 8.2.93 and later

In the Box
