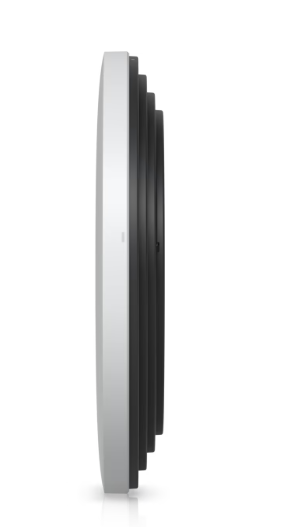

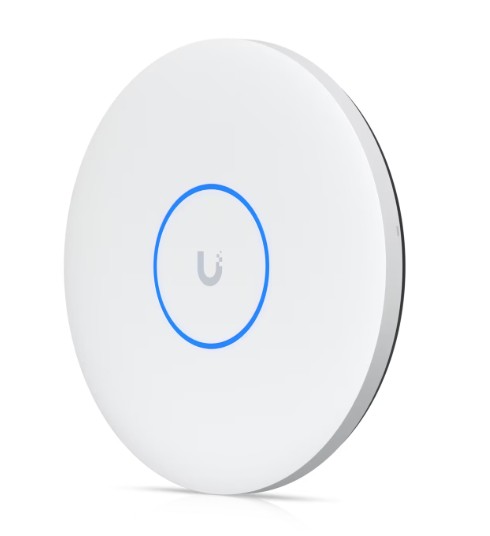

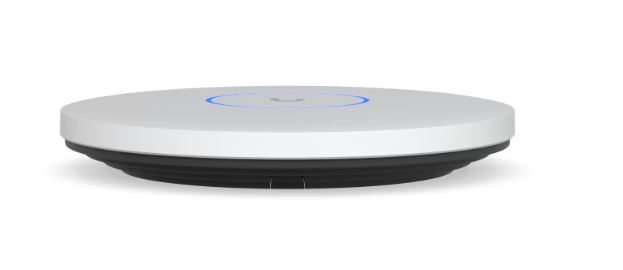

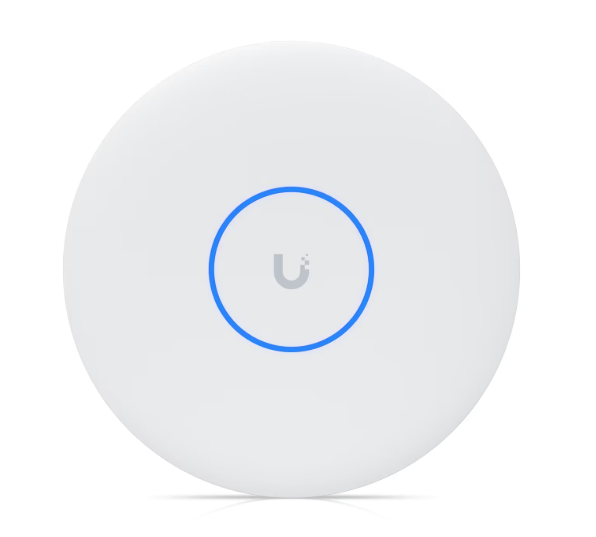

Ubiquiti Wireless Access Point WiFi 7 Unifi U7-Pro XGS (2 Years Hardware Warranty)-Promo Price While Stock Last

UbiquitiSKU: U7-Pro-XGS
No reviews

Price:
Sale price$ 430.00 SGD

Description

Ubiquiti Wireless Access Point WiFi 7 Unifi U7-Pro XGS (2 Years Hardware Warranty)-Promo Price While Stock Last

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

Specification

Overview

Dimensions
Ø215 x 32.5 mm (Ø8.5 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
8

Coverage Area
160 m² (1,750 ft²)

Max. Client Count
500+

Uplink
10 GbE

Mounting
Ceiling, Wall (Lite Mount Included)

Power Method
PoE++

Performance

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
6 dBi
5 GHz
6 dBi
2.4 GHz
4 dBi

Max. TX Power
6 GHz
24 dBm
5 GHz
29 dBm
2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Zero-Wait DFS
Advanced Radio Management
Real-Time Spectral Analysis
Passpoint (Hotspot 2.0)

Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN

Hardware

Max. Power Consumption
29W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) 10 GbE RJ45 port

Weight
800 g (1.8 lb)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

LEDs
System
White/Blue

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant

Certifications
CE, FCC, IC

Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

Software

Application Requirements
UniFi Network
Version 9.0.114 and later (U7 Pro XGS - White)

In the Box
