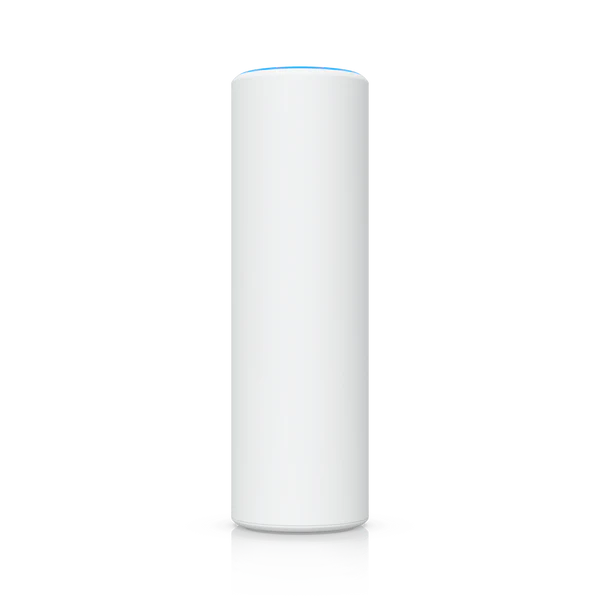

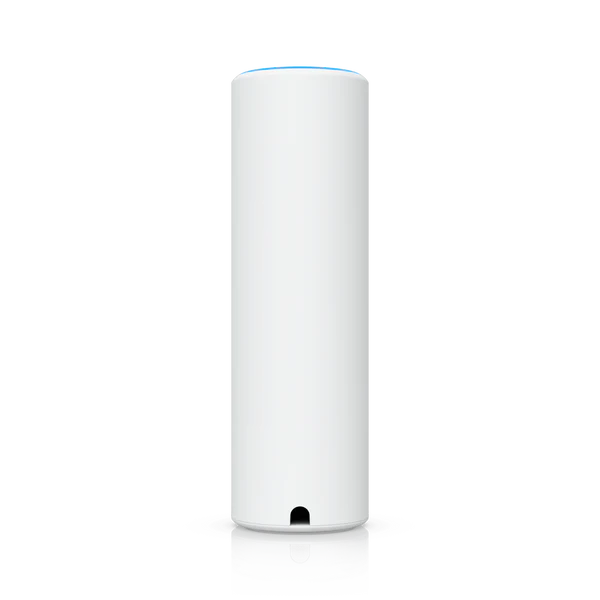

Ubiquiti U7-Mesh BE5000 U7 Mesh 2.5GbE Compact Access Point (2 Years Distributor Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Ubiquiti U7-Mesh BE5000 U7 Mesh 2.5GbE Compact Access Point (2 Years Distributor Local Warranty In Singapore)

Name: Ubiquiti U7-Mesh BE5000 U7 Mesh 2.5GbE Compact Access Point (2 Years Distributor Local Warranty In Singapore)
Brand: Ubiquiti
Price: 340.00 SGD
Availability: InStock

Long-Range WiFi 7 Performance in a Compact Indoor and Outdoor Form

Built for demanding mesh and extended coverage deployments, this compact WiFi 7 access point combines hybrid antenna architecture, 2.5 GbE uplink, and IPX6 outdoor capability to deliver high-efficiency wireless performance across large and distributed environments.

Highlights

Hybrid Long-Range Antenna Architecture

• Integrated omnidirectional and directional 5 GHz antennas
• Directional gain up to 10 dBi for focused backhaul links
• Extended reach up to three times farther in mesh scenarios

Indoor and Outdoor Flexibility

• Dual bottom covers for indoor table stand or outdoor sealed deployment
• IPX6 weatherproof rating when installed with outdoor mount
• Operating temperature range -30 °C to 60 °C

WiFi 7 Efficiency and Throughput

• WiFi 7 support on 2.4 GHz and 5 GHz bands
• 5 GHz data rate up to 4.3 Gbps
• Supports 200+ concurrent clients
• Coverage area up to 140 m²

Key Features

Ubiquiti U7-Mesh BE5000 U7 Mesh 2.5GbE Compact Access Point

• WiFi 7 standard with 4 spatial streams
• NDAA compliant
• Designed for wall, pole, or table stand mounting

High-Performance Wireless Architecture

• 5 GHz 2 × 2 MU-MIMO up to 4.3 Gbps
• 2.4 GHz 2 × 2 MU-MIMO up to 688 Mbps
• 8 BSSIDs per radio
• Channel bandwidth up to 240 MHz under WiFi 7

Mesh-Optimized Design

• LED ring indicates mesh signal strength in Mesh Child mode
• Wireless meshing with advanced radio management
• Band steering and 802.11k, 802.11r, 802.11v support for seamless roaming

Enterprise Security and Access Control

• Private Pre-Shared Key and dynamic RADIUS VLAN
• RADIUS over TLS support
• Guest network isolation and client isolation
• Captive portal with custom branding and voucher authentication
• WiFi scheduling and speed limiting

Hardware and Physical Specifications

• Dimensions ⌀48.5 × 159.5 mm
• Weight 313 g

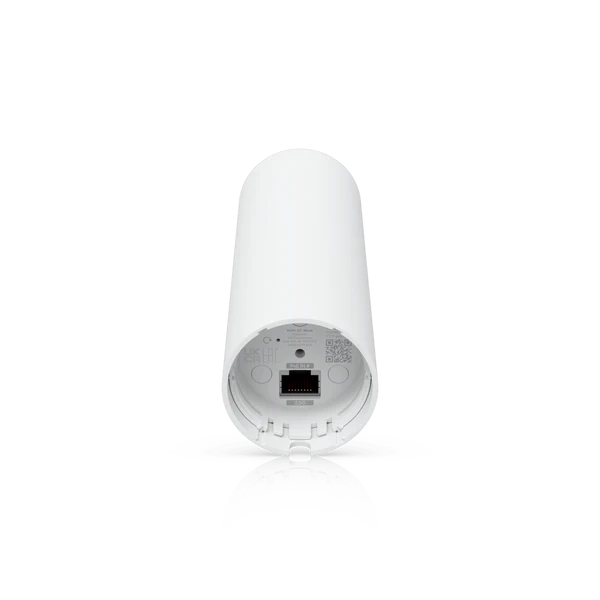

• Single 2.5 GbE RJ45 uplink
• Maximum power consumption 13 W
• PoE powered with adapter included
• UV-stabilized polycarbonate enclosure

Summary / Conclusion

Ubiquiti U7-Mesh BE5000 U7 Mesh 2.5GbE Compact Access Point delivers WiFi 7 performance with hybrid antenna architecture optimized for long-range and outdoor mesh deployments. With IPX6 protection, 2.5 GbE uplink, and intelligent RF management, it provides scalable, high-efficiency wireless coverage for campuses, hospitality, industrial sites, and large open environments.

Specification

Specification	Details
Overview
WiFi Standard	WiFi 7, 802.11be
Spatial Streams	4
Coverage Area	140 m², 1,500 ft²
Max Client Count	200+
Uplink	2.5 GbE
Mounting	Wall, pole, table stand, mounts included
Weatherproof Rating	IPX6 when installed with outdoor mount
Power Method	PoE
Includes PoE Adapter	Yes
NDAA Compliant	Yes
Wireless Performance
MIMO	5 GHz 2 x 2 DL UL MU MIMO, 2.4 GHz 2 x 2 DL UL MU MIMO
Max Data Rate	5 GHz 4.3 Gbps, 2.4 GHz 688 Mbps
Antenna Gain	5 GHz omni 6 dBi, 5 GHz directional 10 dBi, 2.4 GHz 3 dBi
Max TX Power	5 GHz 24 dBm, 2.4 GHz 23 dBm
Max BSSIDs	8 per radio
Channel Bandwidth	HT 20 40 MHz, VHT 20 40 80 160 MHz, HE 20 40 80 160 MHz, EHT 20 40 80 160 240 MHz
Supported Data Rates	802.11be 7.3 Mbps to 4.3 Gbps, 802.11ax 7.3 Mbps to 2.4 Gbps, 802.11ac 6.5 Mbps to 1.7 Gbps, 802.11n 6.5 Mbps to 300 Mbps
Features
Wireless Meshing	Yes
Band Steering	Yes
Fast Roaming	802.11r
BSS Transition	802.11v
Radio Resource Management	802.11k
Advanced Radio Management	Yes
Passpoint	Yes
Captive Portal	Custom branding, voucher authentication, payment authentication, external portal support
Guest Network Isolation	Yes
Private Pre Shared Key	Yes
WiFi Speed Limiting	Yes
Client Isolation	Yes
WiFi Scheduling	Yes
RADIUS over TLS	Yes
Dynamic RADIUS VLAN	Yes
Hardware
Networking Interface	1 x 2.5 GbE RJ45
Max Power Consumption	13 W
Supported Voltage	42.5 to 57V DC
Management	Ethernet
LEDs	System W B
Enclosure Material	UV stabilized polycarbonate
Mount Material	UV stabilized polycarbonate
Weight	313 g, 11 oz
Dimensions	Diameter 48.5 x 159.5 mm, 1.9 x 6.3 in
Environmental
Operating Temperature	-30°C to 60°C, -22°F to 140°F
Operating Humidity	5 to 95% noncondensing
Certifications
Certifications	CE, FCC, IC
