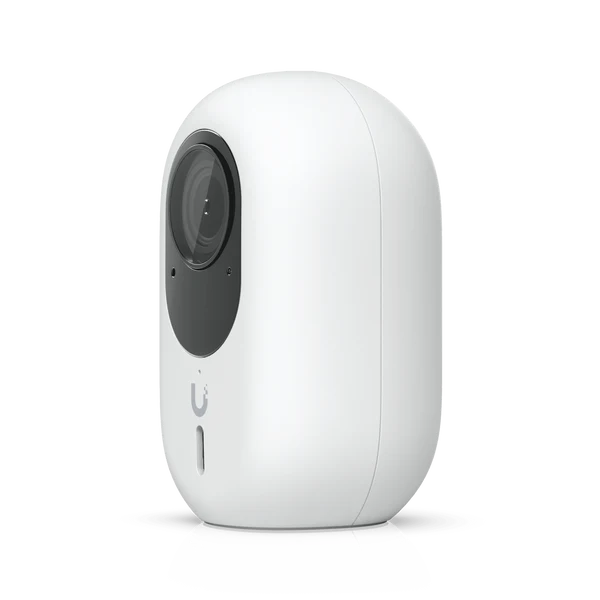

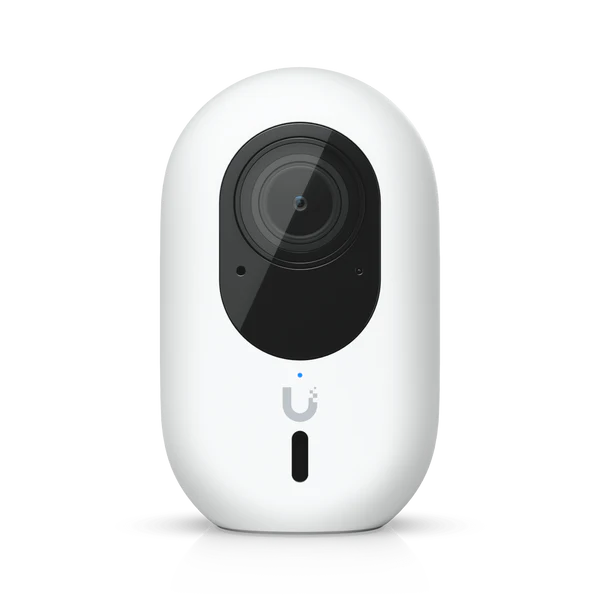

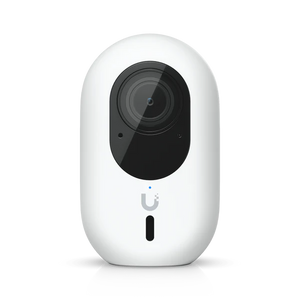

Compact G4 Instant 5MP Cube IP Camera

Enhance your security setup with the Ubiquiti UVC-G4-INS, a compact and powerful 5MP Cube IP camera offering superior 2K resolution, ultra-wide viewing angle, and seamless WiFi connectivity. Designed for versatile mounting and weatherproof durability, this camera provides reliable surveillance in any environment.

Highlights

• 5MP (2K) video resolution
• Ultra-wide viewing angle of 102.4°
• 6 m (20 ft) IR night vision
• WiFi-connected with UniFi WiFi Auto-Link
• Integrated two-way audio for real-time communication
• AI event detections for enhanced security
• Weatherproof and IK04 resistance for outdoor use

Key Features

1. High-Resolution Video
   • 2K Video: Captures clear and detailed video at 2688 x 1512 resolution.
   • Ultra-Wide Angle: Provides a wide field of view with a horizontal angle of 102.4°, vertical angle of 54.9°, and diagonal angle of 120.6°.
2. Night Vision
   • Built-in IR LEDs: Ensures visibility up to 6 meters (20 feet) in low-light conditions with an IR cut filter.
3. Wireless Connectivity
   • WiFi Auto-Link: Connects wirelessly with UniFi networks for easy setup and integration.
   • Bluetooth Support: Facilitates initial setup and configuration.
4. Two-Way Audio
   • Integrated Microphone and Speaker: Allows for real-time communication and can be disabled if needed.
5. Versatile Mounting
   • Table or Wall Mounting: Comes with a wall mount accessory for flexible installation options.
6. AI Event Detection
   • Advanced Detection: Enhances security by detecting and alerting you to important events.
7. Durable and Weatherproof
   • IPX5 Weatherproofing: Designed to withstand outdoor conditions with IK04 impact resistance.

Technical Specifications

• Mechanical:
  • Dimensions: 81.6 x 50 x 47.2 mm (3.2 x 2 x 1.9")
  • Weight: Without mount: 125 g (4.4 oz); With mount: 163 g (5.8 oz)
  • Enclosure Material: Polycarbonate
  • Mount Material: Polycarbonate
  • Weatherproofing: IPX5
  • Resistance: IK04
• Optics:
  • Sensor: 5MP CMOS
  • Lens: Fixed focal length EFL 2.8 mm, ƒ/1.6
  • View Angle: H: 102.4°, V: 54.9°, D: 120.6°
  • Night Mode: Built-in IR LED illumination and IR cut filter
• Video:
  • Resolution: 4MP 2688 x 1512 (16:9)
  • Max. Frame Rate: 30 FPS
  • Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
• System:
  • Processor: Dual-core Arm® Cortex®-A7 based chip
  • Networking Interface: 802.11 a/b/g/n/ac WiFi, Bluetooth
  • Max. Power Consumption: 6W
  • Power Method: 5V, 2A USB power adapter (Included)
  • Supported Voltage Range: 5V DC, 2A
  • LED: R/G/B/W
  • Button: Factory reset
  • Mounting: Wall mount (Included)
  • Operating Temperature: -20 to 40° C (-4 to 104° F)
  • Operating Humidity: 0 to 90% noncondensing
  • Certifications: FCC, IC, CE
• Audio:
  • Microphone: Yes (Can be disabled)
  • Speaker: Yes
• Software:
  • Web Application: UniFi Protect: Version 1.20.0-beta.5 and later
  • Mobile App: UniFi Protect iOS™: Version 1.5.6 and later; UniFi Protect Android™: Version 1.4.7 and later

Summary

The Ubiquiti UVC-G4-INS G4 Instant 5MP Cube IP Camera offers high-definition video quality, wide-angle viewing, and seamless wireless connectivity, making it an ideal solution for enhancing your security setup. With integrated two-way audio, AI event detections, and weatherproof design, this compact and efficient camera ensures reliable performance and easy installation in any environment.
