Ubiquiti Unifi USW Pro XG 8 PoE (2 Years Hardware Warranty) -Promo Price While Stock Last

Roll over image to zoom in Click on image to zoom

Ubiquiti Unifi USW Pro XG 8 PoE (2 Years Hardware Warranty) -Promo Price While Stock Last

Name: Ubiquiti Unifi USW Pro XG 8 PoE (2 Years Hardware Warranty) -Promo Price While Stock Last
Brand: Ubiquiti
SKU: USW-Pro-XG-8-PoE
Price: 725.00 SGD
Availability: InStock

UbiquitiSKU: USW-Pro-XG-8-PoE

No reviews

Price:

$ 725.00 SGD

Quantity:

Share this product

Ubiquiti Unifi USW Pro XG 8 PoE (2 Years Hardware Warranty) -Promo Price While Stock Last

*Includes UK 3-pin power cord*

USW-Pro-XG-8-PoE (155W)

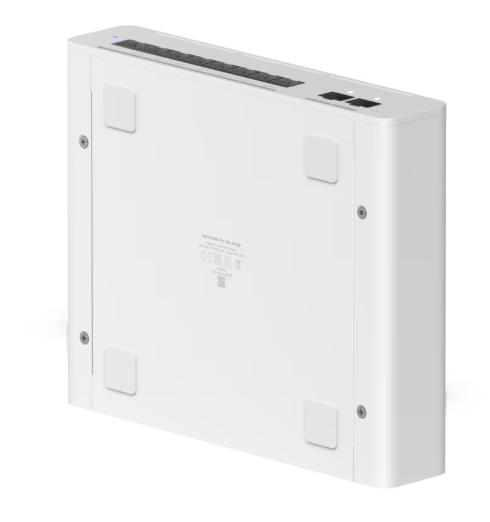

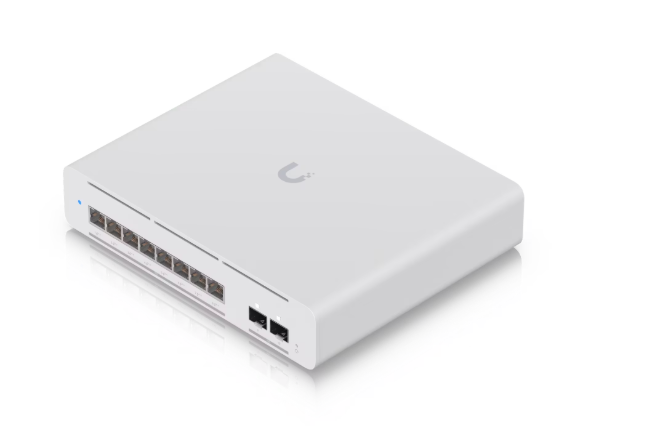

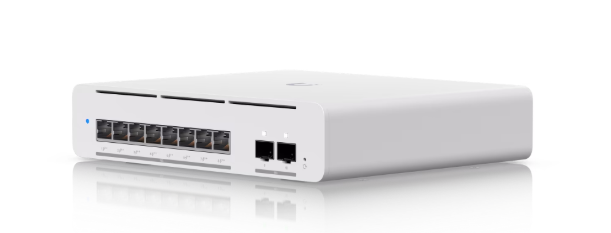

Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.

Specification

Overview

Dimensions

210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7")

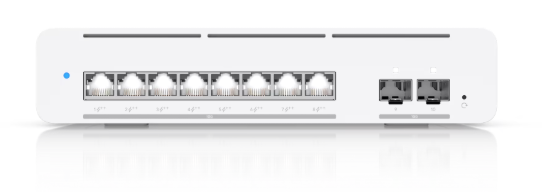

Port Layout

10 GbE RJ45

8 (All PoE++) (10G/5G/2.5G/1G/100M)

10G SFP+

2 (10G/1G)

Max. PoE Output

Up to PoE++

Total PoE Availability

155W

Layer 3

✓

Form Factor

Compact desktop, wall

Etherlighting

✓

Performance

Switching Capacity

200 Gbps

Total Non-Blocking Throughput

100 Gbps

Forwarding Rate

149 Mpps

Supported VLANs

1,000

MAC Address Table Size

32,000

L3 Table Size

ARP Entries

12,000

IPv4 Routes

12,000

Packet Buffer Size

2 MB

Access Lists

IPv4

128

MAC

128

Layer 3 Features

DHCP Server (Local Networks)

✓

DHCP Relay

✓

Inter-VLAN Routing (Local Networks)

✓

Static Routing (Local Networks)

✓

Layer 2 Features

LACP Port Aggregation

✓

STP & RSTP

✓

QoS (DSCP)

✓

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

✓

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

✓

IGMP Snooping

✓

802.1X Control

✓

MAC-Based ACLs & Device Isolation

✓

DHCP Snooping & Guarding

✓

Egress Rate Limit

✓

Flow Control

✓

Storm Control

✓

Multicast & Broadcast Rate Limiting

✓

MAC Address Blocking

✓

IP-Based ACLs & Network Isolation

✓

MAC-Based Port Restriction

✓

Port Isolation

✓

Port Mirroring

✓

Jumbo Frames

✓

LLDP-MED

✓

Voice VLAN

✓

Loop Protection

✓

Hardware

PoE Ports

PoE++

Max. PoE Wattage per Port by PSE

PoE

15.4W

PoE+

30W

PoE++

60W

Max. Power Consumption

61W (Excluding PoE output) 220W (Including PoE output)

Power Method

AC/DC Adapter (included)

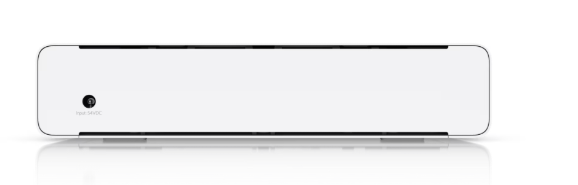

Power Input Method

DC input

Power Supply

AC/DC, external, 210W

Supported Voltage Range

50—57V DC

Management

Ethernet AR

Weight

1.6 kg (3.5 lb)

Enclosure Material

SGCC steel

Mount Material

Polycarbonate

ESD Protection

Air: ± 30kV, contact: ± 30kV

Ambient Operating Temperature

-5 to 45° C (23 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting

Ethernet

✓

SFP+

✓

LEDs

System

✓

NDAA Compliant

✓

Certifications

CE, FCC, IC

Software

Application Requirements

UniFi Network

Version 9.0.114 and later

In The Box

All, Ubiquiti switch, Ubiquiti wireless network
