Description

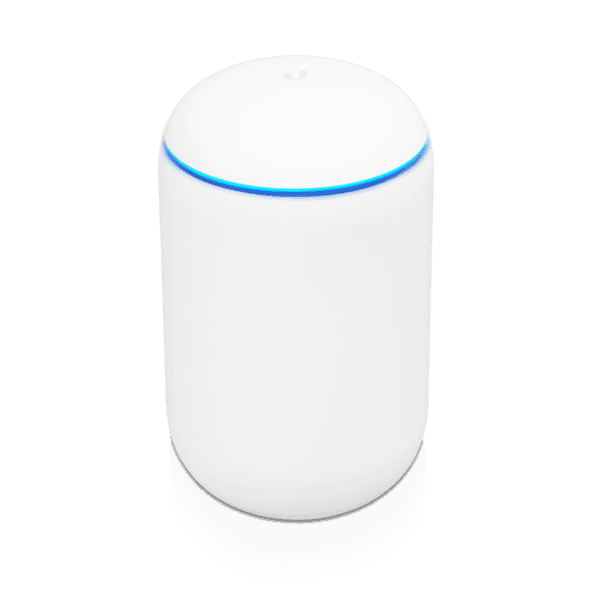

Ubiquiti UniFi Dream Machine UDM-US
(1 Year Manufacture Local Warranty In Singapore)
All-in-one device with access point, 4-port switch, and security gateway. Everything you need for a small-scale wired and Wi-Fi network.
- High‐Performance Dual Band 802.11ac 4x4 Wave 2 AP
- Managed 4-Port Gigabit Switch
- Advanced Security Gateway with IDS/IPS and DPI
- UniFi Network Controller with Intuitive User Interface
- Scalable Through Additional UniFi Devices Connected to LAN
- Powered by Fast 1.7 GHz Quad-Core Processor
UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It's easy to use and still offers all the benefits of UniFi for homes and businesses.
Integrated 4x4 Enterprise AP
The UDM delivers the requisite high‐performance Wi‐Fi and fits into high‐density environments as part of the overall enterprise network.
Integrated Security Gateway
The UDM offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).
Integrated Cloud Key
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic.
Integrated Gigabit Switch
The UDM provides a managed 4-port Gigabit switch so you can easily add network storage or wired client devices.
UniFi Network Controller with Intuitive User Interface
Centralized management software featuring a graphical user interface offers easy setup and convenient control.
The UniFi® Software-Defined Networking (SDN) platform is an end-to-end system of network devices across different locations — all controlled from a single interface.
| UDM-US | |
|---|---|
| Dimensions | Ø 110 x 184.2 mm (Ø 4.33 x 7.25") |
| Weight | 1.05 kg (2.32 lb) |
| Networking Interfaces | (4) LAN 10/100/1000 RJ45 Ports (1) WAN 10/100/1000 RJ45 Port |
| Buttons | Reset |
| IDS/IPS Throughput | 850 Mbps |
| Processor | Arm Cortex-A57 Quad-Core at 1.7 GHz |
| System Memory | 2 GB DDR RAM |
| On-Board Flash Storage | 16 GB |
| Maximum Power Consumption | 26W |
| Supported Voltage Range | 100 - 240VAC |
| Power Method | AC Power Cord |
| Power Supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC) |
| Power Save | Supported |
| Beamforming | Supported |
| TX Power* 2.4 GHz 5 GHz |
23 dBm 26 dBm |
| Antenna | (1) Dual-Band, Quad-Polarity Antenna |
| Antenna Gain 2.4 GHz 5 GHz |
3 dBi 4.5 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per Radio |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
