Description
Ubiquiti UniFi Dream Machine UDM-US
(Warranty in Singapore)
All-in-one enterprise security gateway & network appliance for small to medium-sized businesses. The optimal experience for larger networks.
- All-in-one 1U rack appliance for small to medium sized businesses
- Combines new UniFi OS with 8-port switch and security gateway
- UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
- 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
- Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
- Powered by fast 1.7 GHz quad-core processor

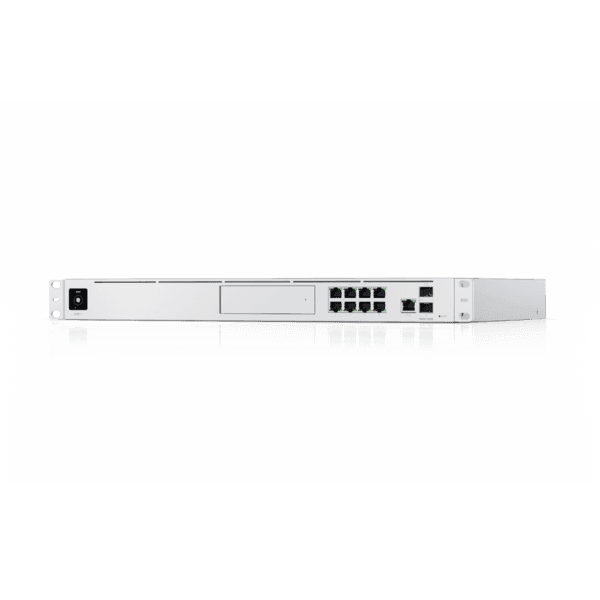

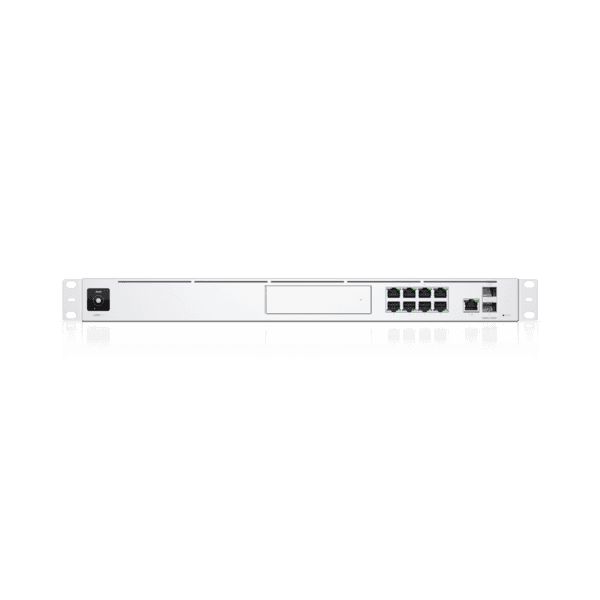

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
How to install video
The Best Experience for Large Networks
All-in-one 1U rack appliance for small to medium size businesses
✔ Security Gateway
The enterprise-class security gateway combines routing, 10 Gbps SFP+ WAN, application visibility, VPN services, and 3.5 Gbps full threat management throughput into a single device.
|
10 Gbps
SFP+ WAN |
Advanced
Firewall with VPN |
DPI: Deep
Packet Inspection |
IPS/IDS - Intrusion
Prevention System |
3.5 Gbps IDS/IPS
Throughput |
UniFi Cloud Portal
Safe Access with SSO
Centralized User and Access Management
Installation of New Applications
Seamless Network Integration
Use the UniFi Dream Machine Pro as your network controller.
Product Specifications:
DIMENSIONS
- Width x Height x Depth:
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24") - Weight: 3.90 kg (8.60 lb)
- With Mounting Kits:
3.99 kg (8.80 lb)
PACKAGE CONTENTS
- (2) Rackmount Brackets
- (8) Bracket Screws
- (4) Mounting Screws
- (4) Cage Nuts
- (1) Security Screw
- (4) 2.5" HDD Screws
- Power Cord
- (4) Rubber Feet
TECHNICAL SPECIFICATIONS
- (8) 10/100/1000 RJ45 LAN Ports
- (1) 10/100/1000 RJ45 WAN Port
- (1) 1/10G SFP+ LAN Port
- (1) 1/10G SFP+ WAN Port
- Ethernet In-Band
- (1) Bluetooth BLE
- IDS/IPS Throughput: 3.5 Gbps *
- Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
- System Memory: 4 GB DDR4
- On-Board Flash Storage: 16 GB eMMC
- * Measured with iPerf3.
- Operating Temperature: -10° to 40° C (14° to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Max. Power Consumption: 33W
- Voltage Range: 100 to 240VAC
- Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
- Redundant Power: (1) RPS DC Input
- Power Supply: Internal 50W/12V
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- CE, FCC, IC
