Ultra-Flexible 5G Connectivity for Any UniFi Deployment

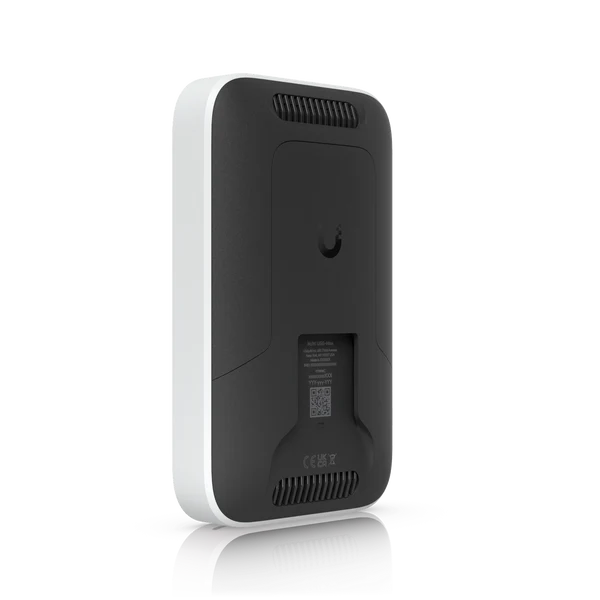

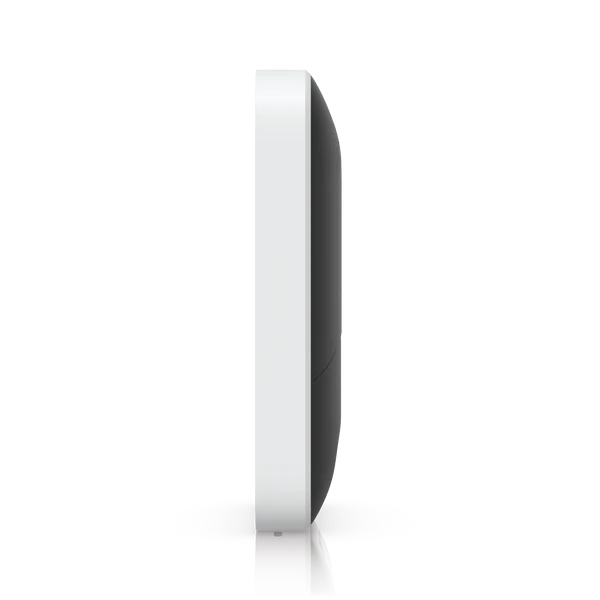

The Ubiquiti U5G-Max UniFi 5G Max delivers powerful Sub-6 5G performance in a compact, PoE-powered modem designed for effortless integration into any UniFi network. Whether used as a primary WAN, load-balanced uplink, or automated failover, it instantly appears as a UniFi WAN interface the moment it is connected to any PoE port. With flexible nano-SIM + eSIM support, a repositionable design, and fast carrier switching, the U5G-Max is built for high-performance deployments at the core or at the edge.

Highlights

• Plug-and-Play UniFi WAN Interface: Automatically adopts on any PoE port without new cabling.

• High-Speed 5G Data: Supports up to 2 Gbps downlink with ultra-low latency.

• Dual SIM (nano-SIM + eSIM): Unlocked hardware for all major carriers.

• Flexible Mounting: Desk, wall, and window mounts included for optimal signal placement.

• Compact Modem Design: Lightweight, stylish, and built for fast deployment.

• Policy-Based Routing: Define exactly how 5G is used per VLAN, client, or traffic class.

Key Features

Simple Deployment with Maximum Flexibility

• Instant UniFi Adoption: Connect to any PoE port—switch or gateway—and it becomes a WAN option instantly.

• Flexible Placement: Wall, desk, or window mounting allows ideal signal optimization.

• Compact Footprint: 180 x 109 x 33.8 mm, designed to blend into any environment.

Carrier Freedom and High-Speed 5G

• Unlocked Global 5G NR Modem: Supports extensive Sub-6 bands for worldwide compatibility.

• Dual SIM Support: One nano-SIM and one nano-SIM or eSIM for easy carrier switching.

• Peak Performance:

  • 5G NSA: 3.4 Gbps DL, 560 Mbps UL

  • 5G SA: 1.8 Gbps DL, 650 Mbps UL

  • LTE: 1.6 Gbps DL, 210 Mbps UL

• Ultra-Low Latency: Ideal for SD-WAN, VoIP, remote offices, and IoT deployments.

Advanced UniFi WAN Control

• Primary WAN, Failover, or Load Balancing: Choose how 5G integrates into your network.

• Per-SIM Data Usage Limits: Prevent unexpected carrier overages with automatic caps.

• SLA-Driven Routing: Apply granular traffic rules using UniFi’s SD-WAN features.

• Full UniFi Management: Simple monitoring and configuration through the UniFi Network app.

Hardware and Build Quality

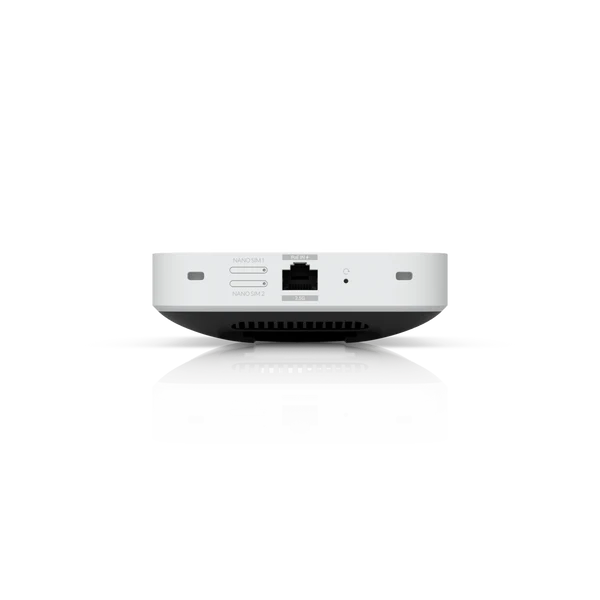

• Single 2.5 GbE Port: Ensures high-speed uplink into your UniFi gateway or switch.

• Embedded 4-Antenna Array: Engineered for stable indoor 5G performance across multiple bands.

• PoE Powered: Max consumption 14.5W; eliminates bulky power bricks.

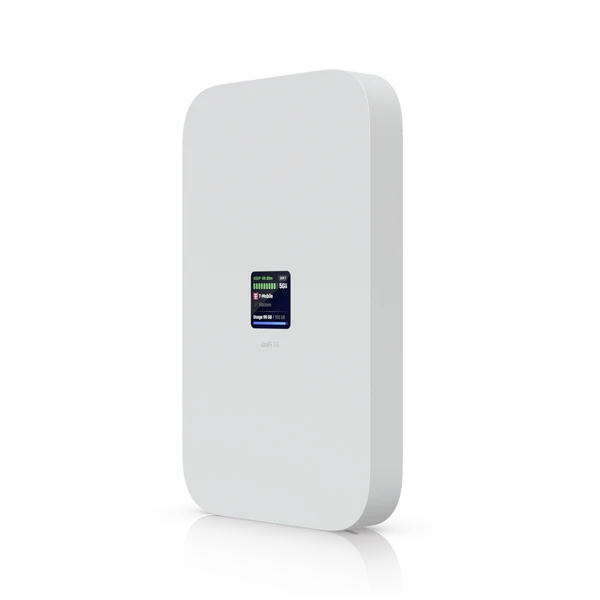

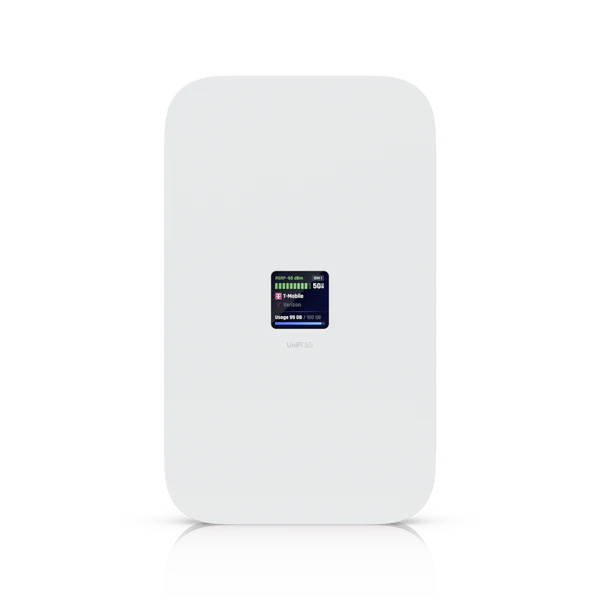

• 1.3" Touchscreen Display: Shows signal strength, network mode, and device status.

• Durable Materials: Polycarbonate and aluminum alloy enclosure with IK04 resistance.

Summary / Conclusion

The Ubiquiti U5G-Max UniFi 5G Max is a best-in-class PoE-powered 5G modem designed for modern UniFi networks that demand flexibility, ease of deployment, and carrier independence. With powerful Sub-6 5G, advanced routing controls, dual SIM support, and effortless UniFi integration, it delivers enterprise-grade WAN performance for homes, offices, and remote sites alike.
