Description
Embedded Smart Content Management
Content Manager
Without extra PC, content can be easily created using embedded templates and can be played according to its schedule managers set.
Embedded Smart Content Management
Group Manager
A Smart TV Signage itself works as a server, so without any extra device, a master TV can distribute content and set data on a selected group within the same network.
Compatible LG SW for Smart TV Signage
The compatible LG SW for Smart TV Signage includes LG Simple Editor, SuperSign Link to provide digital media editing, scheduling, distribution and management capabilities.
Smart Connectivity & Experience
Enriched Smart Content
Customers can easily access to various content via preloaded YouTube app, web browser as well as live channel.
Smart Connectivity & Experience
ScreenShare
Connect a smartphone or a laptop PC to TV via a Wi-Fi Direct connection. The TV will display the device's screen, and users can share their content and memories together
Easy Management

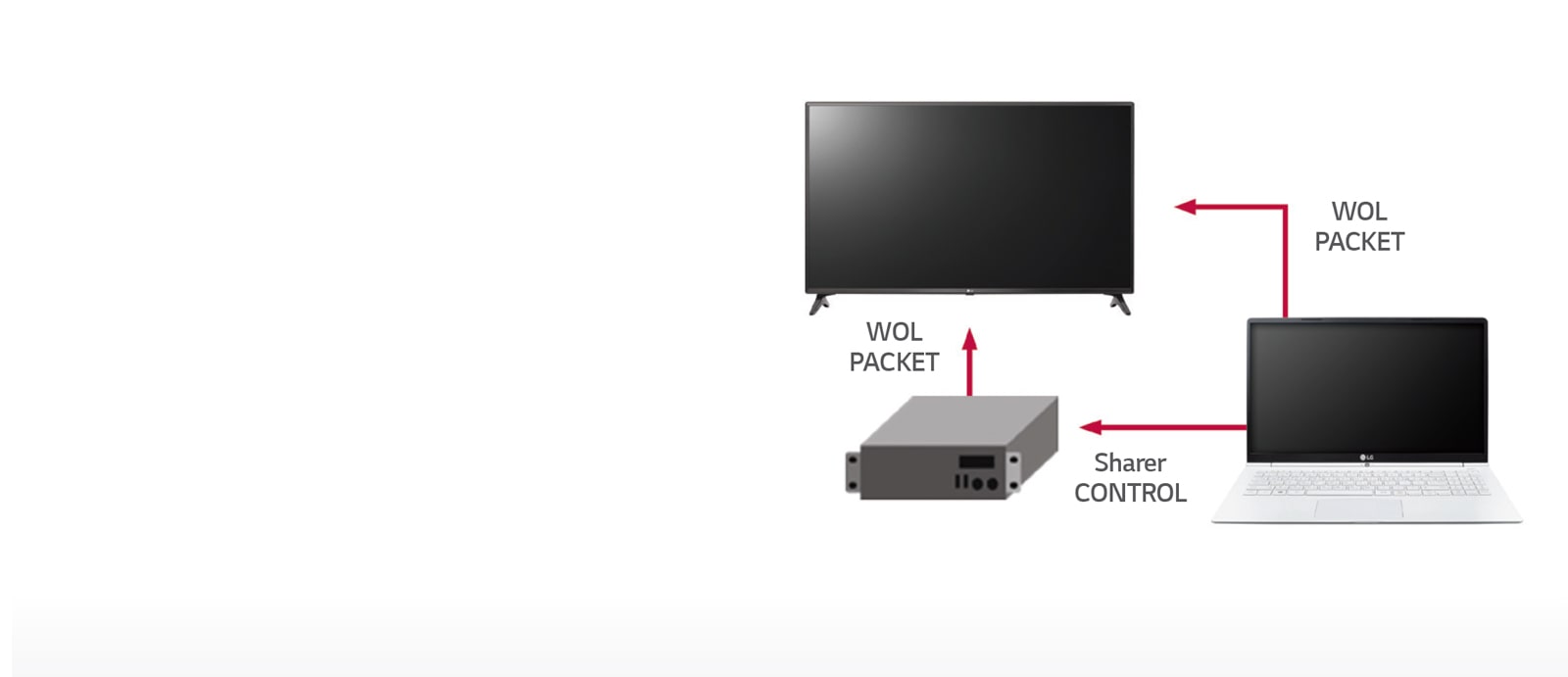

WOL
WOL (Wake on LAN) helps you remotely turn on TVs over the internet. Connect TVs and a PC in the same network, and send Magic Packet program to the MAC addresses of registered TVs. Then, it will wake up the TVs via LAN port.
Easy Management
SNMP
SNMP (Simple Network Management Protocol) ensures convenient network management for SI and business managers.
Easy Management
Built-in WiFi
With built-in WiFi, installation and content distribution have been simplified.
Fail Over
(Internal Memory only)
The USB fail over function enables content to be displayed without dead spots when no input signal is available. This feature supports files in JPG format with a maximum file size of 10 MB.

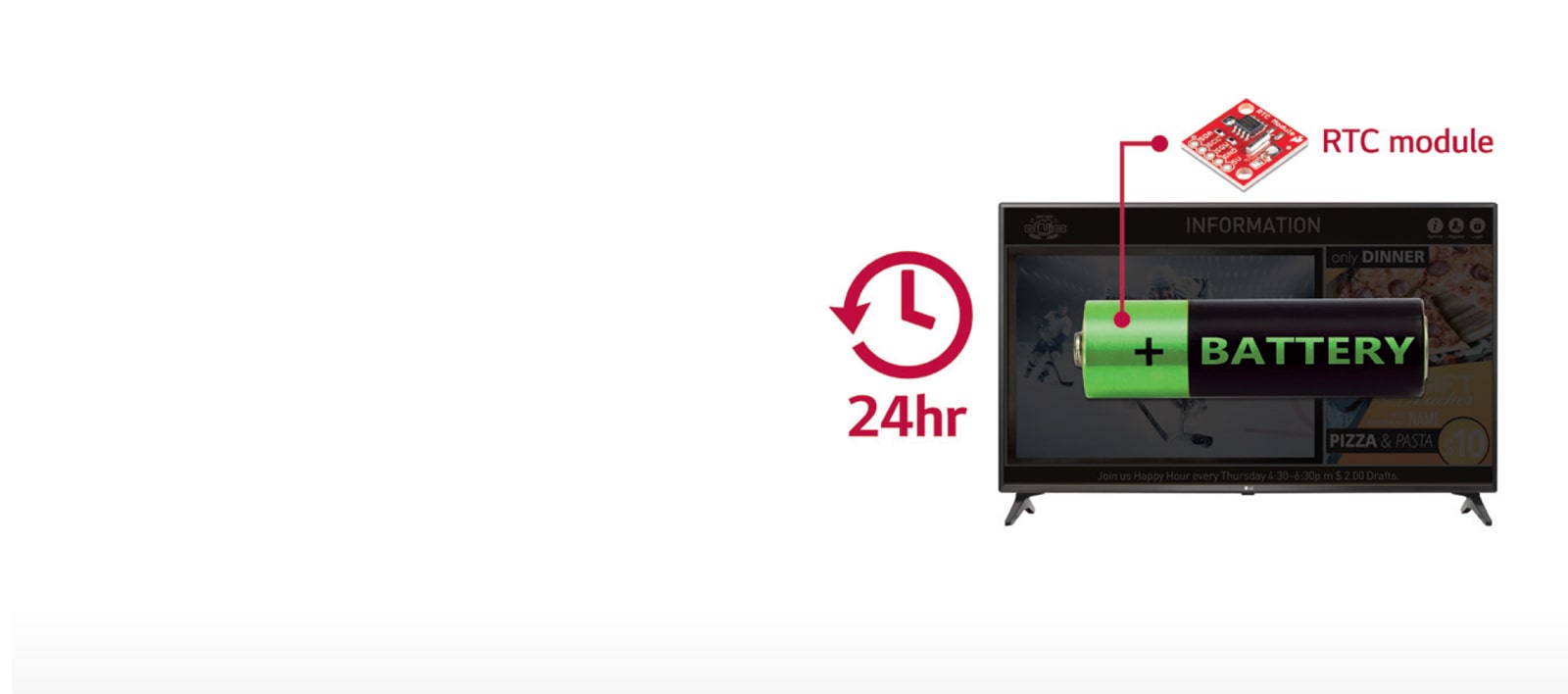

RTC
Save time and improve convenience with RTC (Real Time Clock). When the TV's power is off, time information is stored on the RTC module via an internal memory, and a time sync process can be omitted as the TV turns on.
NTP
NTP
With NTP (Network Time Protocol), the TV receives real time updates from the network and synchronizes its time accordingly.
Technical Specification
| Display Type | Direct LED |
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 400 |
| Broadcasting System | Analog - PAL/SECAM, Digital - DVB-T2/C/S2 |
| Video | Picture Engine, XD Engine, Real Cinema 24p (3:3 pull down) |
| Aspect Ratio | 8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom) |
| Audio | Audio Output / Speaker System - 10W + 10W / 2.0 ch |
| Sound mode - 6 modes (Standard, Cinema, Clear Voice, Sports, Music, Game) | |
| Smart Features | Smart UX - webOS 3.5, Commercial Smart Home, Web Browser, Pre-loaded YouTube Apps, Magic Remote (Optional) |
| Connectivity - SoftAP, WiFi, ScreenShare (Miracast), DIAL, Bluetooth Sound Sync, LG Sound Sync | |
| Features | Installation - USB Cloning |
| Management - WOL (Wake on LAN), SNMP (Simple Network Management Protocol), Self Diagnostics, IR Out, Multi IR Code, HDMI-CEC | |
| Hospitality | Hotel Mode, Lock Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Content Manager, Group Manager, Crestron Connected® Certification, RTC (Real Time Clock), NTP sync timer |
| Interface | Side - HDMI In, USB (2), CI Slot |
| Rear - RF(2), AV In, Component In (RCA5), Digital Optical Audio Out, HDMI Input (2), RGB In, PC Audio Input (Sharing with Component Audio), RS-232C (Control & Service), Headphone Out, RJ45 (Ethernet), External Speaker | |
| Dimension (Unit: mm) | VESA 200 x 200 |
| WxHxD / weight (with stand) - 974 x 625 x 220 / 9.3kg | |
| WxHxD / weight (Packing) - 1,060 x 660 x 152 / 11.3kg |
