Description
AN EFFICIENT, RELIABLE AND AFFORDABLE PRINTER YOU CAN RELY ON.
Improved Efficiency, Proven Reliability
- 24-pins Impact Printer
- Print speeds of up to 487 cps (10 cpi)
- 128 kb memory buffer
- MTBF of 25,000 POH
- Built-in network connectivity

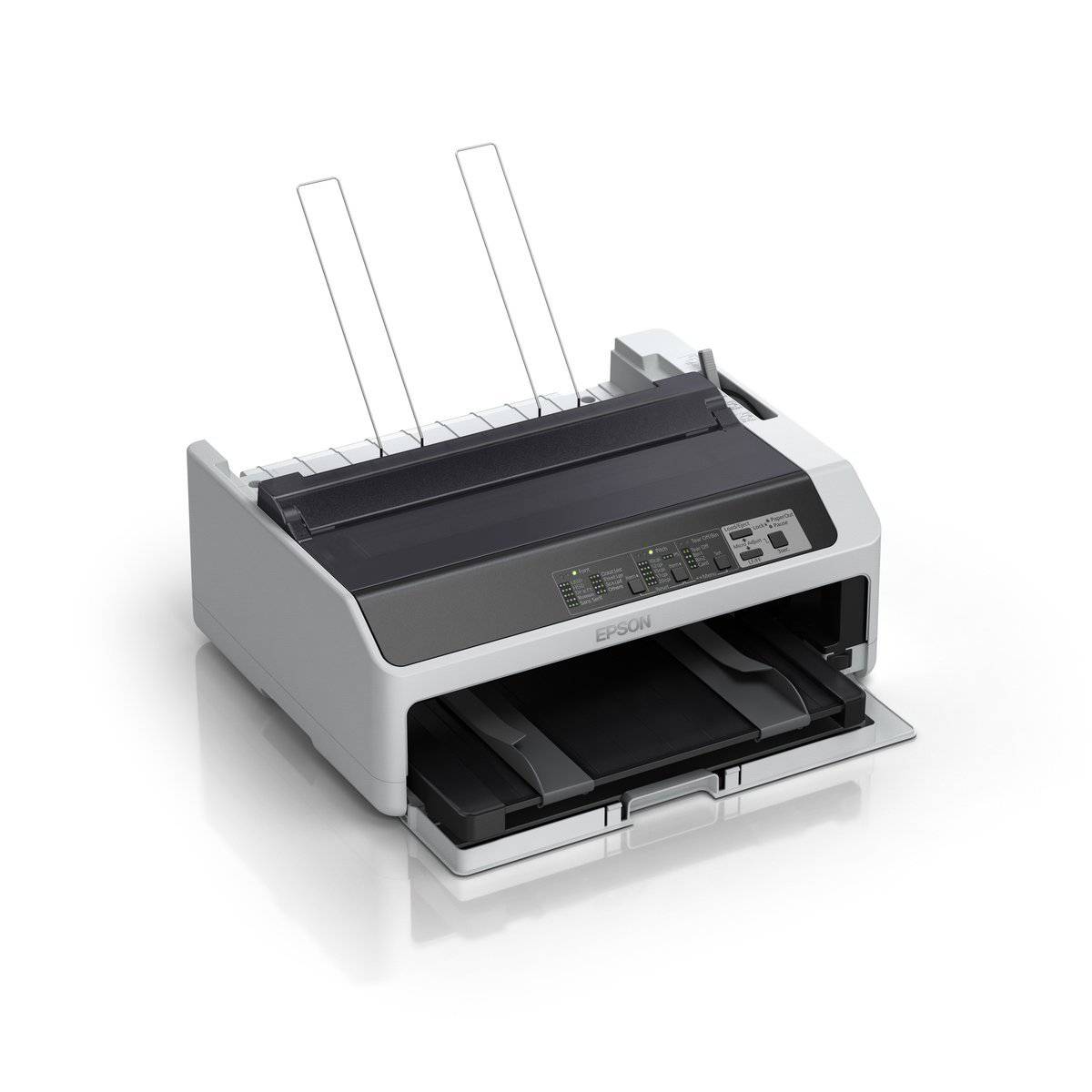

The Epson LQ-590IIN comes with built-in network connectivity and is designed to offer busy offices extraordinary speed, output quality and reliability. Based on Epson’s experience in delivering industry-standard solutions, this printer helps you run and grow your business and stay in control of your operations. Easily manage and print seven-part forms* and reports at print speeds of up to 487 characters per seconds (cps) to deliver fast results and speedy transactions. Moreover, with a high character yield of up to 5 million characters, you can do more with less.
Technical Specifications
Printing Technology:
Print Method:Impact dot matrix
Control Panel:6 switches and 10 LEDs
Print Direction:Bi-direction
Control Code:ESC/P2, IBM PPDS
Number of Pins:24
Print Speed:
Ultra High Speed Draft:10 cpi: 550cps
High Speed Draft:10 / 12 cpi: 487 / 584 cps
Draft:10 / 12 cpi: 366 / 439 cps
NLQ:10 / 12 cpi: 121 / 145 cps
Reliability:
Printhead Life:400 million strokes / wire
Mean Print Volume Between Failure (MVBF):50 million lines (except print head)
Mean Time Between Failure (MTBF):25,000 Power On Hours (POH) (25% Duty)
Print Characteristics:
Character Sets:1 Italic and 12 graphical character tables: Italic table, PC437 (US, StandardEurope), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15
Bitmap Fonts:10, 12, 15 cpi
Scalable Fonts:Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt - 32pt. (every 2pt.)
Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A , UPC-E, Code 39, Code 128, POSTNET
Paper Path:
Manual Insertion: Front or Rear in-Top out
Push Tractor: Front or rear in, top out
Pull Tractor: Front, rear or bottom in, top out
Paper Media:
Cut Sheet (Single Sheet):Entry: Front
Length: 100 - 364 mm (3.9 - 14.3”)
Width: 100 - 257 mm (3.9 - 10.1”)
Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055”)
Entry: Rear
Length: 100 - 364 mm (3.9 - 14.3”)
Width:100 - 257 mm (3.9 - 10.1”)
Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055”)
Cut Sheet (Multi-part Forms):Entry: Front
Length: 100 - 364 mm (3.9 - 14.3”)
Width: 100 - 257 mm (3.9 - 10.1”)
Thickness: 0.12 - 0.46 mm (0.0047 - 0.018”)
Copies: 1 Original + 5 copies
Continuous Paper (Single Sheet / Multi-part):Entry: Front, Rear, Bottom
Length: 101.6 - 558.8 mm (4.0 - 22.0”)
Width: 101.6 - 254 mm (4.0 - 10.0”)
Thickness: 0.065 - 0.49 mm (0.0025 - 0.019”)
Copies: Original + 6 copies
Envelope (No.6):Entry: Rear
Length: 92mm (3.6”)
Width: 165mm (6.5”)
Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205”)
Envelope (No.10):Entry: Rear
Length: 105mm (4.1”)
Width: 241mm (9.5”)
Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205”)
Label (Base Sheet):Entry: Bottom
Length: 101.6 - 558.8 mm (4.0 - 22.0”)
Width: 100 - 148 mm (3.9 - 5.8”)
Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075”)
Card:Entry: Front, Rear
Length: 100 - 148 mm (3.9 - 5.8”)
Width: 100 - 148 mm (3.9 - 5.8”)
Thickness: 0.22mm (0.0087”)
Roll Paper:Entry: Rear
Diameter: 127mm (5”)
Width: 216mm (8.5”)
Thickness: 0.07 - 0.09 mm (0.0028 - 0.035”)
Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)
Options:
Options:
Single Bin Cut Sheet Feeder C12C806372
Pull Tractor Unit C12C933761
Ribbon Cartridge C13S015589
High Capacity Cut Sheet Feeder C12C806382
Environmental Conditions (Operating):
Temperature:5 - 35 °C*2
Humidty:10 - 80% RH*2
Acoustic Noise:
Acoustic Noise:55dB
Input Data Buffer:
Input Data Buffer:128KB
Interface:
Interface:USB 2.0, Bi-directional parallel USB 2.0, Bi-directional parallel
(IEEE-1284 nibble mode supported)
Printable Columns:
Pitch:10cpi: 80 columns
Ribbon Cartridge:
Standard: Fabric Ribbon Cartridge (Black)
Ribbon Life: Approx. 5 million Characters*1
Supported Operating System:
Printer Driver:Microsoft Windows XP / Vista / 7 / 8 / 10
Utility:Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10
Resources
Others Models of Dot Matrix Printers
These printers deliver text, rugged reliability and performance in demanding print environments
- Epson LX-310 Dot Matrix Printer
- Epson LQ-310 Dot Matrix Printer
- Epson LQ-590II Impact Printer
- Epson LQ-590IIN Network Impact Printer
- Epson LQ-680 Pro Network Dot Matrix Printer
- Epson LQ-2090II Dot Matrix Printer
- Epson LQ-2090IIN Network Dot Matrix Printer
- Epson LQ-2190 Dot Matrix Printer
- Epson FX-2190II Dot Matrix Printer
- Epson FX-2190IIN Network Dot Matrix Printer
- Epson DLQ-3500II Dot Matrix Printer
- Epson DLQ-3500IIN Dot Matrix Printer
- Epson DFX-9000 Network Dot Matrix Printer
- LX - 9 pin
- DLX - 9 Pin Heavy Duty
- LQ - 24 pin
- DLQ - 24 pin Heavy Duty
- 3 digits XXX - 90 Column
- 4 digits XXXX - 136 Column
- N - Network
